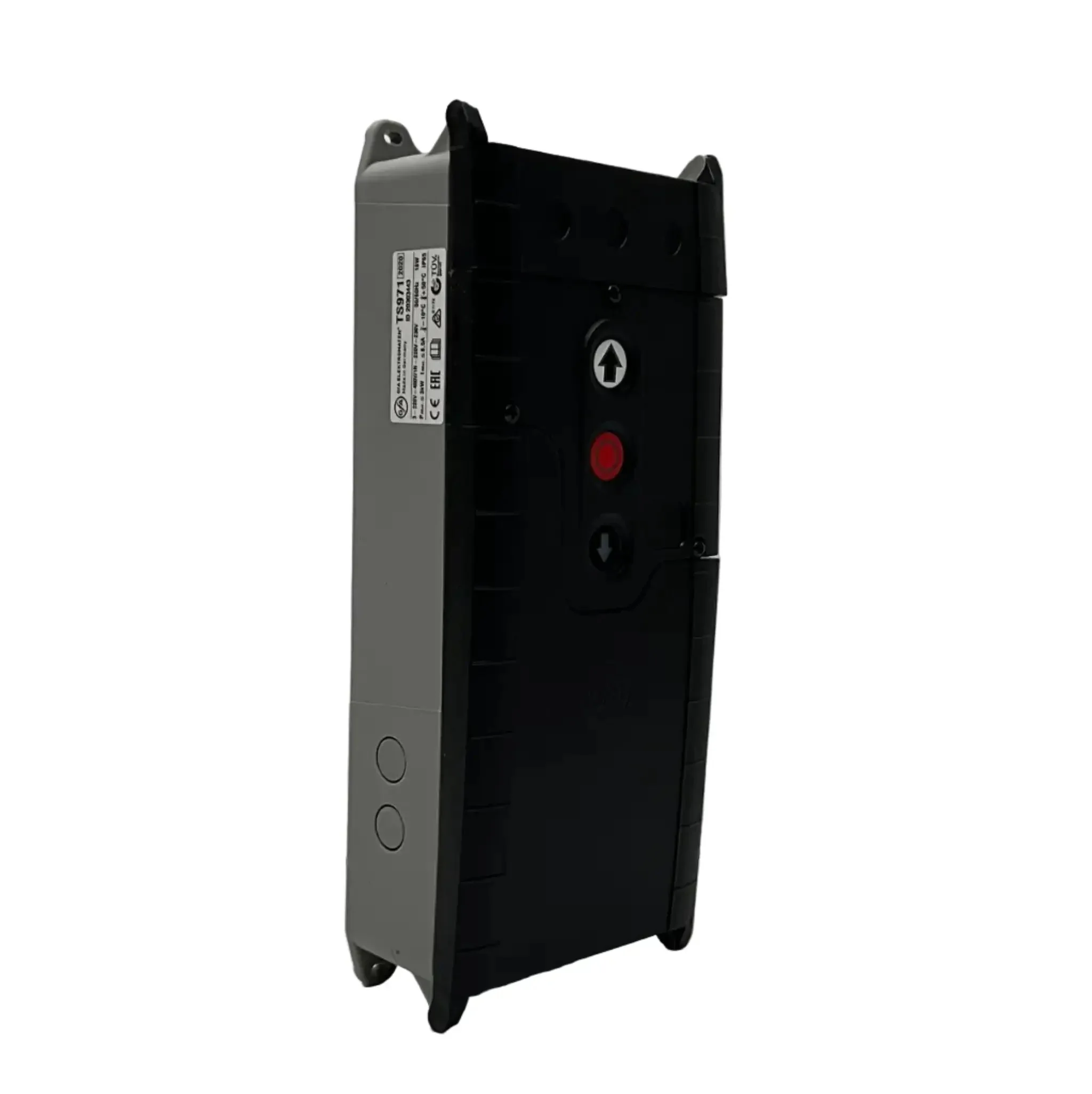

GFA/Assa Abloy TS 971 Door Control Unit
- Brand: GFA ELEKTROMATEN GmbH & Co. KG (Assa Abloy)
- Model: TS 971
- Type: Control Unit / Door Controller for Industrial Sectional Doors
- Part Number: 30097100
Technical Specs:
- Function: Microprocessor-based control unit for automatic sectional, roller, and high-speed industrial doors; supports single-leaf, double-leaf, and bi-parting doors
- Operating voltage: 1 N~220-230 V, 3 N~220-400V, 3~220-400V
- Motor Power: Up to 1.1 kW
- Rated Current per phase: 10…..16 A
- Control Voltage: 24 V DC, 10mA
- 24 V DC supply for accessories (max 500 mA)
- Safety Features: Category 2/PL c (EN ISO 13849-1)
- Operating Modes: Automatic, Deadman, Push-and-Go, Impulse, Partial Open, Timer
- Display: 7-segment LED display + status LEDs (operation, fault, safety circuit)

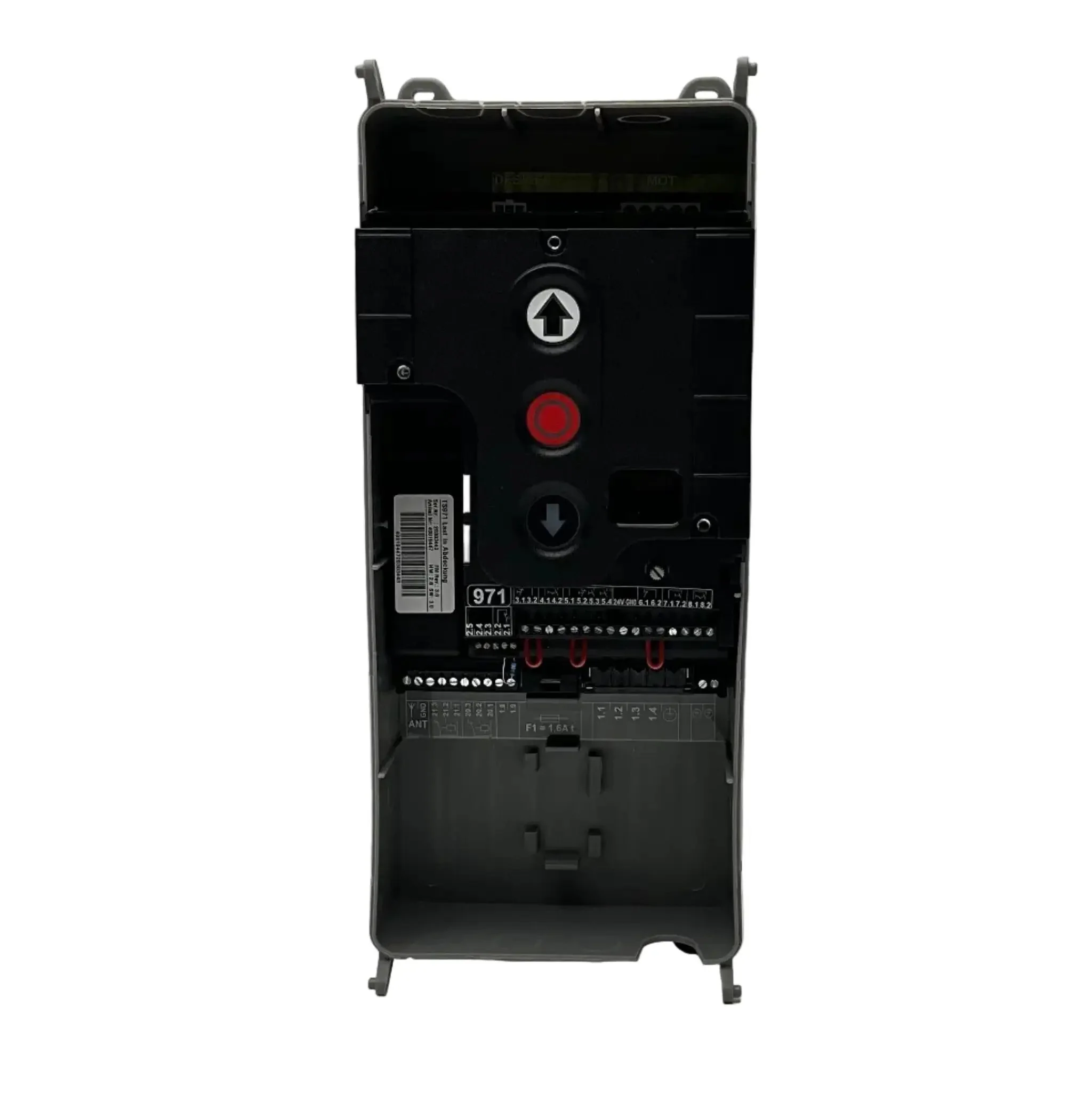

- Programming: 3-button interface or optional IR remote (TS 971 IR)
- Communication: WSD 2.4 GHz, Funk 434 MHz
- Enclosure Rating: IP54
- Operating Temperature: -20 °C to +60 °C
- Additional Features:
- Integrated frequency inverter option (for soft start/stop)
- Automatic door closing timer (adjustable 0–300 s)
- Partial opening function (adjustable height)
- Maintenance interval counter
- Self-learning limit switch adjustment
Dimensions: 400 x 180 x 200 mm
Weight: 2.0 kg
Country of Origin:: Germany
HS Code: 8537.10
