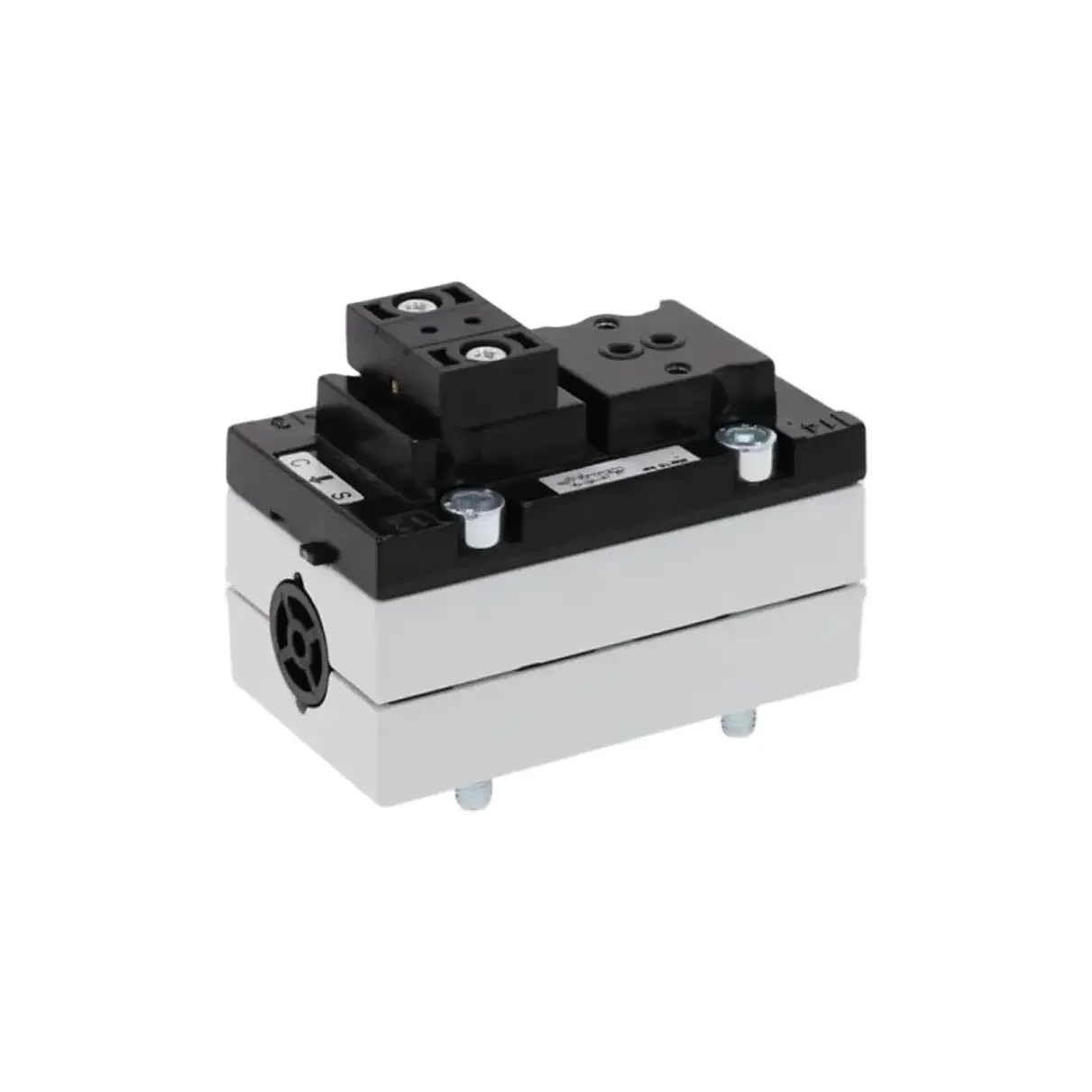

Aventics V581-5/2SR-I2-1CNA-PA-X-C-T0 Pneumatic Directional Control Valve

- Brand: Aventics (Emerson / Aventics)

- Model: V581-5/2SR-I2-1CNA-PA-X-C-T0

- Type: Pneumatic Directional Control Valve / Solenoid Valve

- Part number: 5812180080

- Technical specifications:
- Function: 5/2-way (5 ports, 2 positions; single solenoid)                                                  - Port size: G1/4
- Operating pressure: 0.95–10 bar
- Flow rate: 2700 l/min
- Pilot valve width: 30 mm
- Actuation: Single solenoid (monostable; spring return)
- Operation: Pneumatic, electrically activated
- Pilot air: Internal, internal
- Switching time: On: approx. 15–20 ms, Off: approx. 25–30 ms
- Mounting: Sub-base or manifold
- Operating temperature: -10°C to +50°C
- Materials: Die-cast aluminium body; seals NBR; plastic cover
- Additional features: High flow in compact size; suitable for valve terminals; robust for industrial automation, packaging, or assembly lines
- Standards: Compliant with ISO 5599-1 / VDMA 24563; CE marked; RoHS compliant

Weight: 400 g

Dimensions: 90 x 50 x 70 mm

Country of origin: Hungary

HS code: 8481.80
