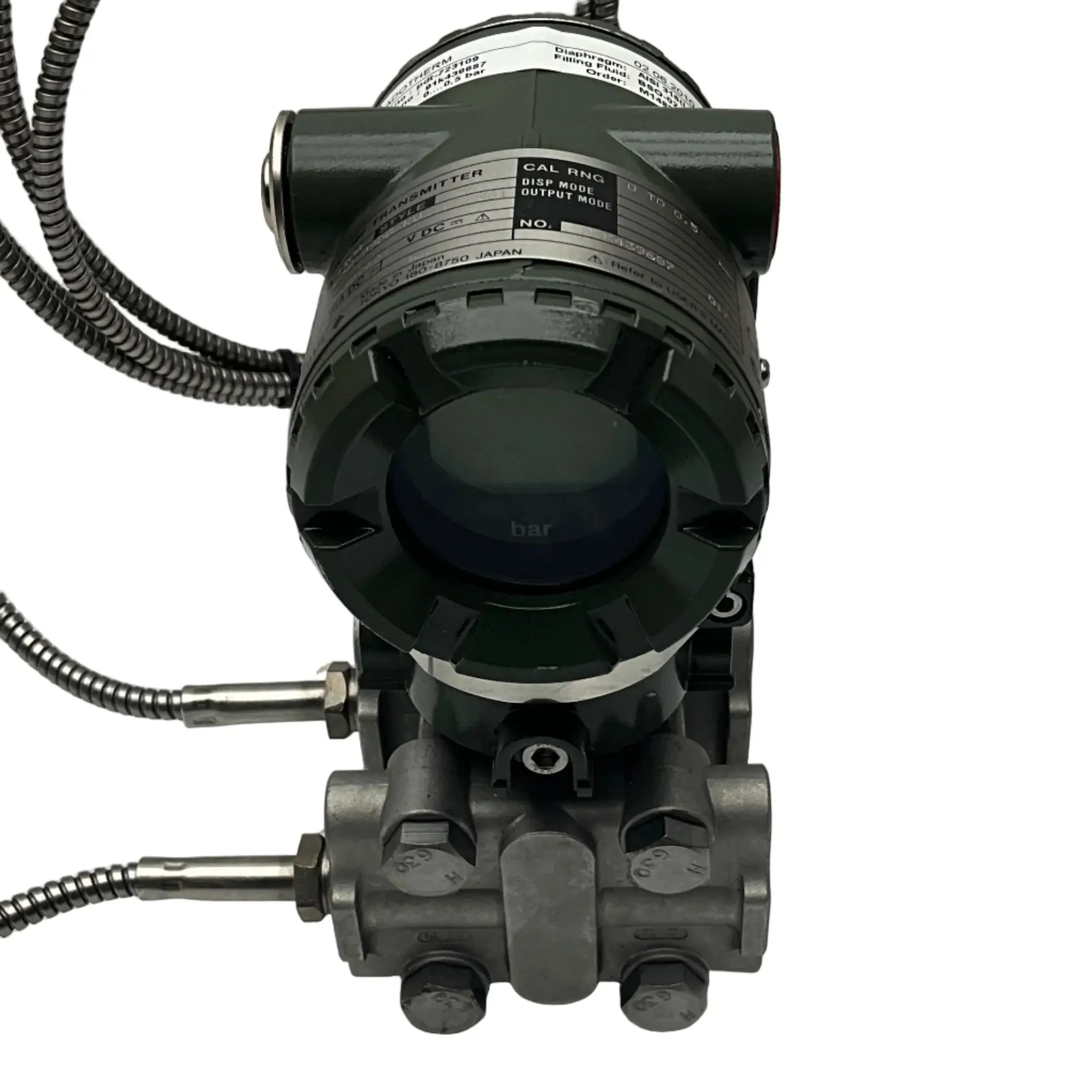

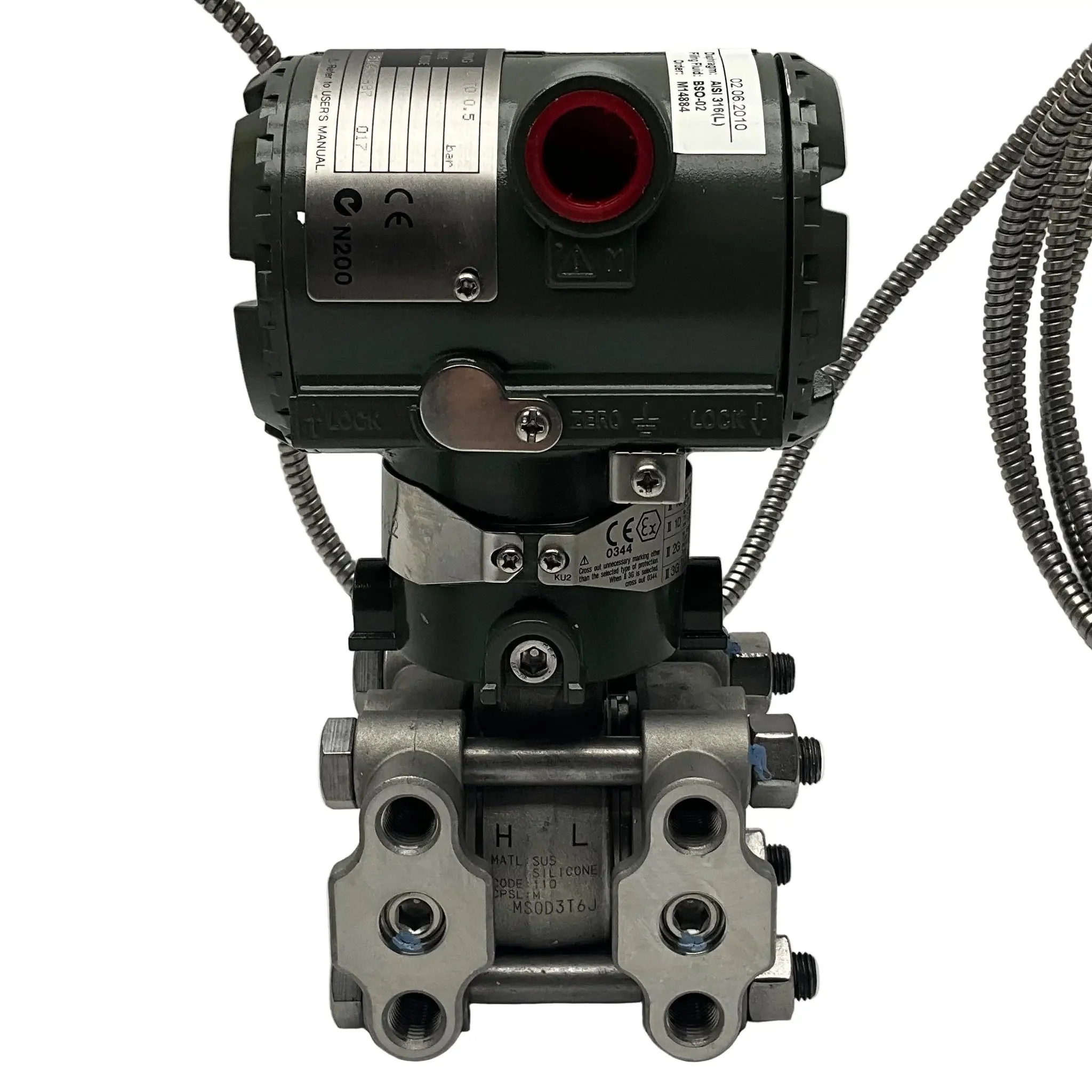

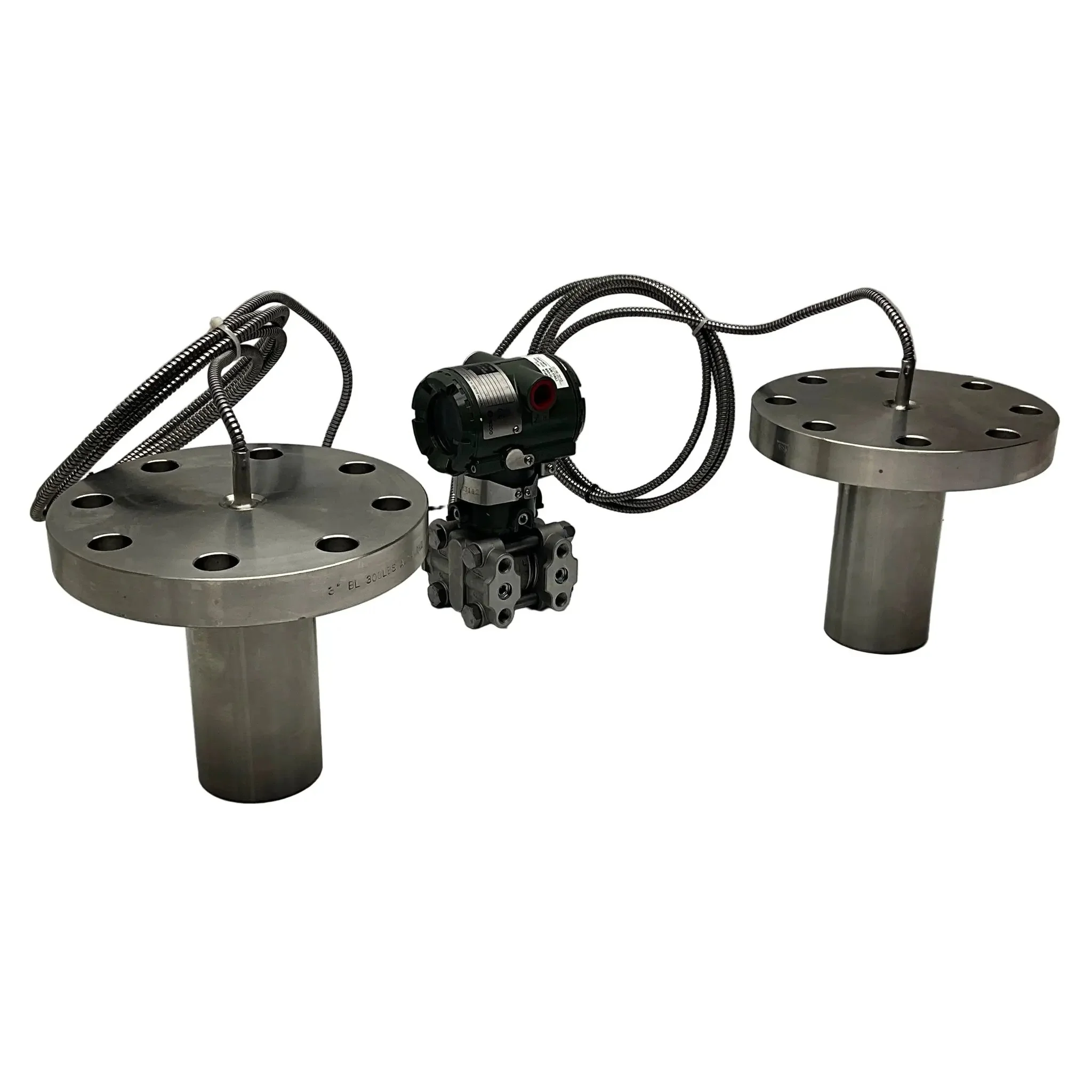

Yokogawa DPharp EJA 110A Differential Pressure Transmitter

- Brand: Yokogawa
- Model: EJA110A

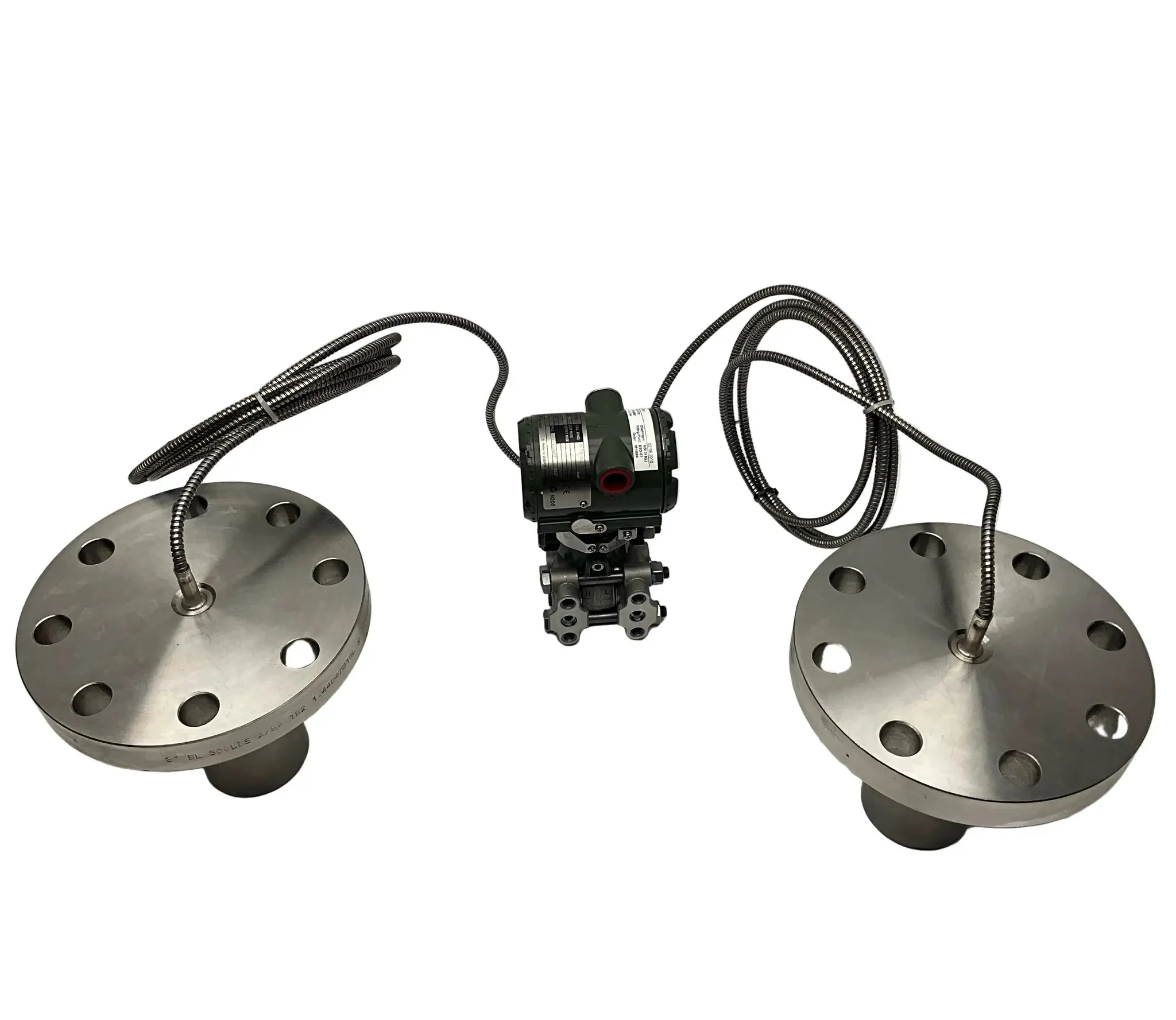

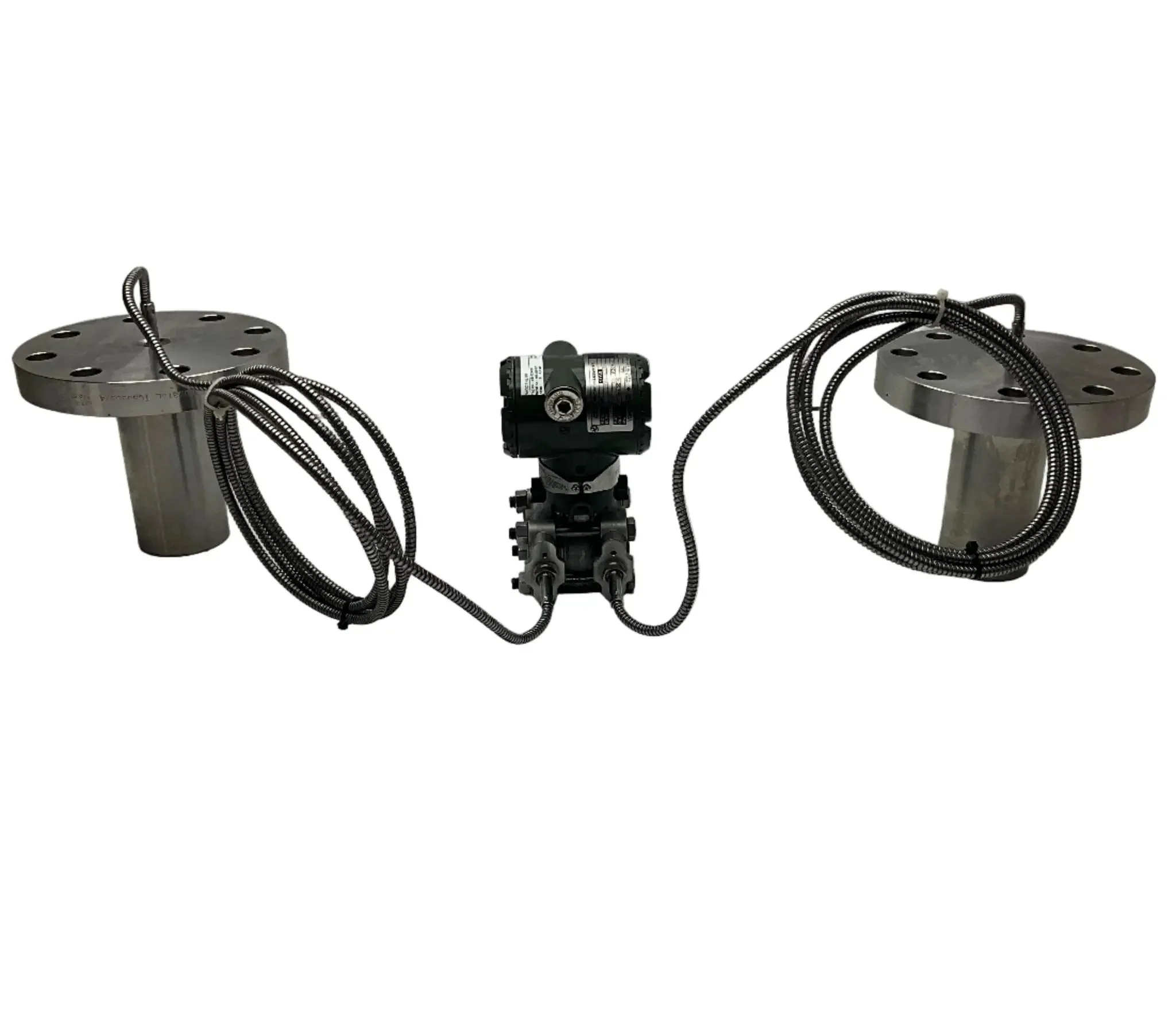

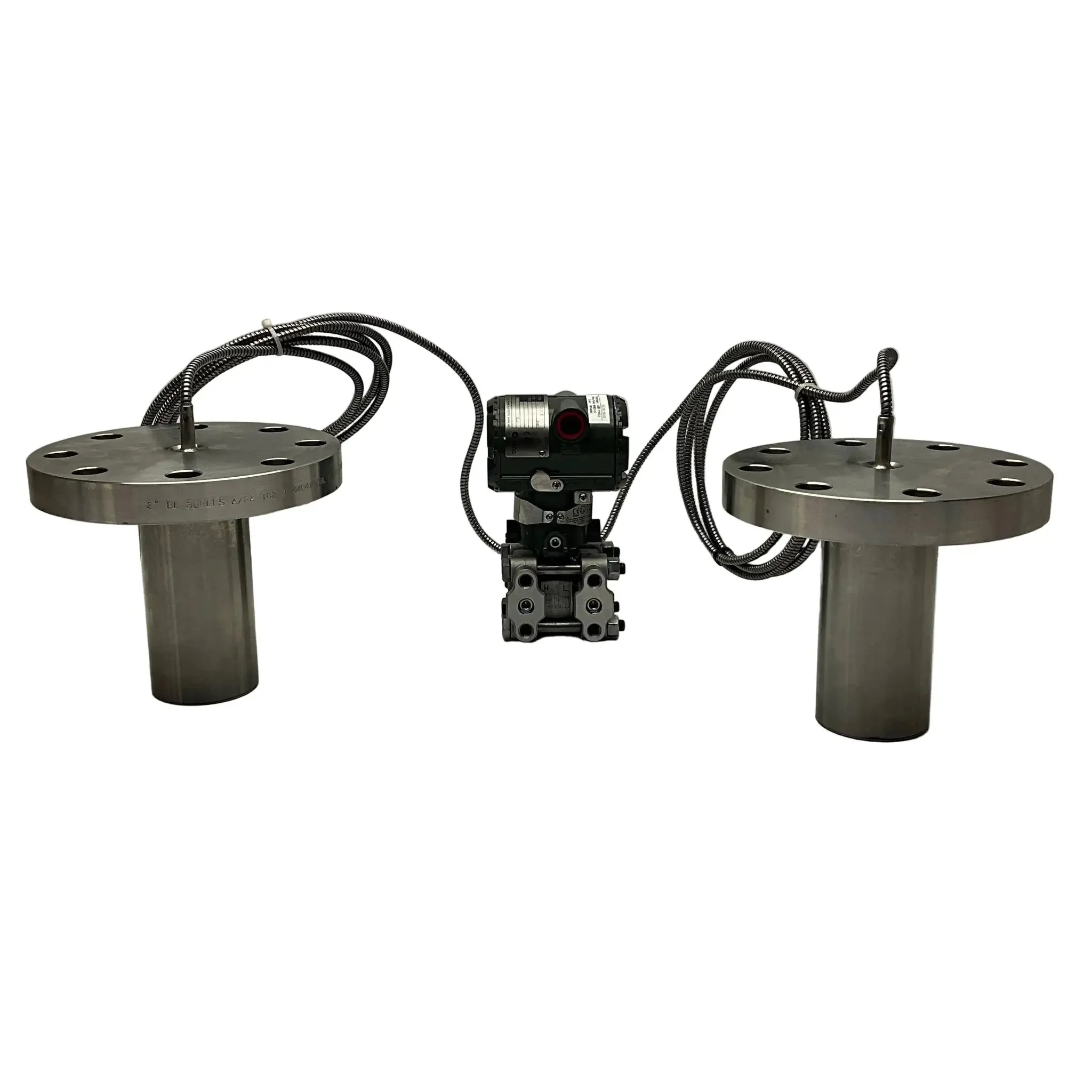

- Type: Differential Pressure Transmitter with Double Remote Diaphragm Seals

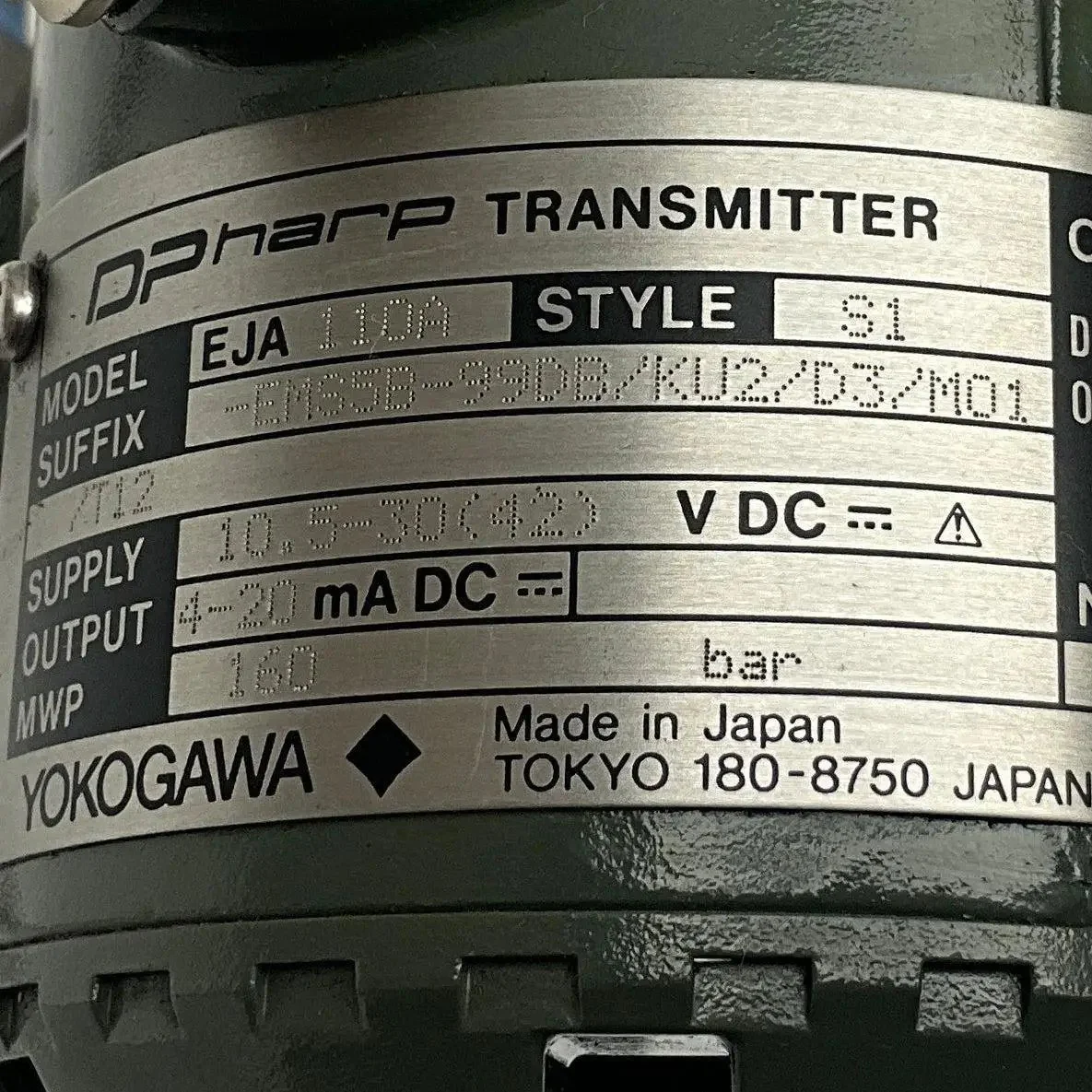

- Part Number: EJA110A-EMS5B-99DB/KU2/D3/M017T12
- Technical Specifications:
  - Transmitter Core: EJA110A
    - Measurement: Differential pressure

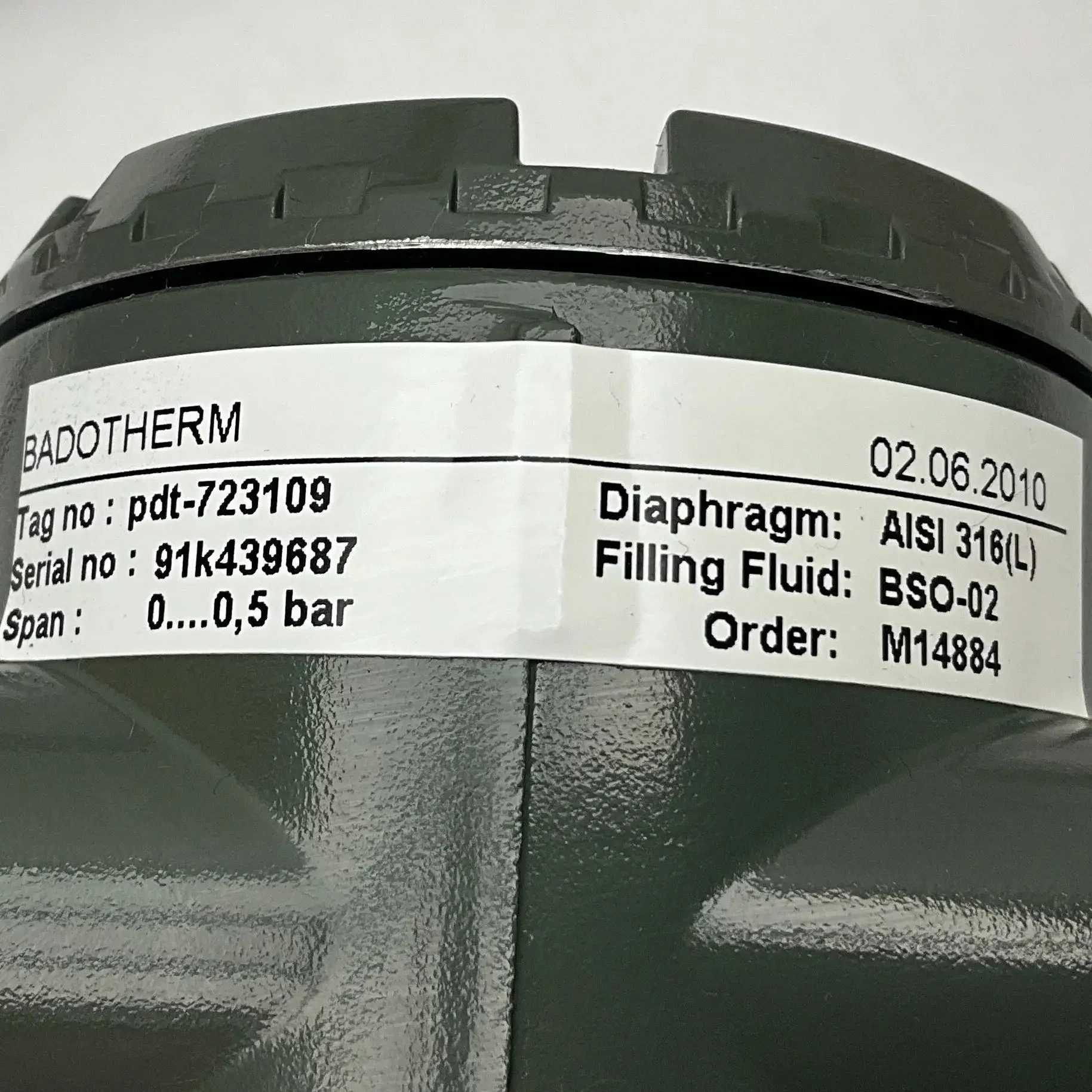

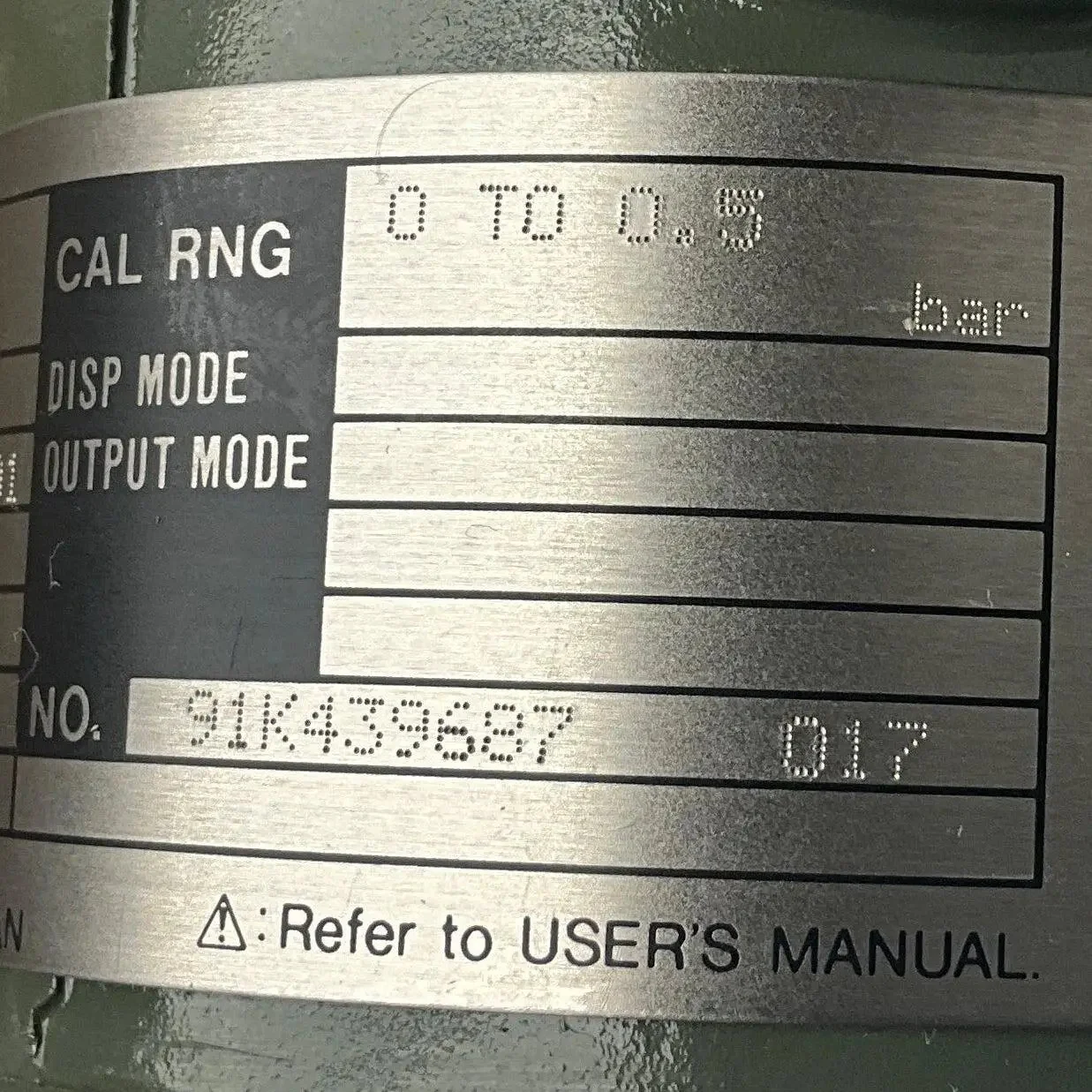

    - Span Range: 0....0,5 bar
      - Accuracy: ±0.065 % of span
    - Output: 4-20 mA DC + HART
    - Response Time: 95 ms
    - Stability: ±0.1 % of URL for 10 years

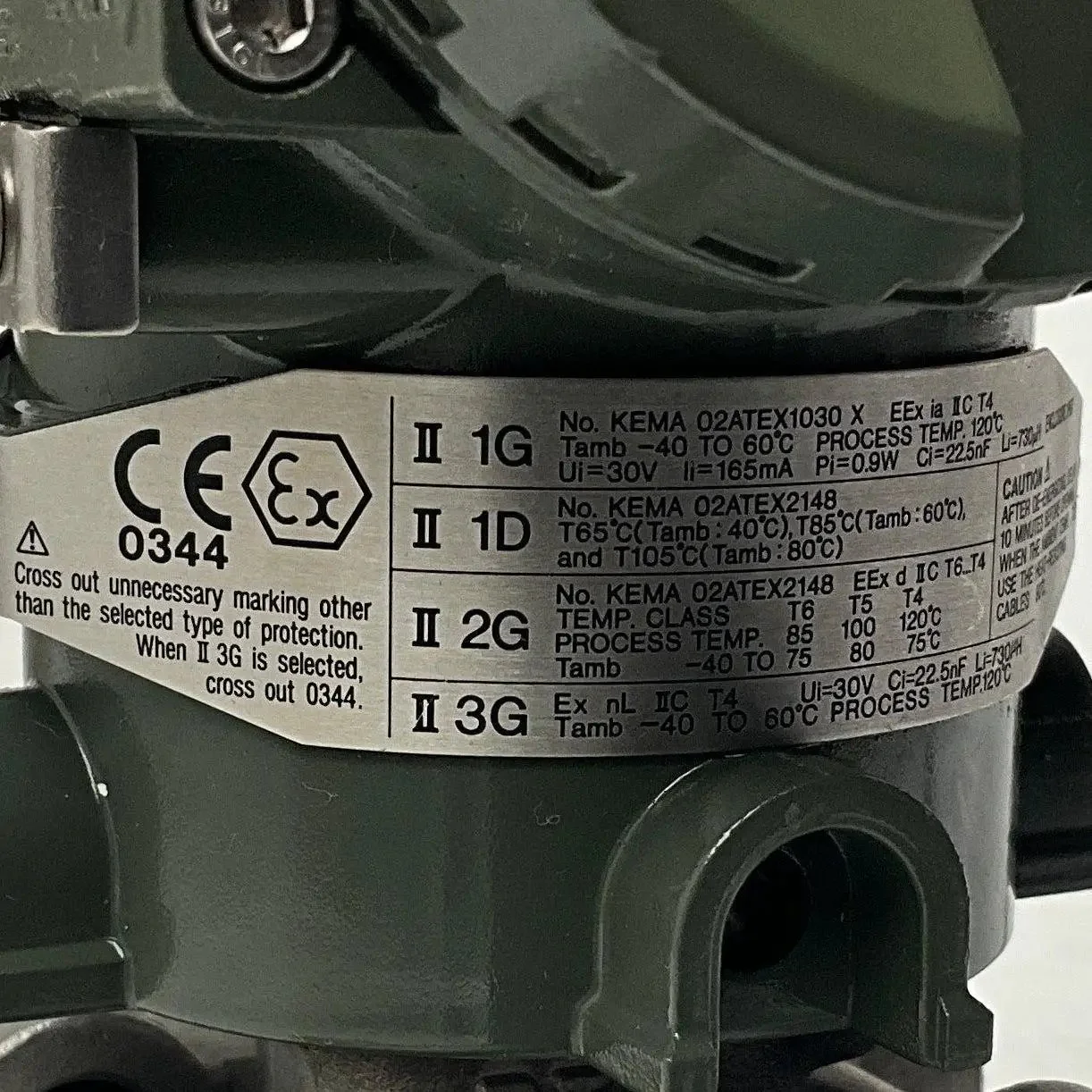

    - Protection: IP66/67, NEMA 4X

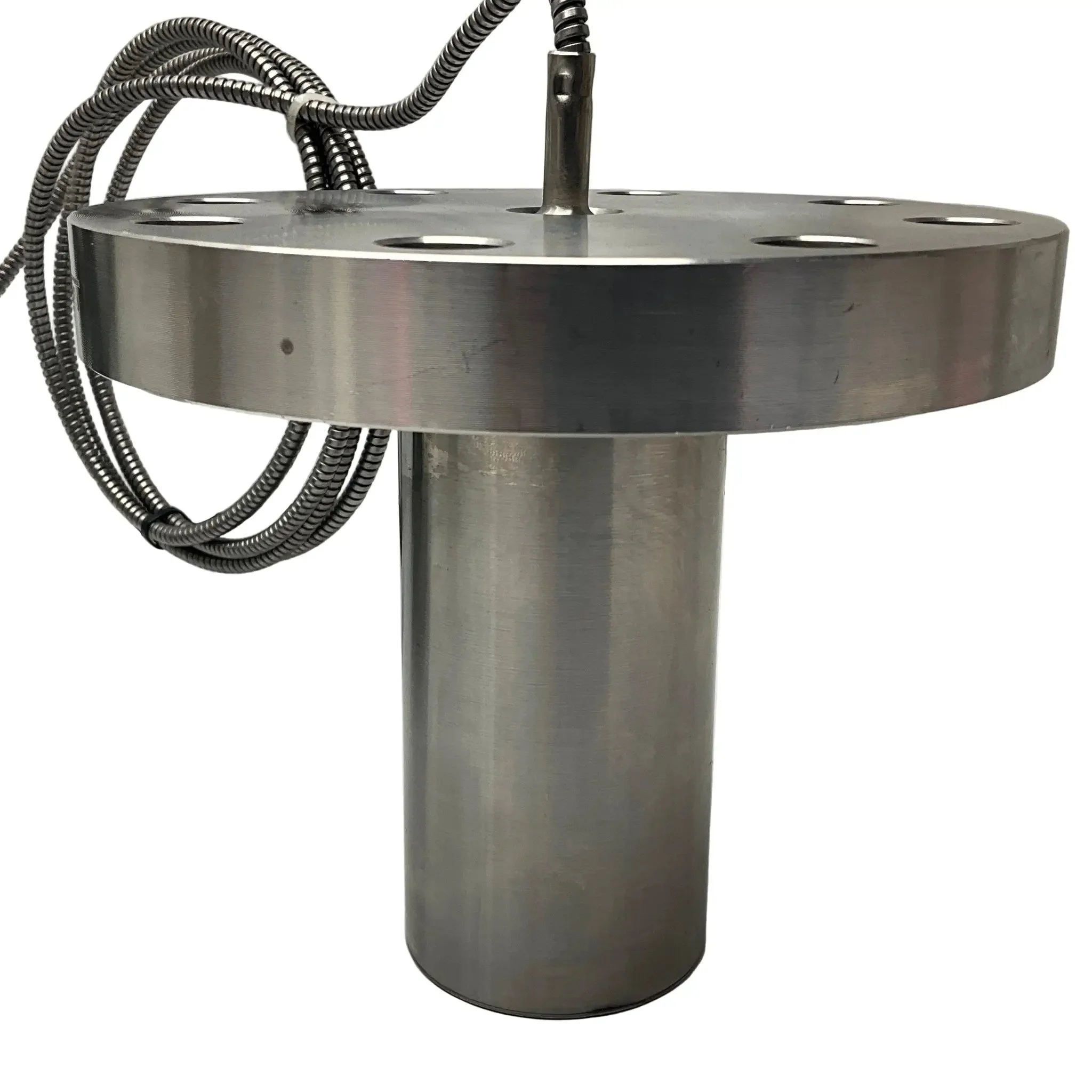

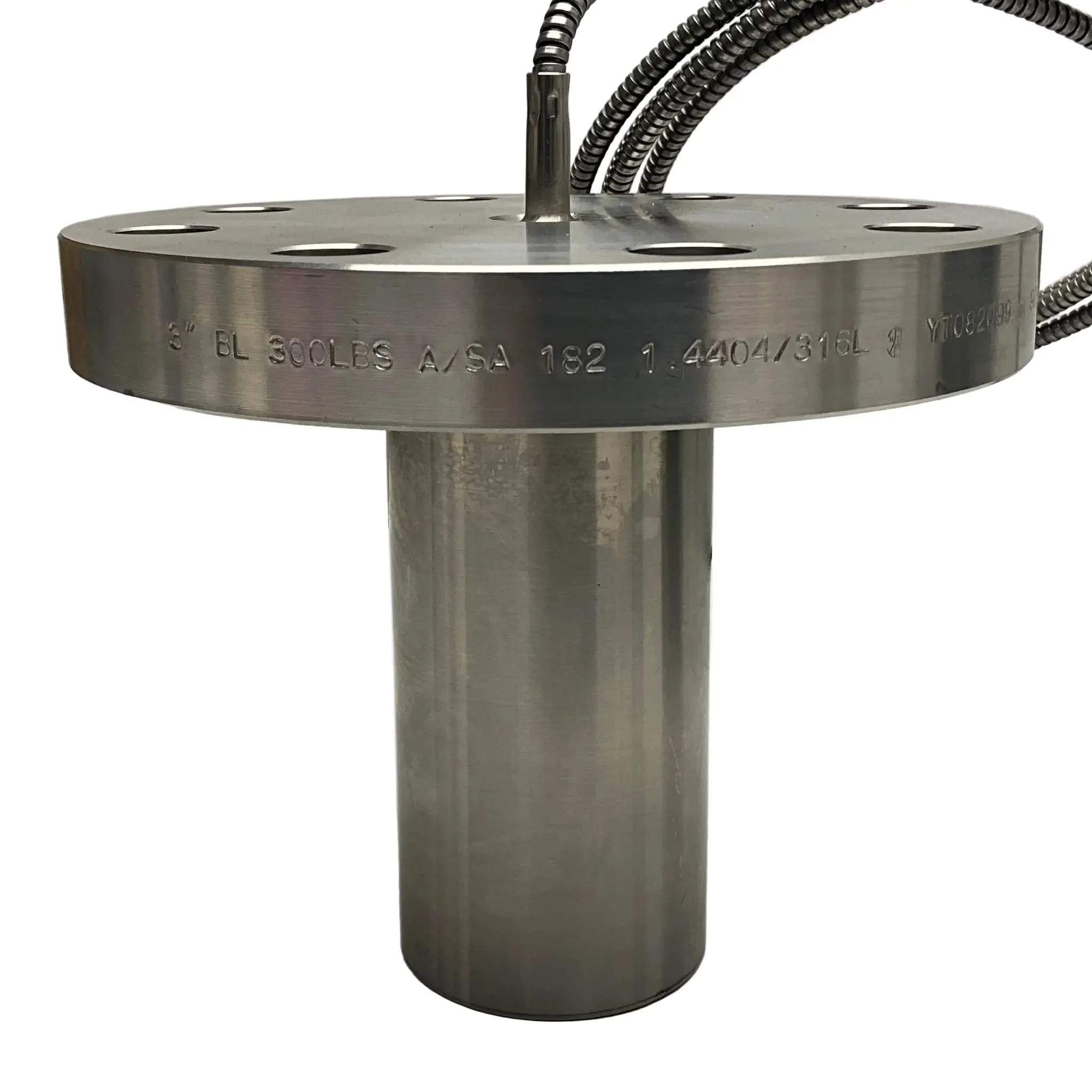

  - Remote Diaphragm Seals:
    - Seal Type: Extended diaphragm
    - Fill Fluid: High-temperature silicone BS02
    - Diaphragm Material: 316L SST
    - Process Connection: Flange 3"
    - Temperature Limits with Seals: -40°C to +315°C
    - Pressure Rating: Up to PN20 / Class 300
  - Typical Applications:
- Dimensions:Transmitter: 200 x120 x 120 mm, Remote Diaphragm Seal: 210 x 230mm
- Weight: Transmitter: 7 kg, Remote Diaphragm Seals: 9 kg each
- Country of Origin: Japan
- HS Code: 902620
