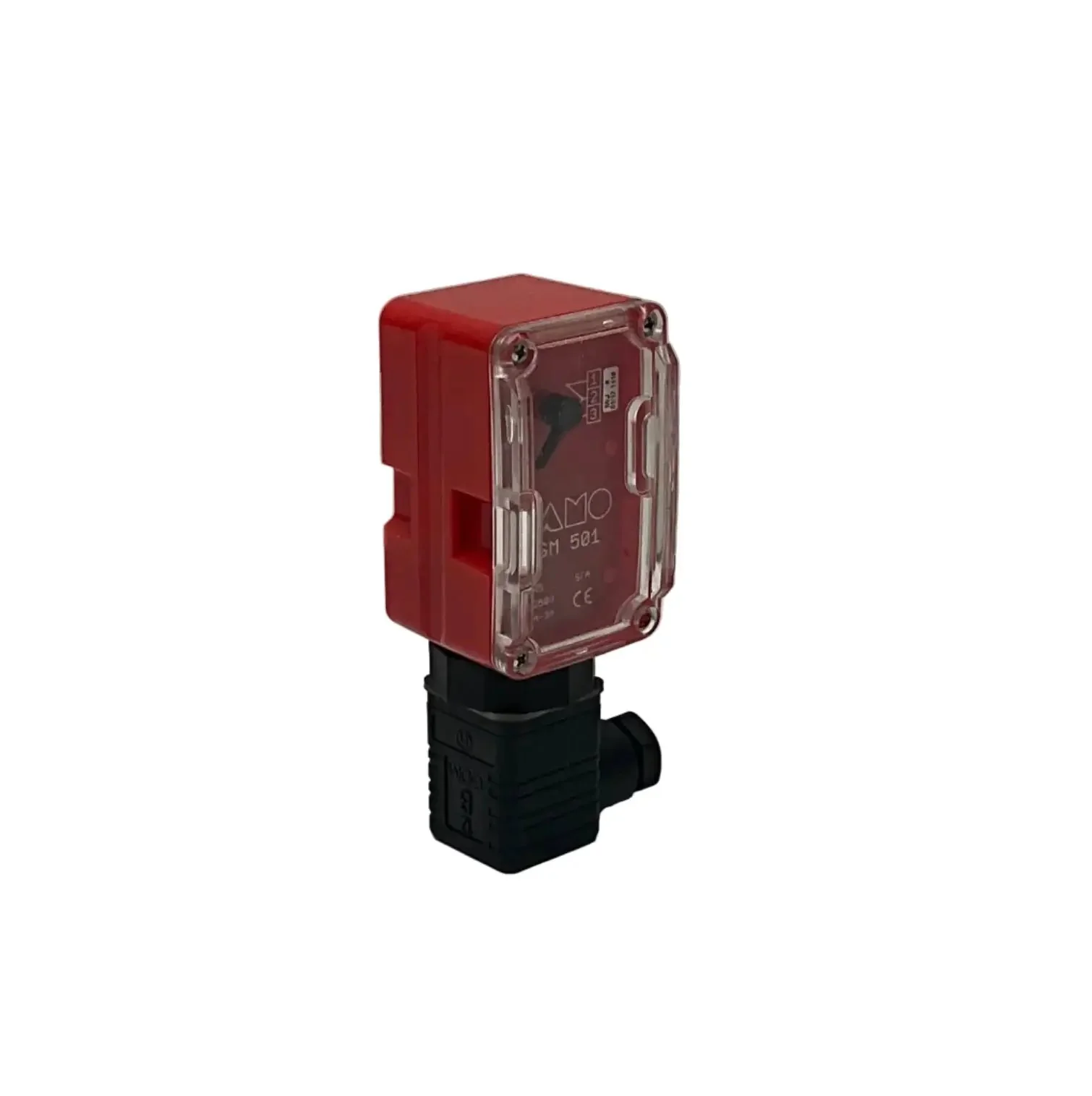

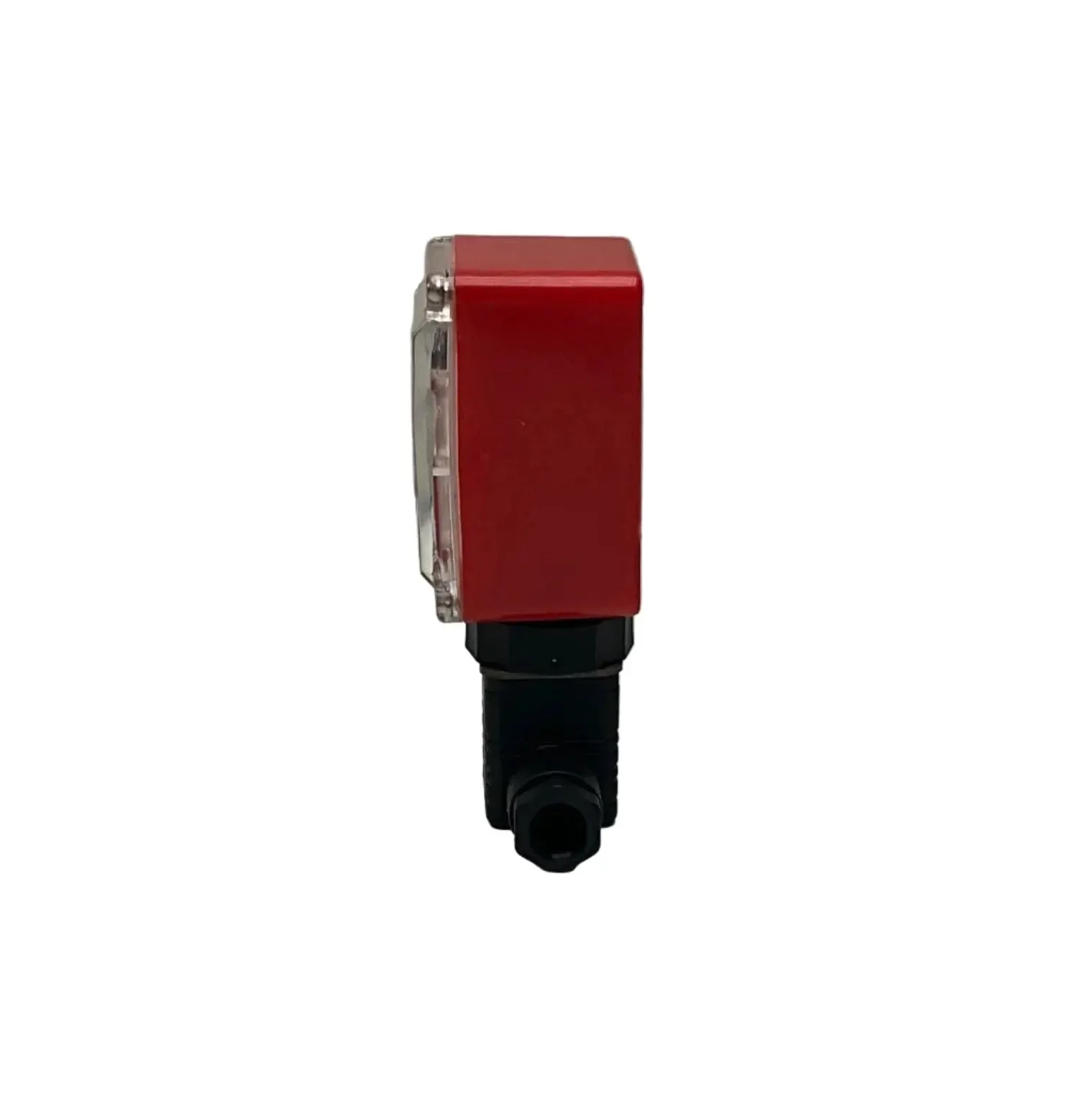

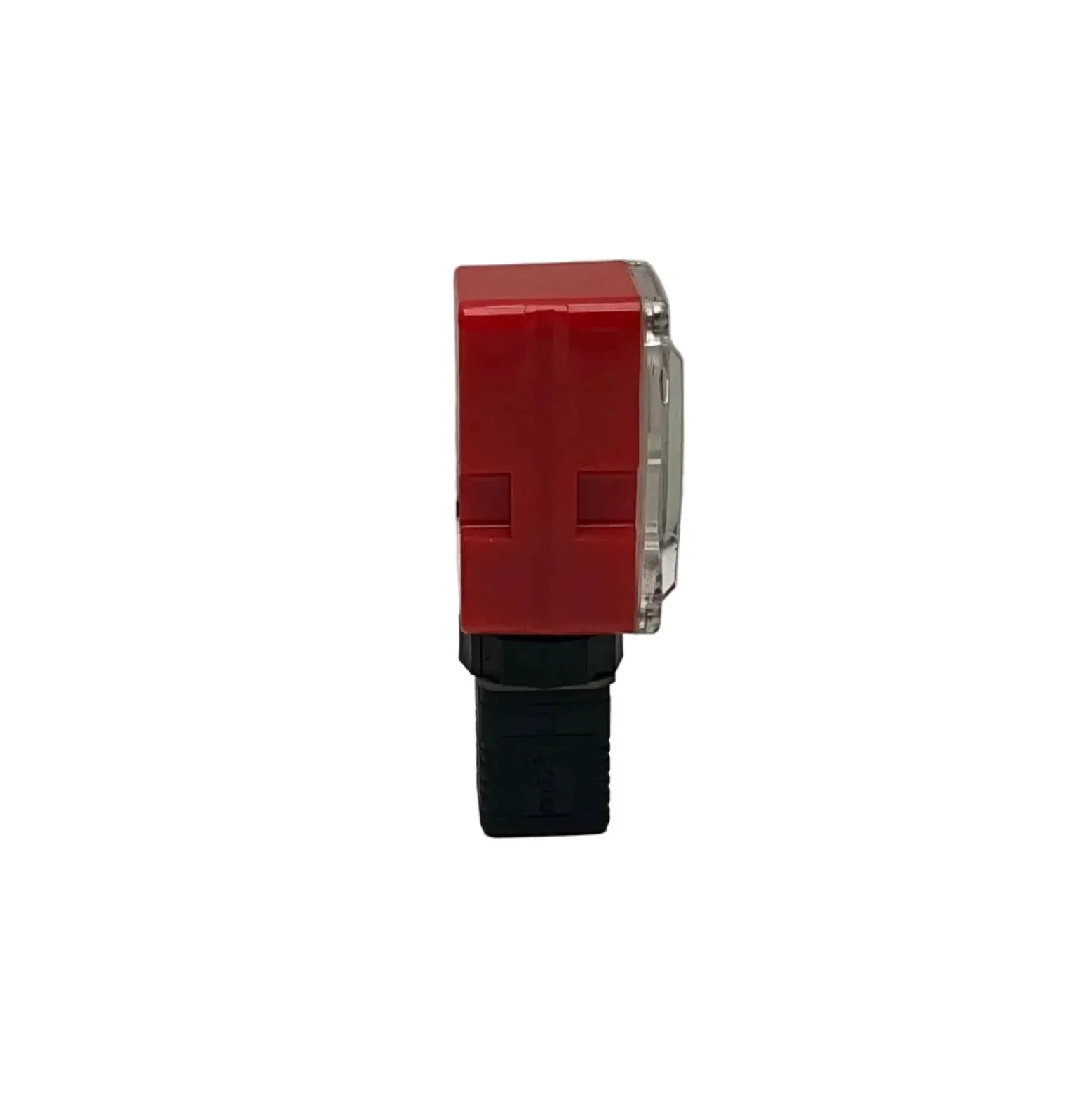

Bamo BSM 501 Bistable Level Switch

- Brand: Bamo
- Model: BSM 501
- Type: Bistable Level Switch
- Part Number: 585 100

- Technical Specs:
- Function: Bistable (latching) magnetic float level switch for point level detection in tanks, vessels, and sumps
- Switching Principle: Reed contact activated by magnetic float (not included)
- Switch Configuration: 1 changeover contact (SPDT) – bistable operation
- Switching Voltage: Max 250 V AC / 4….30 V DC
- Rated Current: 1 mA….3 A
- Mounting: Vertical insertion
- Density: ≥ 0.7 g/cm³
- Protection Rating: IP67
- Additional Features:
  - Bistable switching
  - Simple, reliable, maintenance-free design
- Certifications: CE

Dimensions: 50 x 60 x 120 mm

Weight: 100 g

Country of Origin: France

HS Code: 9026.10
