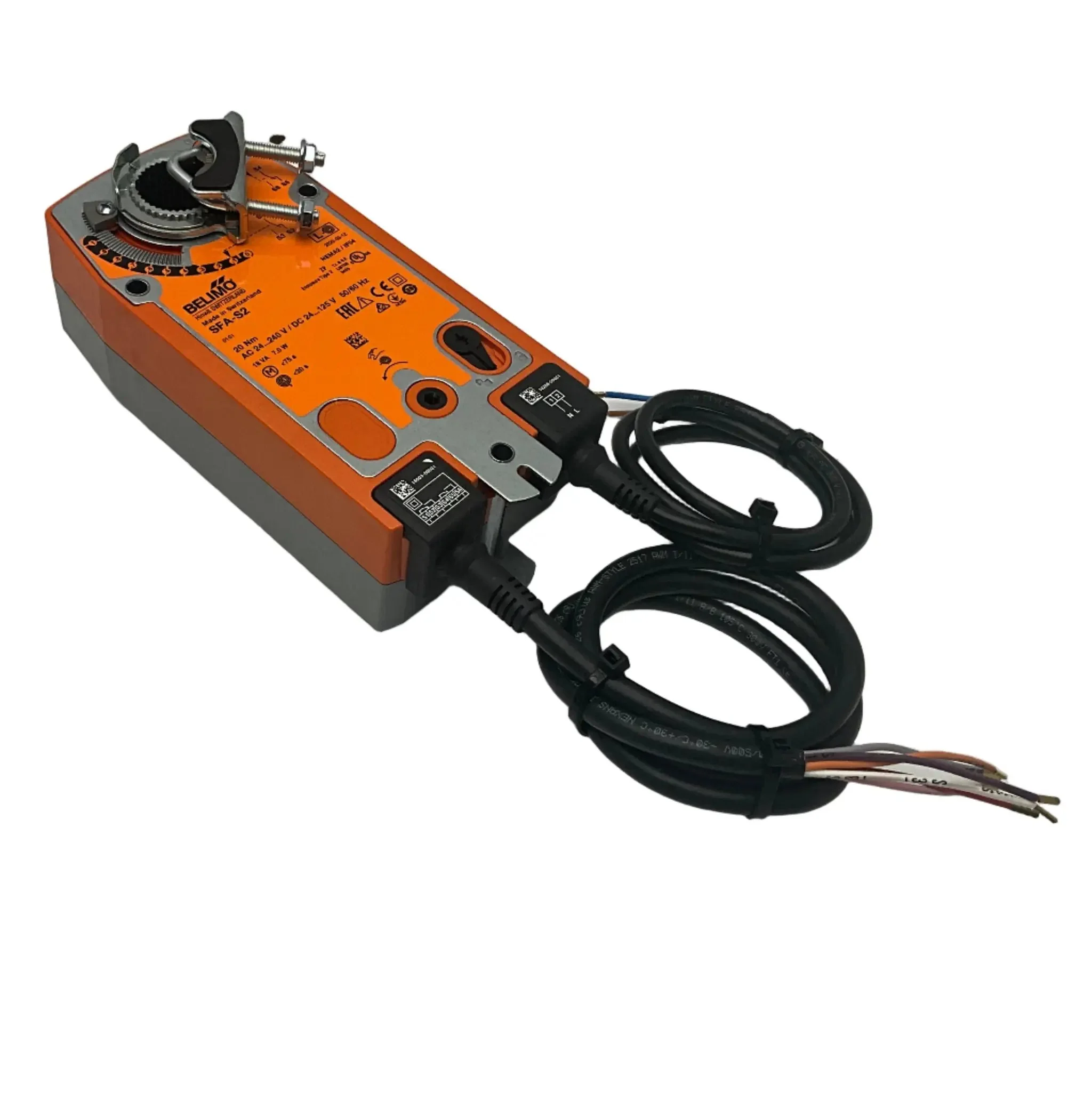

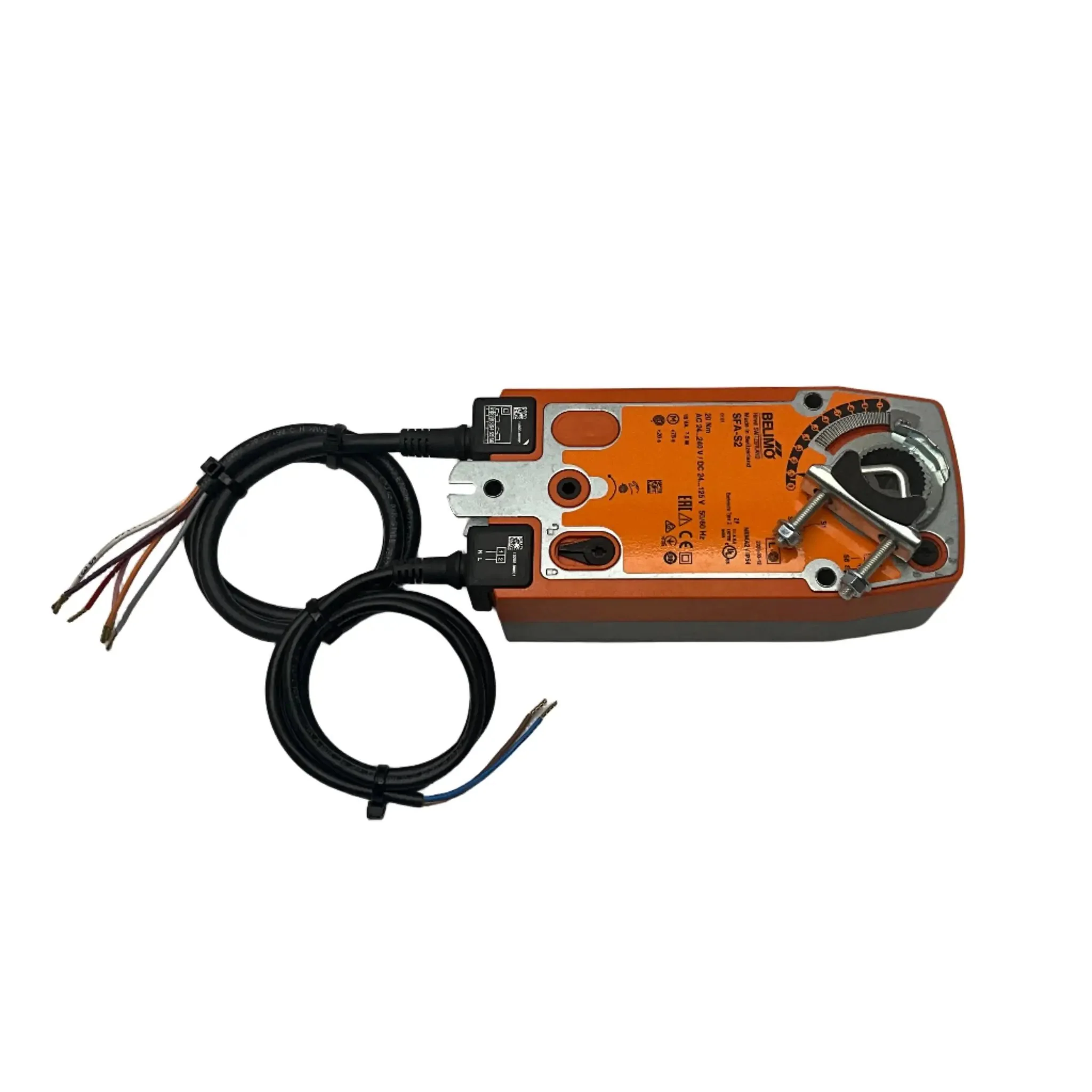

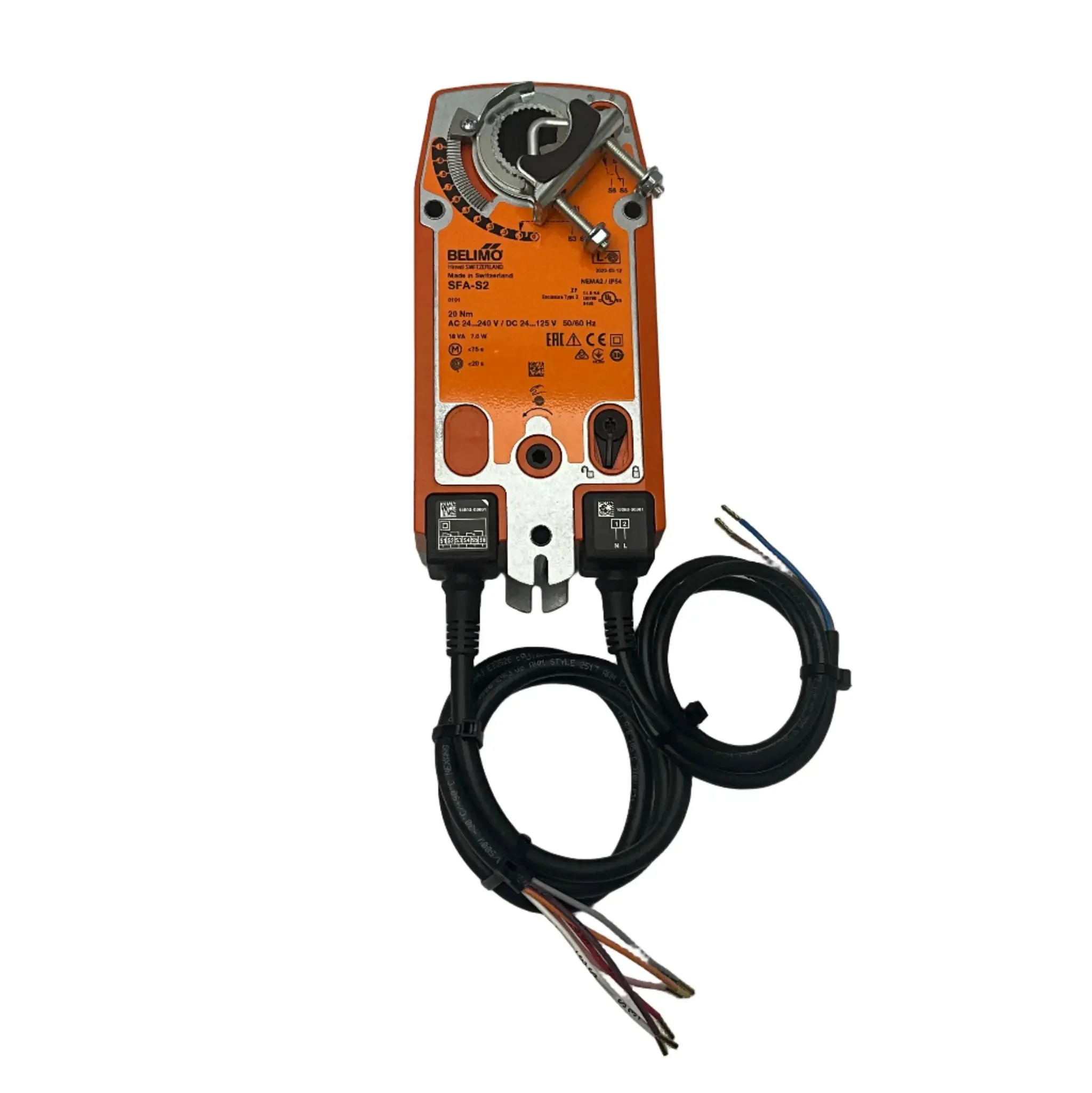

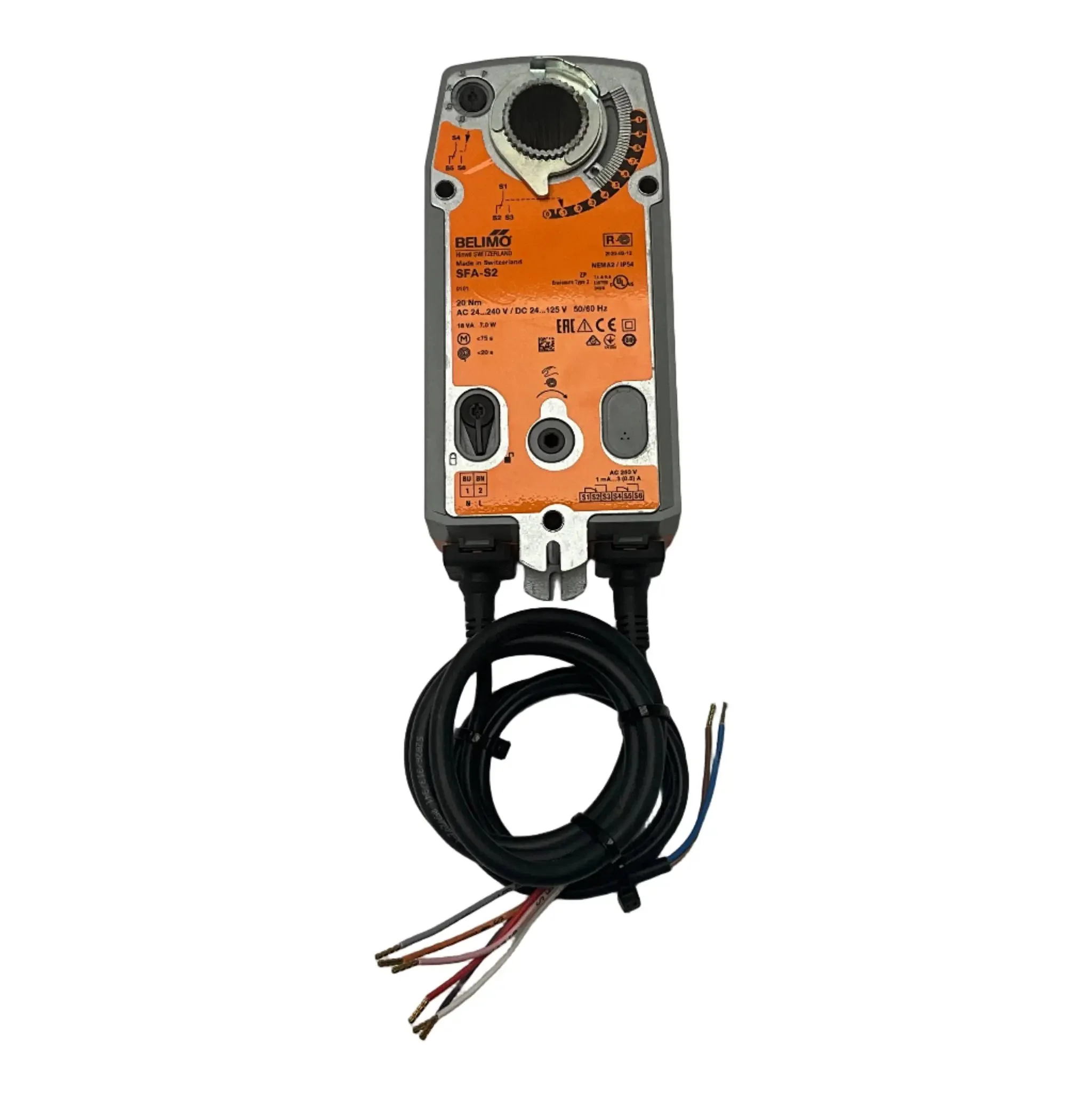

Belimo SFA-32 Spring Return Actuator
Brand: Belimo
Model: SFA-32
Type: Spring Return Actuator (Rotary Damper Actuator)
Part Number: SFA-32
Technical Specs:
- Torque: 20 Nm
- Nominal Voltage: AC 24...240 V / DC 24...125 V
- Nominal Voltage Frequency: 50/60 Hz
- Nominal Voltage Range: AC 19.2...264 V / DC 21.6...137.5 V
- Power Consumption In Operation: 7 W
- Power Consumption At Rest: 3.5 W
- Power Consumption For Wire Sizing: 18 VA
- Control Type: Open/Close
- Running Time Motor: < 75 s (95°)
- Running Time Spring Return: < 20 s
- Angle of Rotation: Max. 95° (mechanically adjustable 30°...95°)
- Direction of Rotation: Reversible (right/left)
- Manual Override: With integrated position stop
- Auxiliary Switch: 2 x SPDT, 1 x 10% / 1 x 11...90%
- Switching Capacity Auxiliary Switch: 1 mA...3 (0.5 inductive) A, AC 250 V
- Connection Supply/Control: Cable 1 m, 2 x 0.75 mm²
- Connection Auxiliary Switch: Cable 1 m, 6 x 0.75 mm²
- Parallel Operation: Yes
- Degree of Protection: IP54
- Ambient Temperature Range: -30°C to +50°C
- Storage Temperature Range: -40°C to +80°C
- Noise Level: ≤ 45 dBA (motor), ≤ 62 dBA (spring return)
- Humidity: 5...95% RH (non-condensing)
- Housing Material: Zinc coated metal
- Spindle Driver: Universal spindle clamp, clamping range ø10...22 mm, slot width 8.2 mm
- Additional Features:
- Emergency function for fail-safe damper positioning
- Mechanically adjustable angle of rotation
- Reversible direction of rotation
- Integral auxiliary switches for position feedback
Dimension:
Weight: 2.3 kg
Country of Origin: Switzerland
HS Code: 8481.80.90
