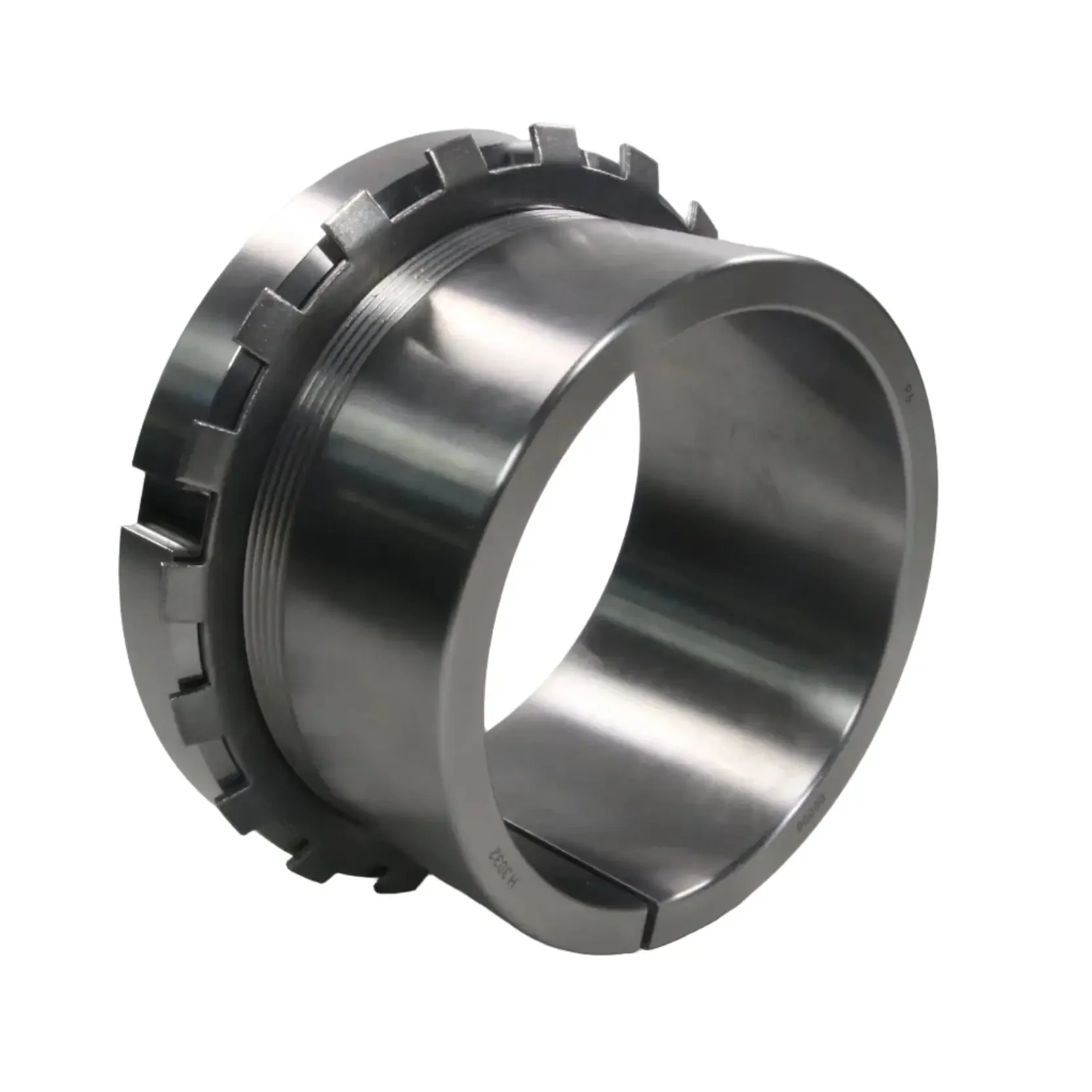

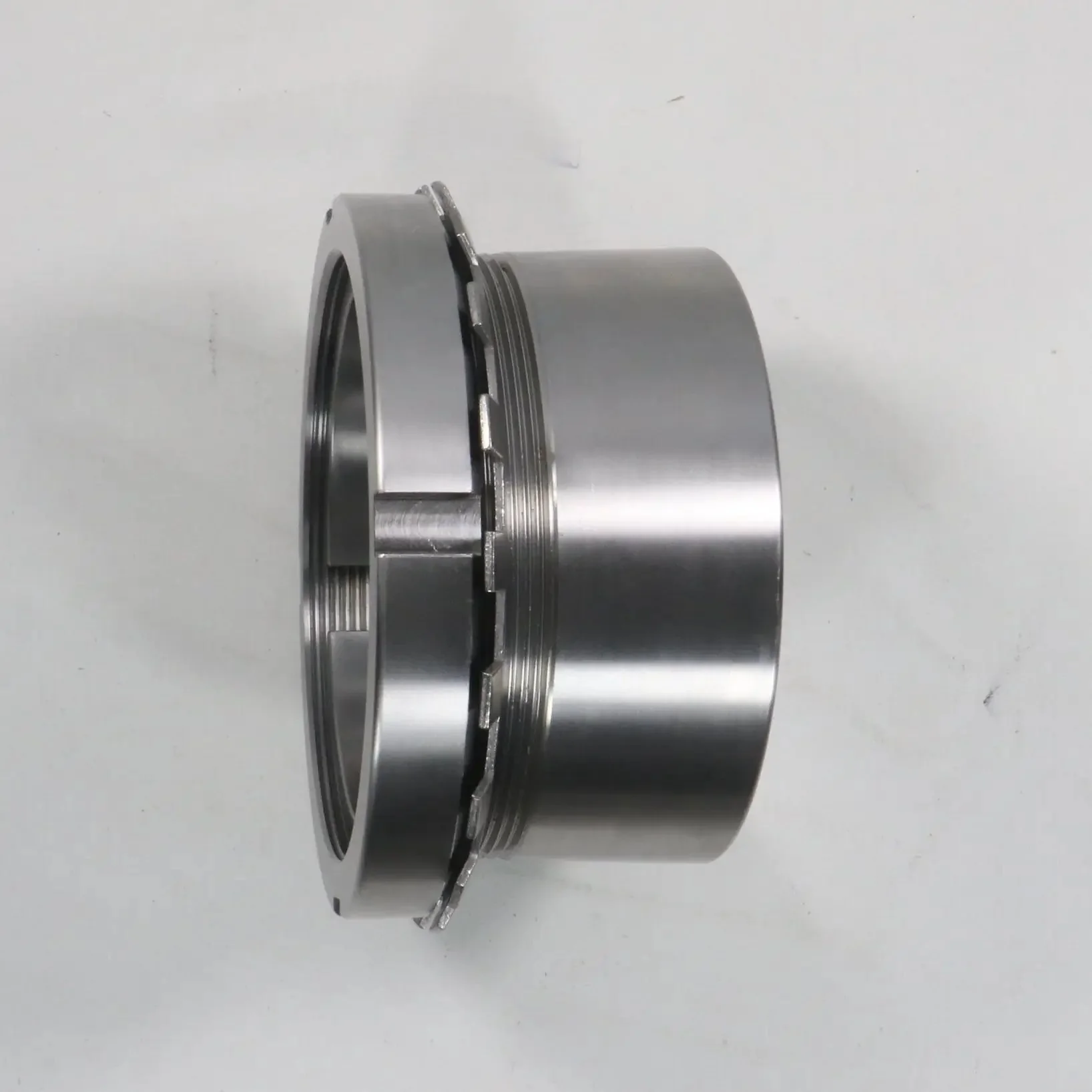

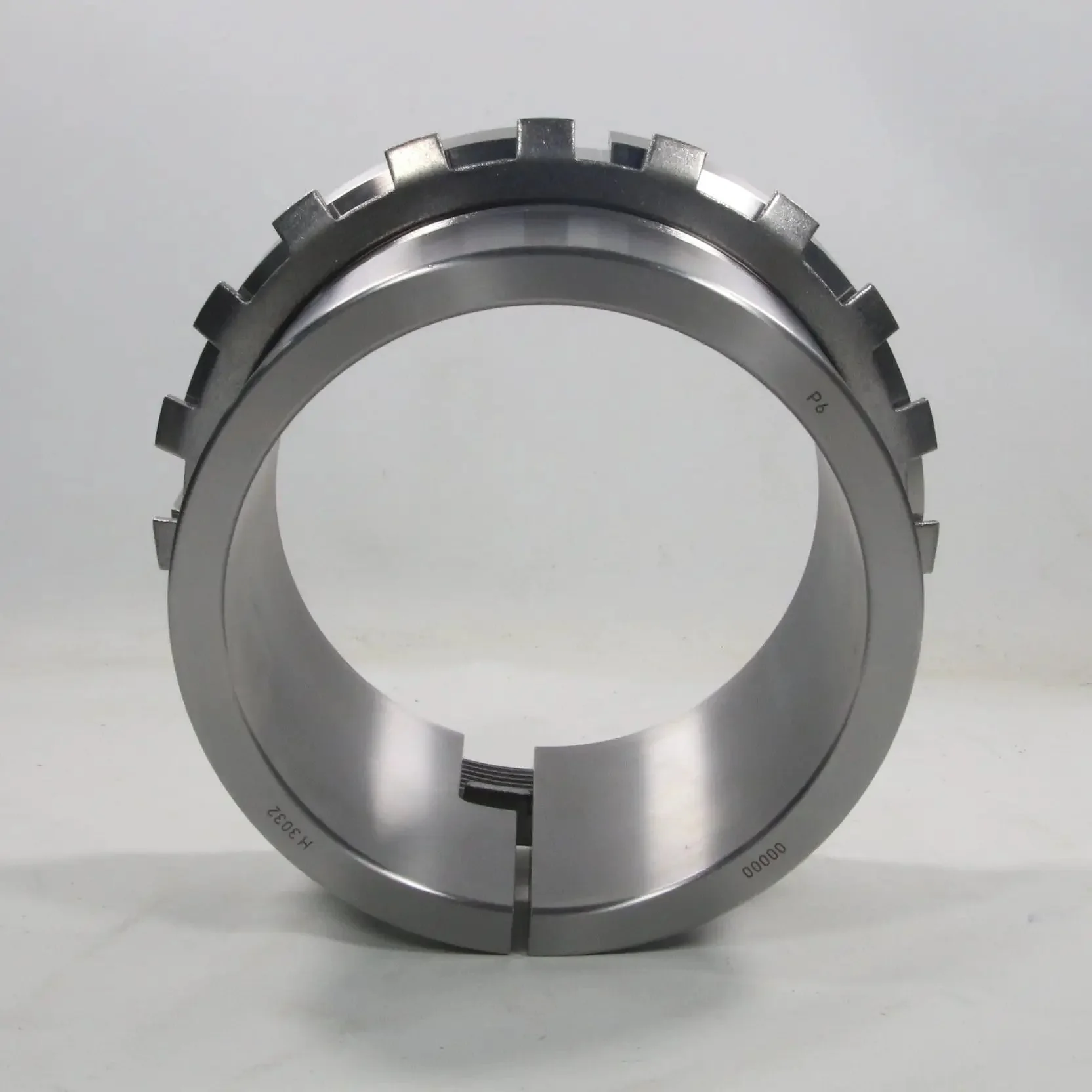

SKF / Blassinger Gruppe H3032 Adapter Sleeve

- Brand: SKF (manufactured by SKF; distributed Blassinger Gruppe)

- Model: H3032

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: H3032 (SKF designation; complete kit H3032 + KML32 locknut)

- Technical specifications:
- Bore diameter: 140 mm
- Taper: 1:12
- Sleeve length: 93 mm
- Compatible bearings:
  - Spherical roller bearings: 23032 K, 22332 K, or similar
  - Self-aligning ball bearings: 23132 K or equivalents
- Locknut: KML32
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts); SKF precision tolerances

Weight: 6.0 kg

Dimensions: 190 dia. x 100 mm

Country of origin: Germany

HS code: 8482.99
