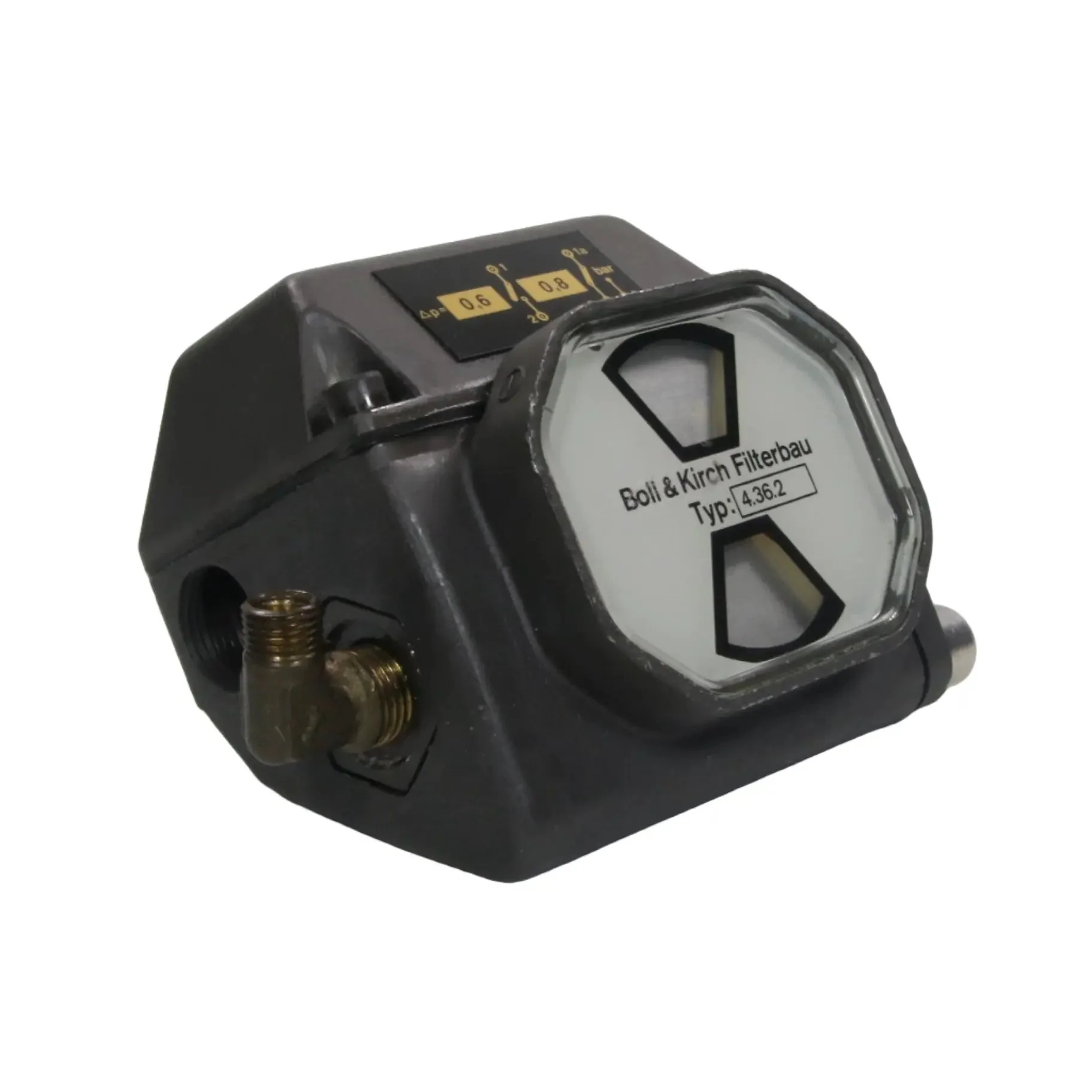

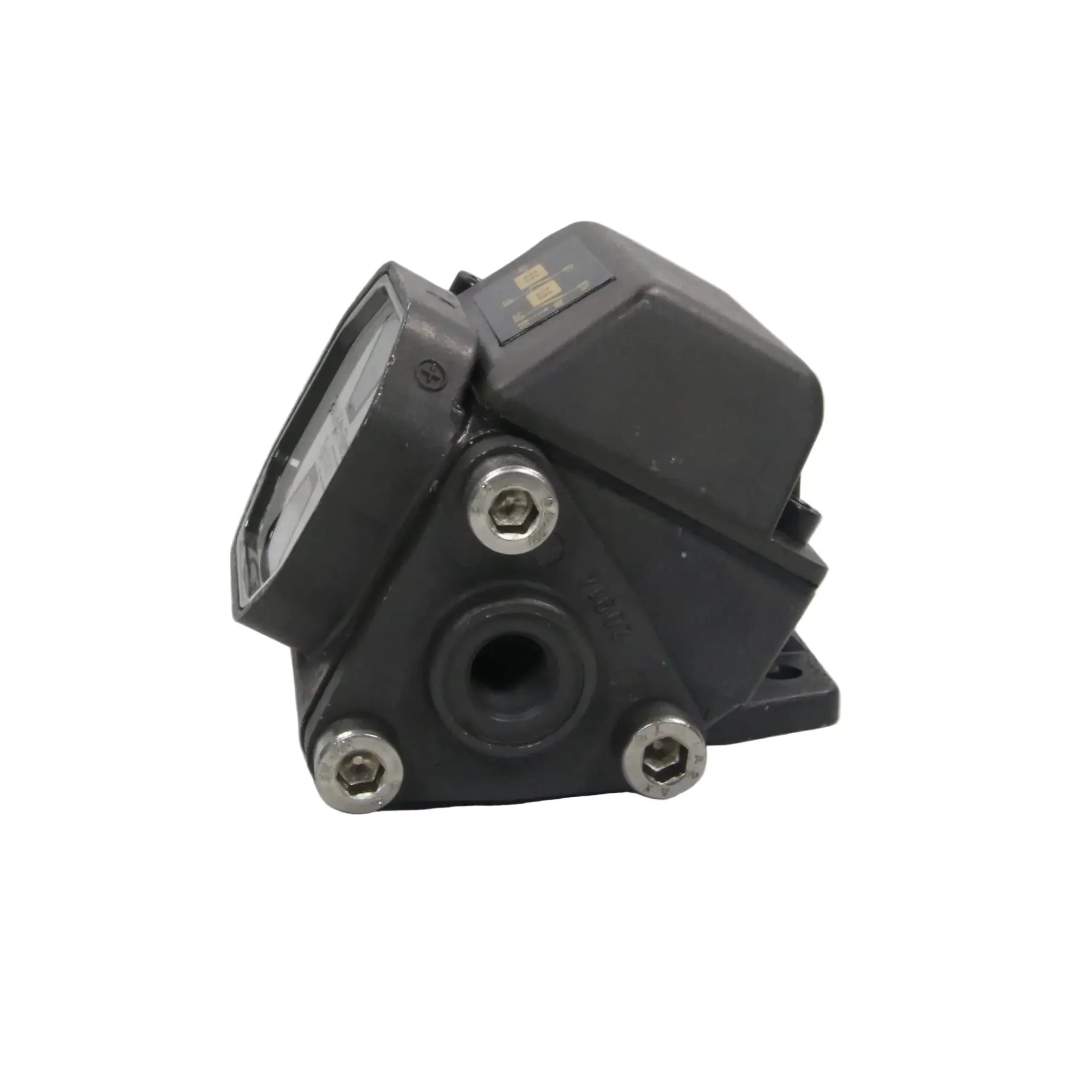

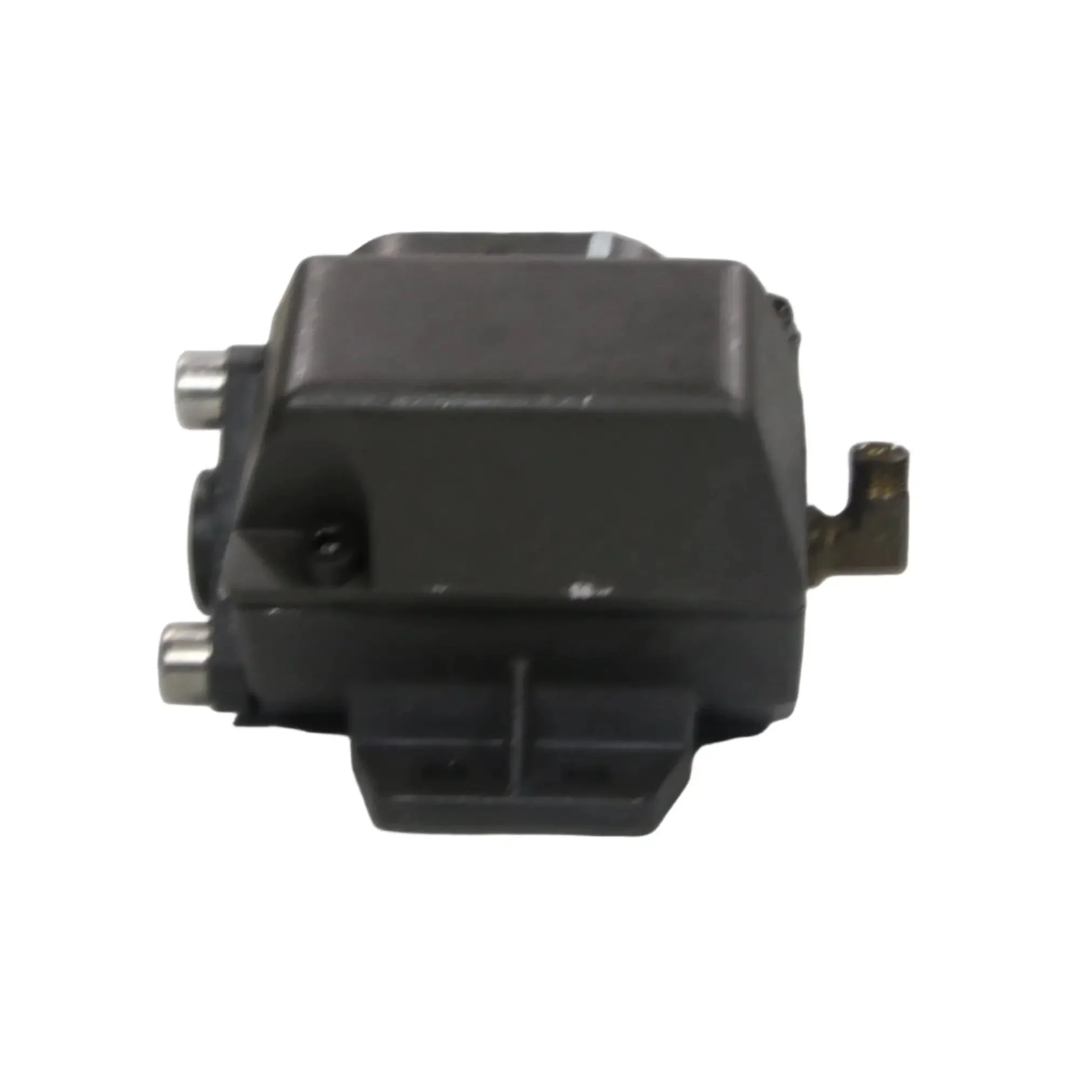

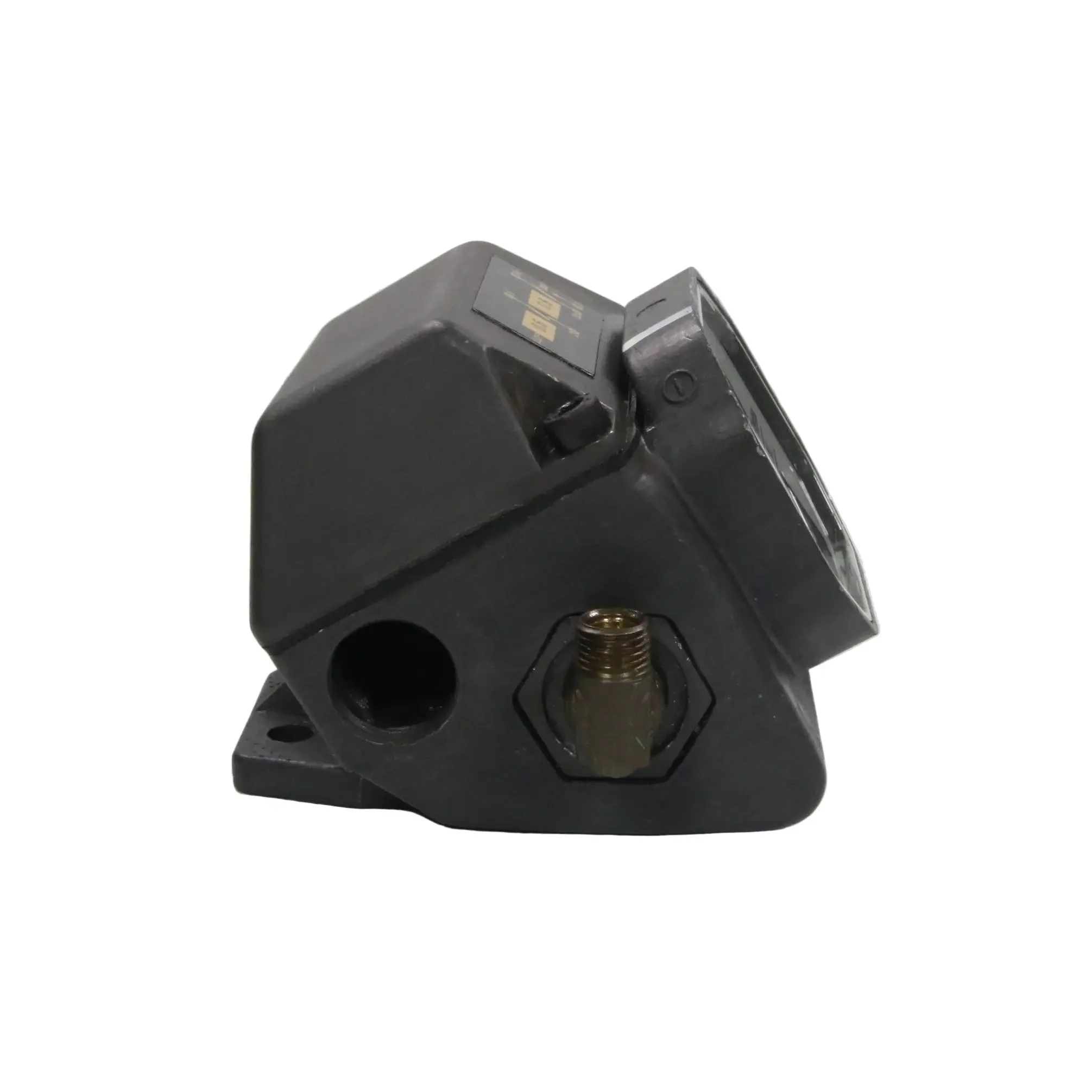

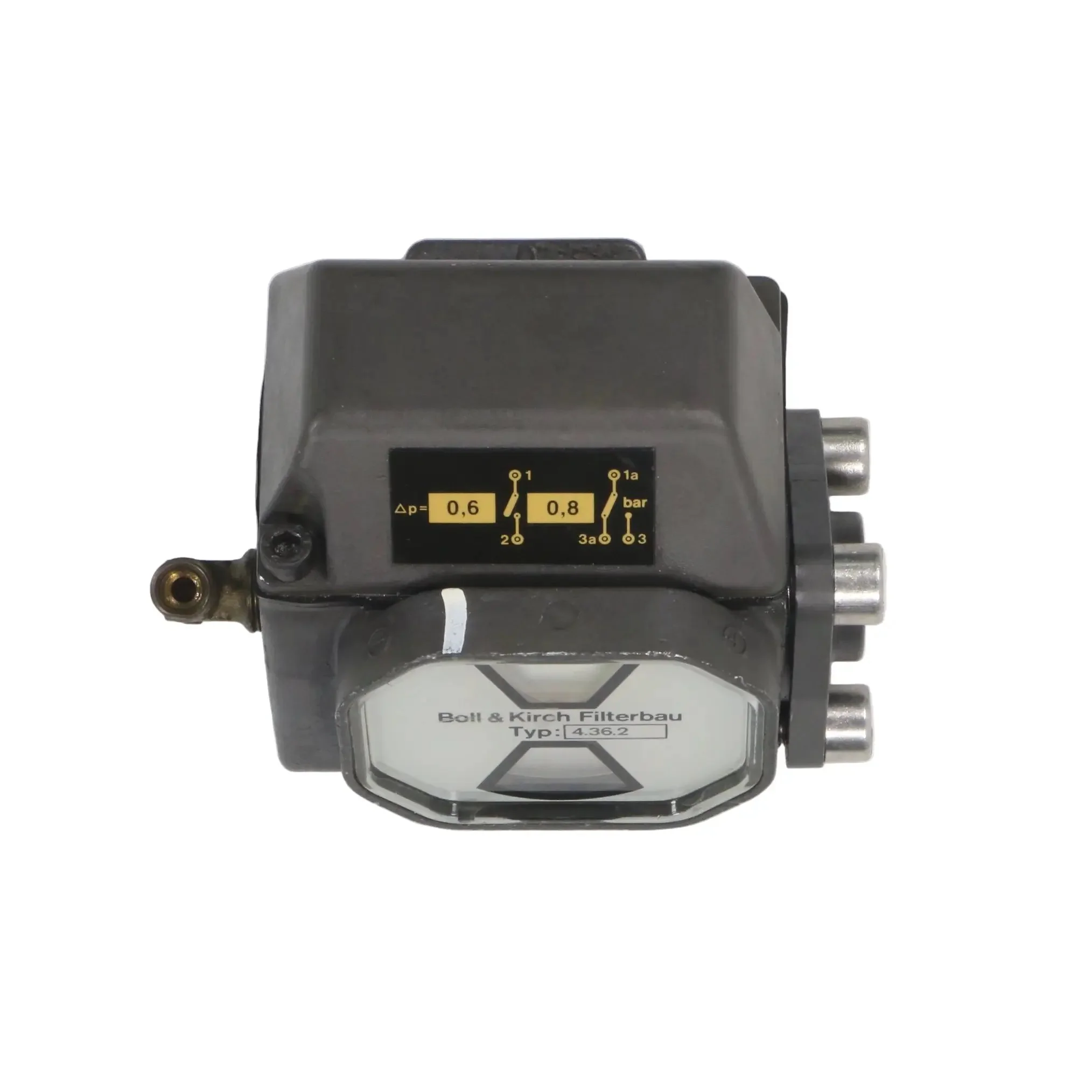

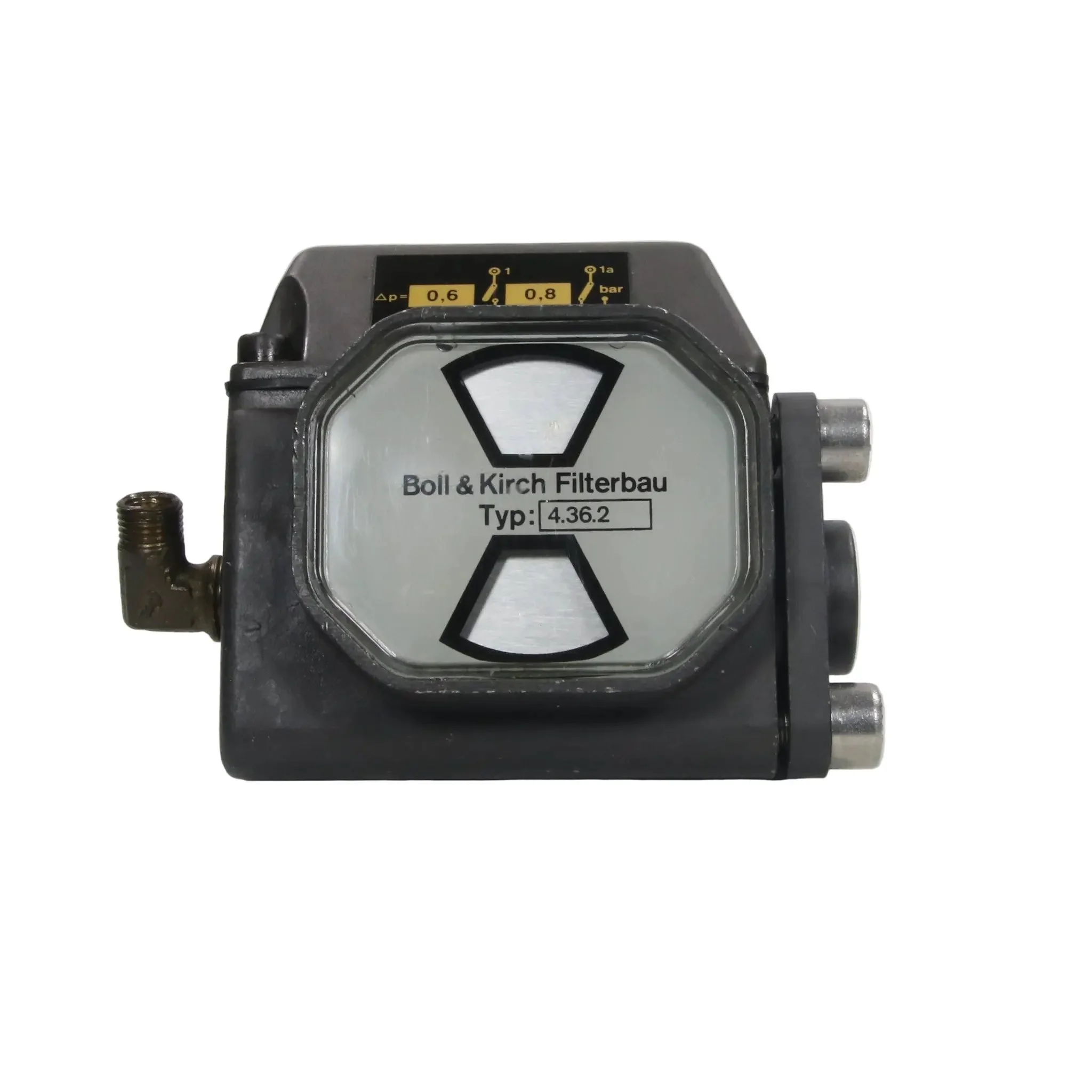

Boll & Kirch Filterbau 4.36.2 Differential Pressure Indicator
- Brand: Boll & Kirch Filterbau GmbH
- Model: 4.36.2
- Type: Differential Pressure Indicator
- Technical Specifications:
- Function: Monitors pressure drop across automatic filters and signals when cleaning/backflushing is required
- Max pressure: 100 bar
- Switching Points: Factory-set at 0.6 bar and 0.8 bar
- Visual Indication: Red/green piston indicator
- Electrical Contacts: 1 x change-over contact
- Max switching voltage: 250 V AC
- Max switching current: 1 A
- Max switching power: 60 VA / 60 W
- Connection: G ¼" female
- Protection Rating: IP65
- Temperature Range: -10 °C to +150 °C
- Materials: Housing die cast aluminium, sight glass polycarbonate
- Dimensions: 120 x 100 x 80 mm
- Weight: 600 g
- Country of Origin: Germany
- HS Code: 902620
Original: $178.54
-70%$178.54
$53.56
Description
- Brand: Boll & Kirch Filterbau GmbH
- Model: 4.36.2
- Type: Differential Pressure Indicator
- Technical Specifications:
- Function: Monitors pressure drop across automatic filters and signals when cleaning/backflushing is required
- Max pressure: 100 bar
- Switching Points: Factory-set at 0.6 bar and 0.8 bar
- Visual Indication: Red/green piston indicator
- Electrical Contacts: 1 x change-over contact
- Max switching voltage: 250 V AC
- Max switching current: 1 A
- Max switching power: 60 VA / 60 W
- Connection: G ¼" female
- Protection Rating: IP65
- Temperature Range: -10 °C to +150 °C
- Materials: Housing die cast aluminium, sight glass polycarbonate
- Dimensions: 120 x 100 x 80 mm
- Weight: 600 g
- Country of Origin: Germany
- HS Code: 902620
