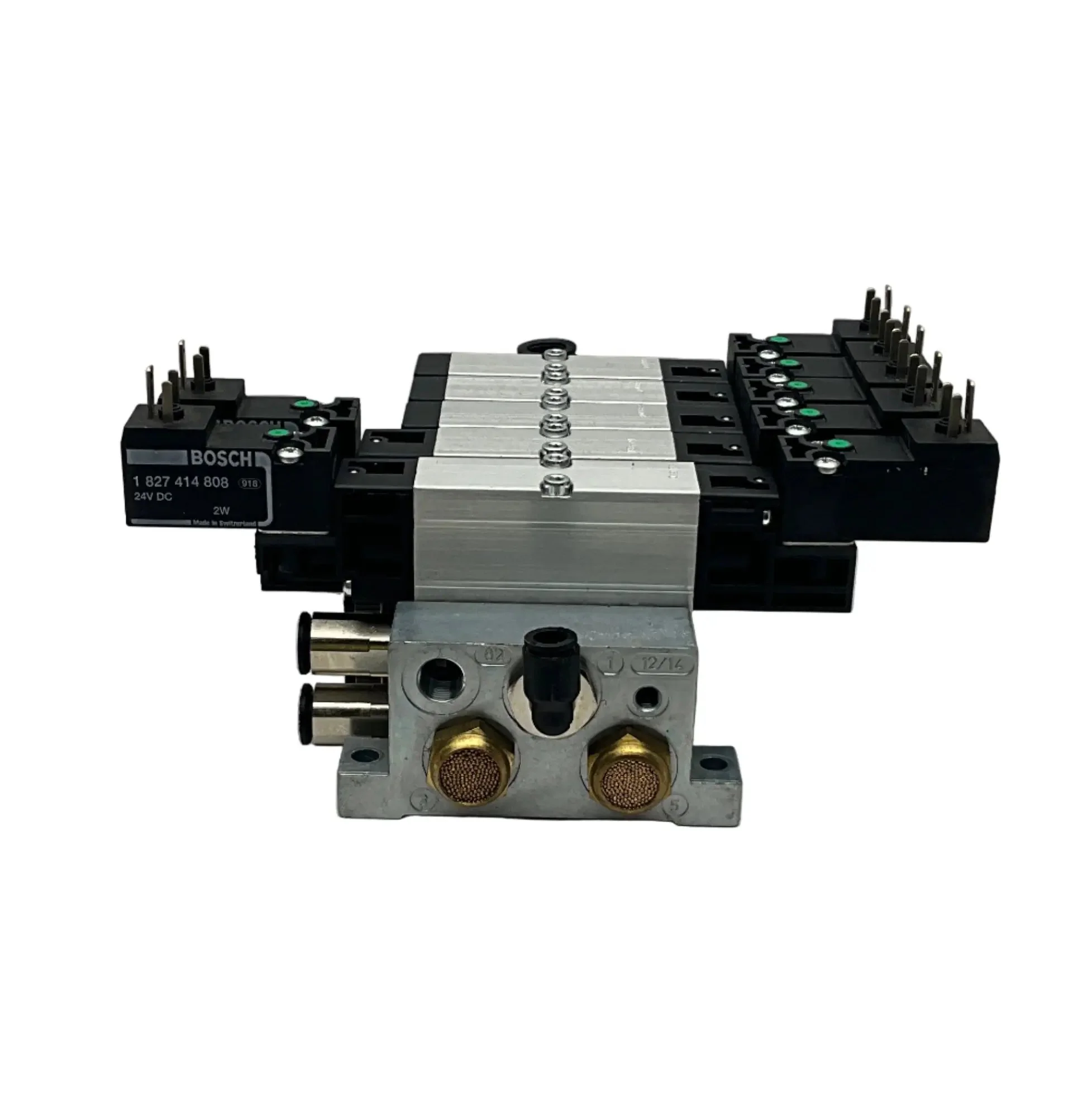

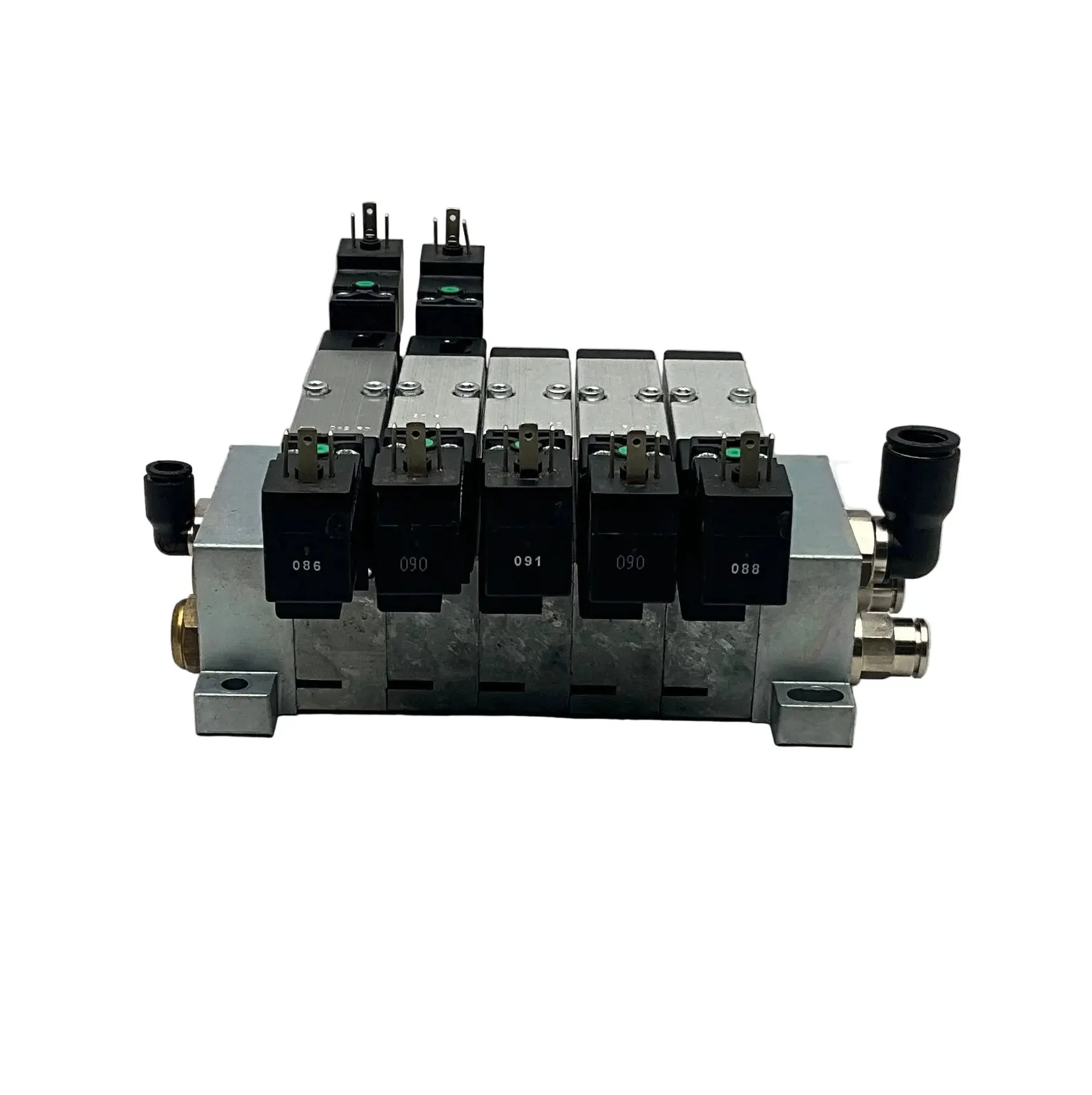

Bosch Aventics 1 825 503 891 Pneumatic Manifold & Solenoid Valves

Brand: Bosch Aventics
Model: CD02
Type: Pneumatic Manifold & Valves
Part Number: 1 825 503 891

Technical Specs:
Function: Aluminum manifold block for mounting multiple solenoid valves in pneumatic systems, designed for CD02 series valves
Number of Stations: 5
Port Connections: G 1/8" (ISO 228-1) for supply and exhaust
Operating Pressure: -0.9 to 10 bar
Material: Aluminum
Mounting: Panel

Model: 0 820 038 152
Type: Pneumatic Solenoid Valve x 3
Part Number: 0 820 038 152

Technical Specs:
Valve Type: 5/2-way single solenoid valve, mono-stable
Function: Directional control valve for pneumatic actuators
Port Connections: G 1/8 (ISO 228-1)
Operating Pressure: 1 to 10 bar
Voltage: 24 V DC
Power Consumption: 2 W
Electrical Connection: DIN 43650 Form C
Enclosure Rating: IP65
Seal Material: NBR

Model: 0 820 038 652
Type: Pneumatic Double Solenoid Valve x 1
Part Number: 0 820 038 652

Technical Specs:
Valve Type: 5/2-way double solenoid valve, bi-stable
Function: Directional control valve for pneumatic actuators
Port Connections: G 1/8 (ISO 228-1)
Operating Pressure: 1.5 to 10 bar
Voltage: 24 V DC
Power Consumption: 2 W per solenoid
Electrical Connection: DIN 43650 Form C
Enclosure Rating: IP65
Seal Material: NBR

Model: 0 820 037 202
Type: Pneumatic Double Solenoid Valve x 1
Part Number: 0 820 037 202

Technical Specs:
Valve Type: 5/2-way double solenoid valve, bi-stable
Function: Directional control valve for pneumatic actuators
Port Connections: G 1/8 (ISO 228-1)
Operating Pressure: 1.5 to 10 bar
Voltage: 24 V DC
Power Consumption: 2 W per solenoid
Electrical Connection: DIN 43650 Form C
Enclosure Rating: IP65
Seal Material: NBR

Certifications: CE compliant

Dimensions: 180 x 170 x 70 mm

Weight: 2.0 kg

Country of Origin: Germany

HS Code: 8481.80
