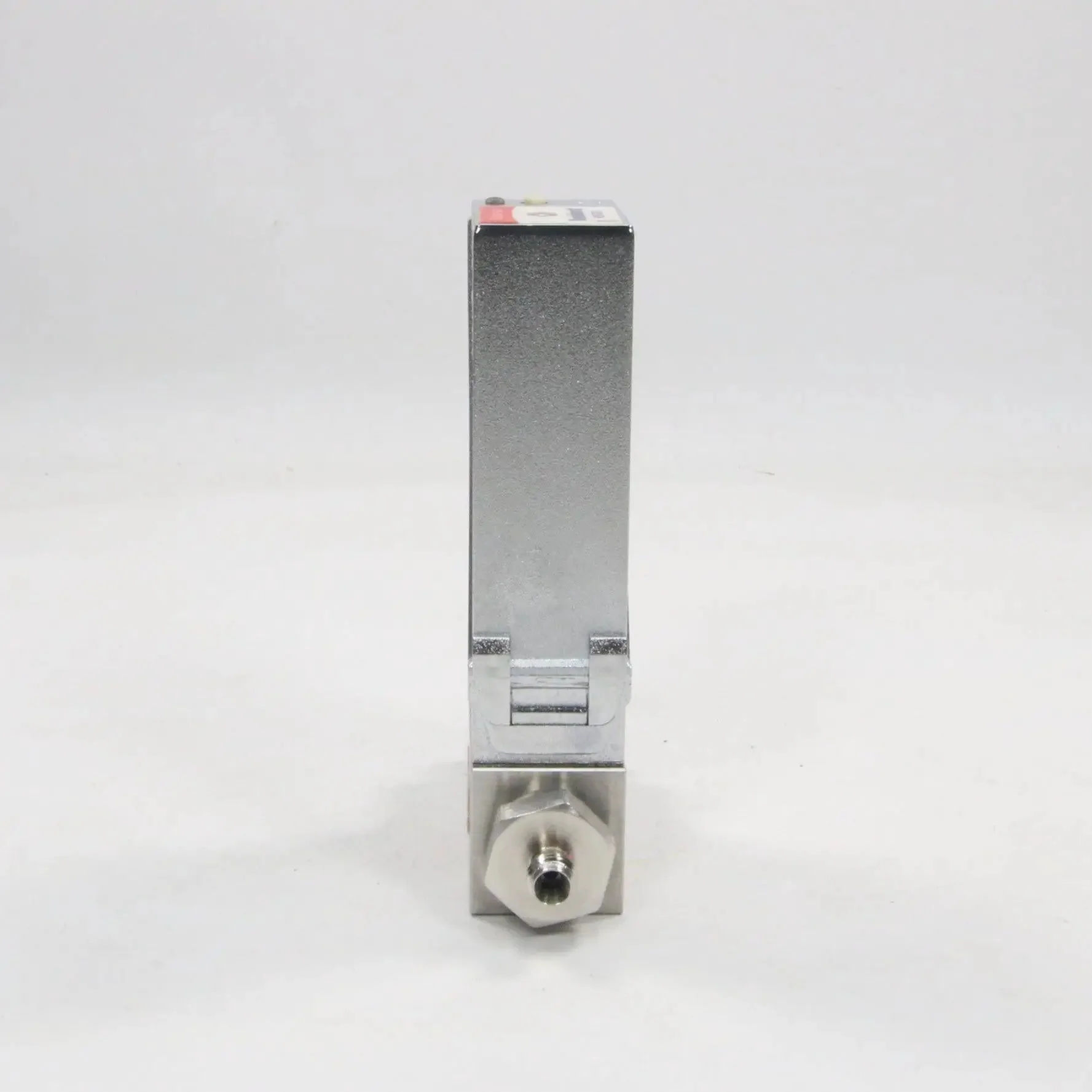

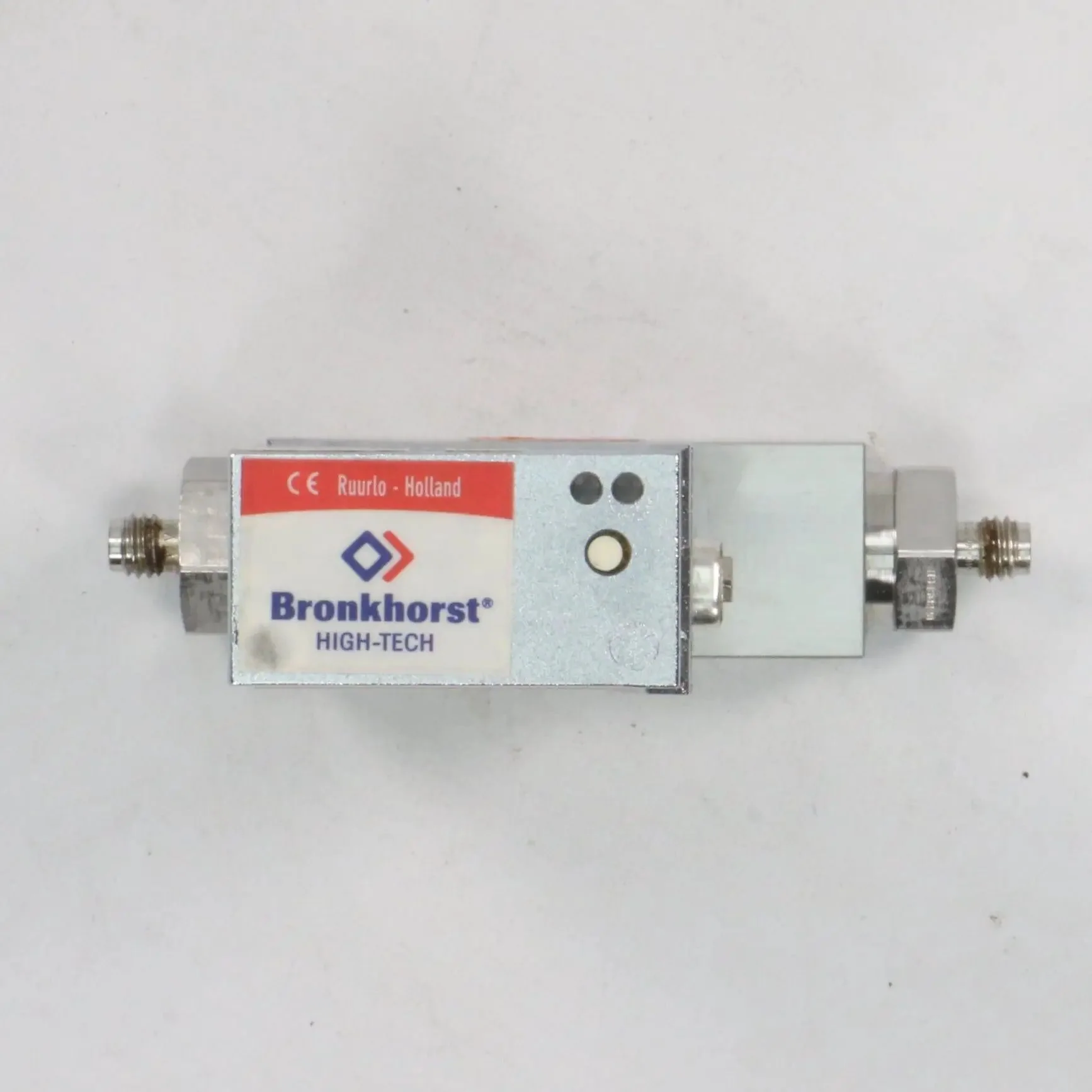

Bronkhorst El Flow Select Mass Flow Meter Controller
- Bronkhorst
- El-Flow Select
- Mass Flow Meter/Controller
- P/N: F-111B-500-AGD-11-V
- Flow range: min. 0,16…8 mln/min - max. 0,16…25 ln/min (based on N2)
- Accuracy: ± 0,5 % RD plus ±0,1% FS
- Repeatability: < 0,2 % RD
- Turndown ratio: up to 1:187,5 (1:50 in analog mode)
- Multi fluid capability: storage of max. 8 calibration curves; optional Multi Gas / Multi Range functionality up to 10 bar abs
- Response time (sensor): typical 0,5 sec.
- Operating temperature: -10 … +70 °C
- Temperature sensitivity: zero - <0,05% FS/°C; span: <0,05% Rd/°C
- Pressure sensitivity: < 0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2
$124.40
Original: $414.68
-70%Bronkhorst El Flow Select Mass Flow Meter Controller—
$414.68
$124.40
Description
- Bronkhorst
- El-Flow Select
- Mass Flow Meter/Controller
- P/N: F-111B-500-AGD-11-V
- Flow range: min. 0,16…8 mln/min - max. 0,16…25 ln/min (based on N2)
- Accuracy: ± 0,5 % RD plus ±0,1% FS
- Repeatability: < 0,2 % RD
- Turndown ratio: up to 1:187,5 (1:50 in analog mode)
- Multi fluid capability: storage of max. 8 calibration curves; optional Multi Gas / Multi Range functionality up to 10 bar abs
- Response time (sensor): typical 0,5 sec.
- Operating temperature: -10 … +70 °C
- Temperature sensitivity: zero - <0,05% FS/°C; span: <0,05% Rd/°C
- Pressure sensitivity: < 0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2
