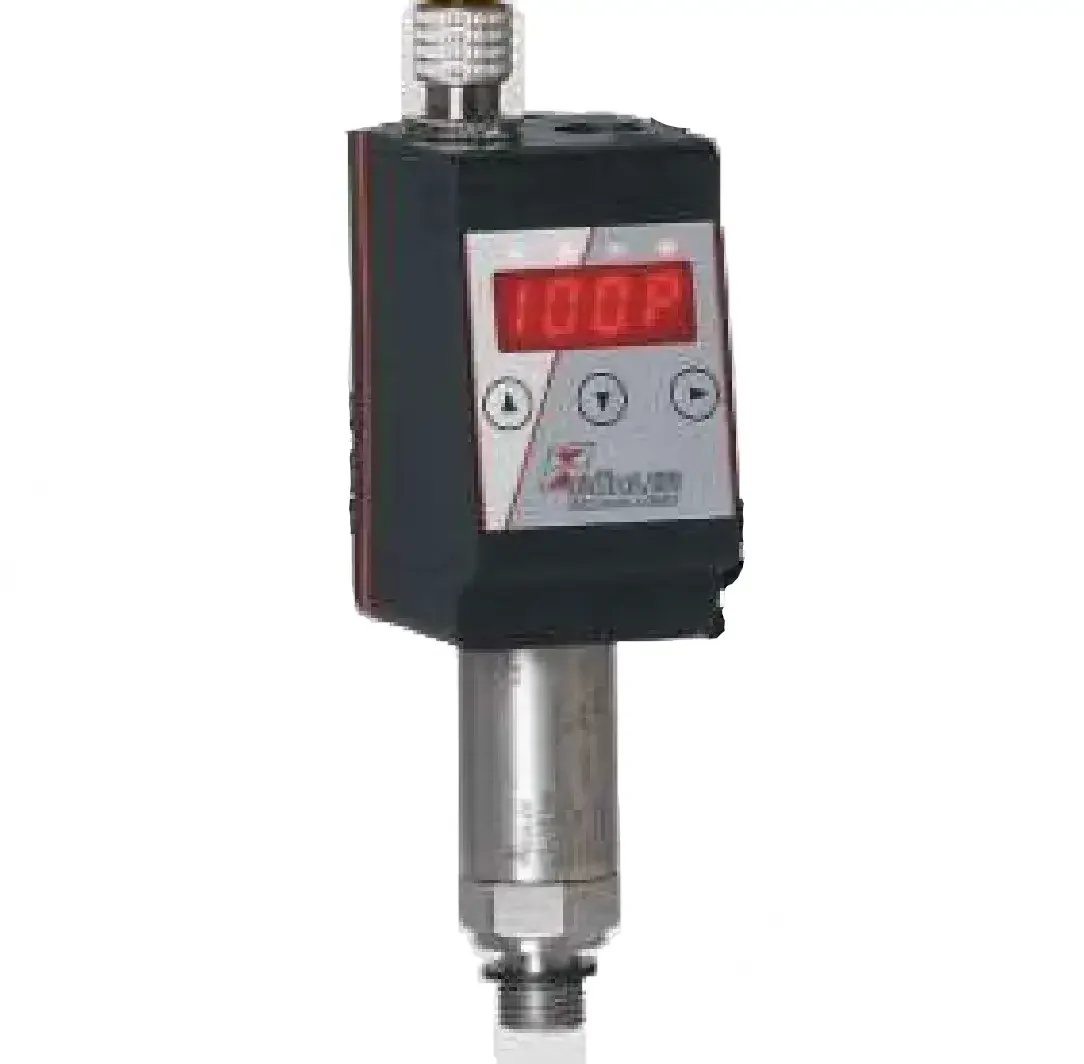

Buhler Technologies PT771-250-2S-K Pressure Switch / Transmitter

- Brand: Bühler Technologies

- Model: PT771-250-2S-K

- Type: Electronic Pressure Switch / Transmitter with Display

- All tech specs:
- Pressure range: 0 ... 250 bar
- Measuring principle: Piezoresistive sensor with stainless steel diaphragm
- Output configuration: 2 x freely programmable PNP switching outputs + 1 x analog output
- Switching outputs: 2 x PNP, max. 0.5 A per output
- Analog output: Configurable to 4-20 mA (current) or 0-10 V (voltage), scalable over full range or partial
- Display: 4-digit 7-segment LED display
- Accuracy: Typically ≤ ±0.5 % FS
- Overpressure resistance: Up to 1.5x
- Process connection: G1/4
- Wetted parts: Stainless steel
- Power supply: 10-30 V DC
- Current consumption: 50-100 mA
- Protection class: IP67
- Ambient temperature: -20 °C to +80 °C
- Media temperature: -20 °C to +80 °C
- Adjustment: Via on-board buttons or menu
- Features: Compact design, LED status indication, easy programming, high overload resistance, suitable for hydraulic, pneumatic, lubrication and fluid power systems
- Part of Pressotronik 700 series

Dimensions: 250 x 220 x 100 mm

Weight: 300 g

Country of origin: Germany

HS code: 902620
