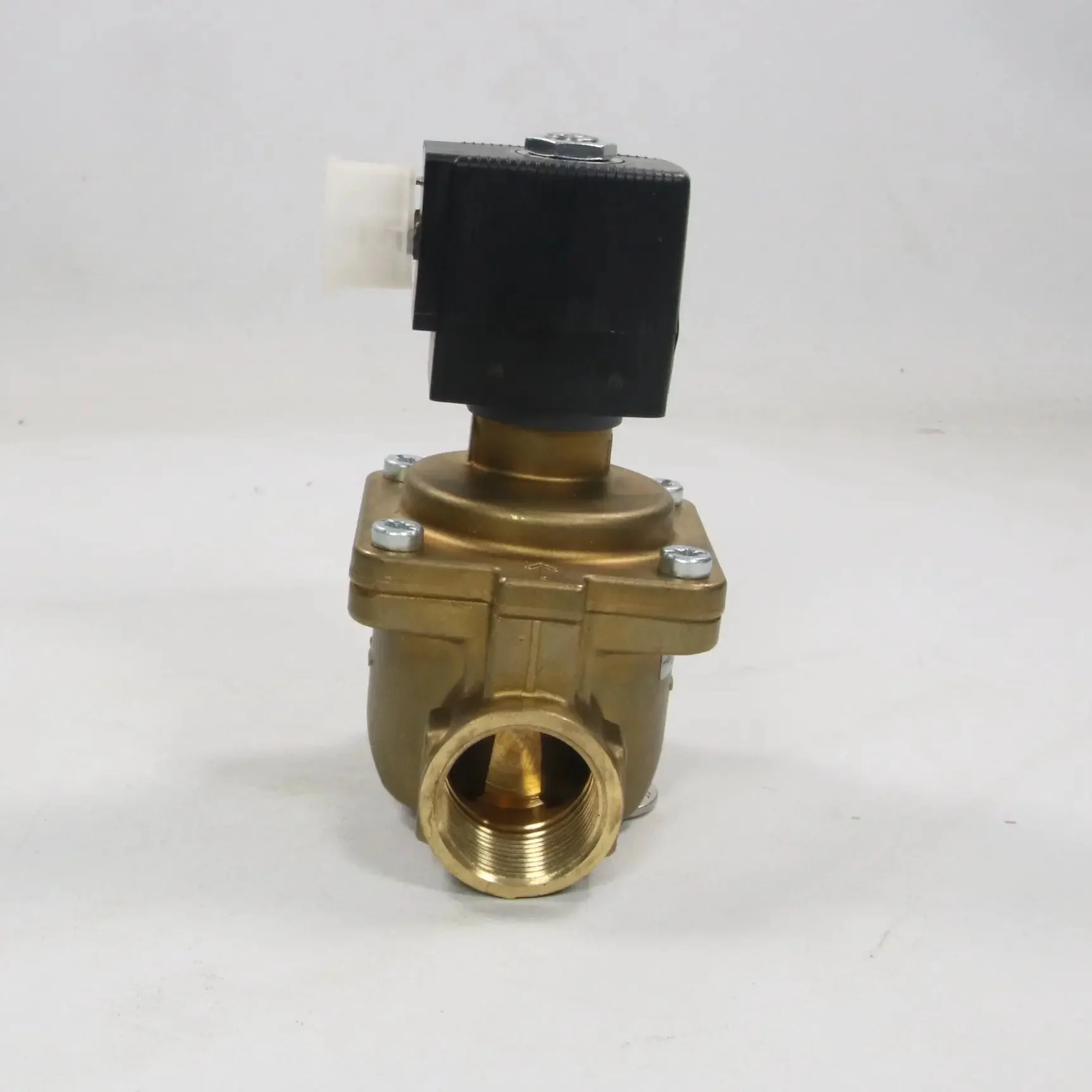

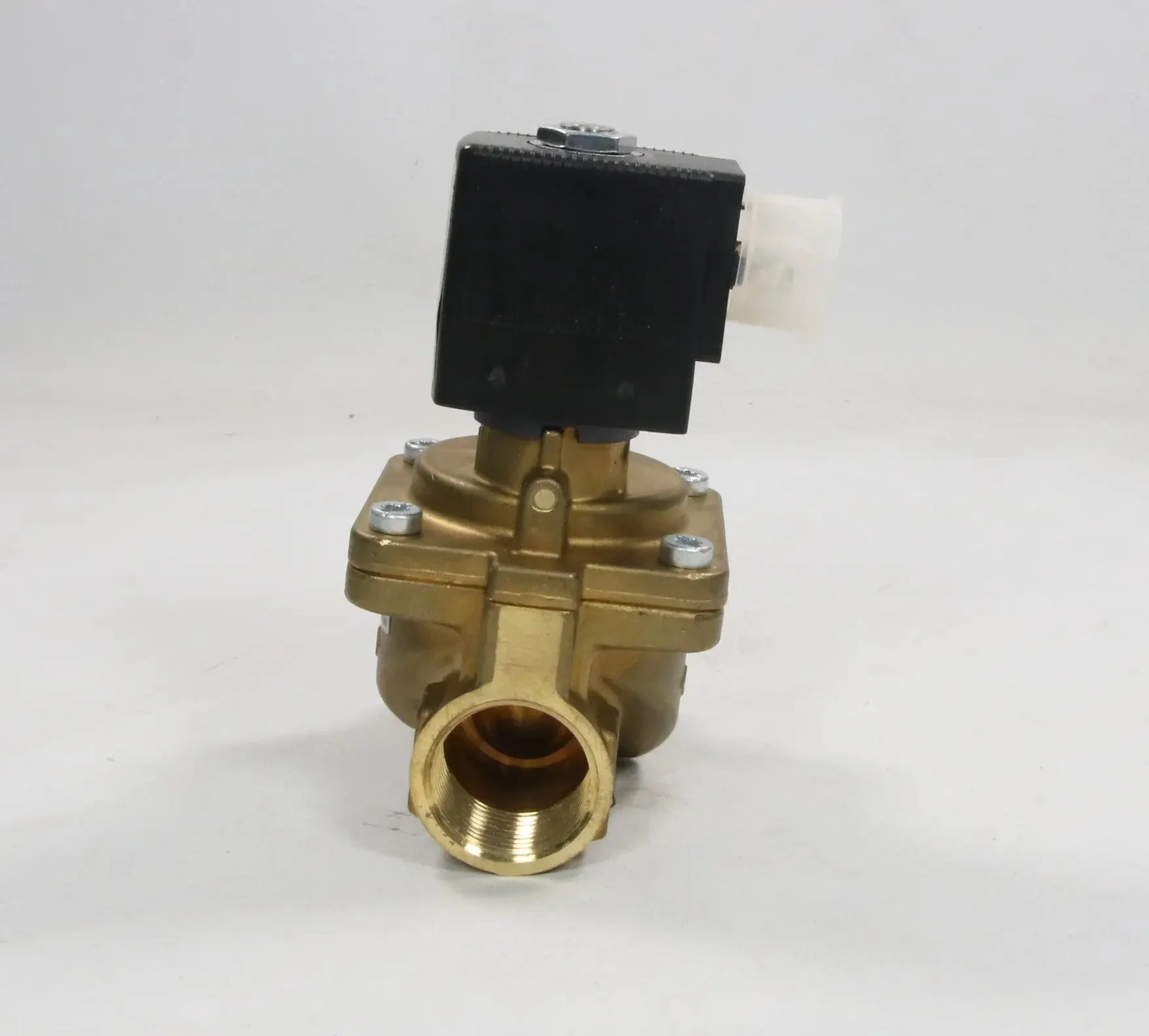

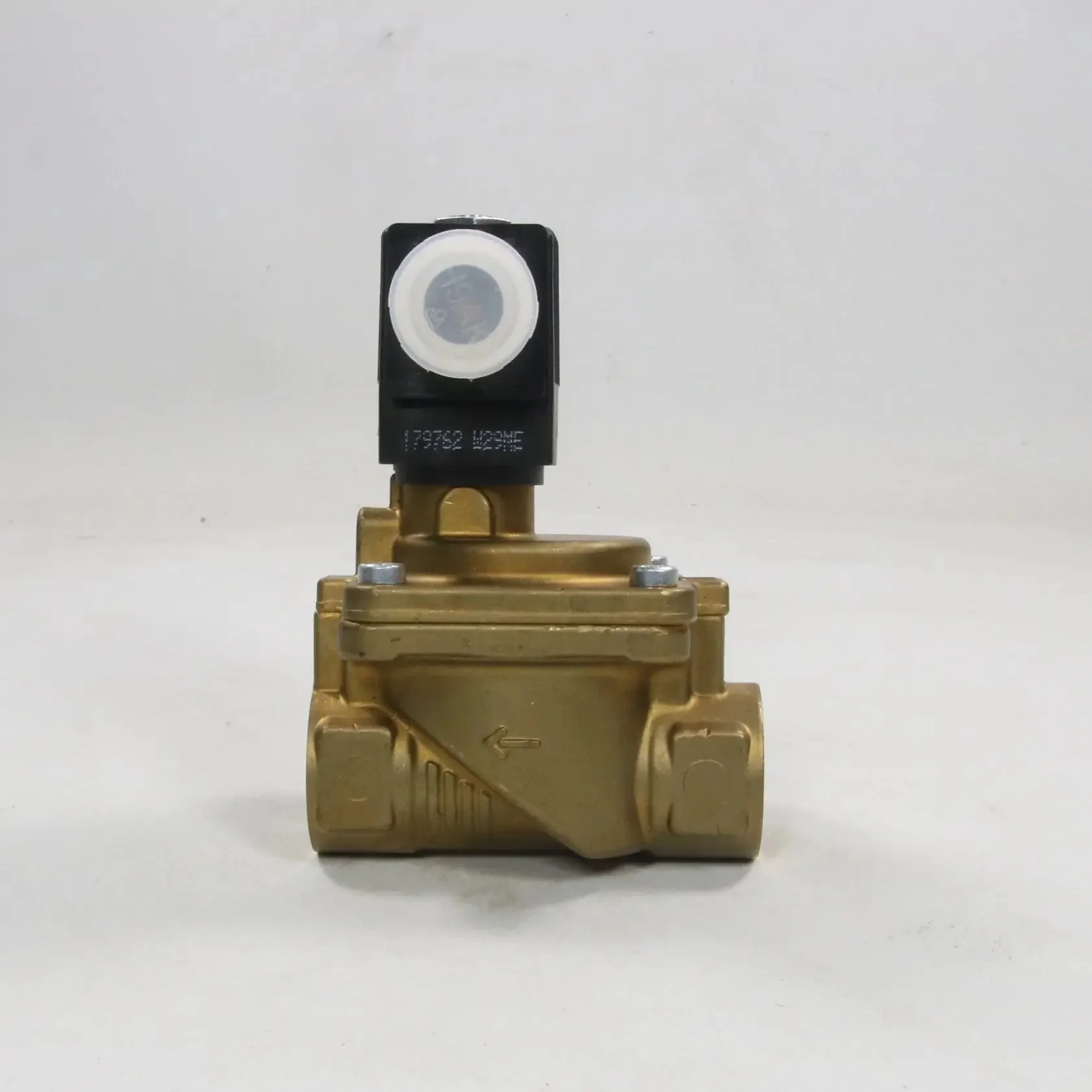

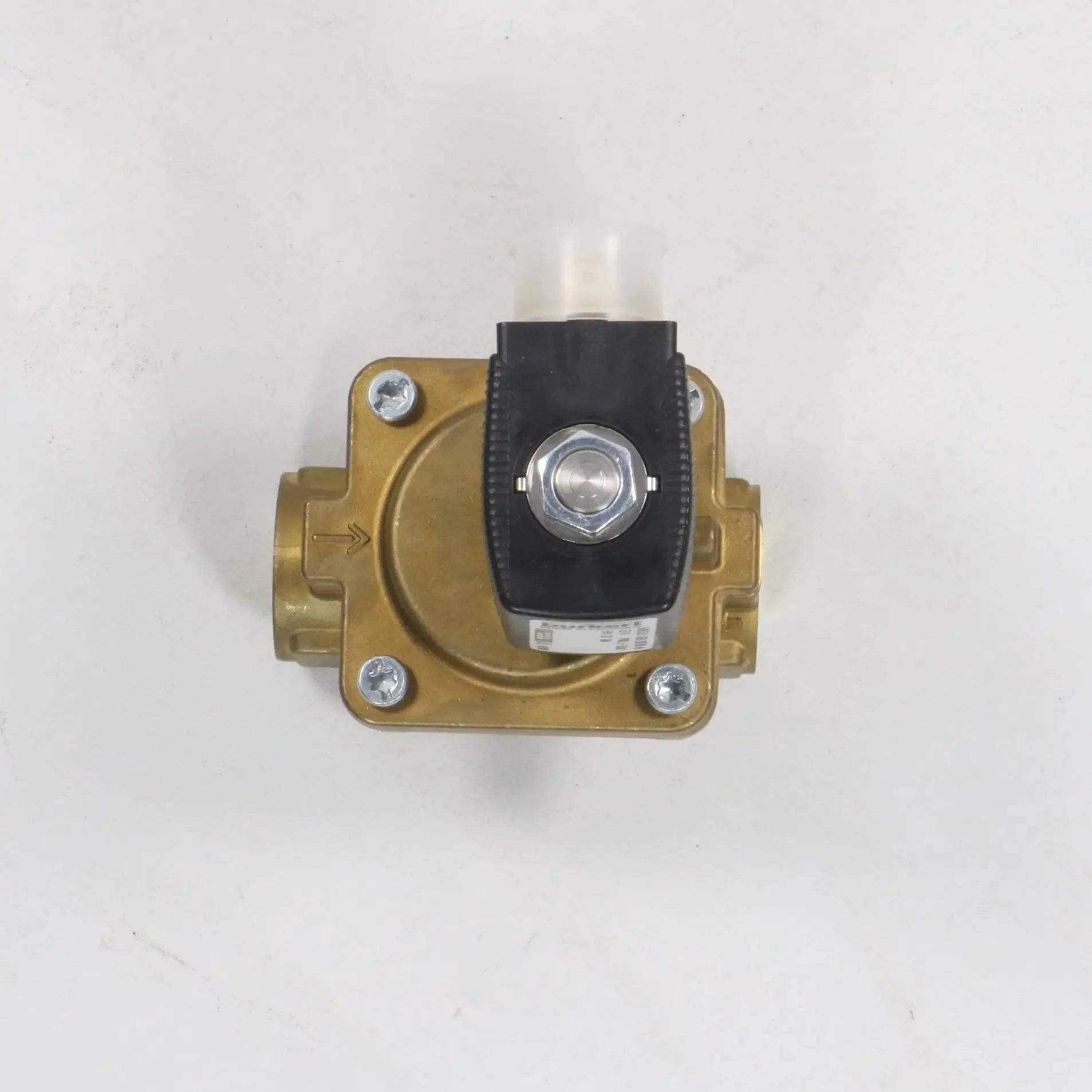

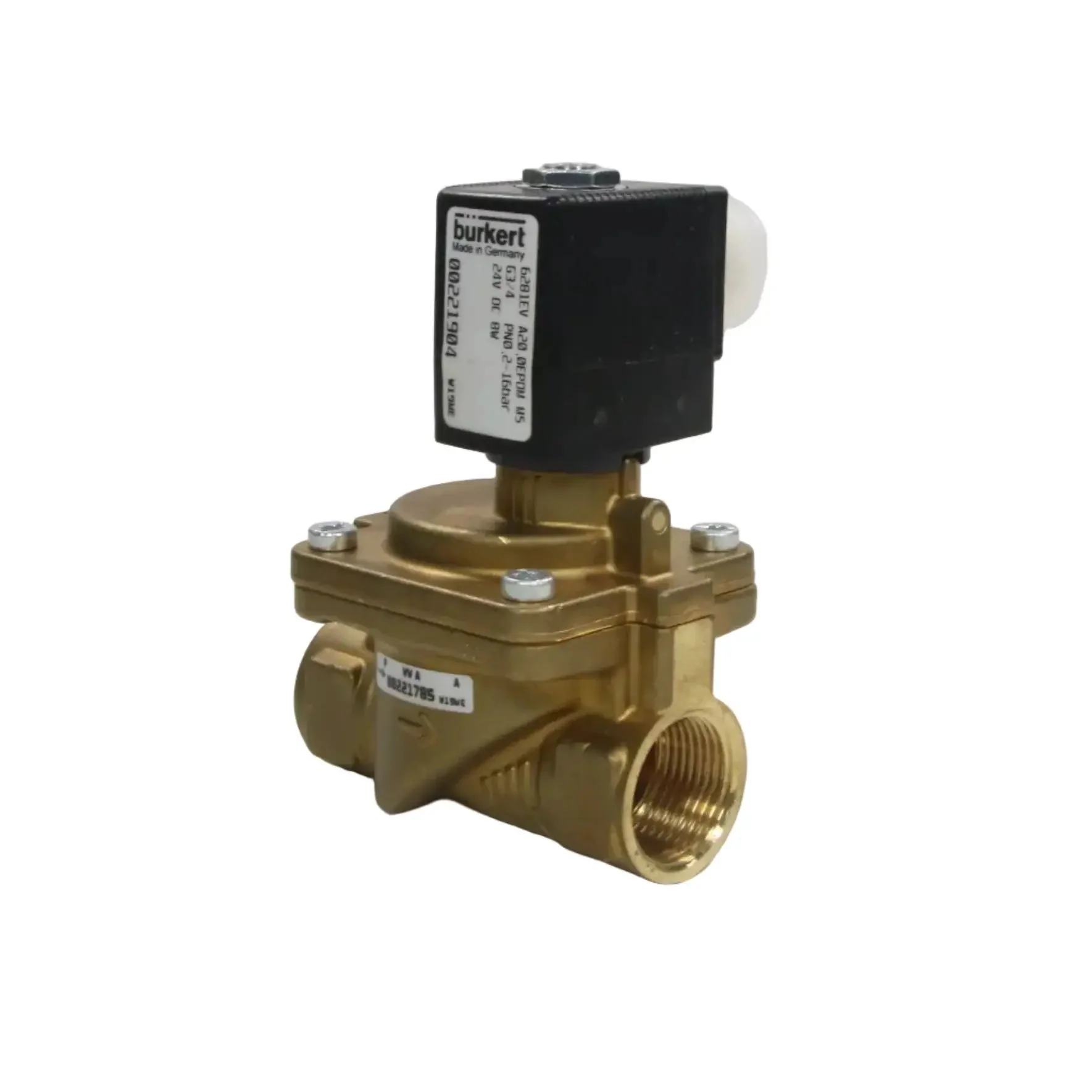

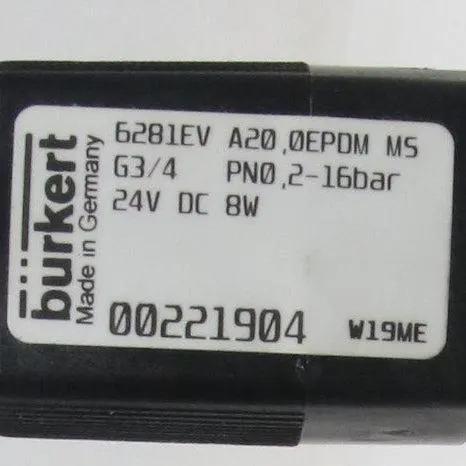

Burkert 6281EV Servo Assisted Solenoid Valve

- Brand: Bürkert
- Model: 6281EV
- Type: Servo-assisted 2/2-way solenoid valve
- ID number: 00221904
  - Function: Servo-assisted solenoid valve with diaphragm for the control of liquid or gaseous medium
  - Operating Principle: Servo-assisted, requires minimum differential pressure of 0.5 bar for operation
  - Pressure Range: 0.2 – 16 bar
  - Orifice Size: 15 mm
  - Kv Value: 2.5 m³/h
  - Max Fluid Temperature: +90 °C
  - Ambient Temperature: -10 °C to +50 °C
  - Body Material: Brass
  - Diaphragm Material: EPDM
  - Seal Material: EPDM
  - Coil Voltage: 24 V DC
  - Coil Power: 8 W
  - Duty Cycle: 100% ED
  - Electrical Connection: DIN EN 175301-803 connector
  - Process Connection: G 3/4" internal thread (for DN 15)
  - Response Time: Opening 20–50 ms, Closing 50–100 ms
  - Cycle Life: > 1,000,000 operations
  - Protection Rating: IP65
  - Features: Vibration-resistant central coil system, damped closing for quiet operation, energy-saving kick-and-drop coil technology
  - Certifications: CE compliant
Dimensions: 90 x 60 x 110 mm
Weight: 900 g
Country of origin: Germany
HS code: 848180
