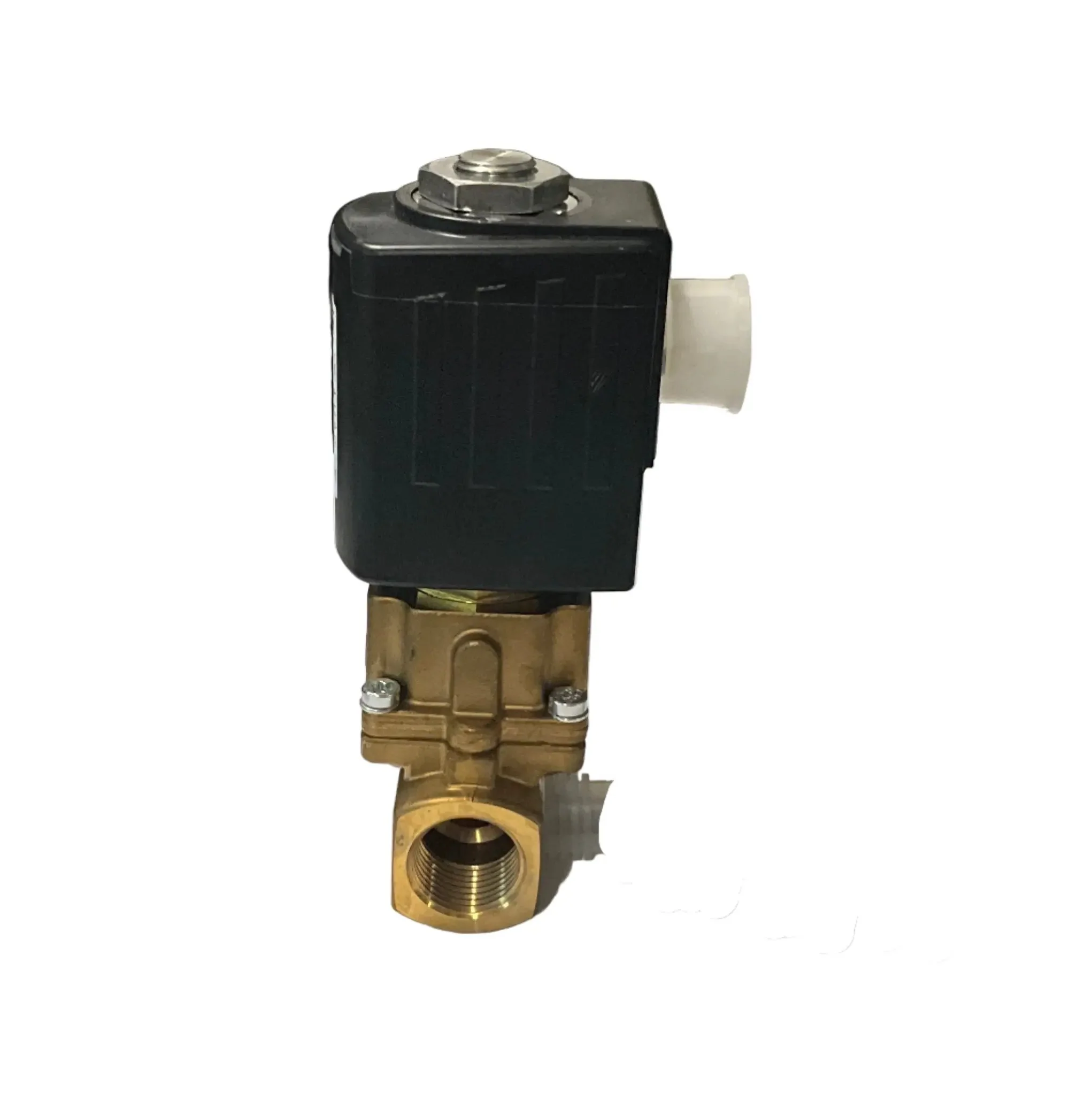

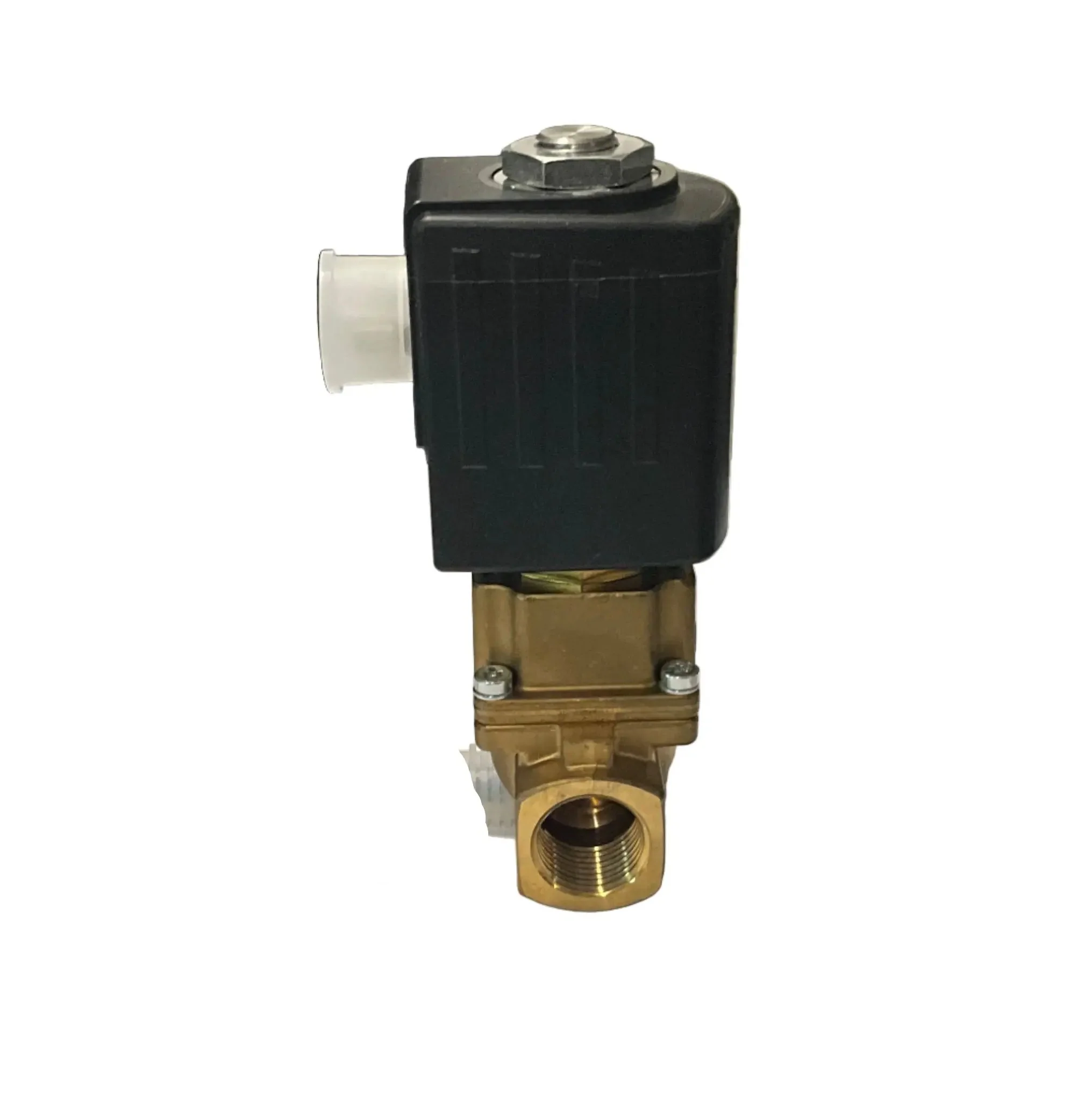

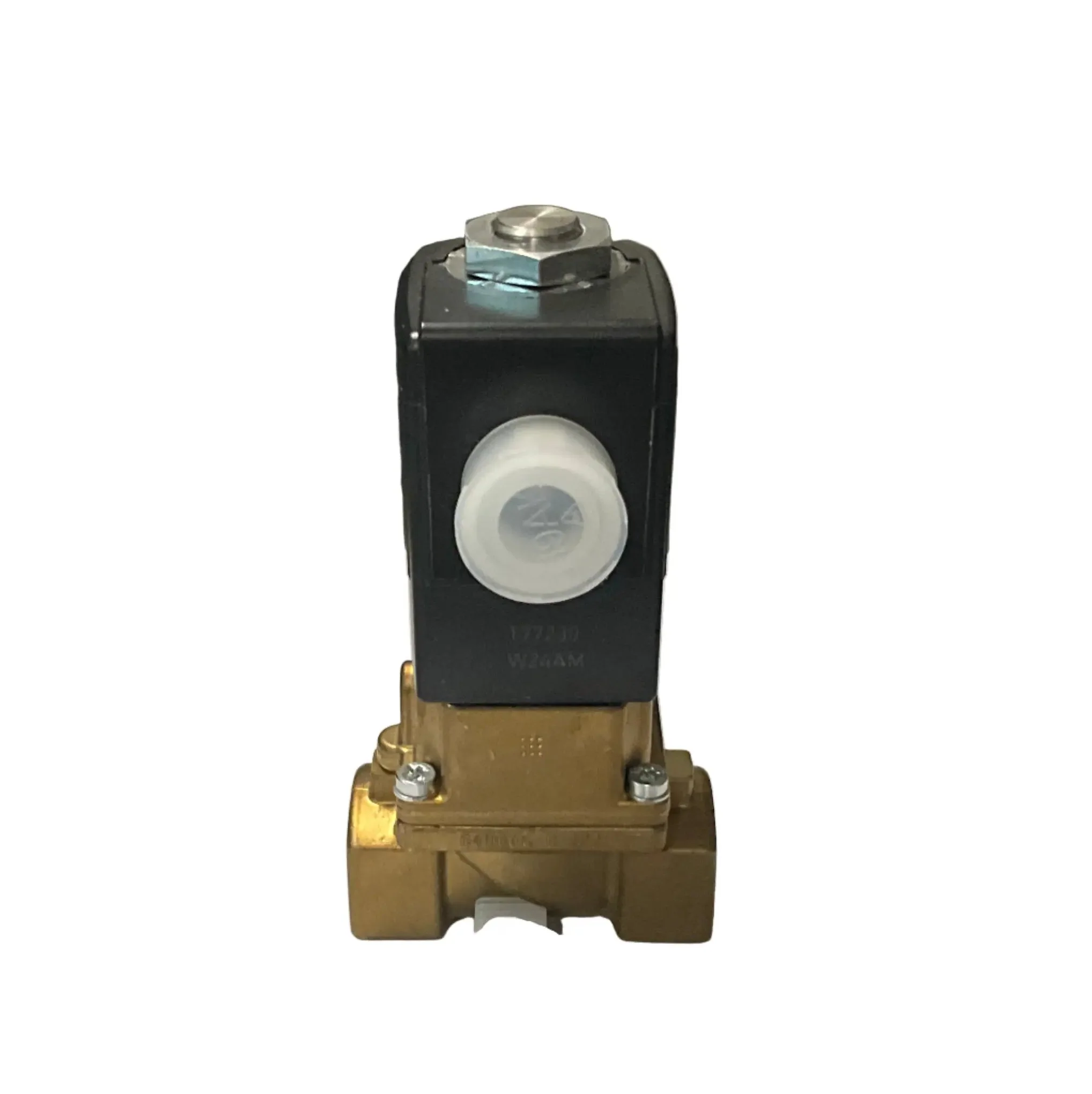

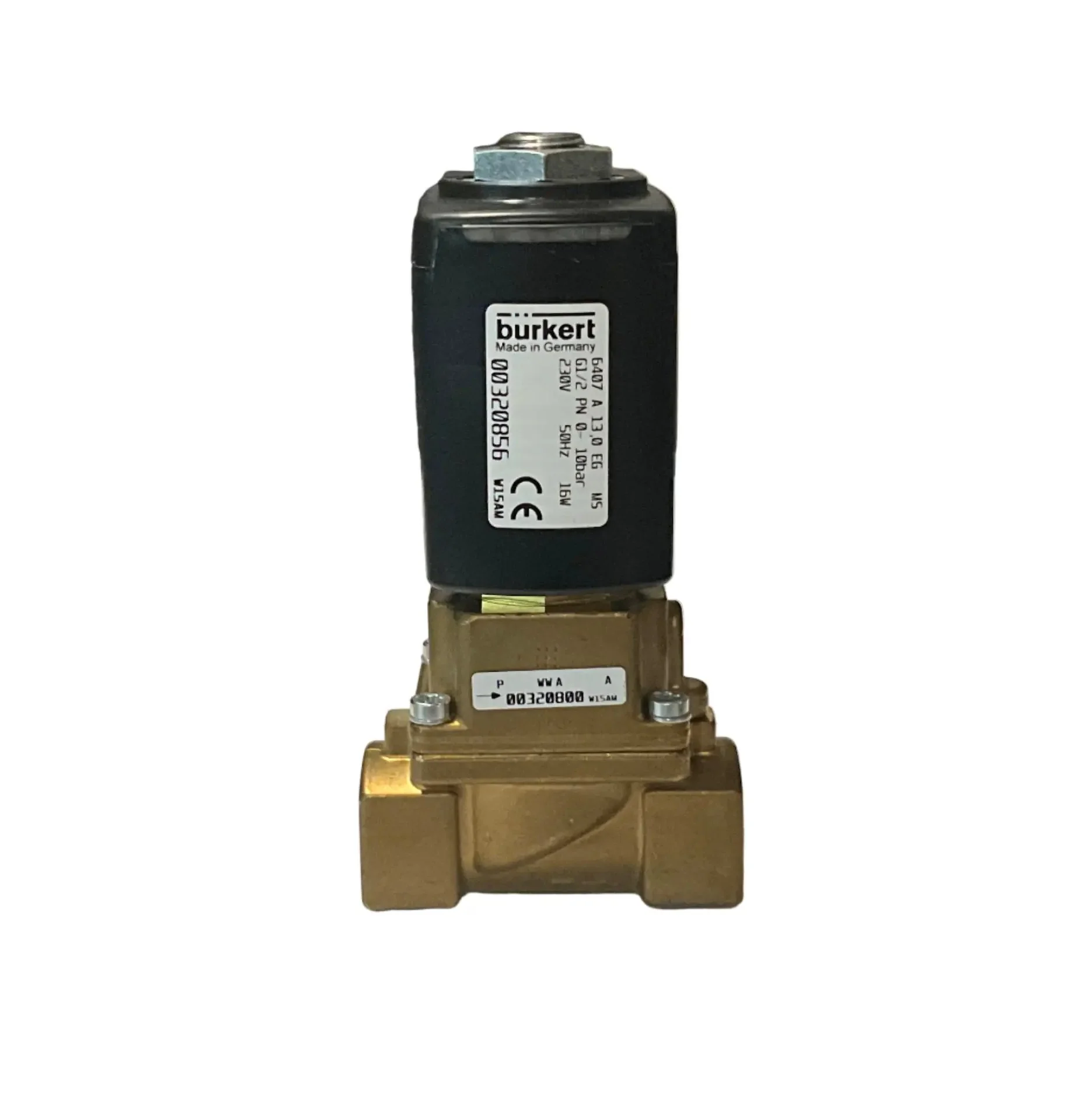

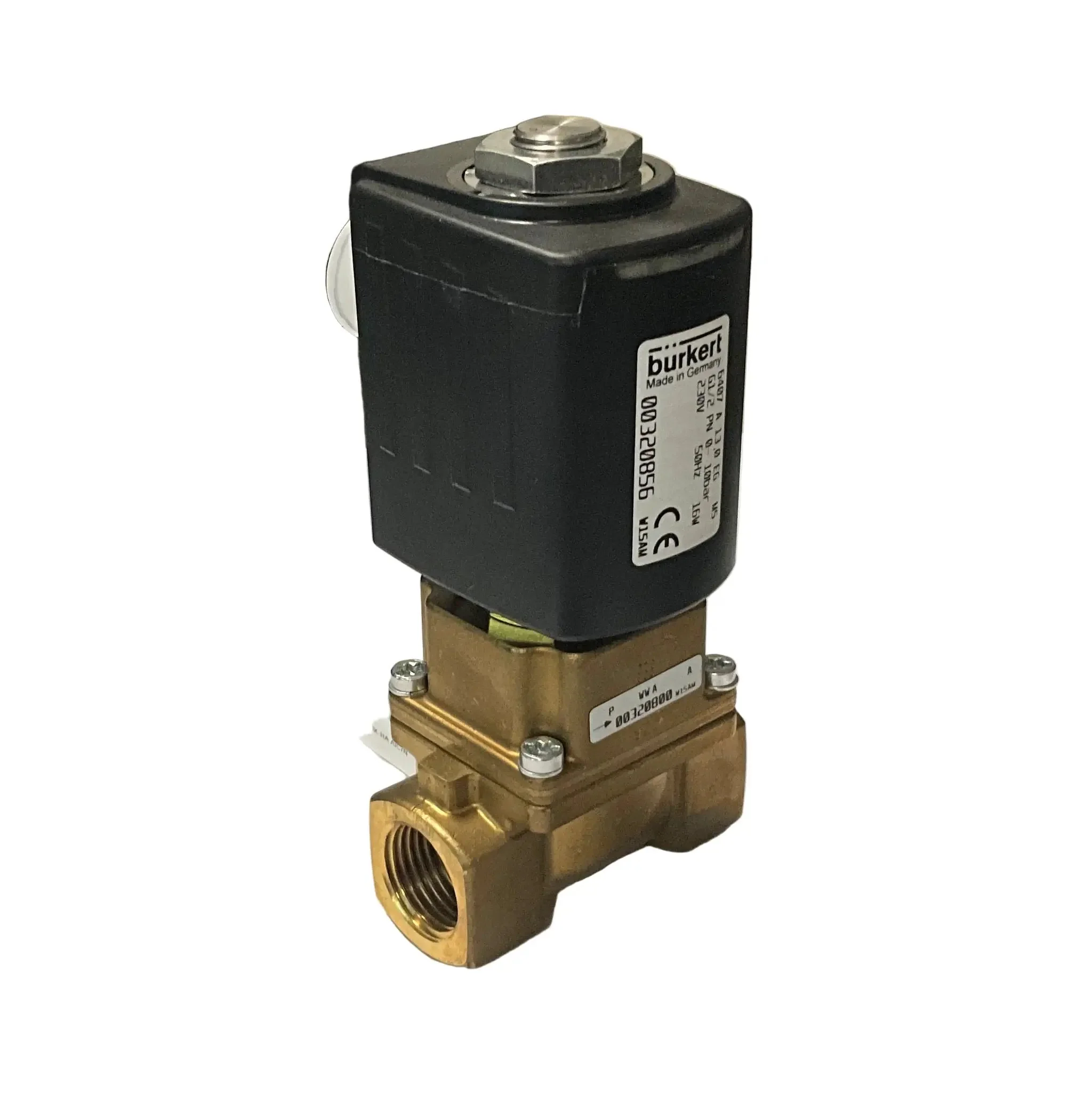

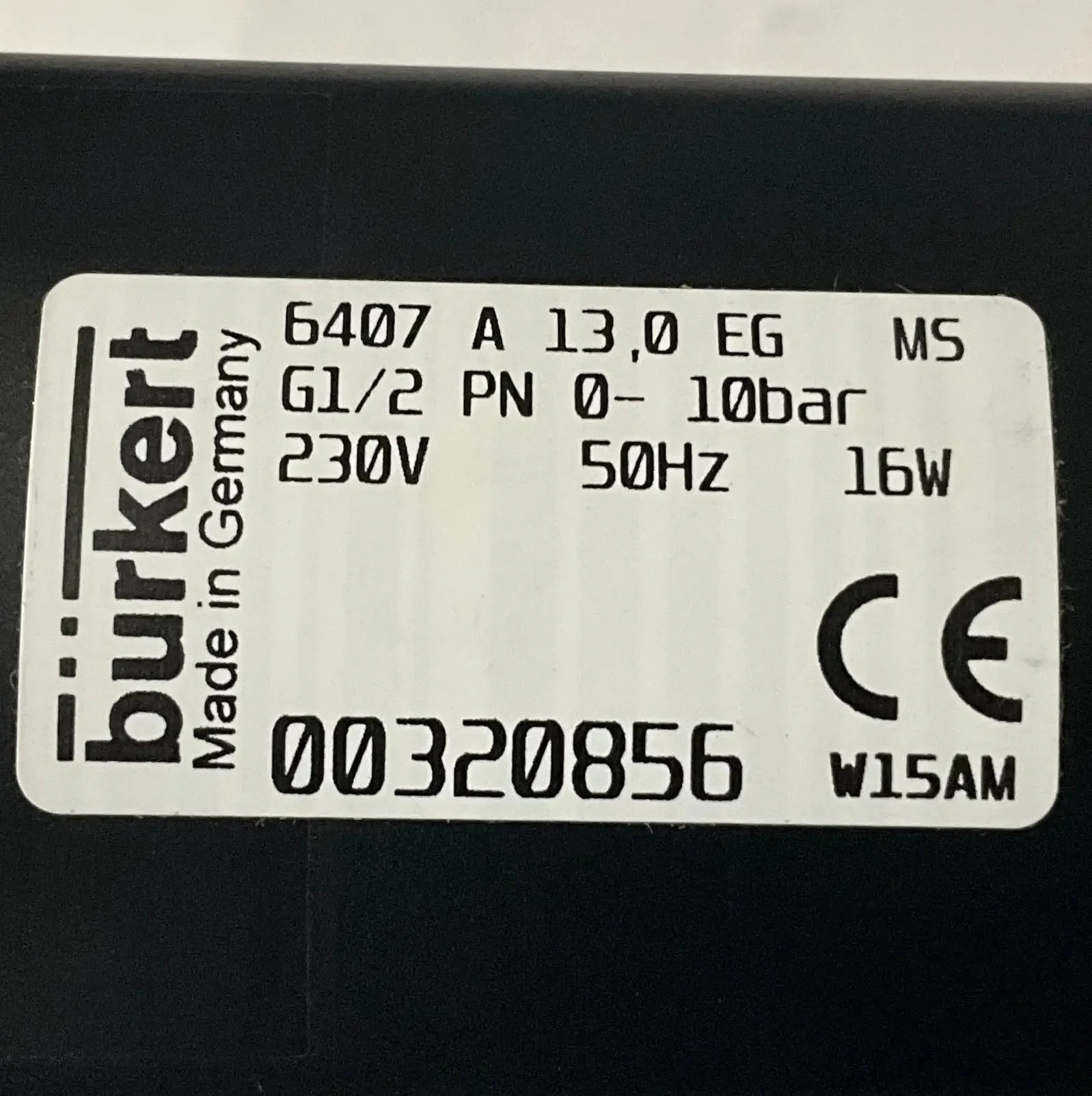

Burkert 6407 Servo Assisted Piston Valve 320856
Brand: Burkert
Model: Type 6407
Type: Servo-assisted 2/2-way Piston Valve
Part Number: 320856
Technical Specs:
- Valve Function: 2/2-way, normally closed (NC), inlet port 1 (P/NC)
- Actuation: Servo-assisted piston with pilot valve
- Orifice Size: 13 mm (1/2 inch)
- Operating Pressure Range: 0 to 10 bar
- Medium: Neutral gases and liquids (e.g., compressed air, water, hydraulic oil, hot water, steam)
- Medium Temperature Range: -40°C to 150°C
- Port Connection: G 1/2
- Voltage: 230 V @ 50 Hz
- Electrical Connection: Cable plug, Form A
- Coil Material: Epoxy, chemically resistant
- Body Material: Brass
- Seal Material: PTFE (Polytetrafluoroethylene)
- Enclosure Rating: IP65
- Duty Cycle: 100% continuous operation
- Response Time (Opening/Closing): 20-100 ms
- Certifications: ATEX, UL, IECEx
- Additional Features:
- Fixed coupling between pilot valve and piston for opening without pressure difference
- Welded stopper and core guide pipe for enhanced pressure resistance and leak-tightness
- Vibration-resistant push-over coil system
Dimension: 65 x 70 x 140 mm
Weight: 1.1 kg
Country of Origin: Germany
HS Code: 8481.80
Description
Brand: Burkert
Model: Type 6407
Type: Servo-assisted 2/2-way Piston Valve
Part Number: 320856
Technical Specs:
- Valve Function: 2/2-way, normally closed (NC), inlet port 1 (P/NC)
- Actuation: Servo-assisted piston with pilot valve
- Orifice Size: 13 mm (1/2 inch)
- Operating Pressure Range: 0 to 10 bar
- Medium: Neutral gases and liquids (e.g., compressed air, water, hydraulic oil, hot water, steam)
- Medium Temperature Range: -40°C to 150°C
- Port Connection: G 1/2
- Voltage: 230 V @ 50 Hz
- Electrical Connection: Cable plug, Form A
- Coil Material: Epoxy, chemically resistant
- Body Material: Brass
- Seal Material: PTFE (Polytetrafluoroethylene)
- Enclosure Rating: IP65
- Duty Cycle: 100% continuous operation
- Response Time (Opening/Closing): 20-100 ms
- Certifications: ATEX, UL, IECEx
- Additional Features:
- Fixed coupling between pilot valve and piston for opening without pressure difference
- Welded stopper and core guide pipe for enhanced pressure resistance and leak-tightness
- Vibration-resistant push-over coil system
Dimension: 65 x 70 x 140 mm
Weight: 1.1 kg
Country of Origin: Germany
HS Code: 8481.80
