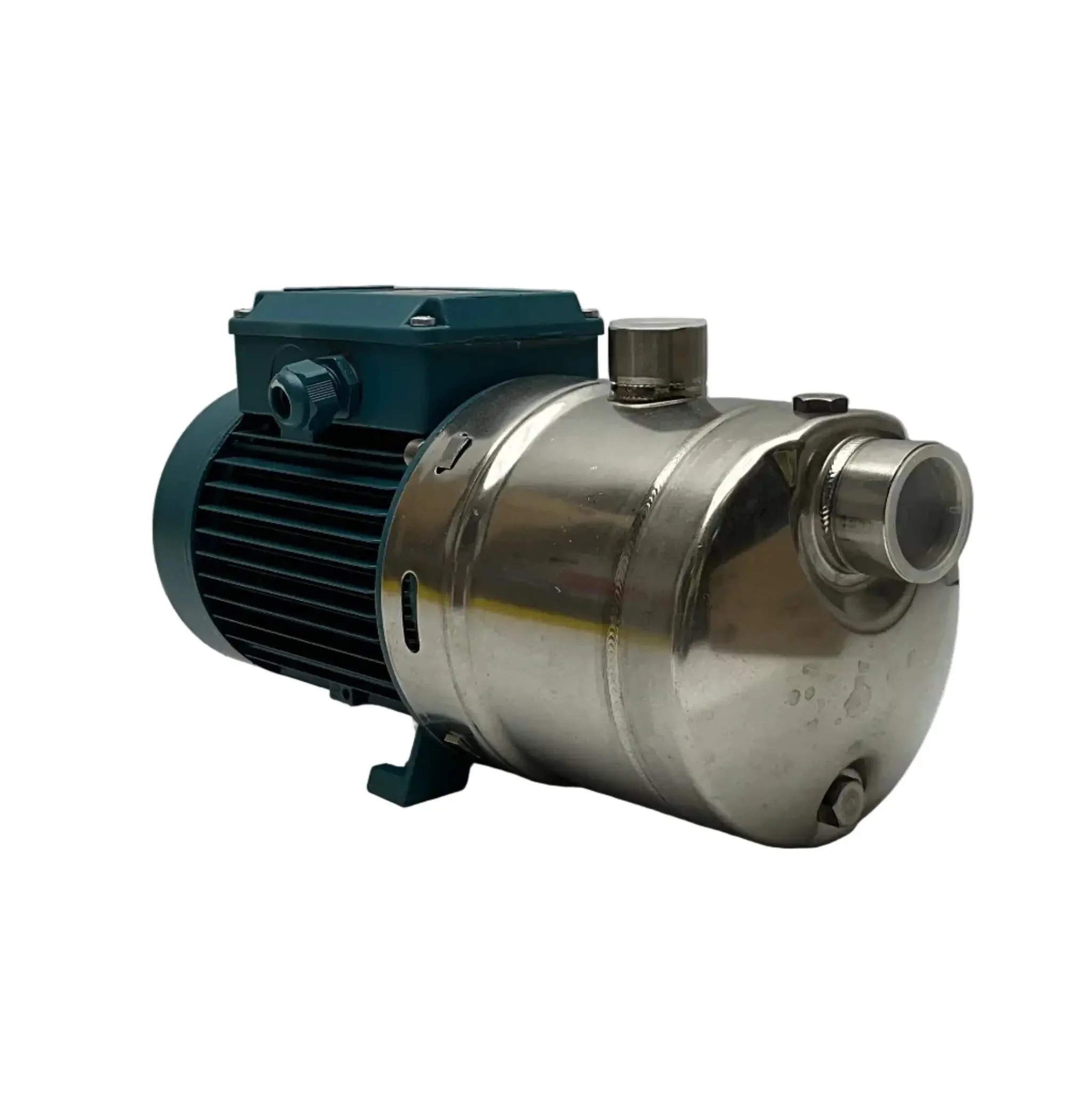

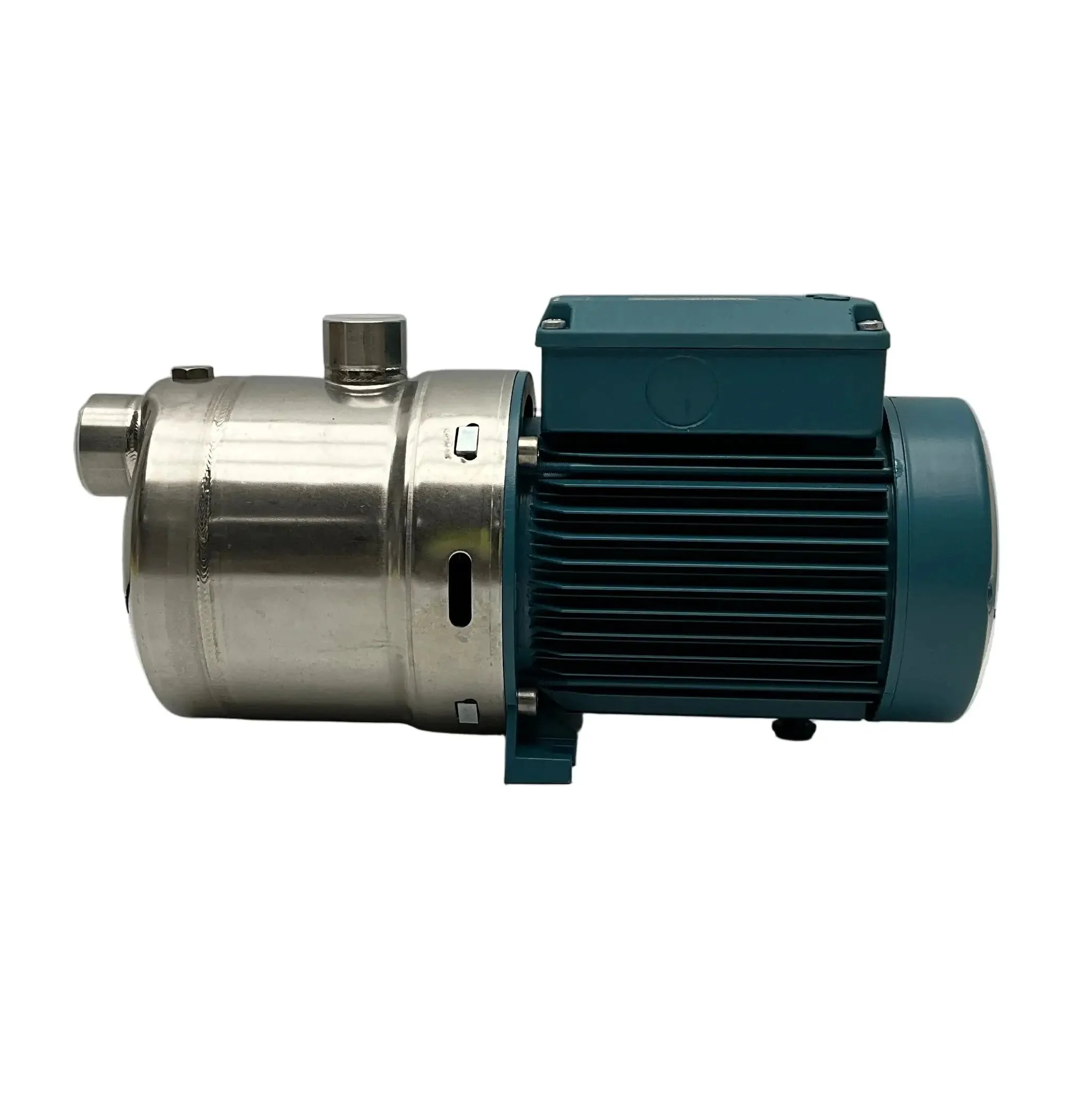

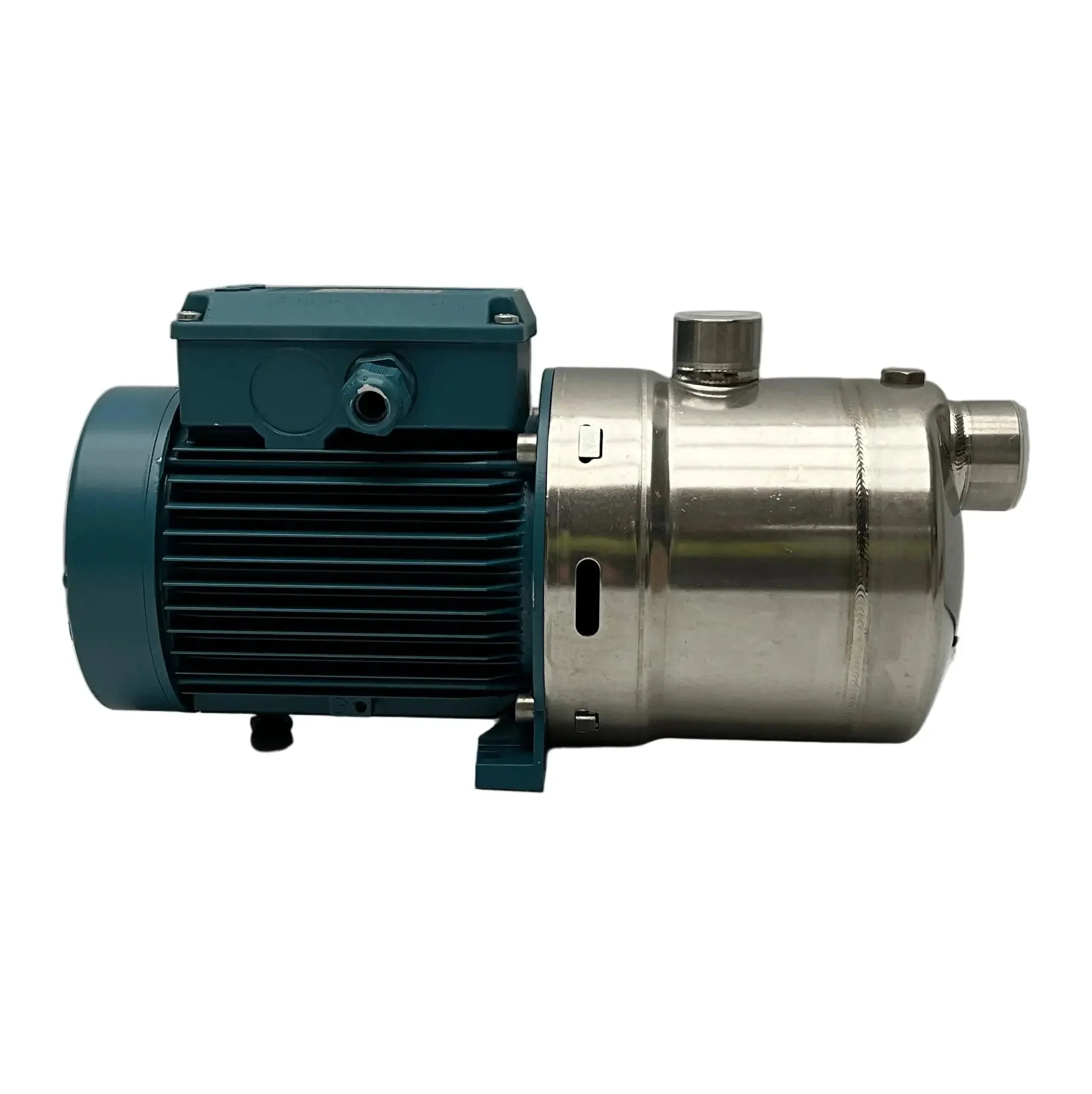

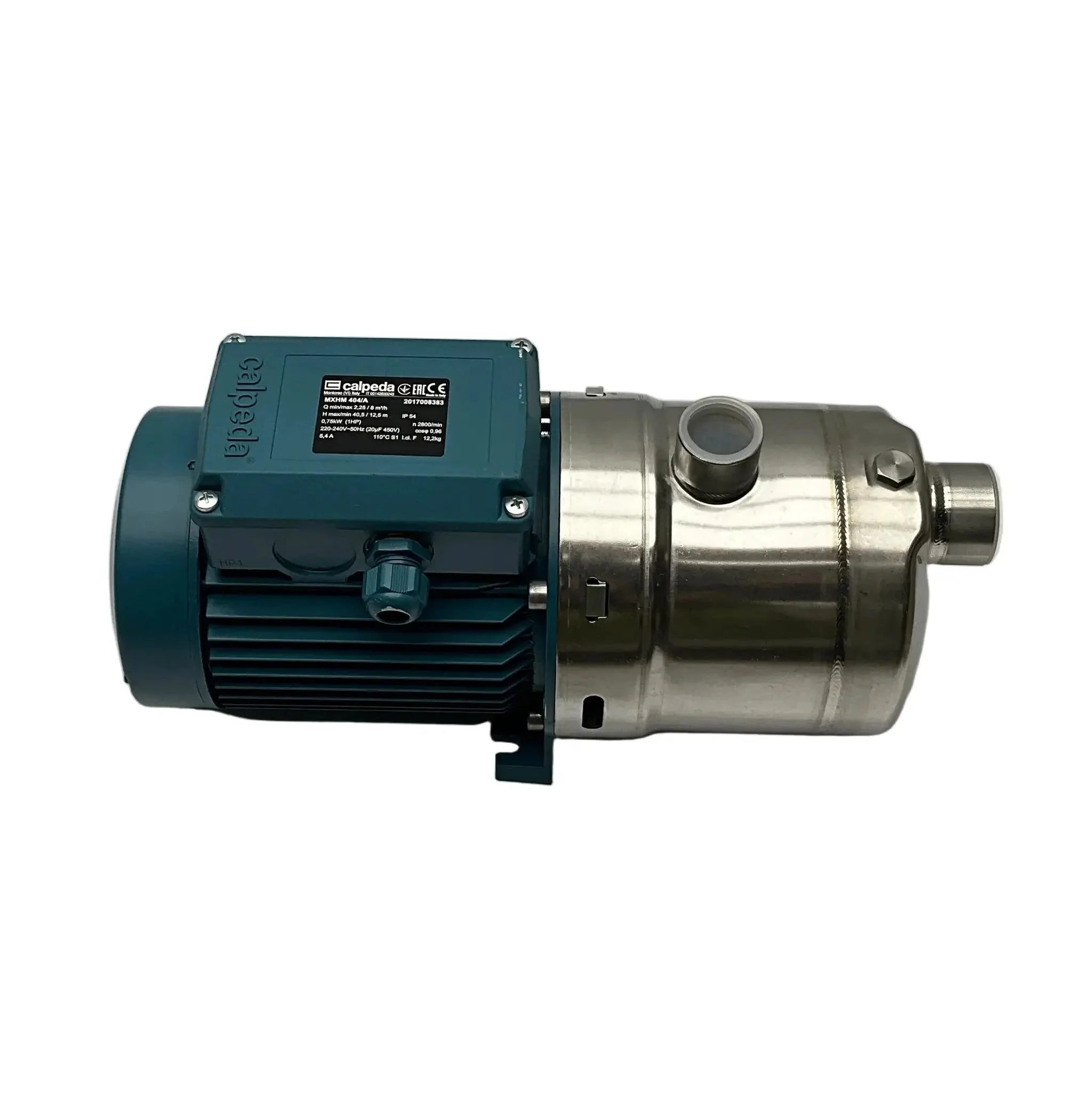

Calpeda MXHM 404/A Horizontal Multistage Close Coupled Pump

- Brand: Calpeda
- Model: MXHM 404/A
- Type: Horizontal Multistage Close Coupled Pump

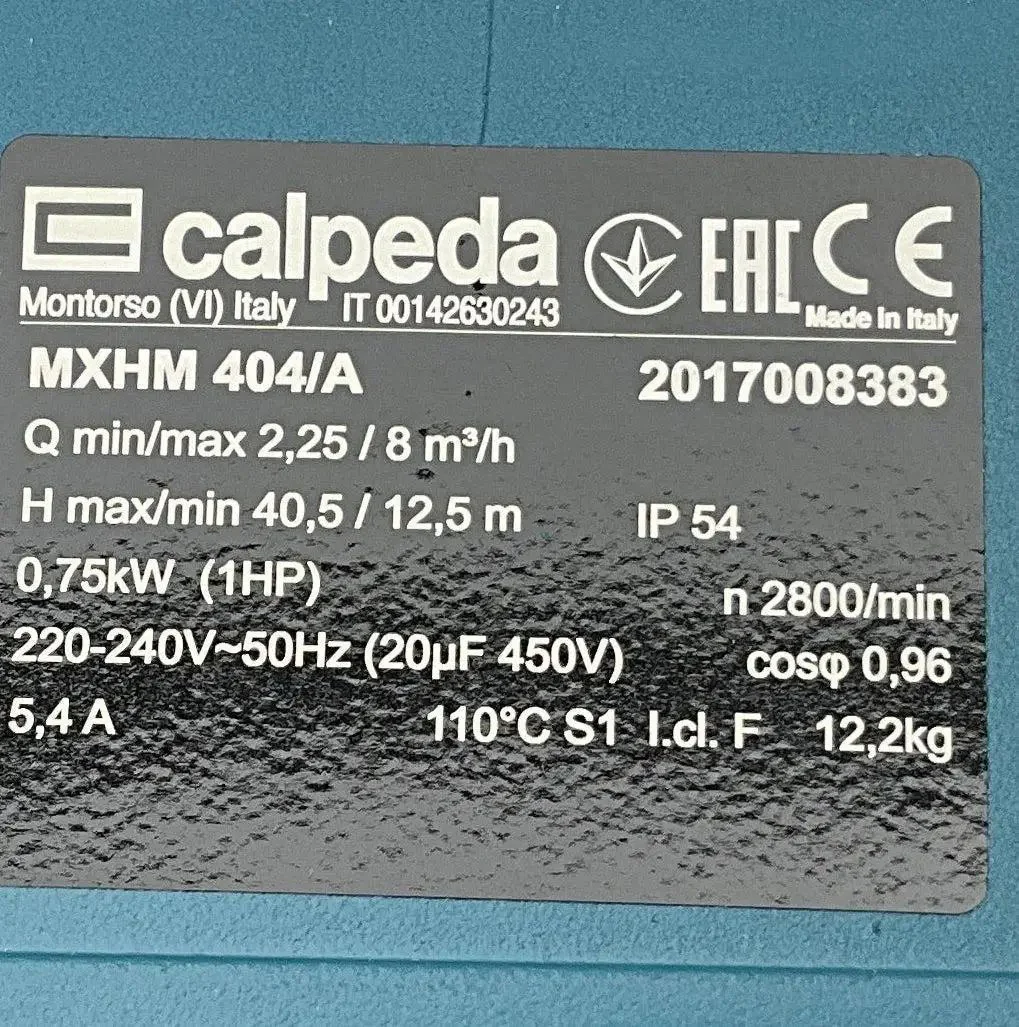

- Part Number: 2017008383

- Technical Specs:

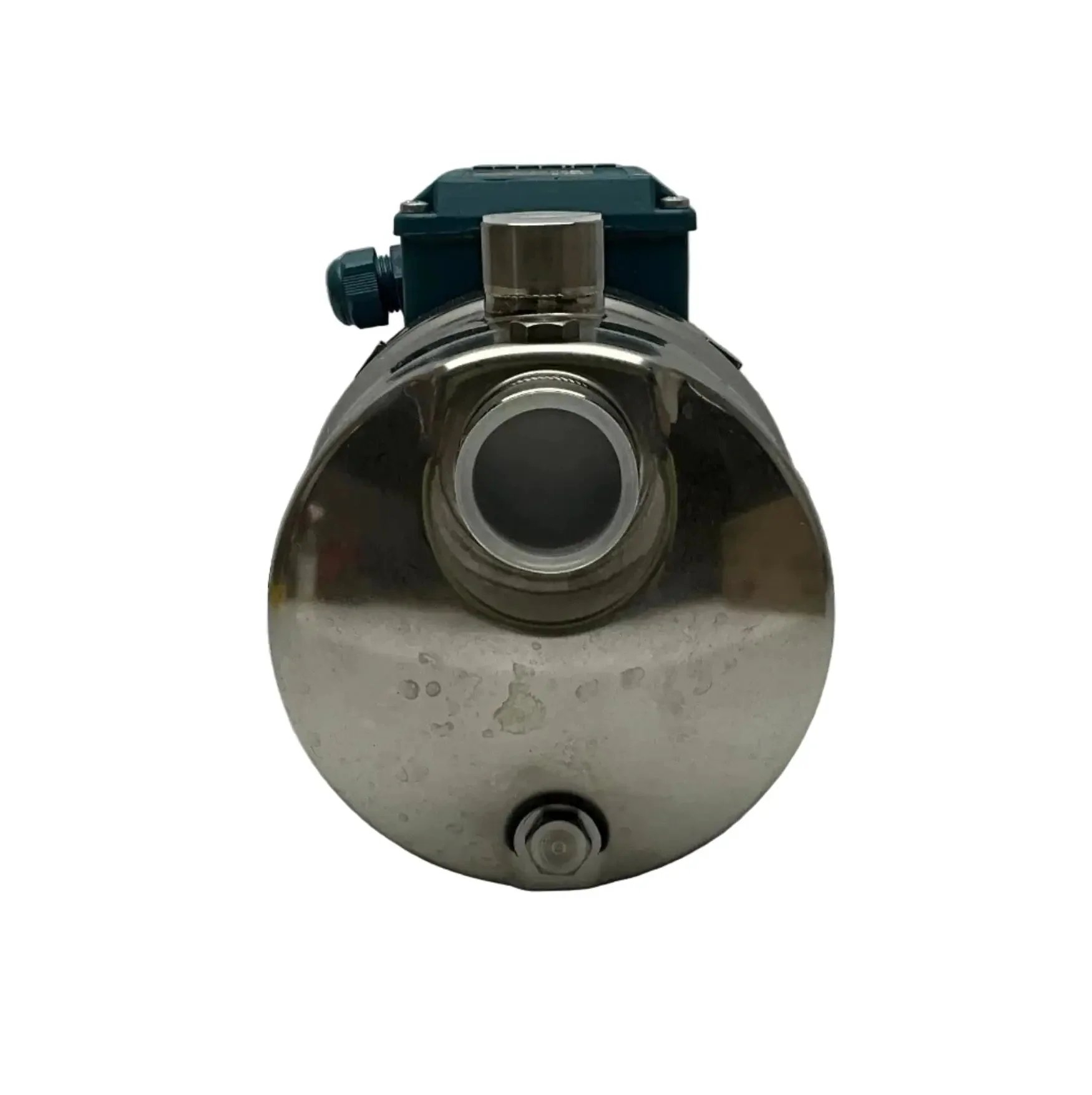

- Construction: Compact and robust, single-piece lantern bracket and base, single-piece barrel casing with front suction port above pump axis and radial delivery at top
- Impeller Material: Stainless steel AISI 304
- Pump Body Material: Chrome-nickel stainless steel AISI 304
- Liquid Temperature Range: -15 °C to +110 °C
- Duty Cycle: Continuous duty

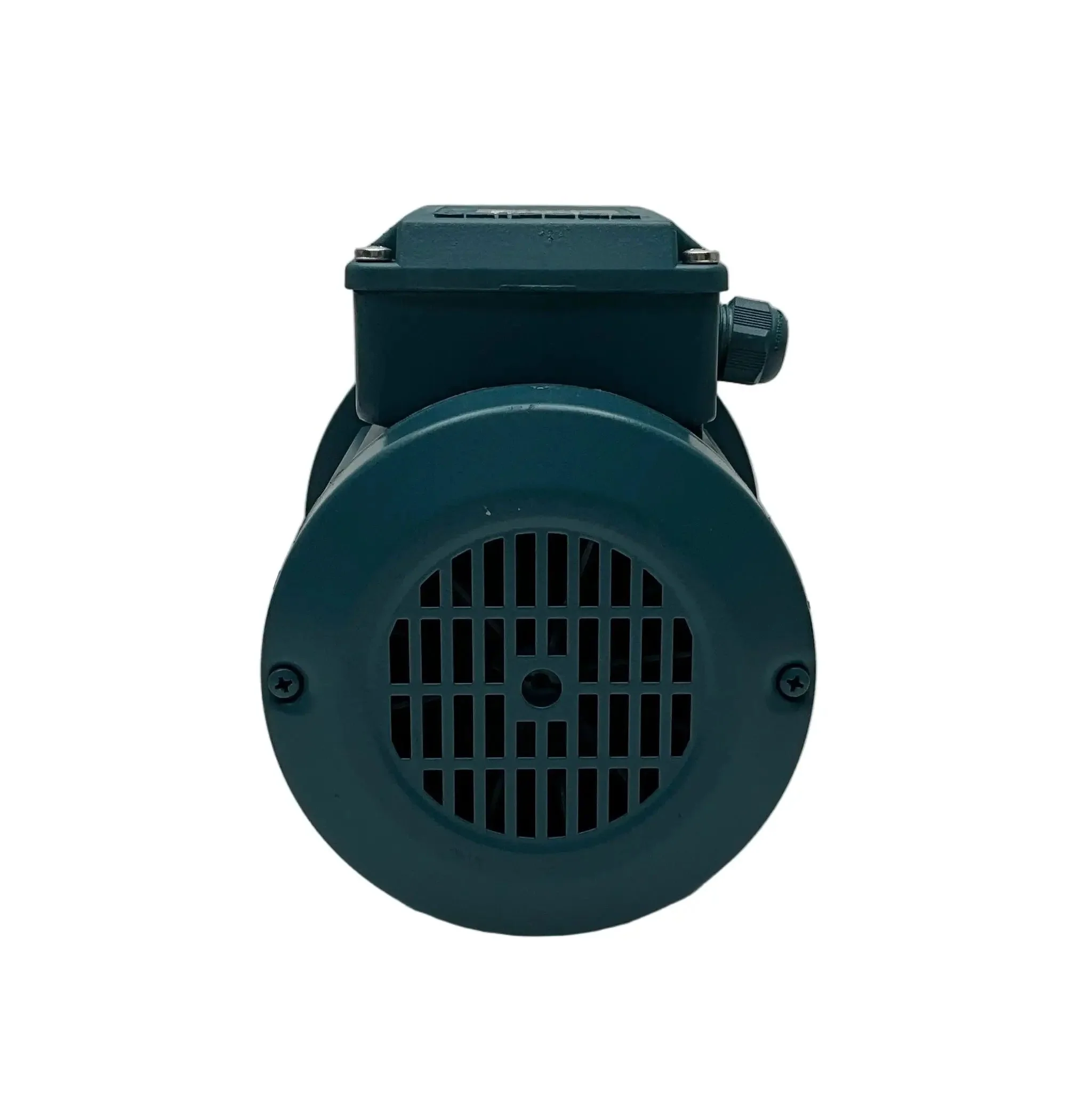

- Motor: 2-pole induction motor, 50 Hz (n ≈ 2800 rpm), single-phase 230 V
- Motor Power: 0.75 kW
- Motor Efficiency Class: IE3
- Insulation Class: F
- Protection: IP 54
- Flow Rate (Q): 8 m³/h
- Head (H): 40.5 to 12.5 m
- Suction Port: 1 1/4"
- Delivery Port: 1"

Dimensions: 400 x 180 x 200 mm

Weight: 12.7 kg

Country of Origin: Italy

HS Code: 8413.70
