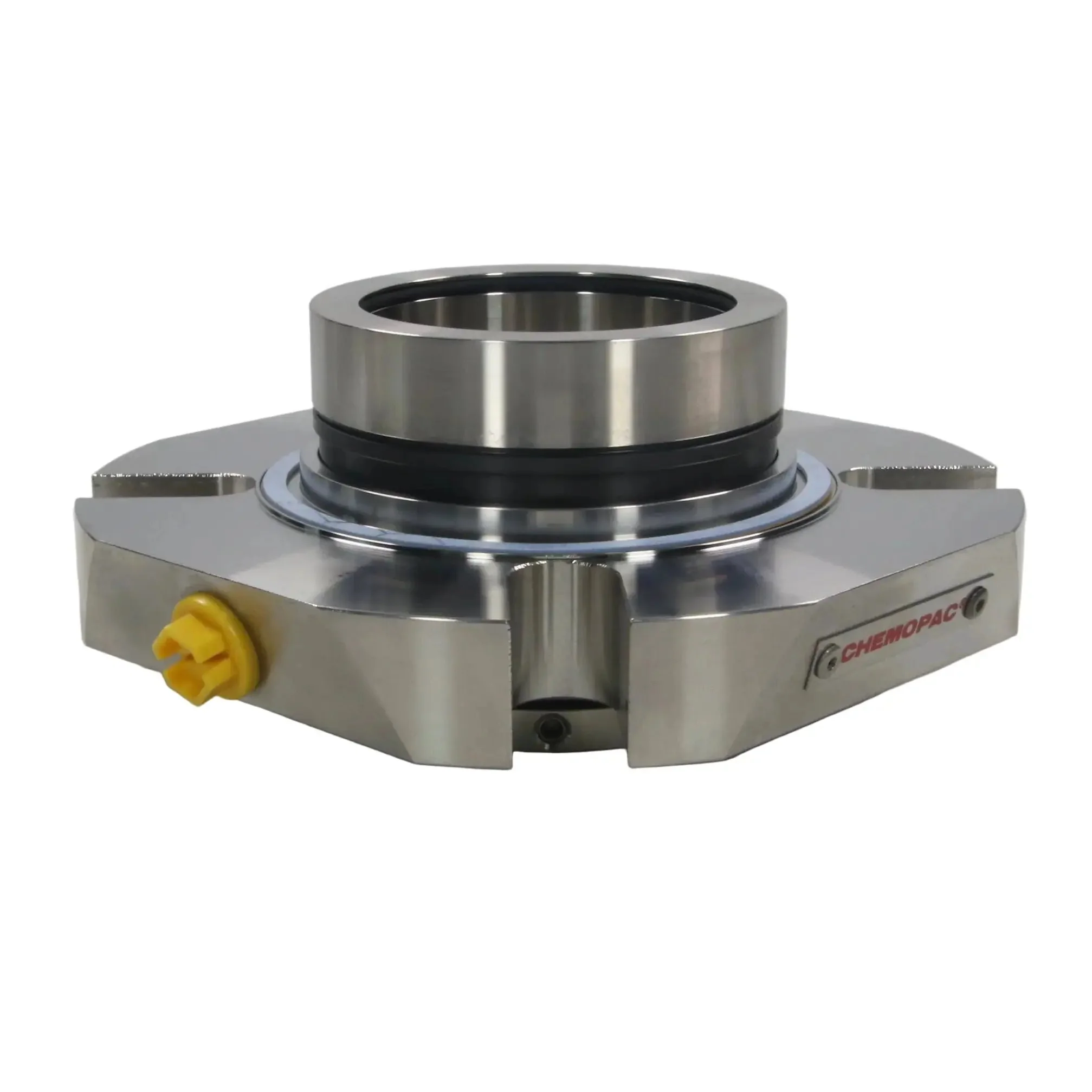

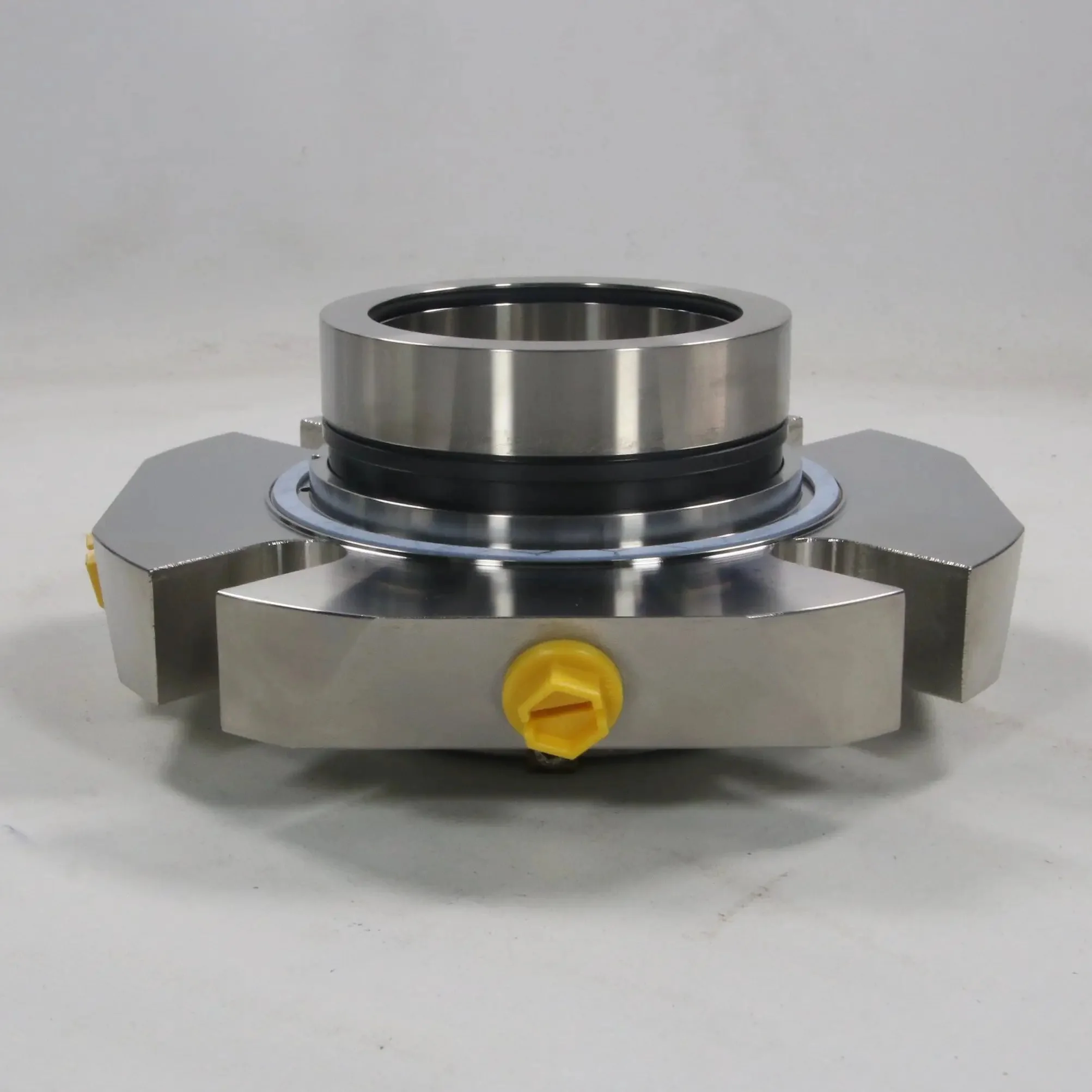

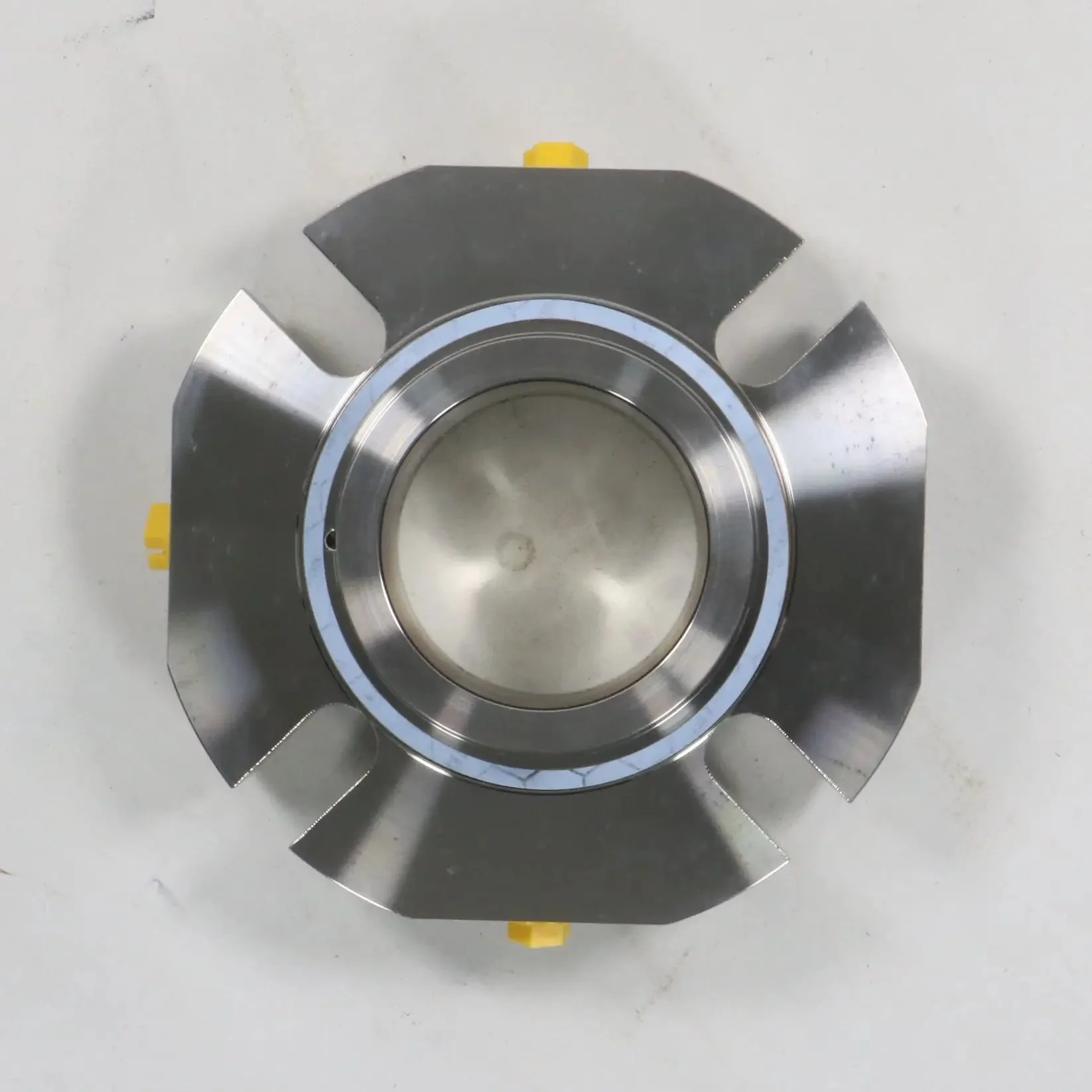

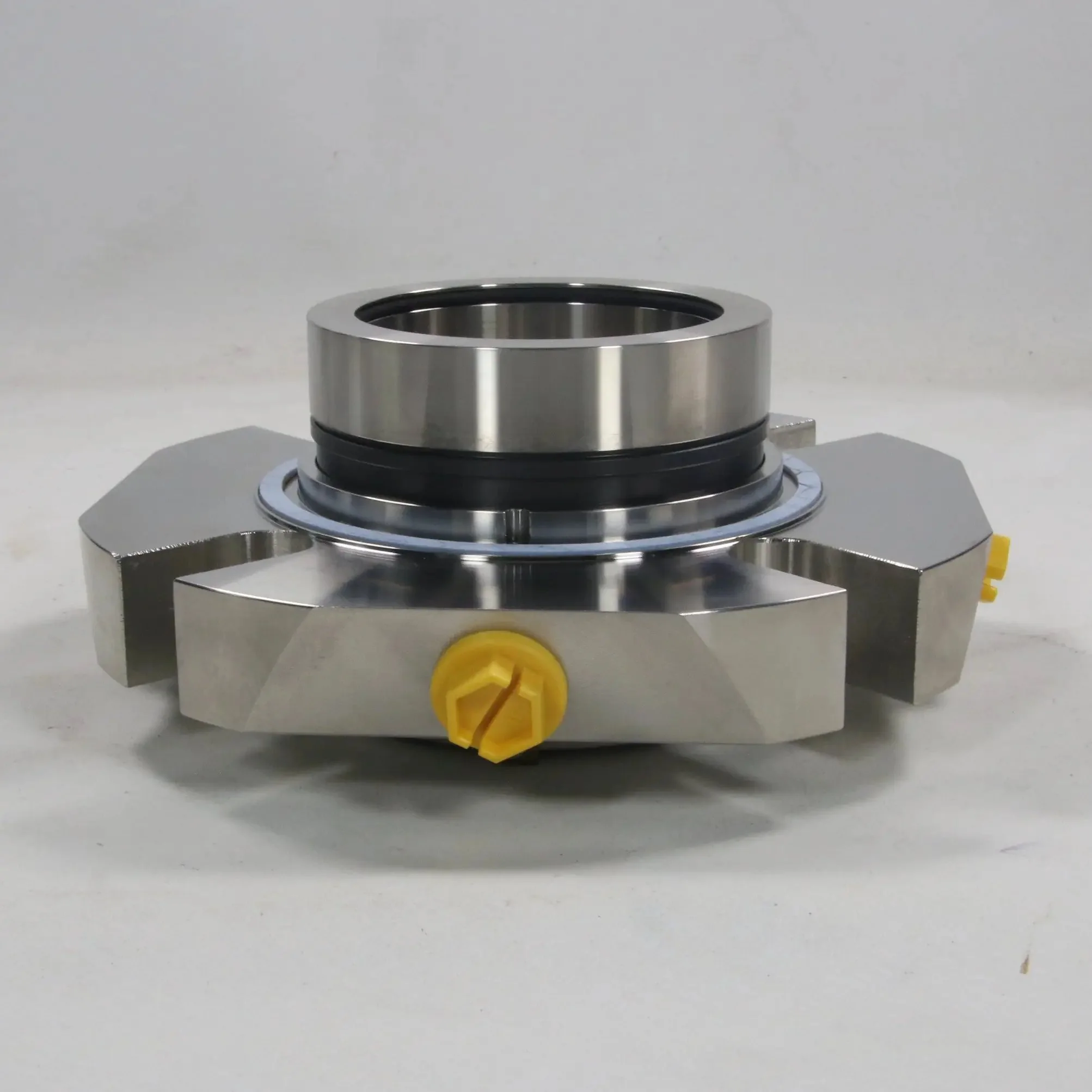

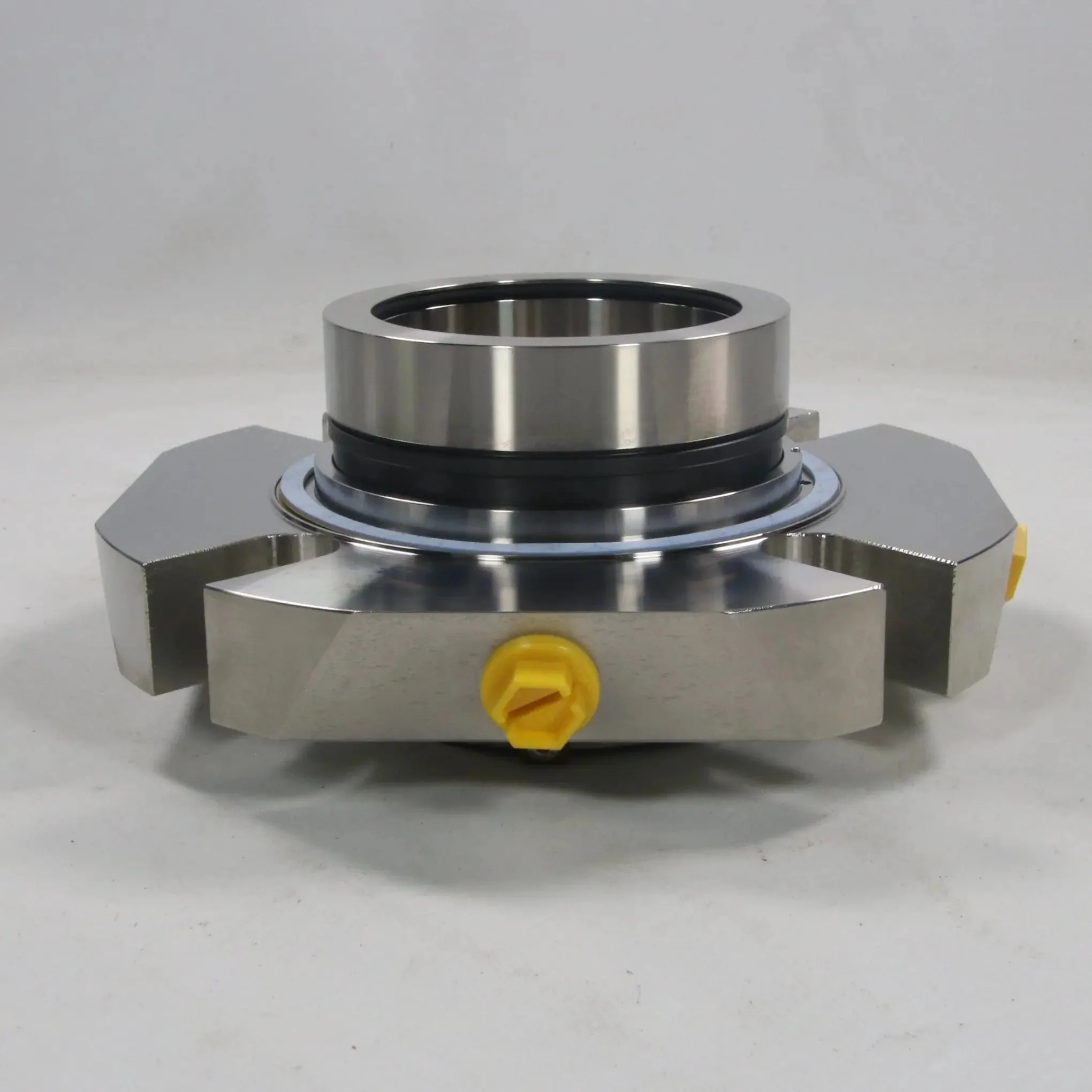

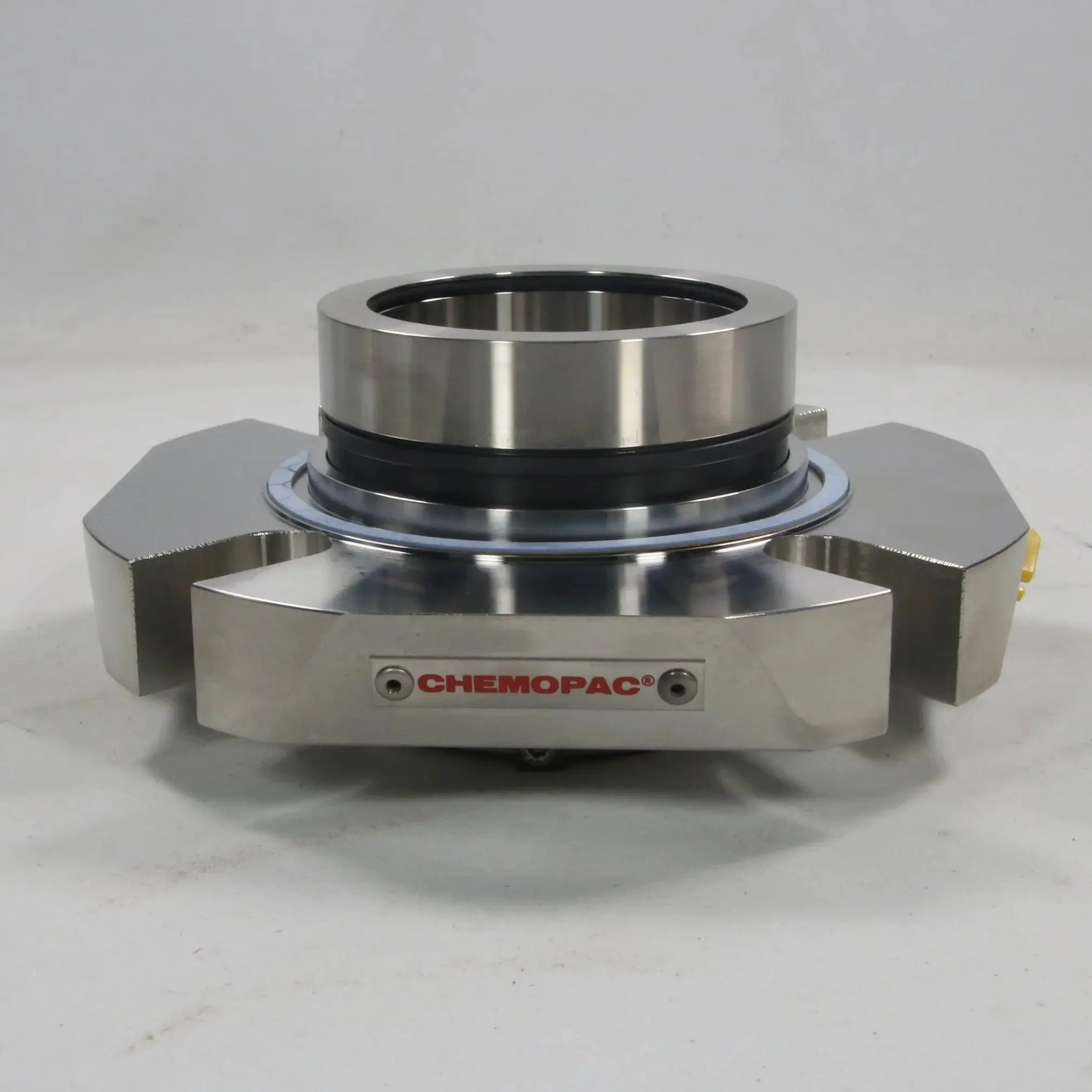

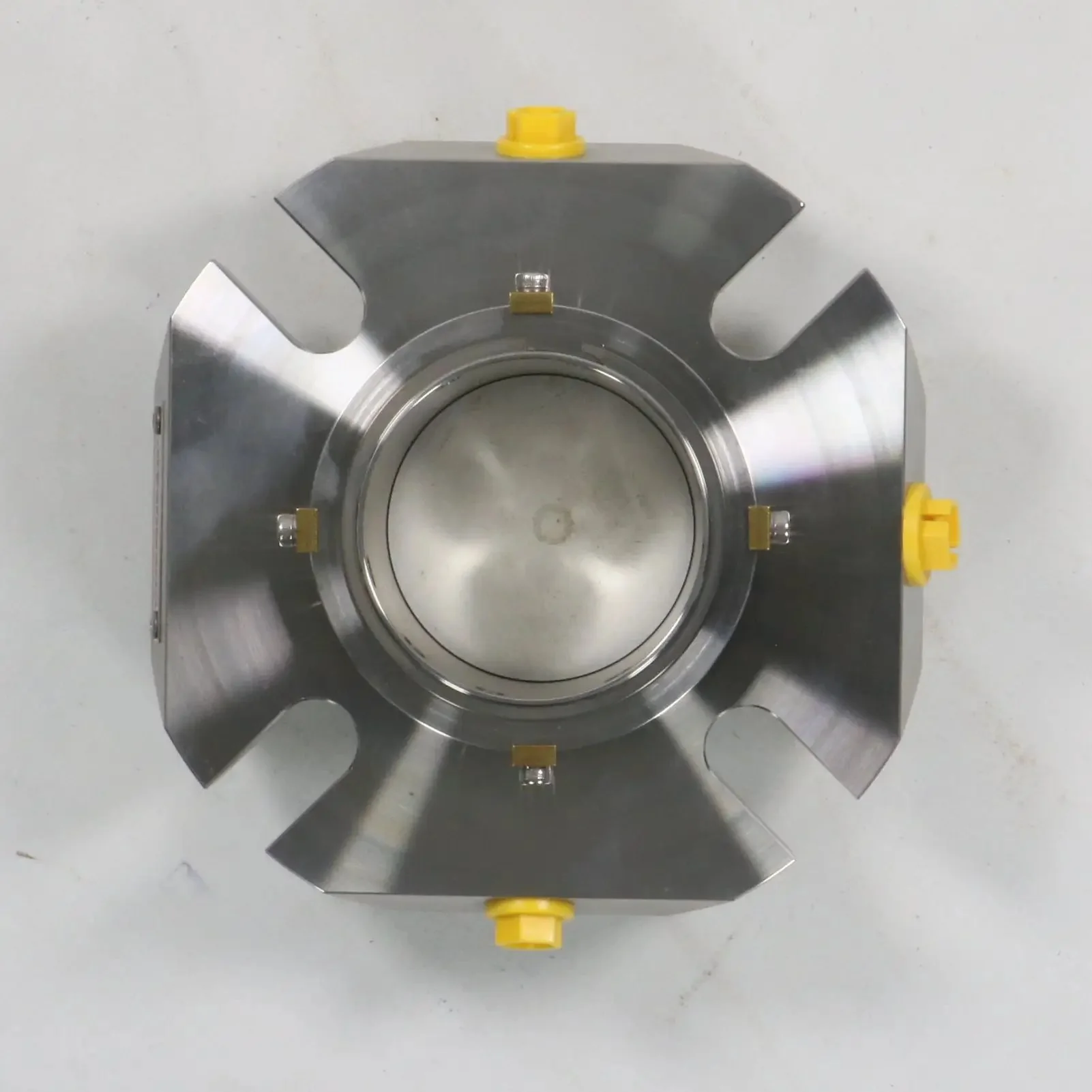

Chemopac CAPI/SL-070 mm-QQVGG Cartridge Mounted Universal Seal

- Brand: Chemopac (Lotzer & Muhlenbruch)

- Model: CAPI/SL-070 mm-QQVGG

- Type: Cartridge Mounted Universal Seal

- Part number: 4936975921

- Technical specifications:
- Shaft diameter: 70 mm
- Seal design: Cartridge-mounted:
  - Q = Silicon Carbide (SiC) stationary face
  - Q = Silicon Carbide (SiC) rotating face
  - V = Viton (FKM) secondary seals
  - G = additional secondary elements
- Operating limits:
  - Pressure: 25 bar
  - Temperature: -20°C to +150°C
  - Speed: 25 m/s
- Materials:
  - Seal faces: Silicon Carbide (SiC) vs. Silicon Carbide (SiC)
  - Secondary seals: Viton (FKM)
  - Metal parts: 1.4571 / 316Ti stainless steel
  - Springs/Bellows: Hastelloy
- Installation: Cartridge design
- Direction of rotation: Independent
- Compatibility: Pumps and agitators with 70 mm shaft
- Additional features: Balanced design for low heat generation and longer life; cartridge for error-free installation; high chemical/wear resistance (SiC faces + Viton seals); low leakage; maintenance-friendly; universal configuration for broad application range
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 5 kg

Dimensions: 220 x 160 x 210 mm (box)

Country of origin: Germany

HS code: 8484.20
