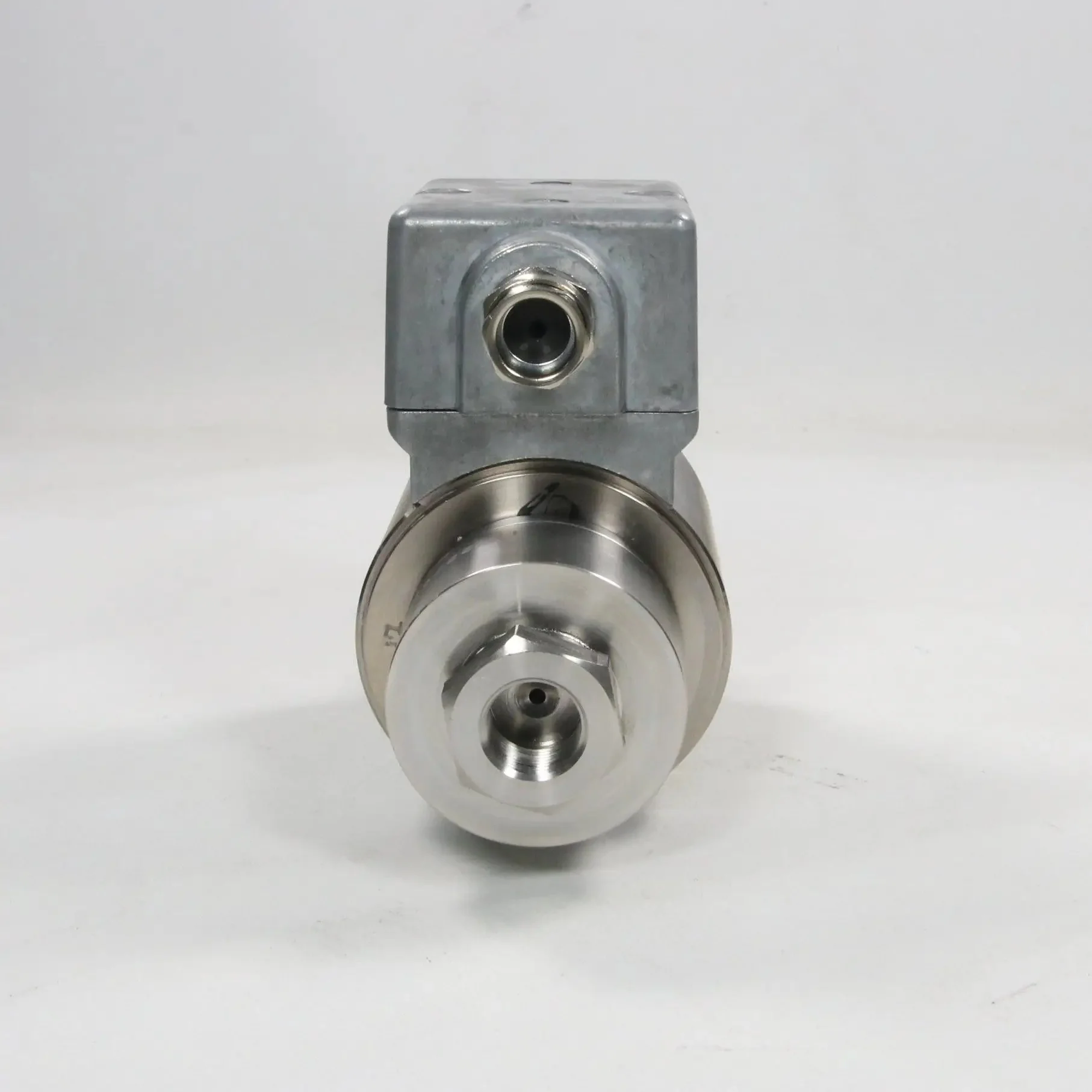

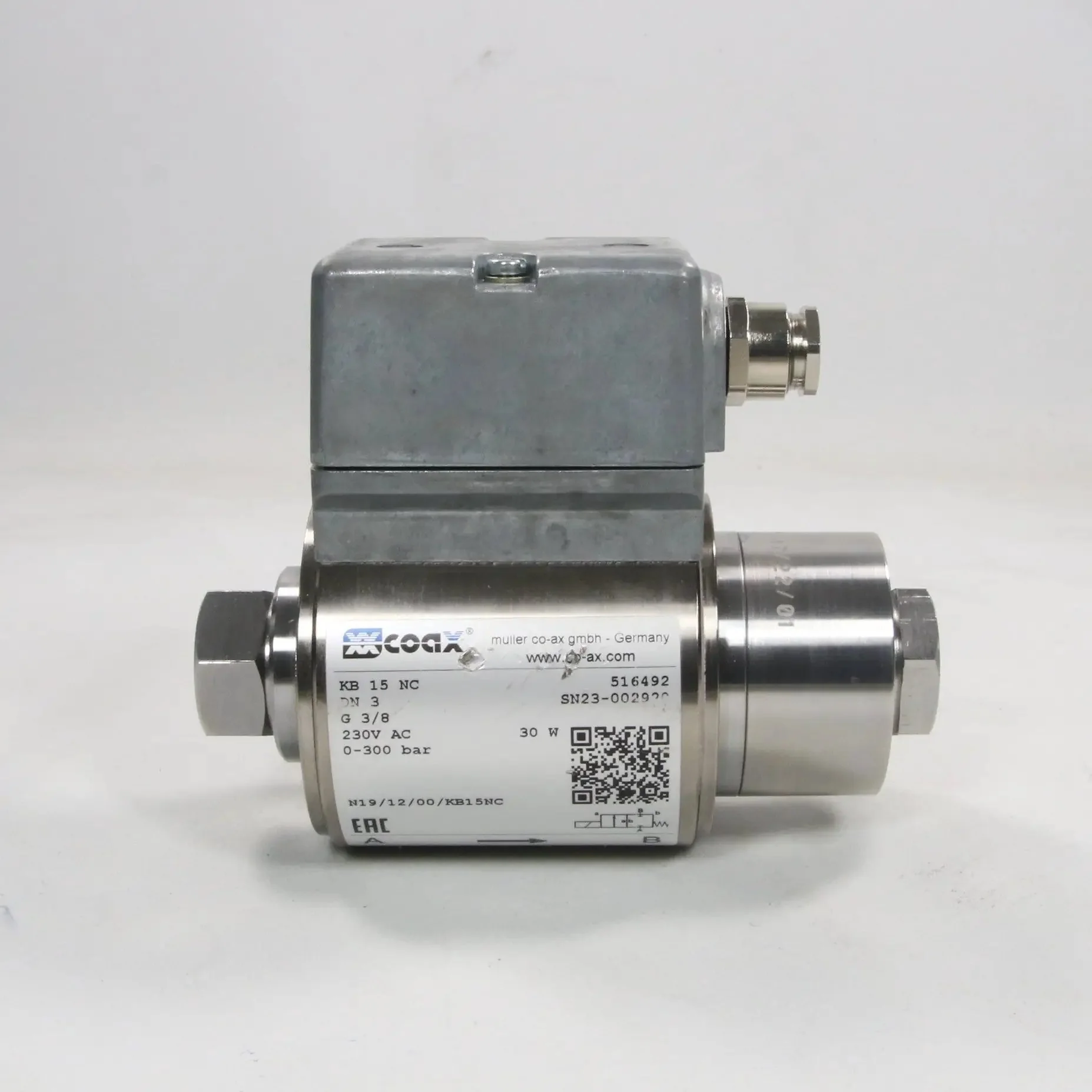

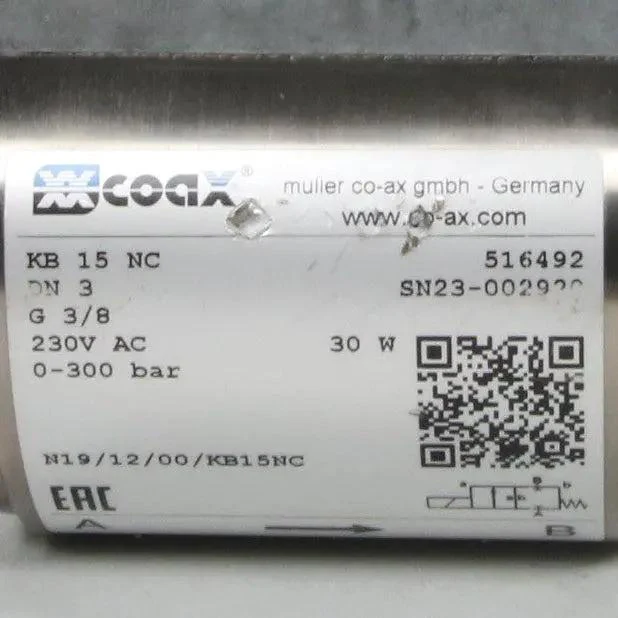

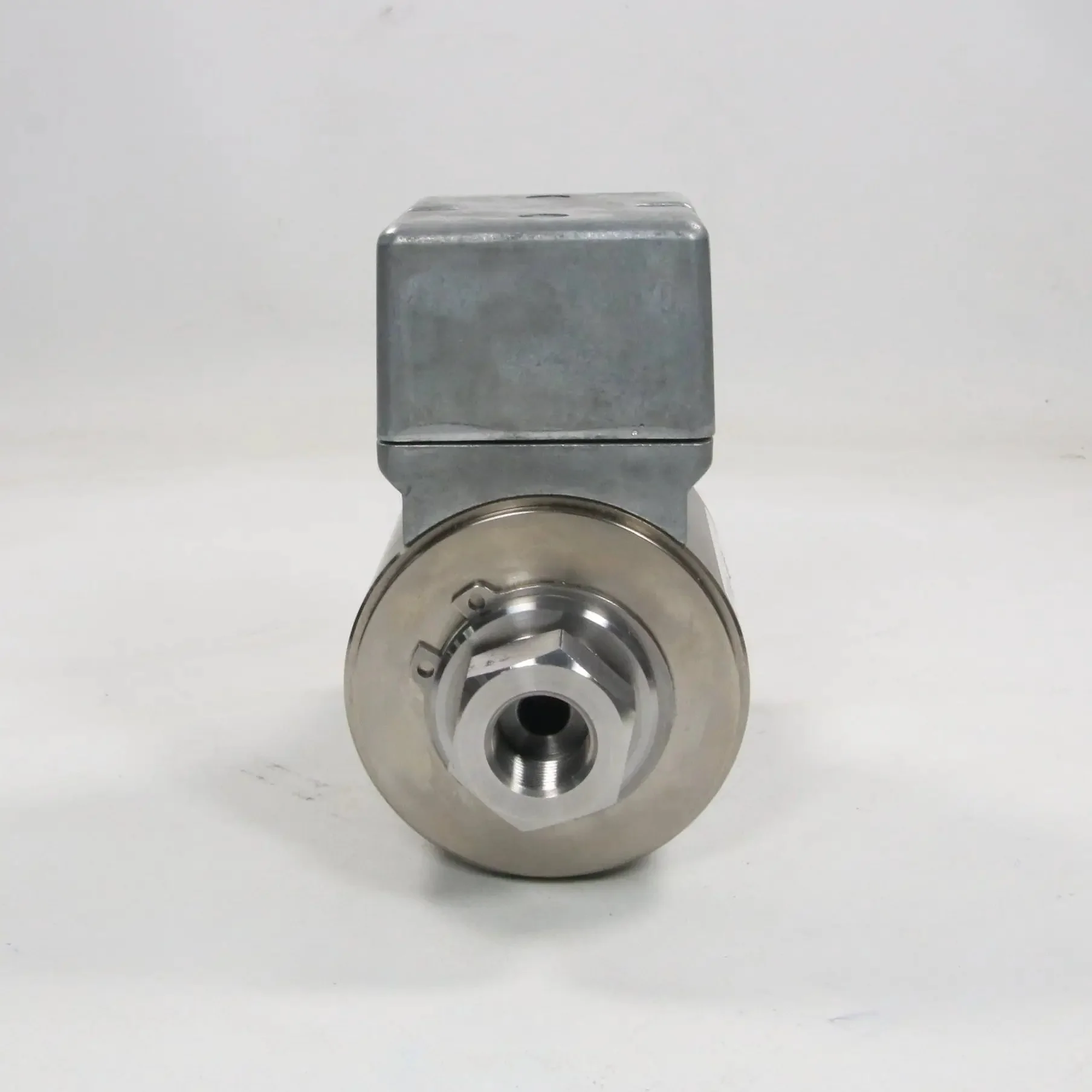

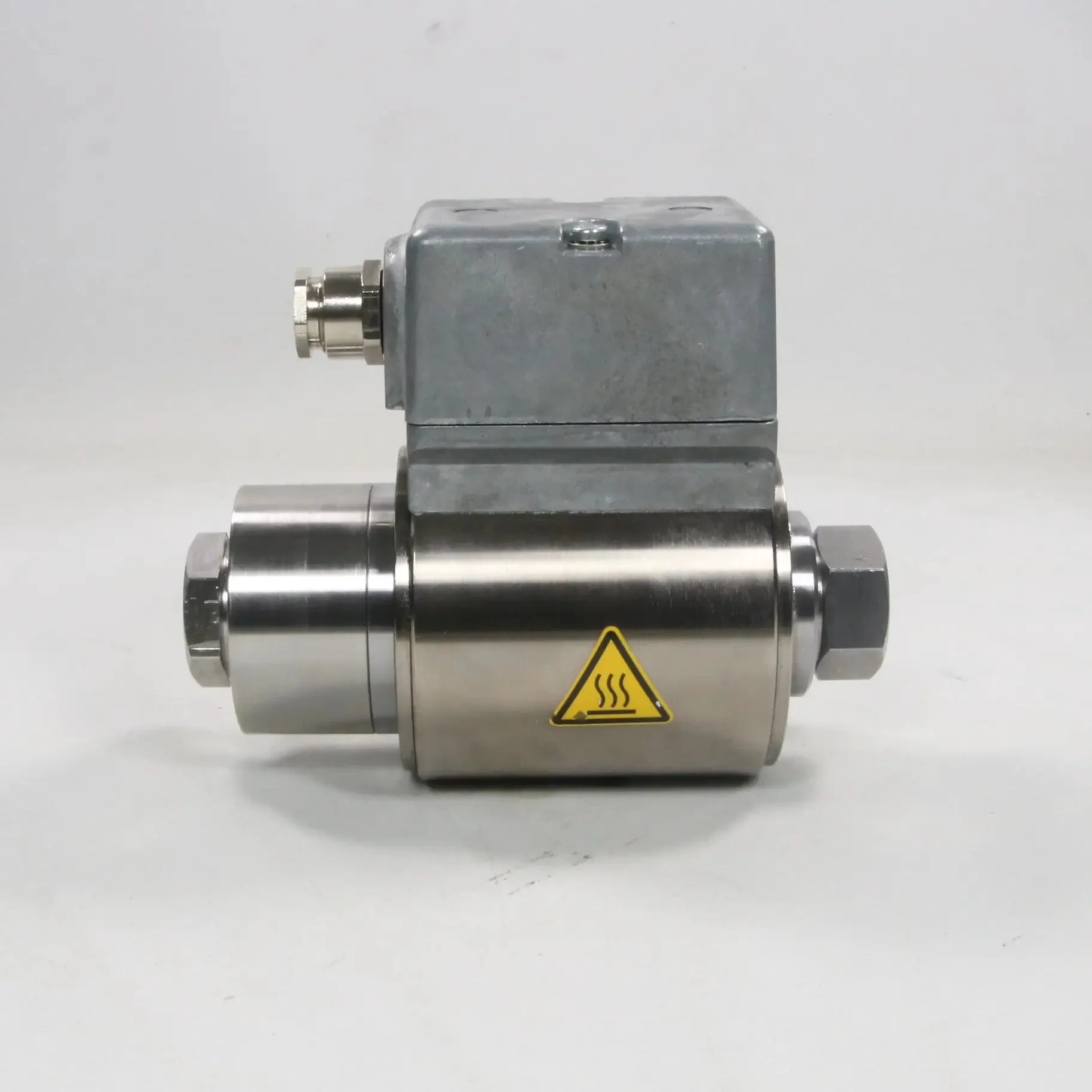

Coax KB 15 NC Direct Acting Coaxial Valve

- Brand: Müller Co-ax AG
- Model: KB 15 NC
- Type: Direct Acting Coaxial Valve
- Part number: 516492
  - Function: 2/2-way direct-acting coaxial valve for on/off control of liquids, gases, steam and vacuum
  - Valve Type: Normally Closed (NC)
  - Port Size: G 3/8"
  - Orifice Size: DN 3
  - Kv Value: 4.1 l/min
  - Pressure range: 0 - 300 bar
  - Fluid Temperature: –20 °C to +100 °C
  - Ambient Temperature: –20 °C to +60 °C
  - Body Material: Stainless steel 1.4104
  - Seal Material: PTFE
  - Actuator: Internal piston actuator
  - Control Pressure: Not required
  - Voltage: 230 V AC
  - Power Consumption: 30 W
  - Cycle Life: > 1,000,000 cycles
  - Protection Rating: IP65
  - Features: Zero pressure differential required, excellent for vacuum, high cycle life, low pressure drop, easy maintenance
- Dimensions: 140 x 80 x 120 mm
- Weight: 2.6 kg
- Country of origin: Germany
- HS code: 848180
