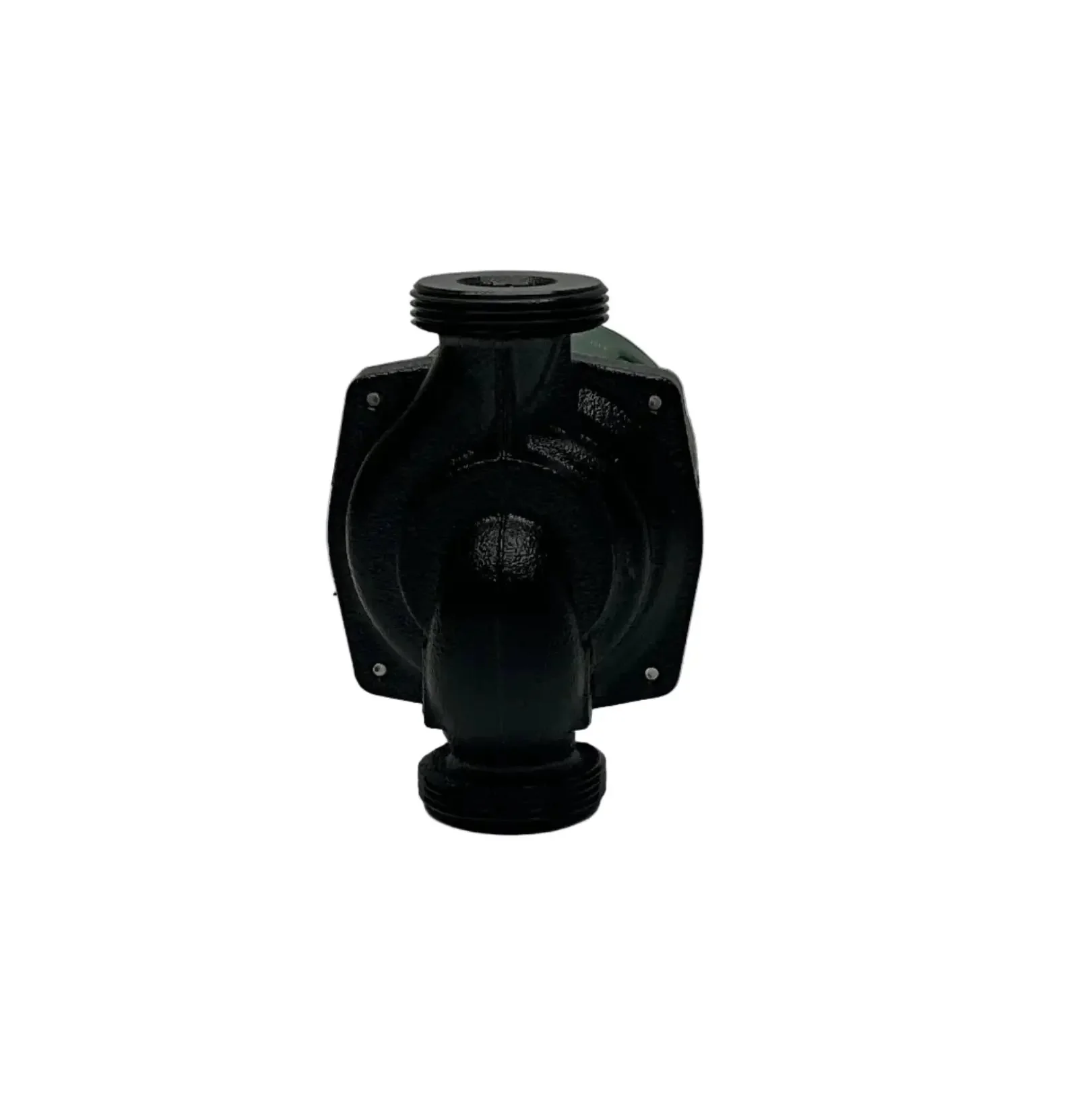

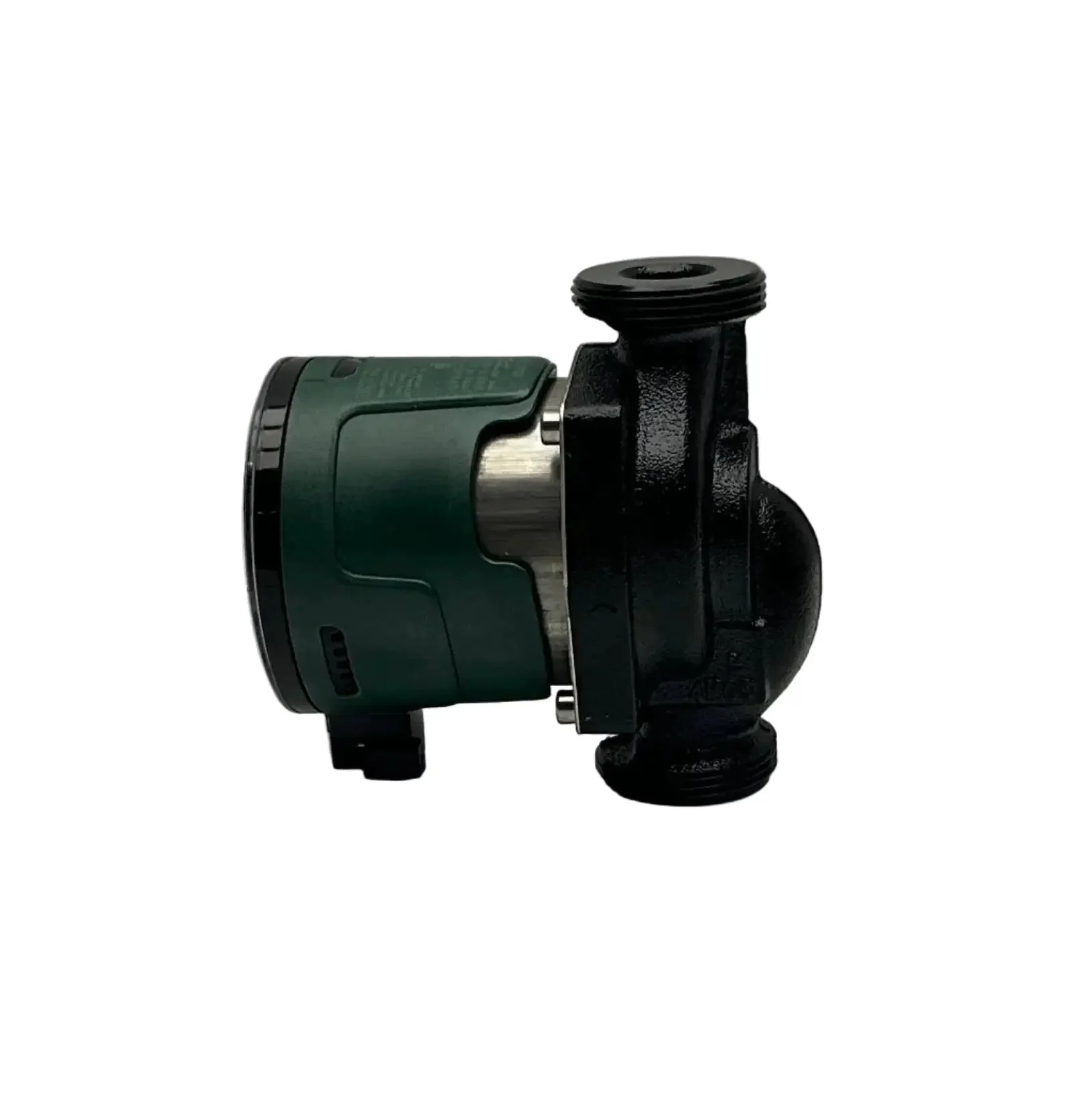

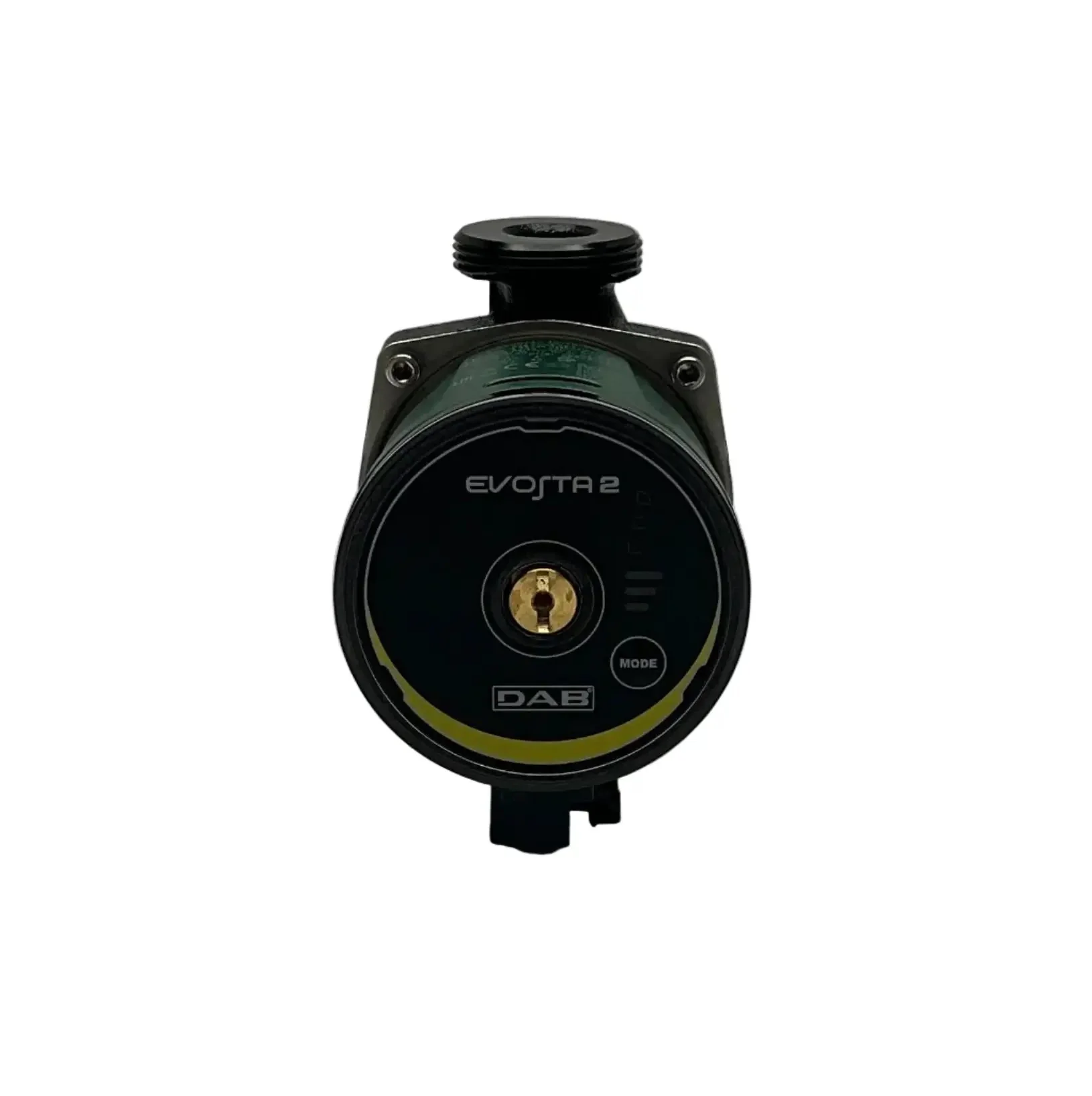

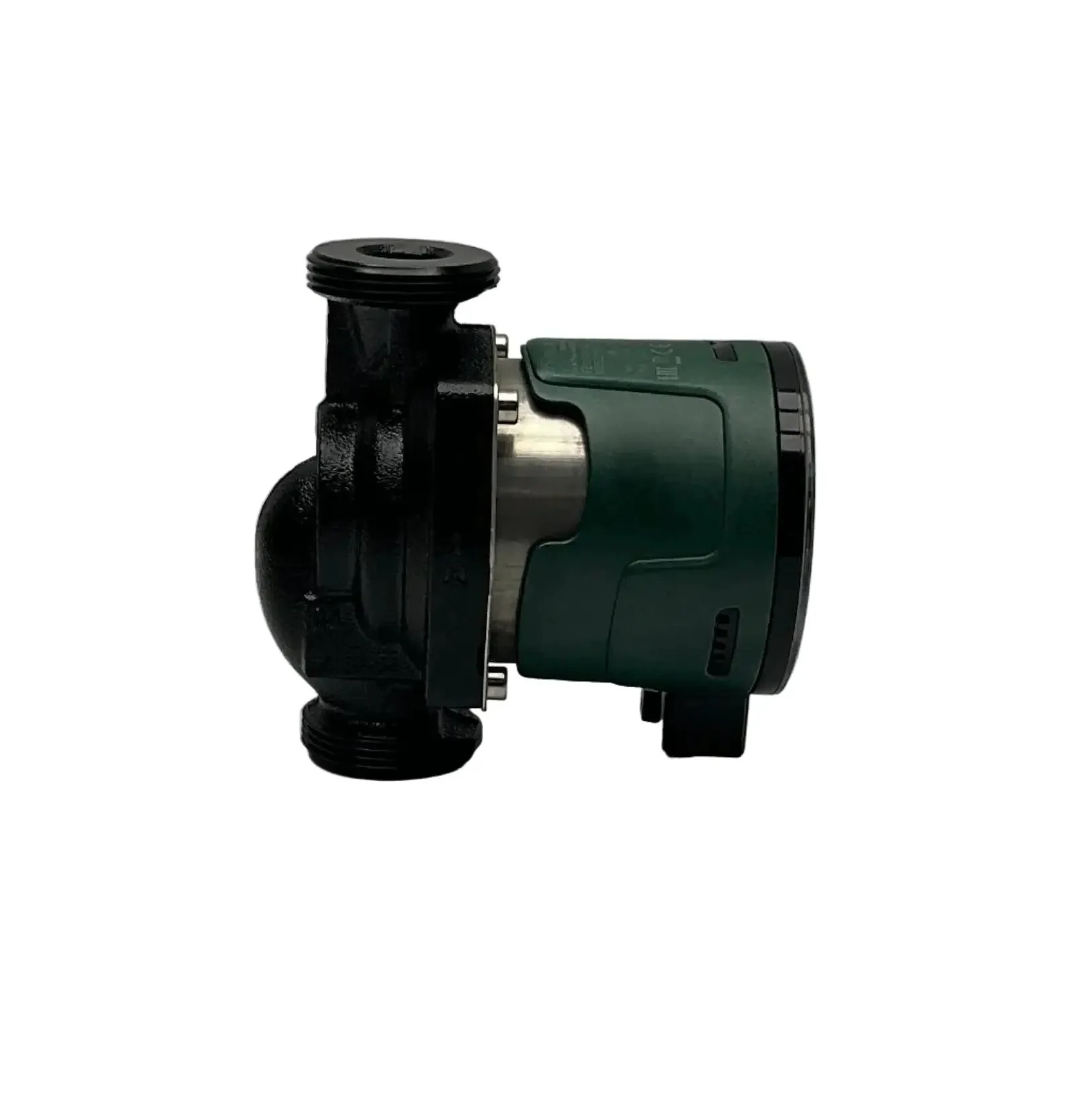

DAB Evosta 2 40-70/130 Circulation Pump
- Brand: DAB
- Model: Evosta 2 40-70/130
- Type: Wet-Rotor High-Efficiency Circulation Pump (Electronically Controlled)
- Part Number: 60186046
- Technical Specs:
- Pump Type: Single-head, glandless circulator with permanent magnet synchronous motor
- Energy Efficiency Index (EEI): ≤ 0.18
- Nominal Voltage: 1 × 230 V AC, 50/60 Hz
- Power Consumption: 4–35 W
- Maximum Head: 6.9 m
- Maximum Flow Rate: 3.3 m³/h
- Display: LED d
- Max Operating Pressure: 10 bar
- Temperature Range: -10 °C to +110 °C
- Ambient Temperature: 0 °C to +40 °C
- Insulation Class: F
- Protection Class: IPX5
- Pipe Connection: G 1 1/2"
- Installation Length: 130 mm
- Materials:
- Pump Body: Cast iron (EN-GJL-250)
- Impeller: Technopolymer
- Rotor Can: Stainless steel
- Additional Features:
- Deblocking function
- Low noise operation
- Energy savings up to 90% compared to traditional 3-speed pumps
- Quick electrical connection with plug-in terminals
- Compact design for easy replacement
Dimensions: 130 x 100 x 140 mm
Weight: 2.0 kg
Country of Origin: Italy
HS Code: 8413.70
