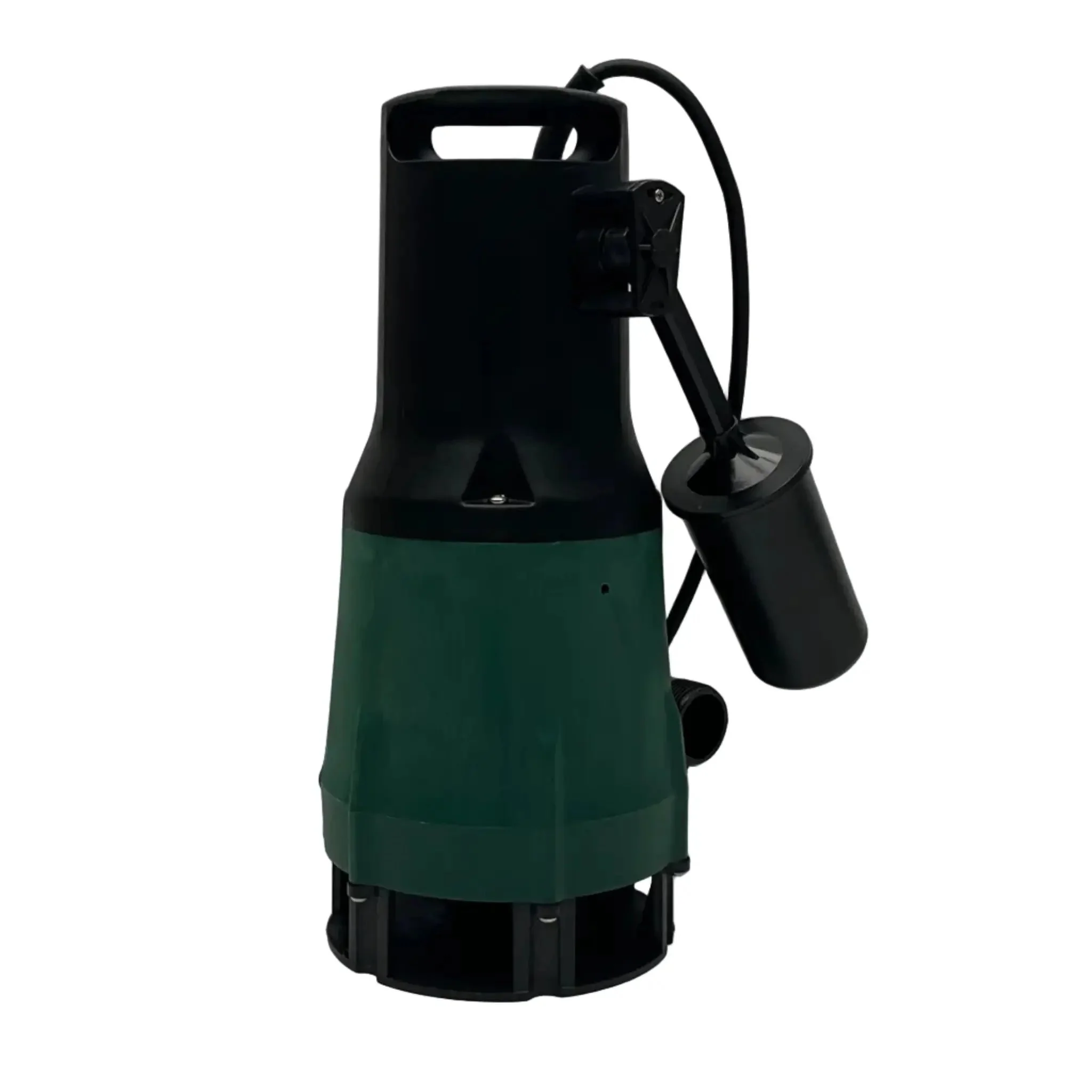

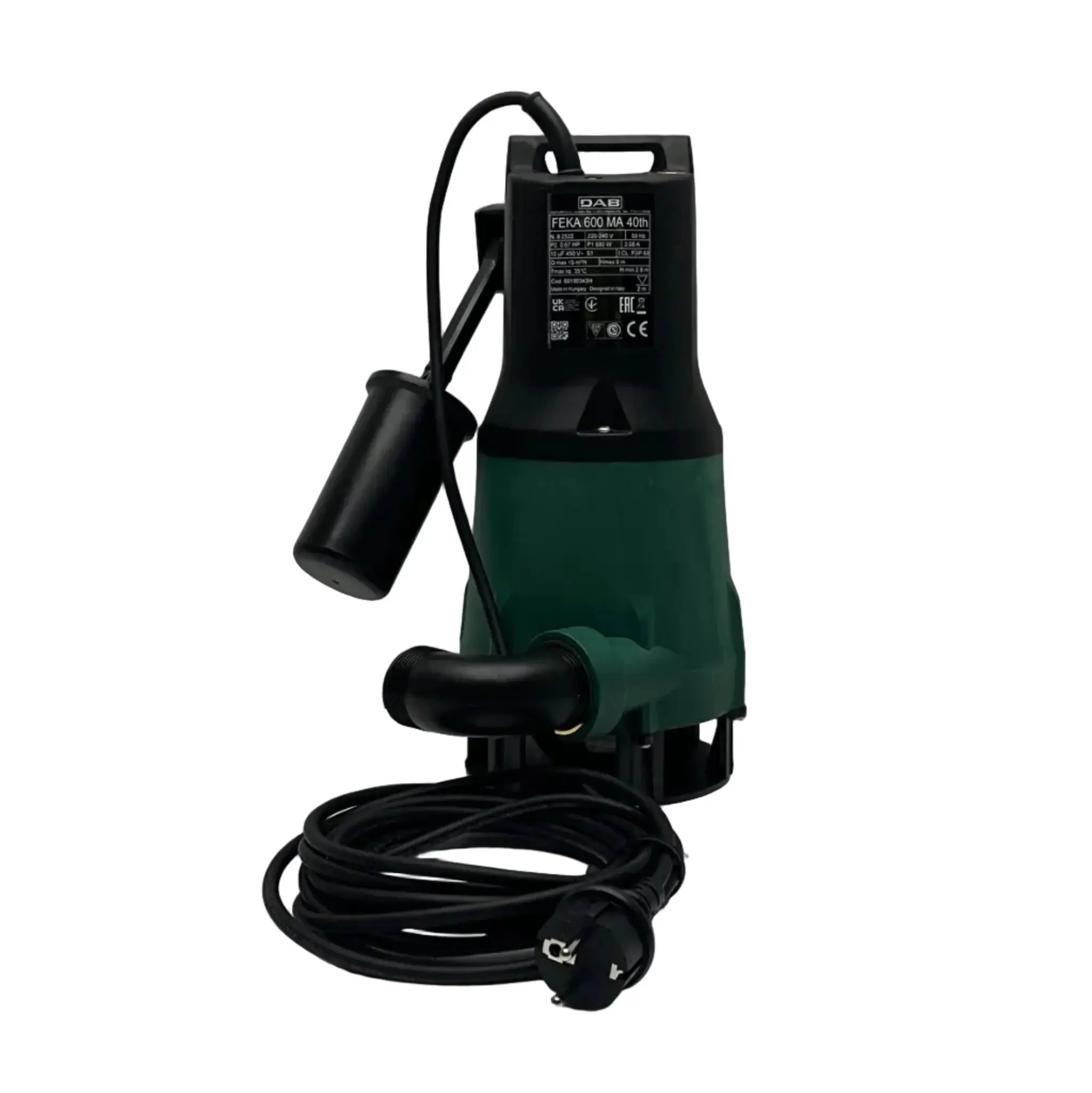

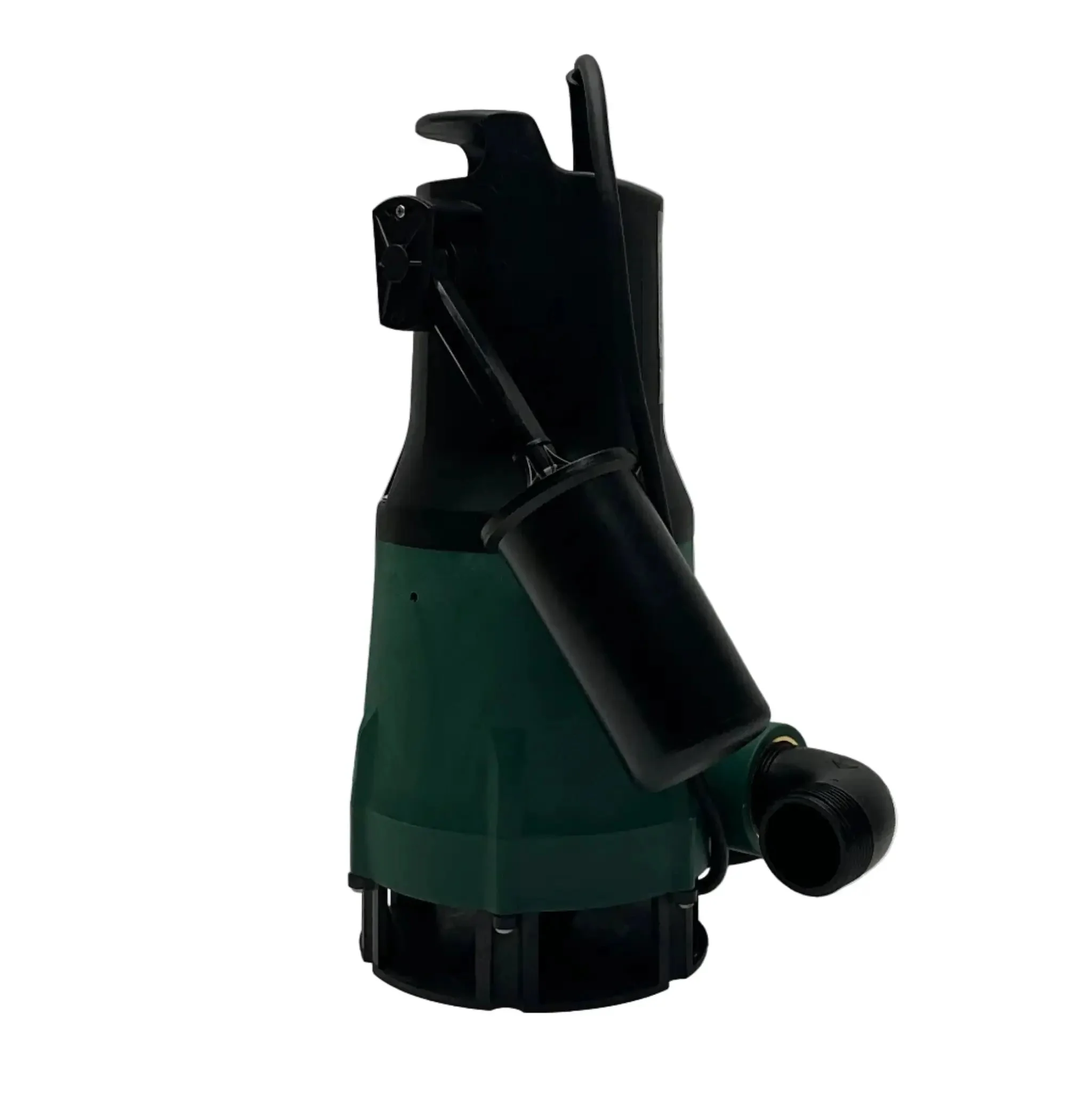

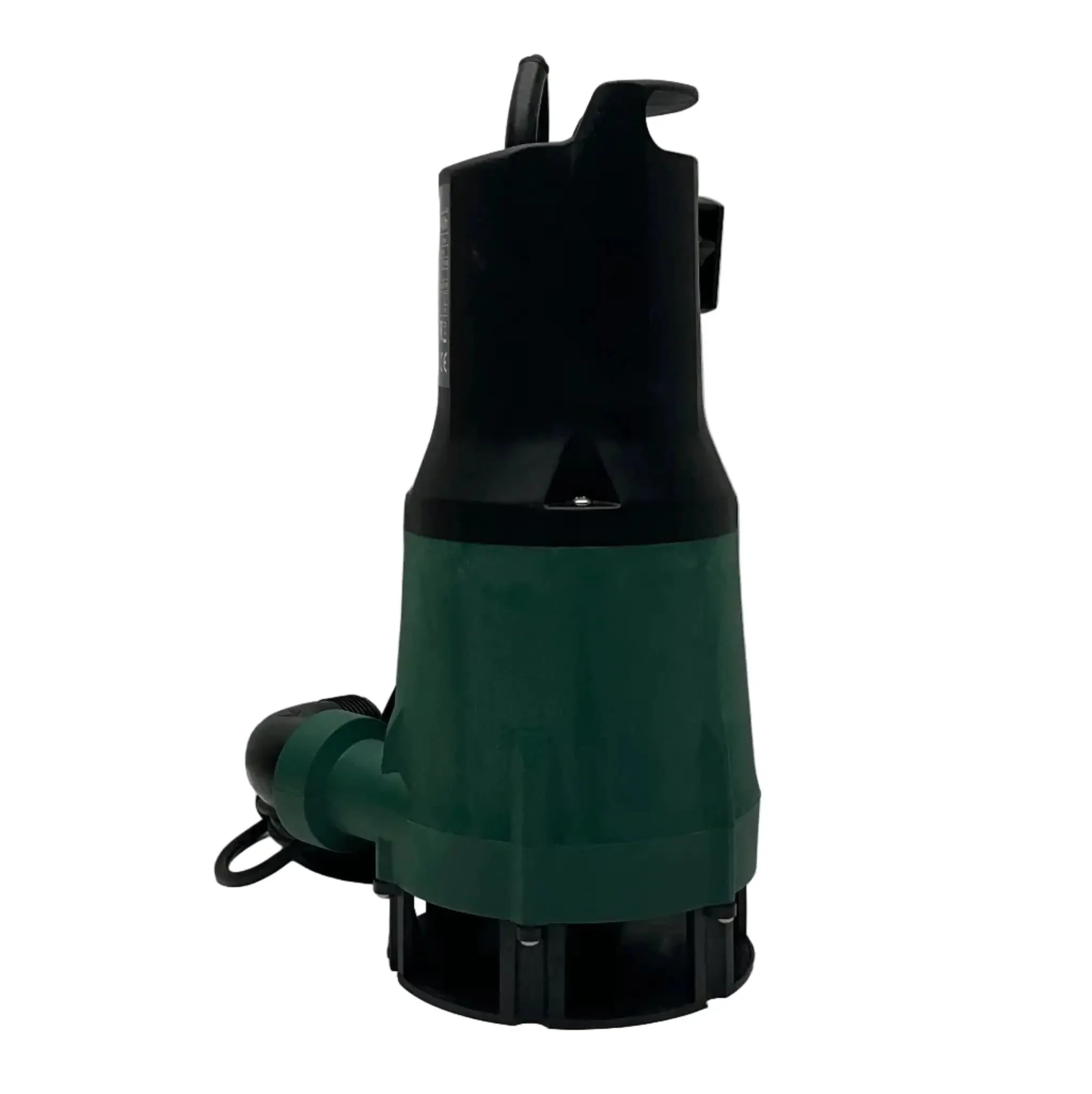

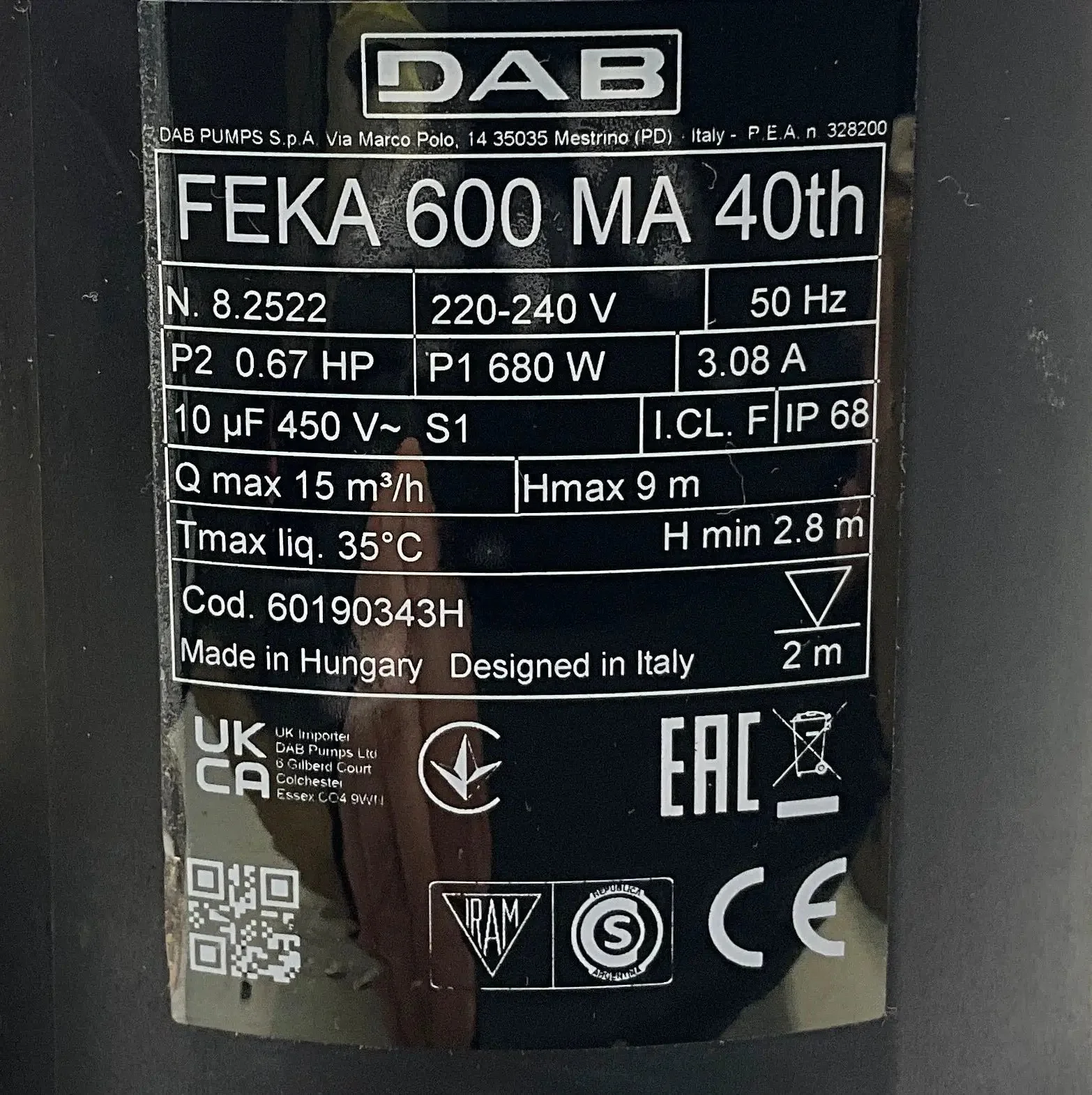

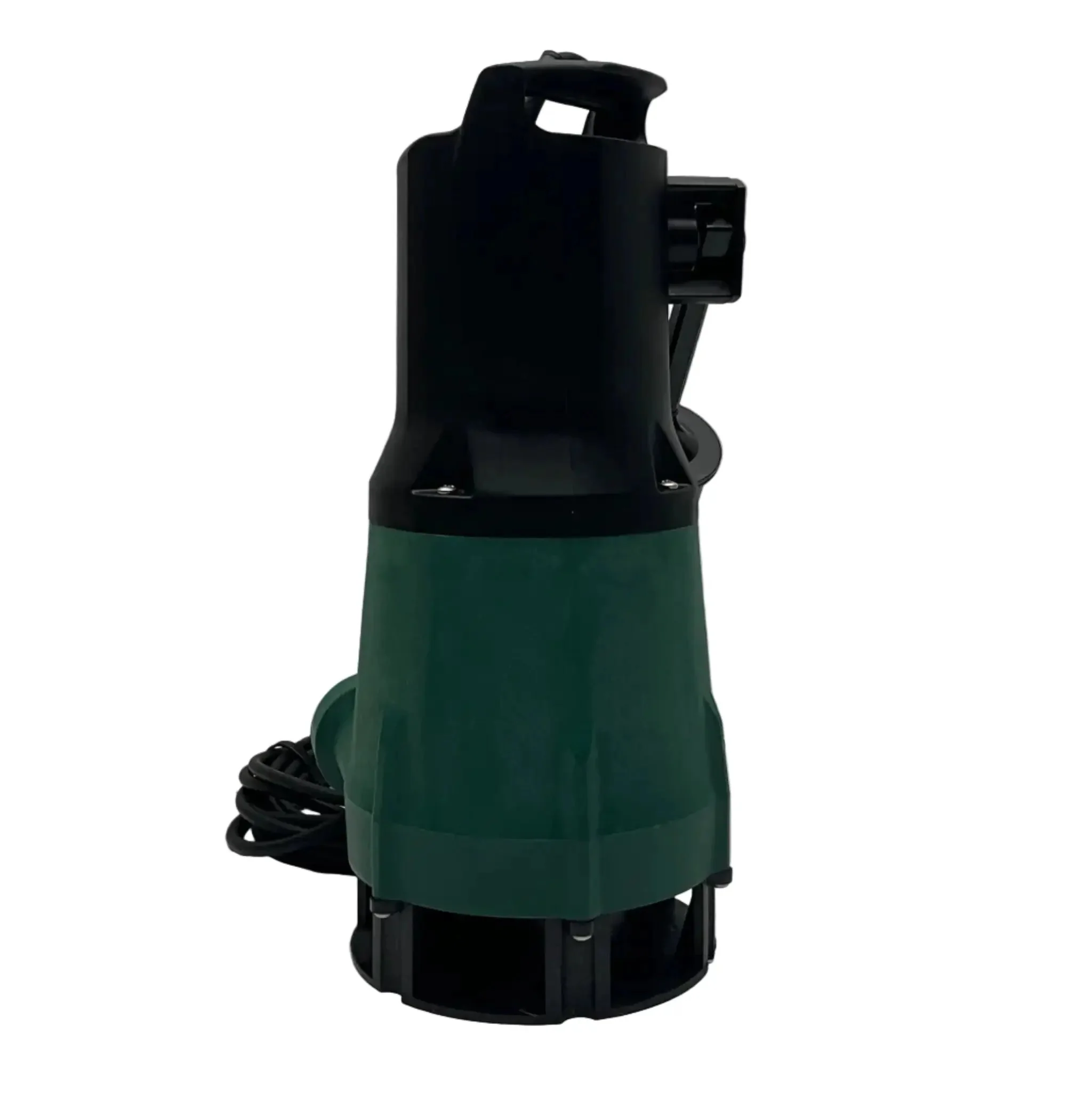

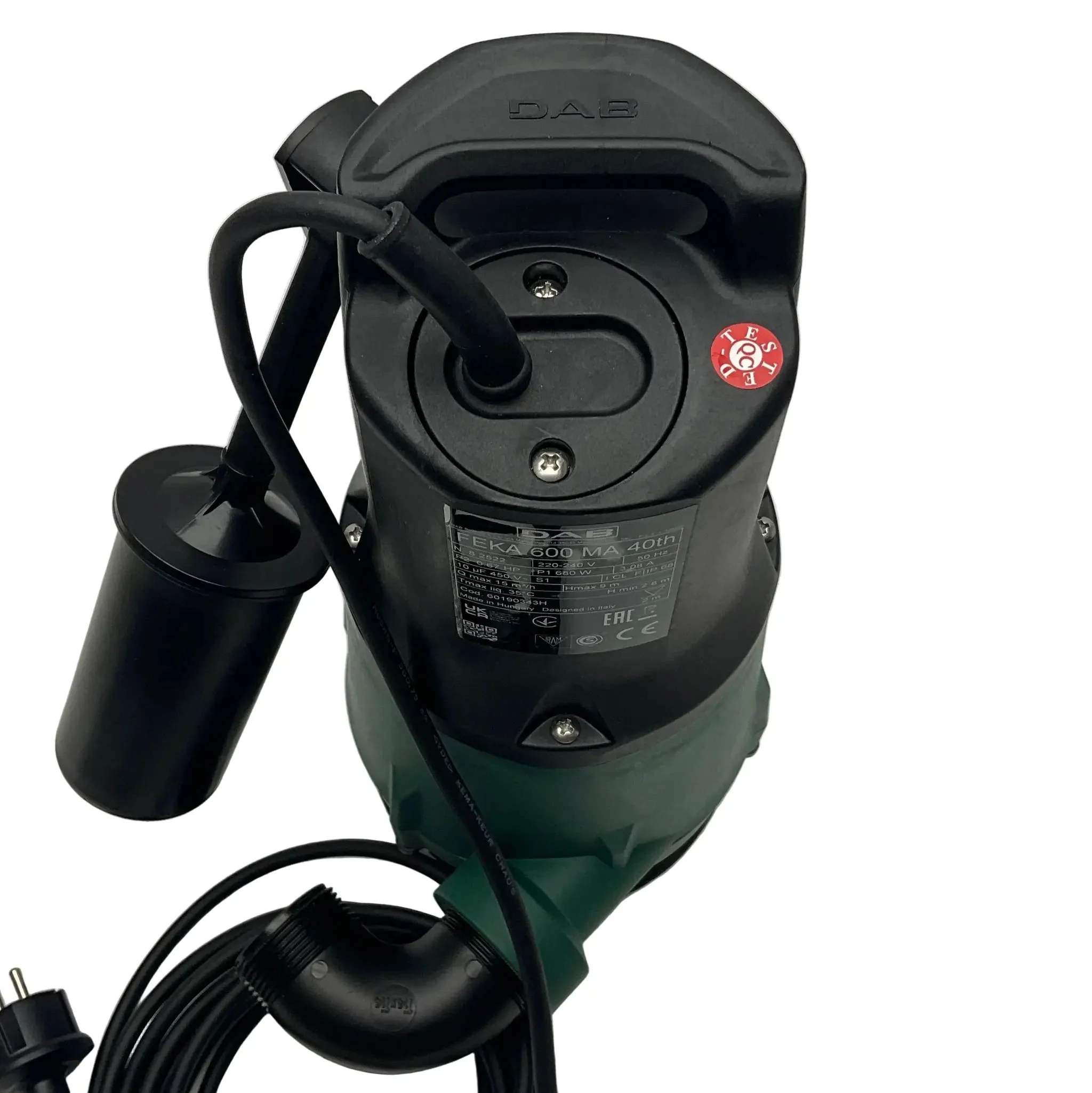

DAB Feka 600 MA 40th Submersible Waste Water Pump

- Brand: DAB
- Model: Feka 600 MA 40th
- Type: Submersible Waste Water / Sewage Pump (Automatic with Magnetic Float Switch)
- Part Number: 60190343H

- Technical Specs:
- Pump Type: Submersible centrifugal pump for dirty water and light sewage
- Motor Power: 680 W
- Voltage: 1 × 230 V AC, 50 Hz (single-phase)
- Rated Current: 3.08 A
- Maximum Head: 9 m
- Maximum Flow Rate: 15 m³/h
- Maximum Immersion Depth: 2 m
- Discharge Connection: 1¼" (DN 32) female thread
- Cable Length: 5 m
- Float Switch: Magnetic float
- Switch-On/Off Levels: Adjustable
- Operating Temperature: 0 °C to +35 °C
- Pumped Liquid: Clear water, wastewater, sewage, rainwater
- Motor Protection: Thermal overload protection
- Insulation Class: F
- Protection Class: IP68
- Materials:
  - Pump Body, Impeller, Cap, Suction Grid: Technopolymer
  - Motor, Rotor Shaft, Screws: Stainless steel
  - Triple O-ring seal with oil precombustion chamber
- Additional Features:
  - 40th Anniversary Edition
  - Vortex impeller for better solids handling
  - Possibility of dry running up to 1 minute
  - Continuous duty asynchronous submersible motor
  - Robust and reliable with triple seal in oil bath
  - Low suction level

Dimensions: 200 x 200 x 380 mm

Weight: 5.8 kg (with 5 m cable)

Country of Origin: Hungary

HS Code: 8413.70
