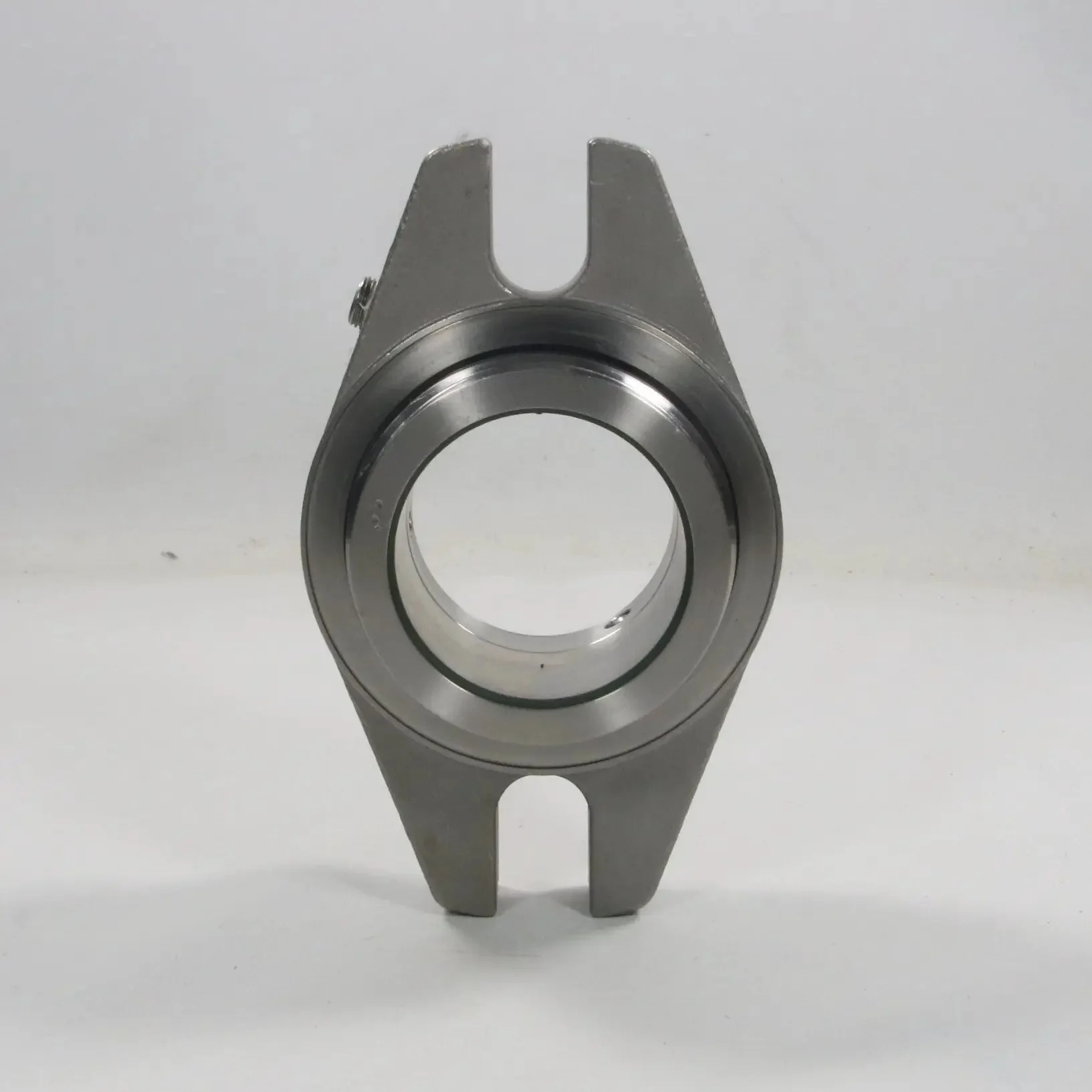

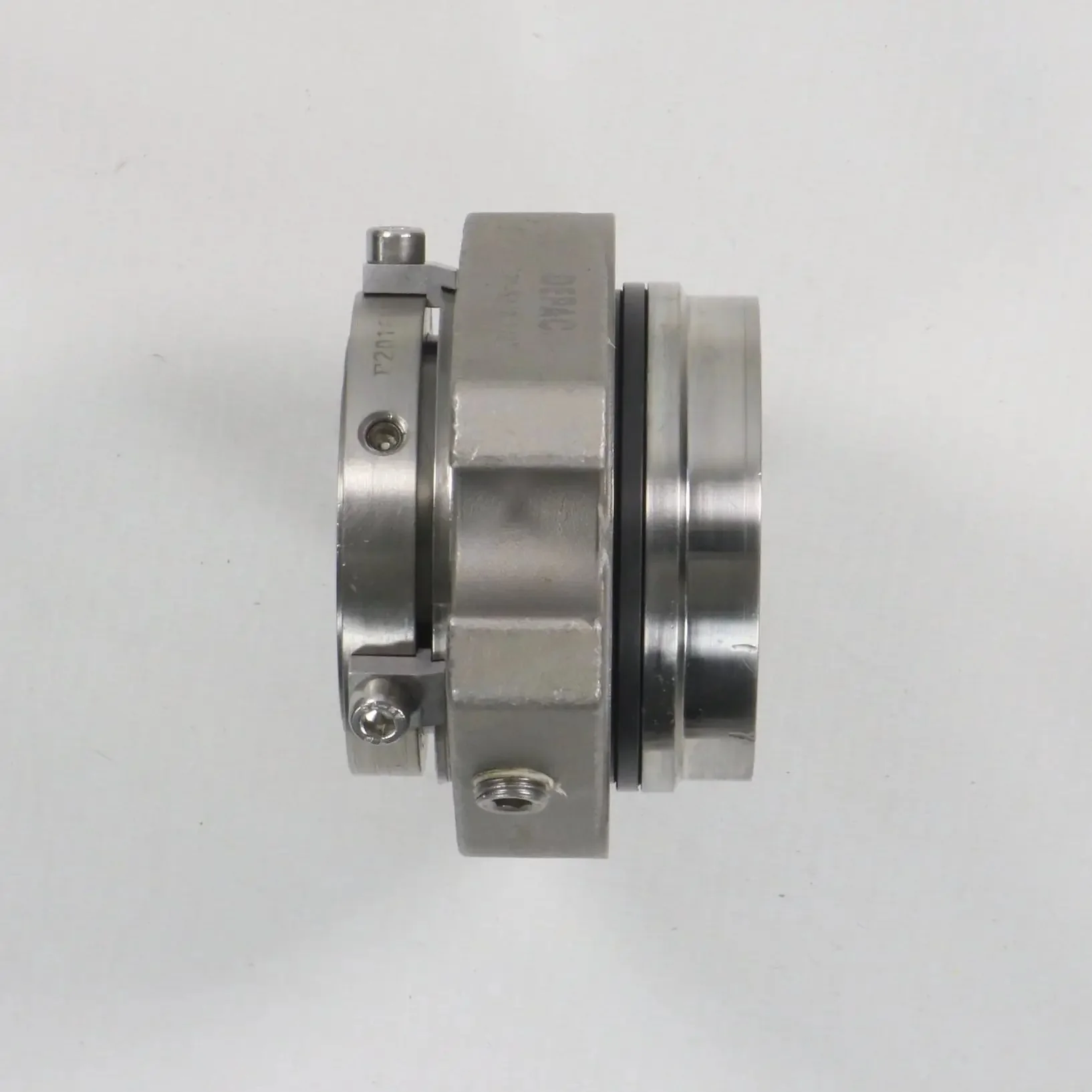

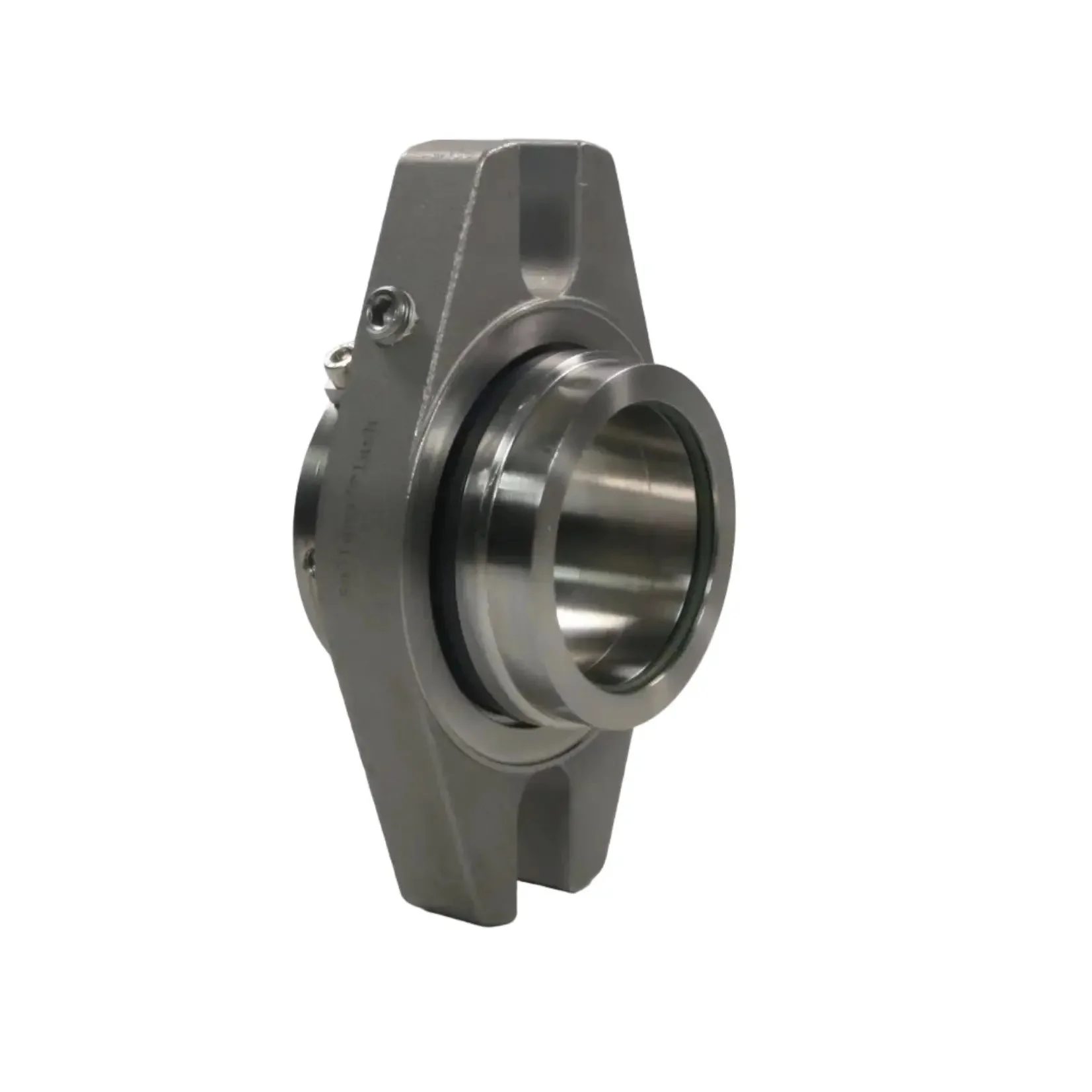

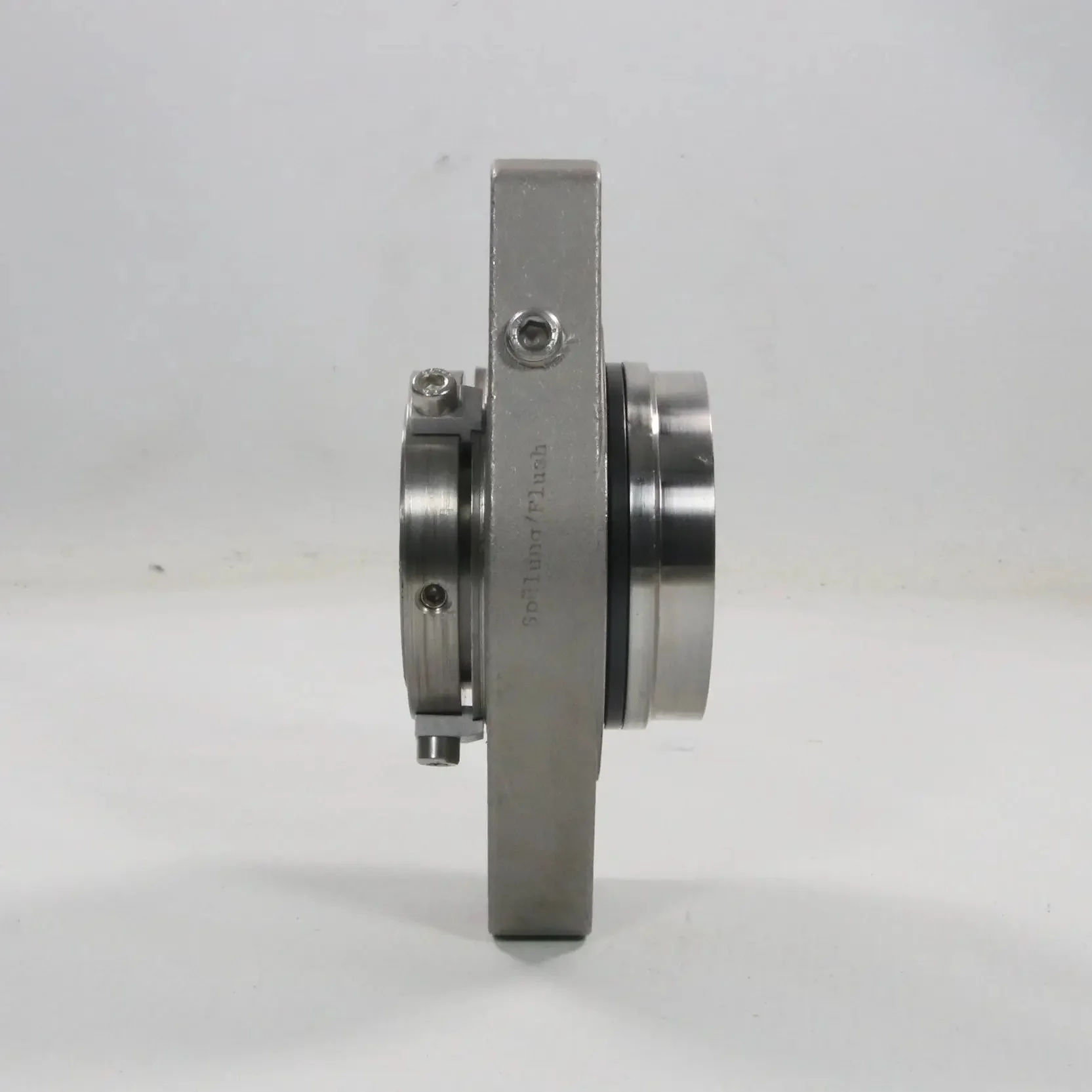

Depac 270-53 / 2 1/8" Mechanical Seal

- Brand: Depac (Depac Dichtungstechnik GmbH)

- Model: 270-53 / 2 1/8"

- Type: Mechanical Seal / Cartridge Seal

- Part number: KE201701

- Technical specifications:
- Shaft diameter: 53 mm / 2 1/8"
- Seal design: Cartridge
- Operating limits:
  - Pressure: 10 bar
  - Temperature: -40°C to +150°C
  - Speed: Up to 35 m/s
- Materials:
  - Seal faces: Silicon Carbide vs Silicon Carbide
  - Secondary seals: Viton (FKM)
  - Metal parts: 1.4571 / 316Ti stainless steel (corrosion-resistant)
  - Springs/Bellows: Hastelloy
- Flush/Quench: Yes - 1/8" NPT
- Installation: Cartridge design
- Direction of rotation: Independent
- Compatibility: Pumps and agitators with 53 / 2 1/8" mm shaft
- Additional features: Balanced design for low heat generation and longer life; cartridge for easy, error-free installation; high chemical resistance; low leakage; maintenance-friendly
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 1.6 kg

Dimensions: 155 x 100 x 58 mm

Country of origin: Germany

HS code: 8484.20
