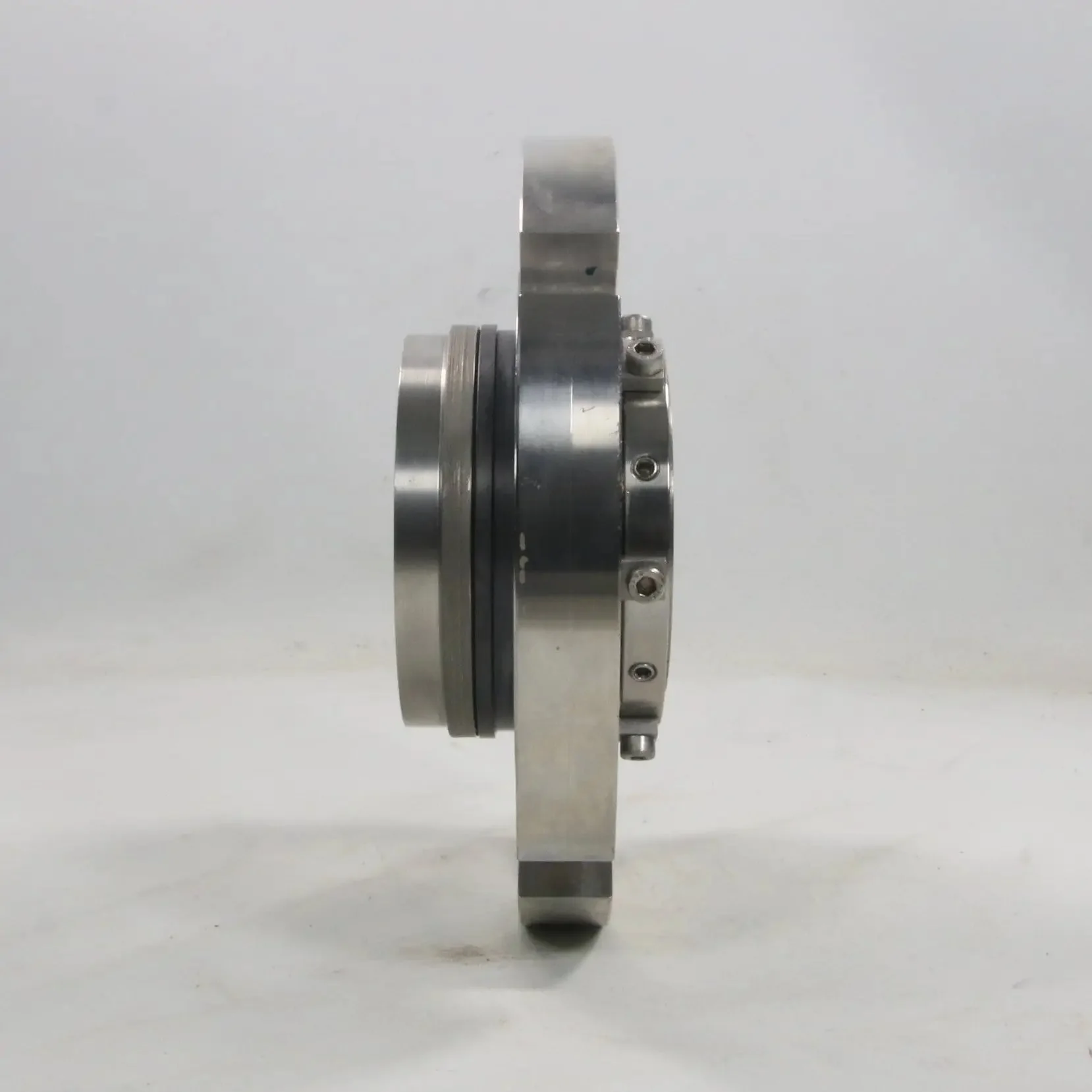

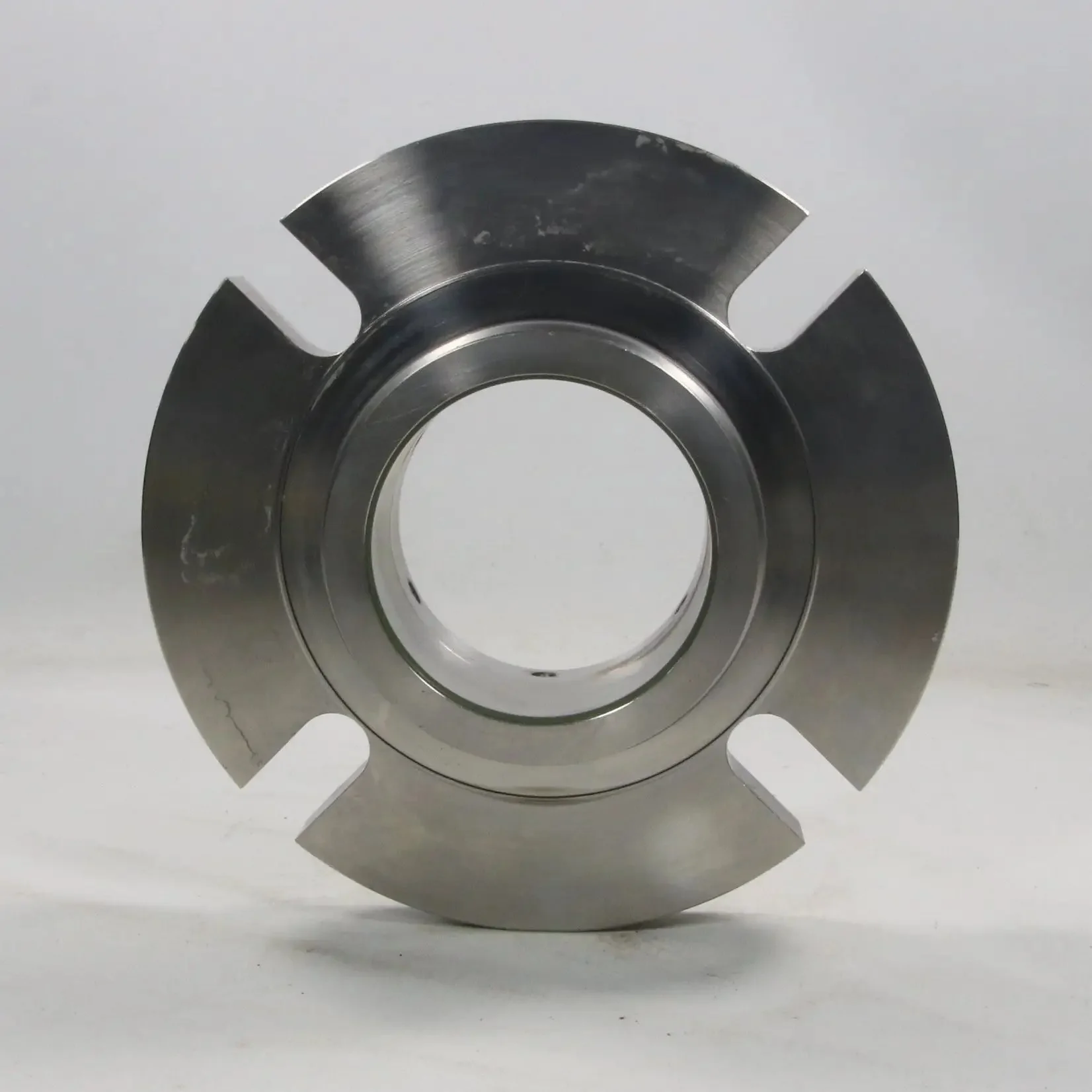

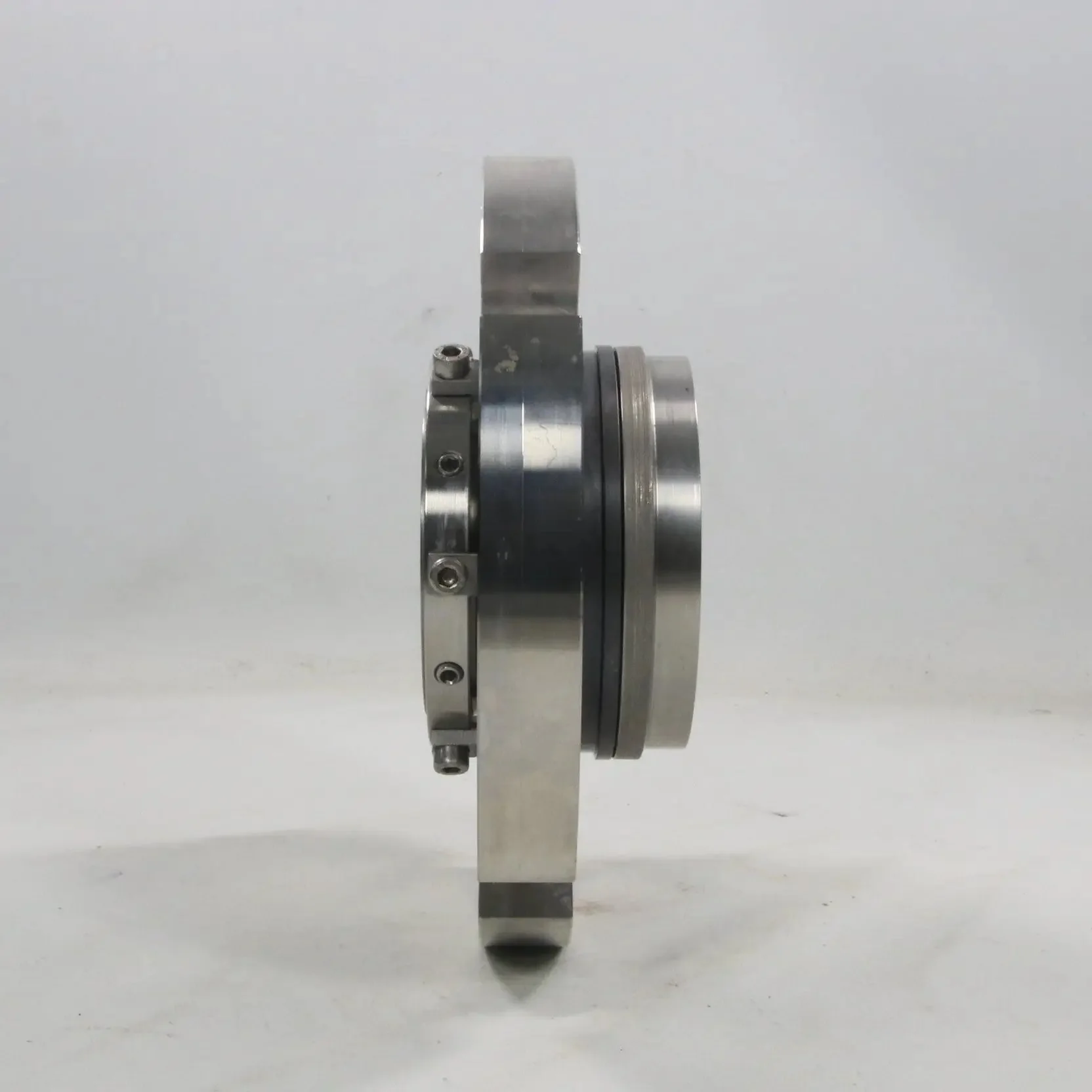

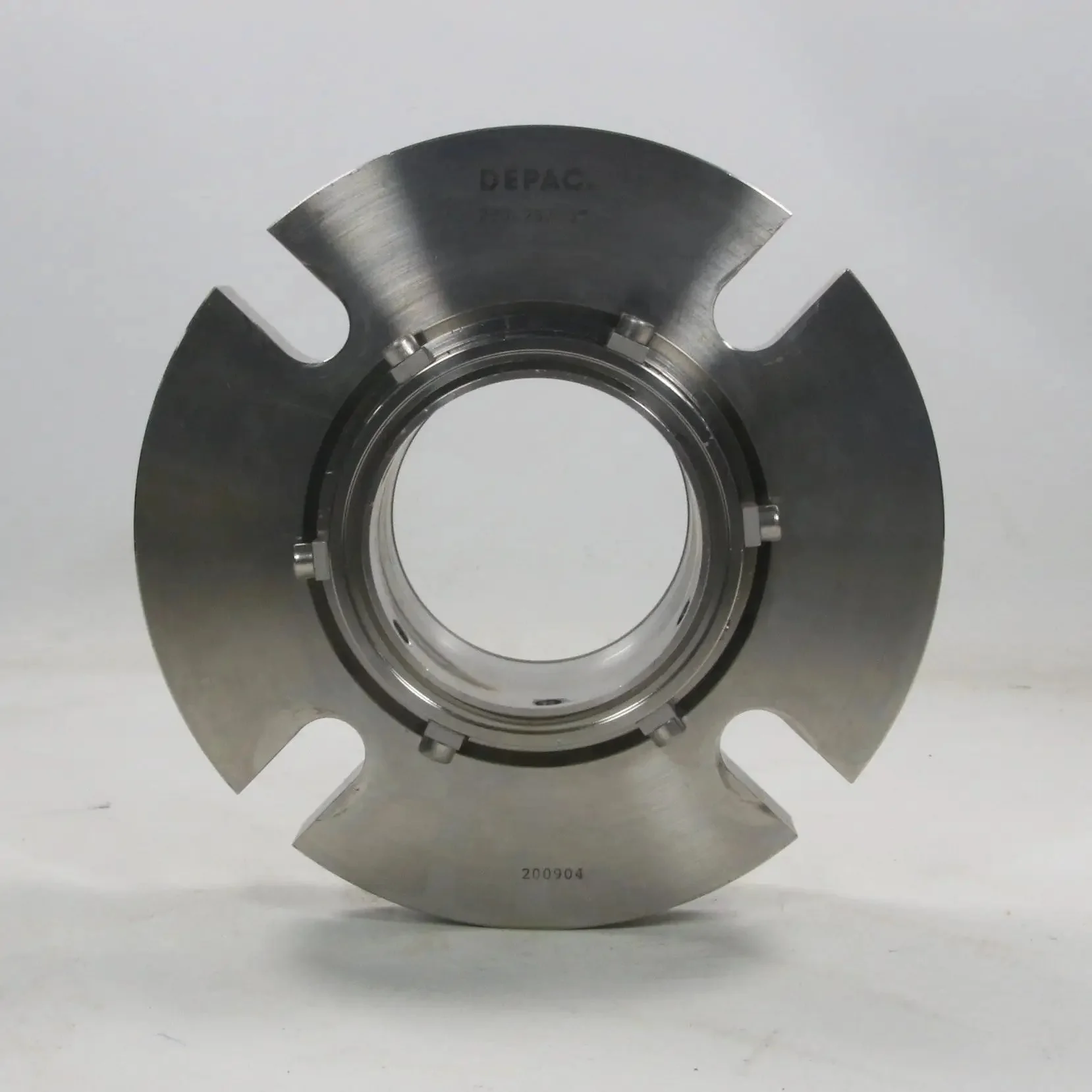

Depac 270-75 - 3" Mechanical Seal

- Brand: Depac (Depac Dichtungstechnik GmbH)

- Model: 270-75 - 3"

- Type: Mechanical Seal / Cartridge Seal

- Part number: 200904

- Technical specifications:
- Shaft diameter: 75 mm
- Seal design: Cartridge, single mechanical seal
- Operating limits:
  - Pressure: 10 bar
  - Temperature: -40°C to +150°C
- Materials:
  - Seal faces: Silicon Carbide vs. Silicon Carbide (SiC)
  - Secondary seals: Viton (FKM)
  - Metal parts: 1.4571 / 316Ti stainless steel (corrosion-resistant)
  - Springs: Hastelloy
- Installation: Cartridge design
- Direction of rotation: Independent
- Compatibility: Pumps and agitators with 75 mm - 3" shaft
- Additional features: Balanced design for low heat generation and longer life; cartridge for error-free installation; high chemical resistance; low leakage;  maintenance-friendly
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 4.4 kg

Dimensions: 200 x 200 x 62 mm

Country of origin: Germany

HS code: 8484.20
