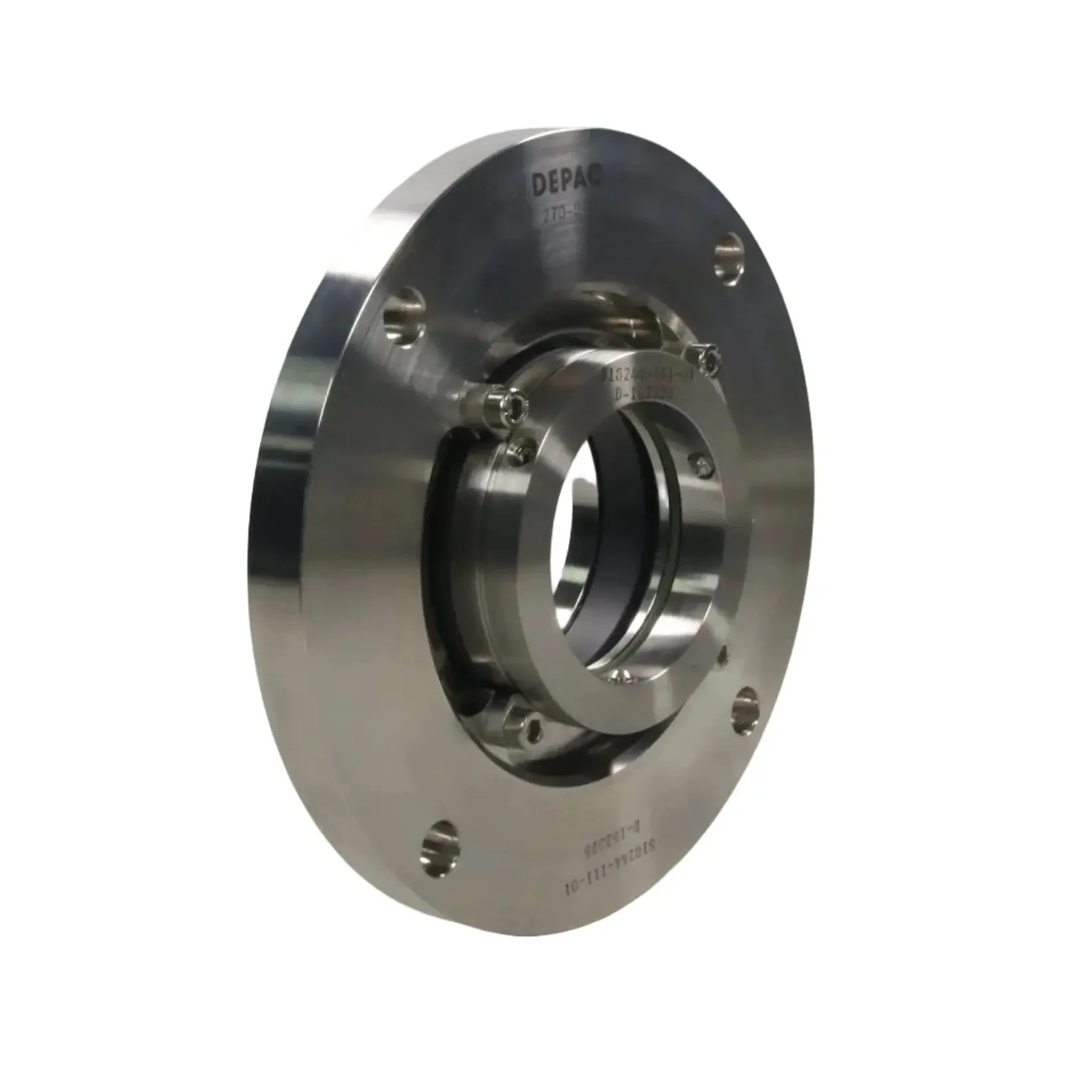

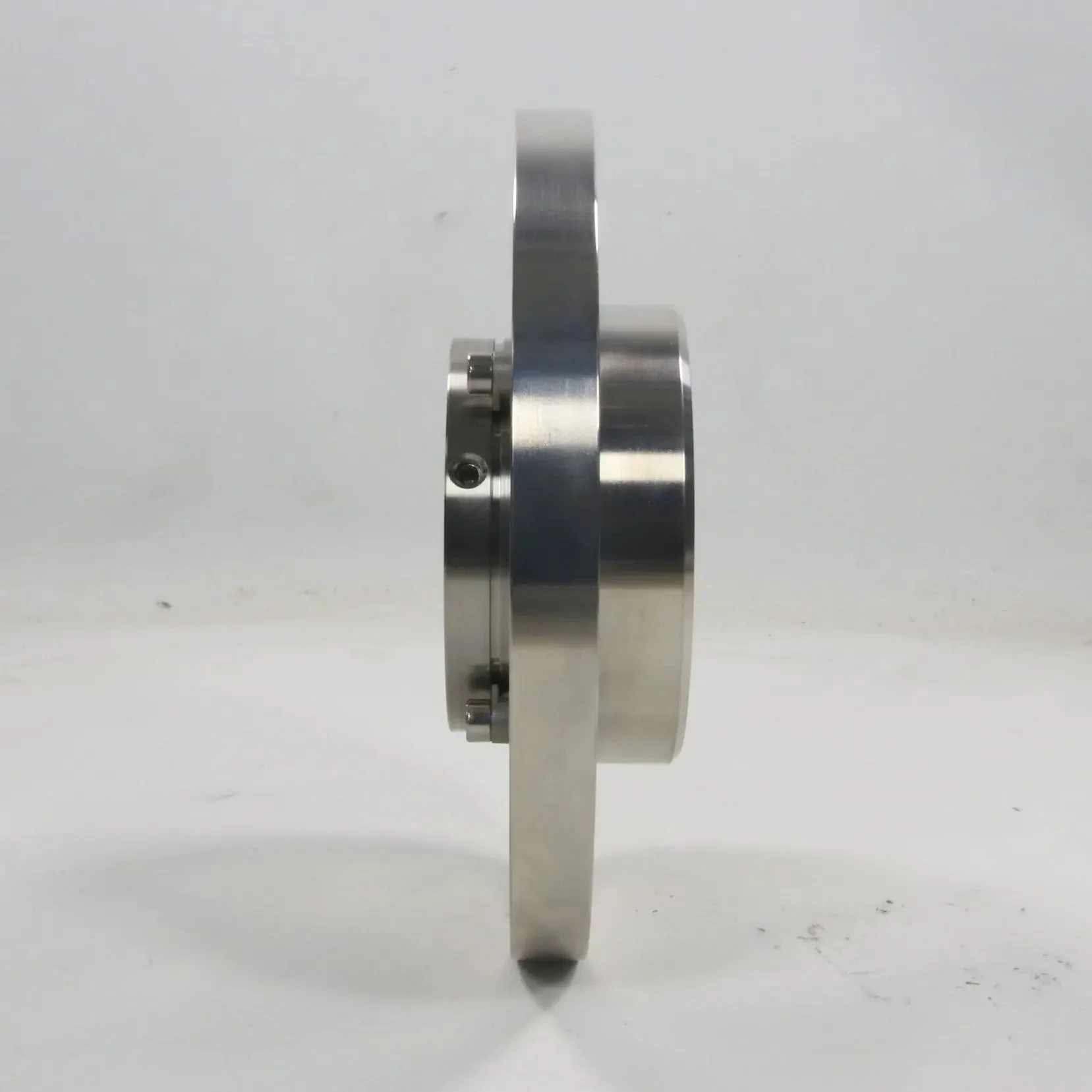

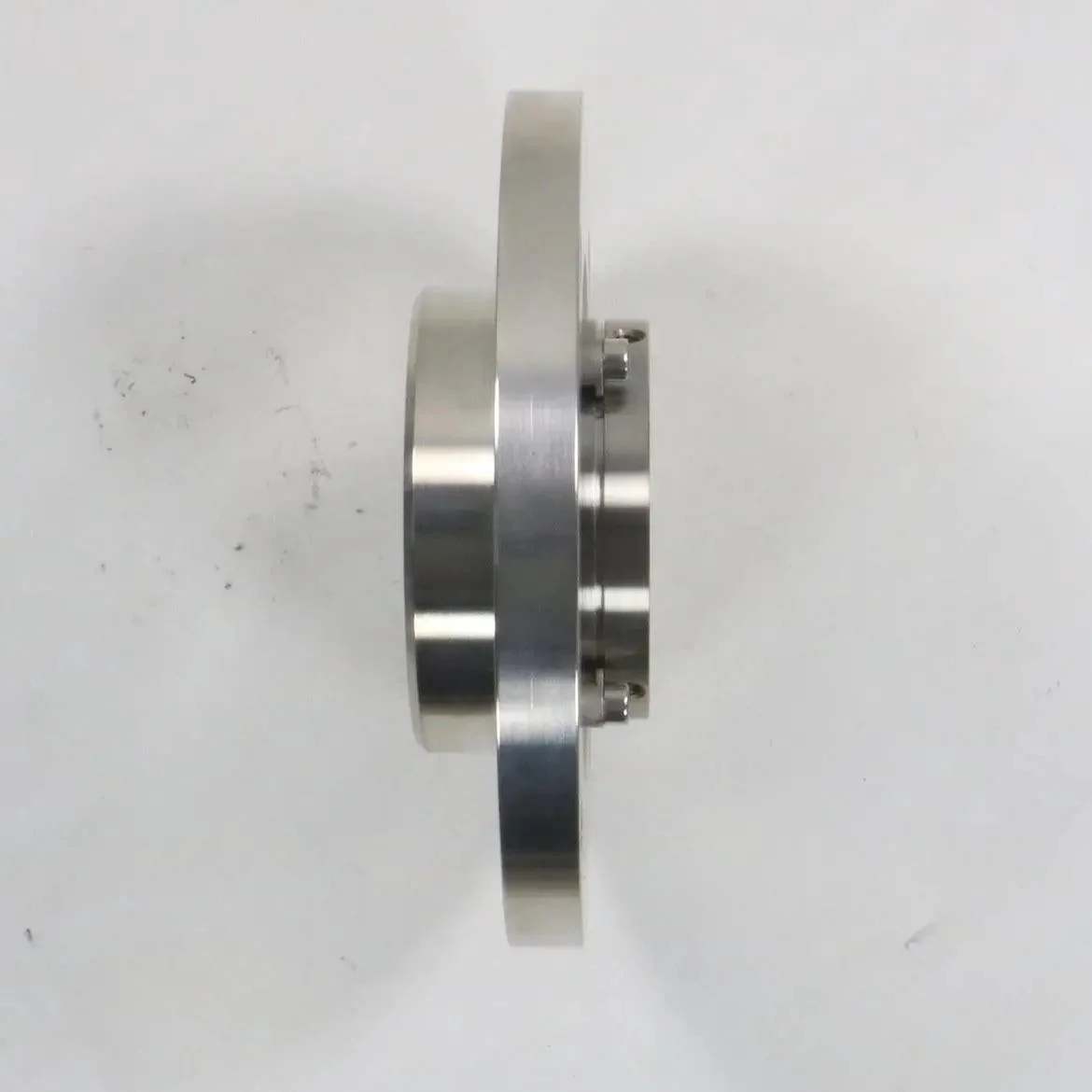

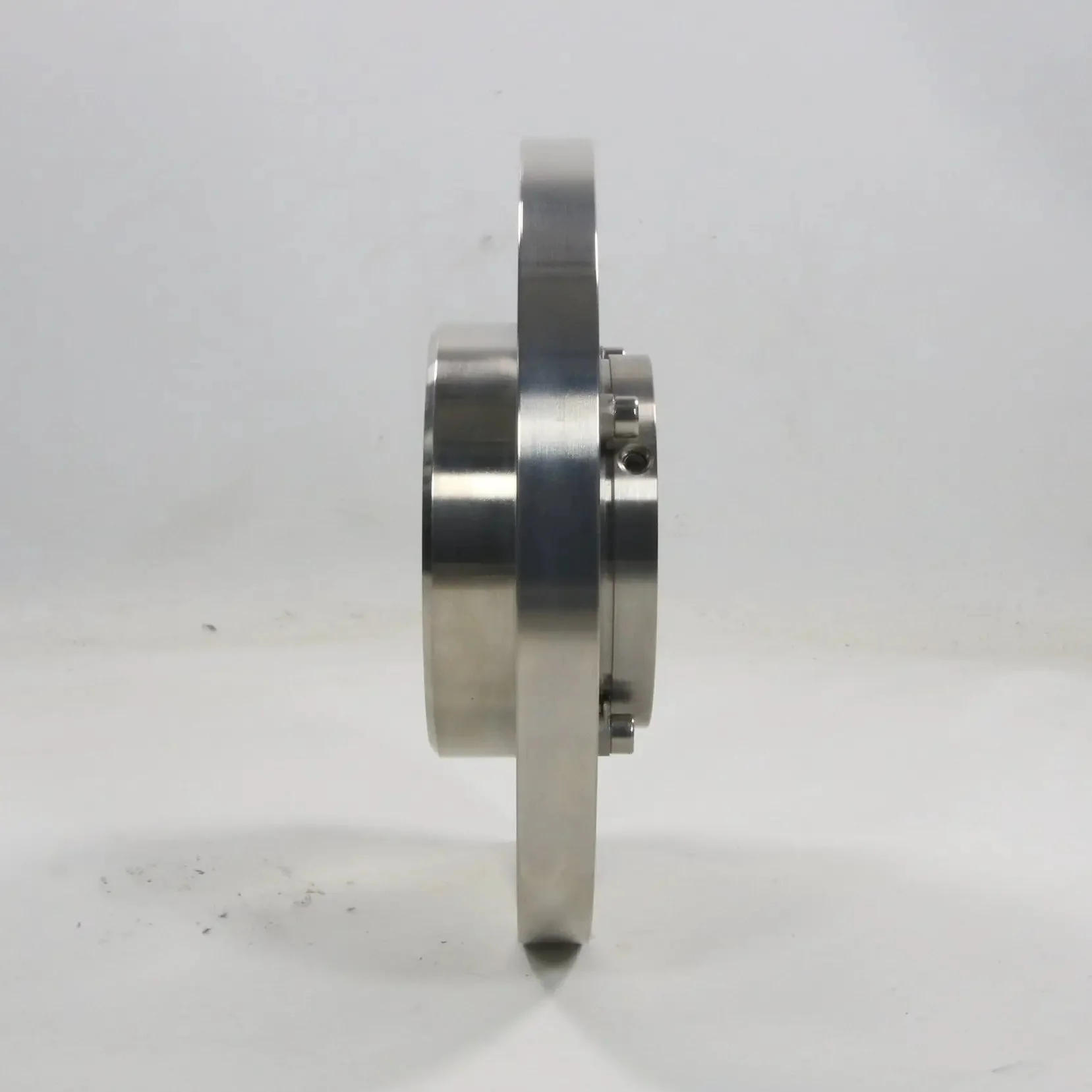

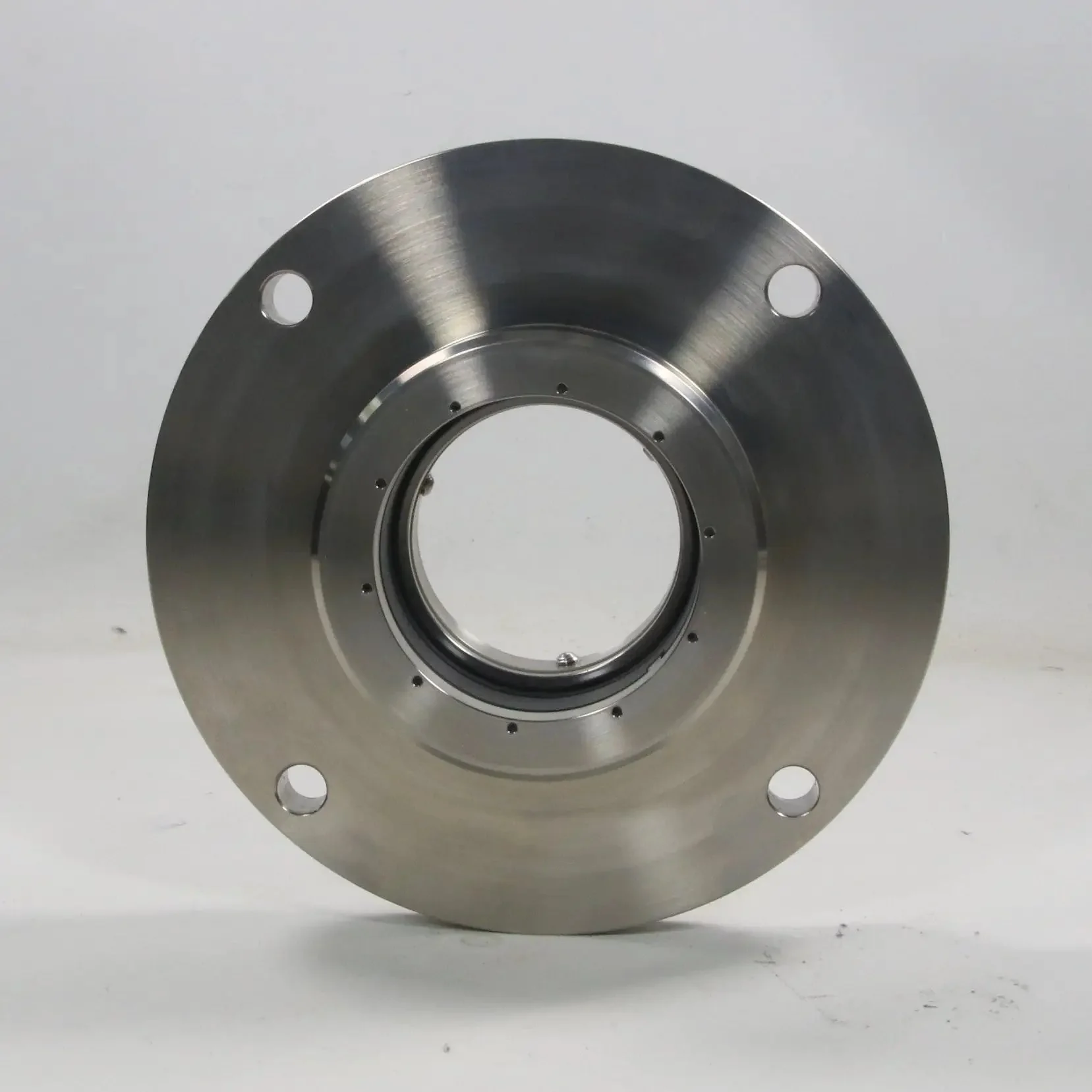

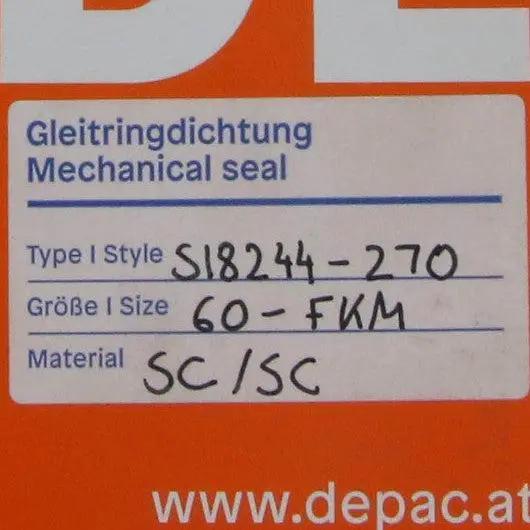

Depac S18244-270-S-60 Mechanical Seal

- Brand: Depac (Depac Dichtungstechnik GmbH)

- Model: S18244-270-S-60

- Type: Mechanical Seal / Cartridge Seal

- Part number: S18244-270-S-60

- Technical specifications:
- Shaft diameter: 60 mm
- Seal design: Stationary single-cartridge
- Operating limits:
  - Pressure: 10 bar
  - Temperature: -40°C to +150°C
  - Speed: Up to 20 m/s
- Materials:
  - Seal faces: Silicon Carbide vs. Silicon Carbide (SiC)
  - Secondary seals: Viton (FKM)
  - Metal parts: 1.4571 / 316Ti stainless steel
  - Springs/Bellows: Hastelloy
- Flush/Quench: No
- Installation: Cartridge design
- Direction of rotation: Independent
- Compatibility: Pumps and compressors with 60 mm shaft
- Additional features: Stationary design for reduced wear on rotating parts; balanced for low heat generation and longer life; cartridge for error-free installation; high chemical resistance; low leakage; maintenance-friendly
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 3.1 kg

Dimensions: 175 diam. x 50 mm

Country of origin: Germany

HS code: 8484.20
