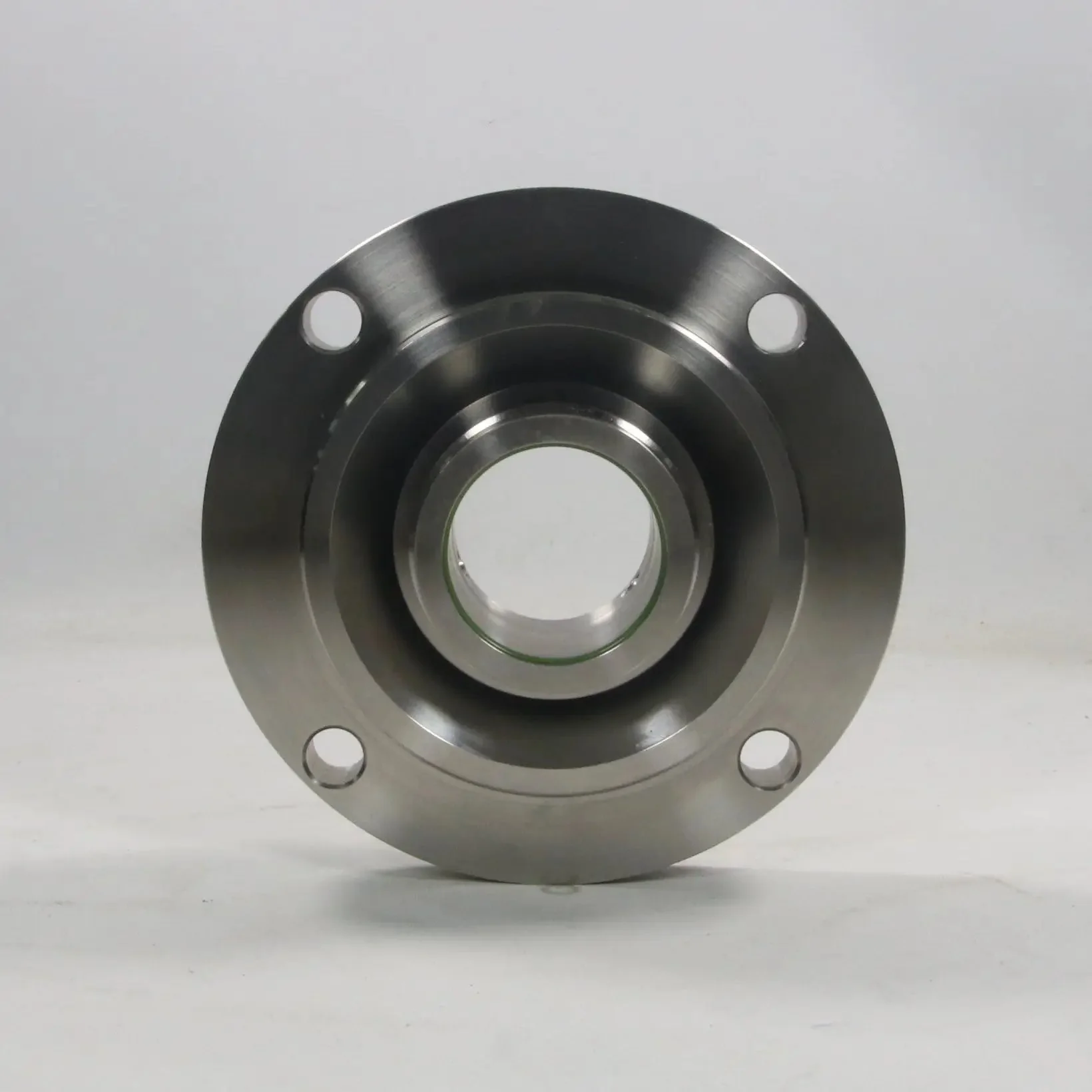

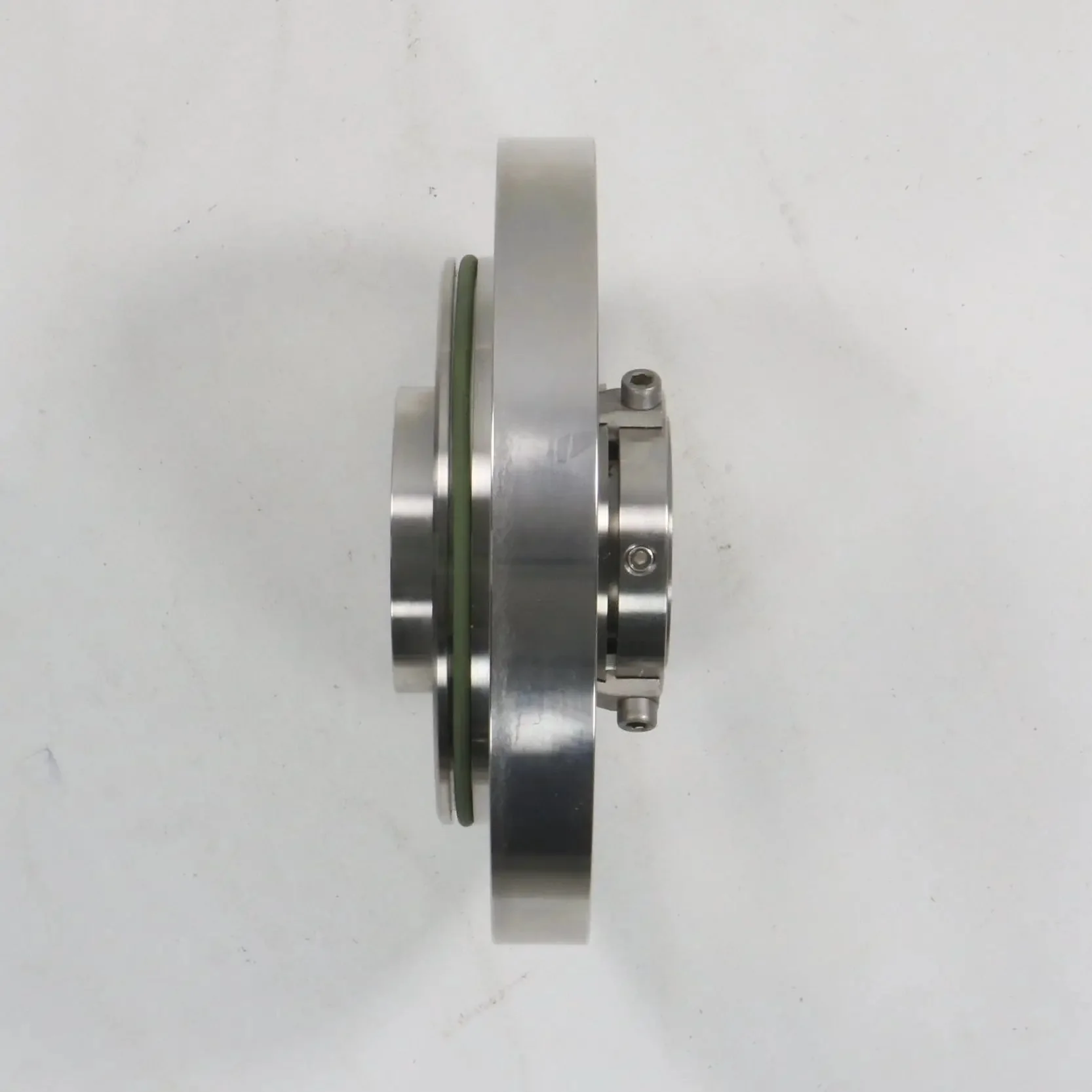

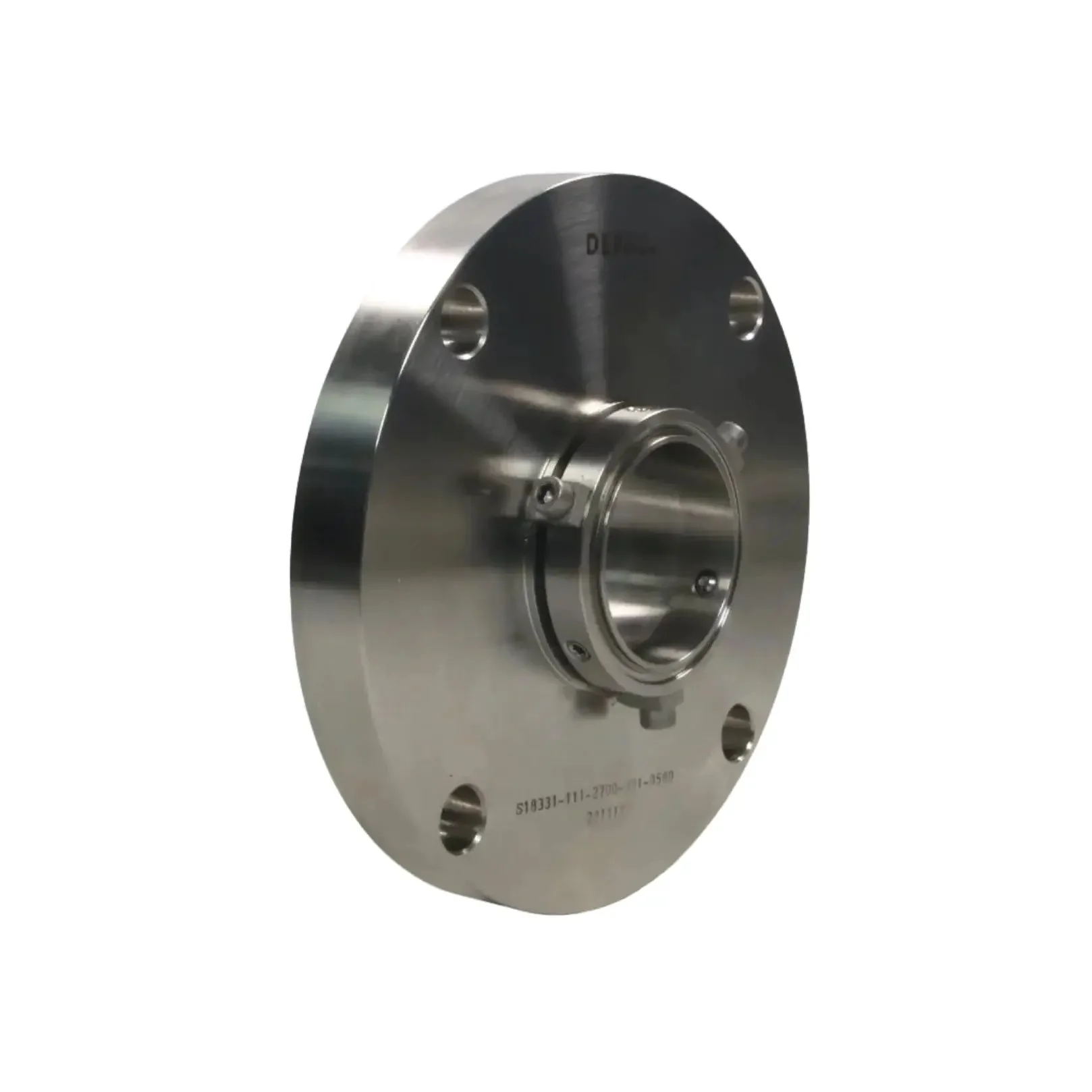

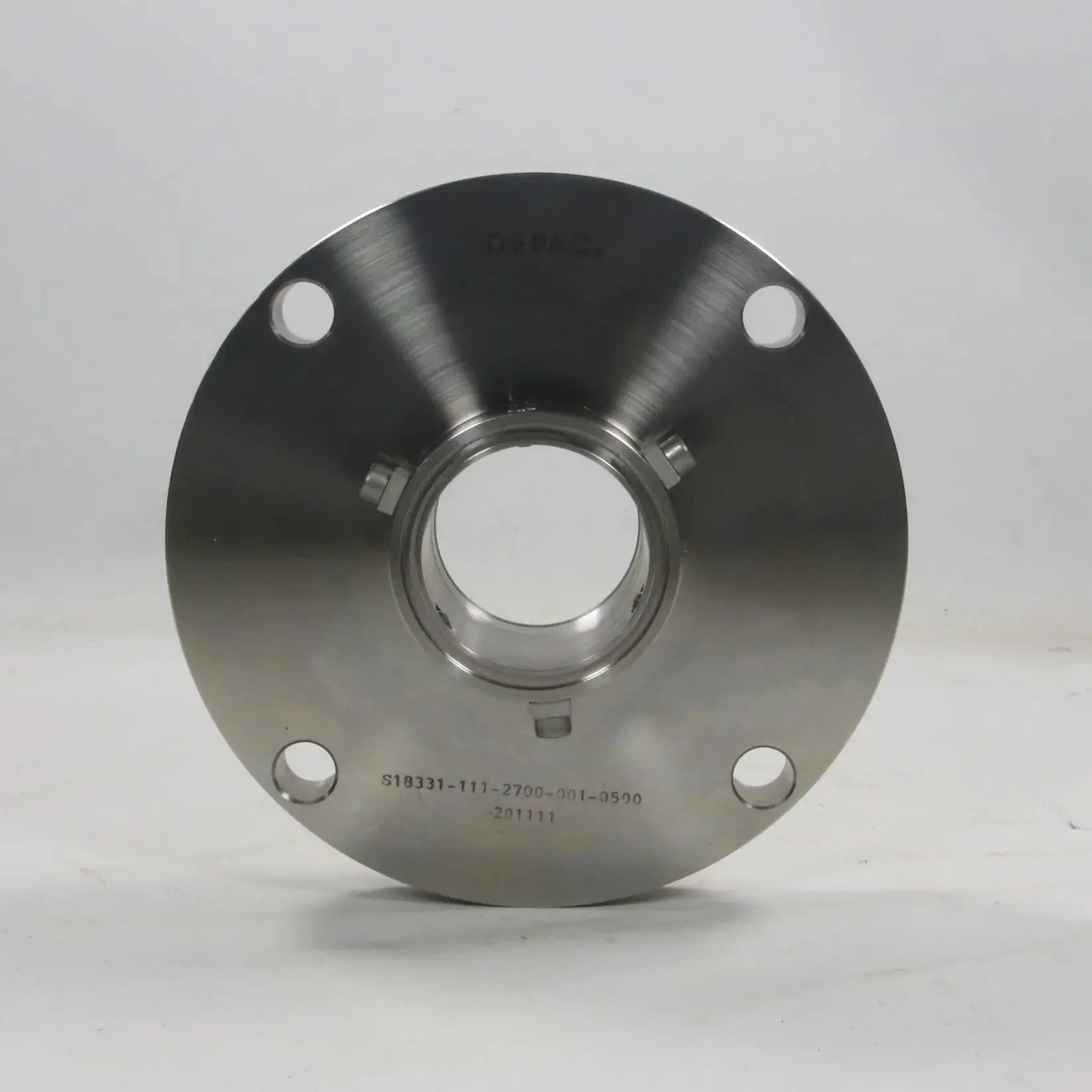

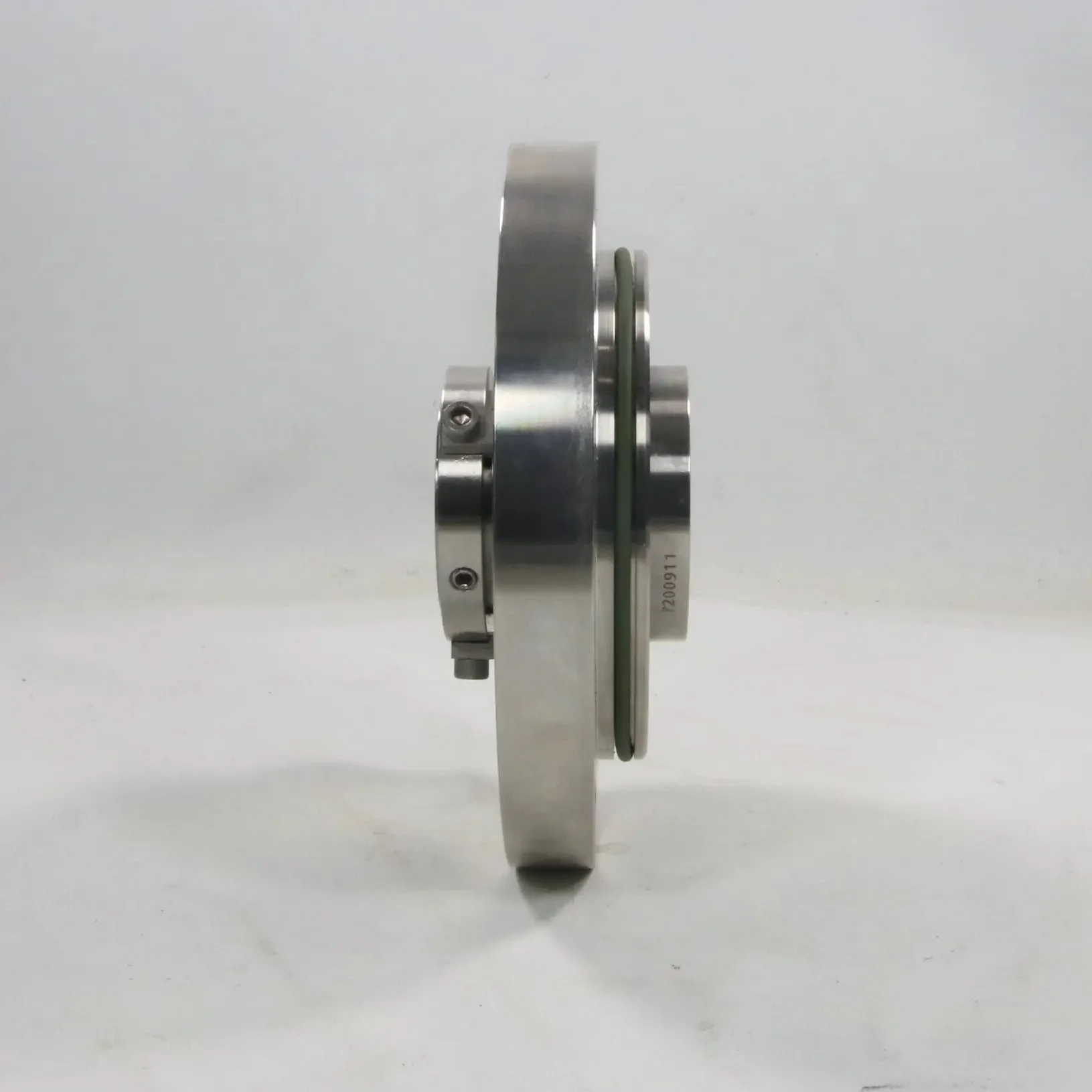

Depac 270S-50 Mechanical Seal

- Brand: Depac (Depac Dichtungstechnik GmbH)

- Model: 270S-50

- Type: Mechanical Seal

- Part number: S18331-111-2700-001-0500

- Technical specifications:
- Shaft bore:: 50 mm
- Seal design: Stationary
- Operating limits:
  - Pressure: 10 bar
  - Temperature: -30°C to +150°C
  - Speed: Up to 35 m/s
- Materials:
  - Seal faces: Silicon Carbide vs. Silicon Carbide (SiC)
  - Secondary seals: Viton (FKM)
- Compatibility: Pumps and compressors with 50 mm shaft
- Additional features: Stationary design for reduced wear on rotating parts; balanced for low heat generation and longer life; cartridge for error-free installation; high chemical resistance; low leakage; maintenance-friendly
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 4.0 kg

Dimensions: 170 dia. x 60 mm

Country of origin: Germany

HS code: 8484.20
