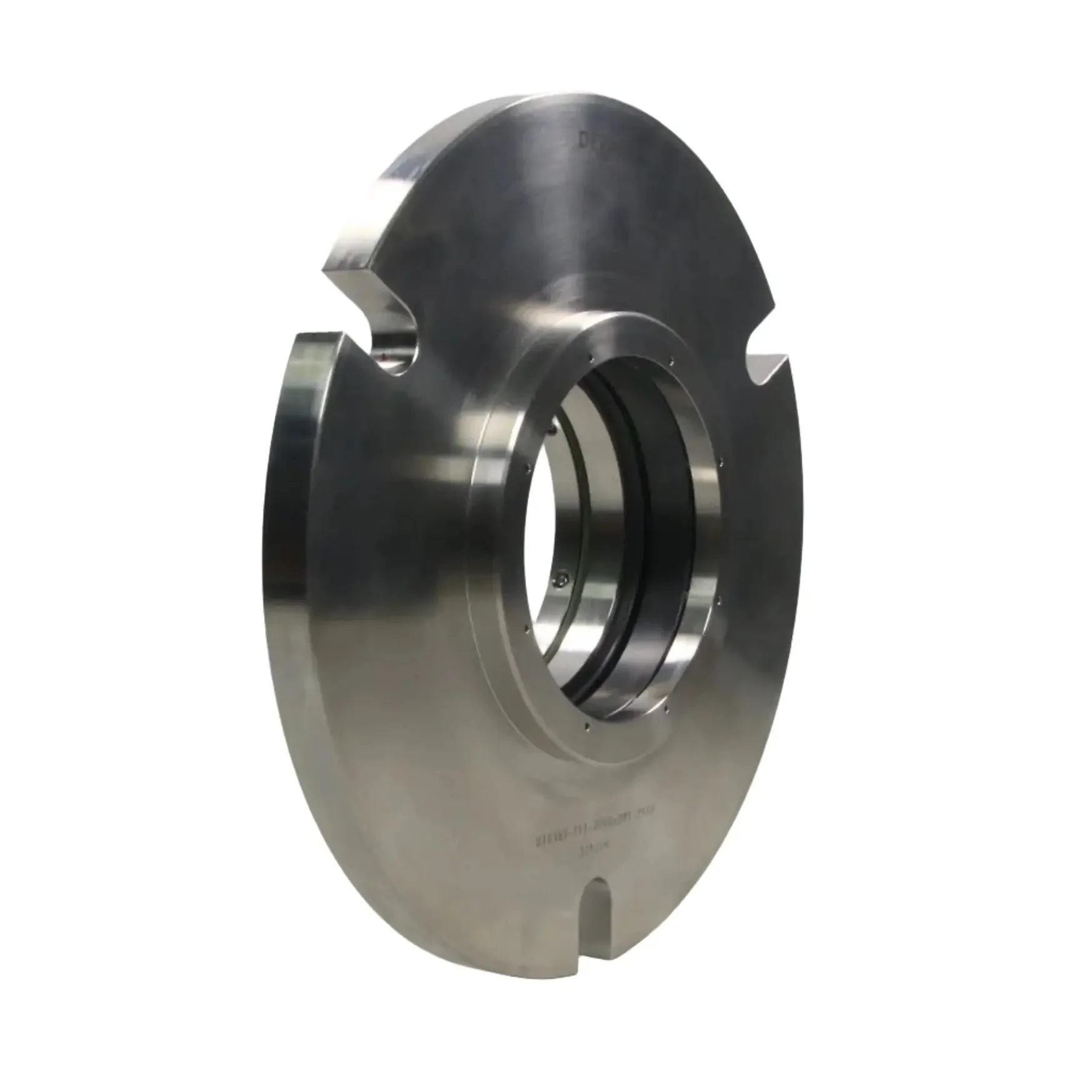

Depac S18367-270-95 Mechanical Seal

- Brand: Depac (Depac Dichtungstechnik GmbH)

- Model: S18367-270-95 (S-270)

- Type: Mechanical Seal / Cartridge Seal

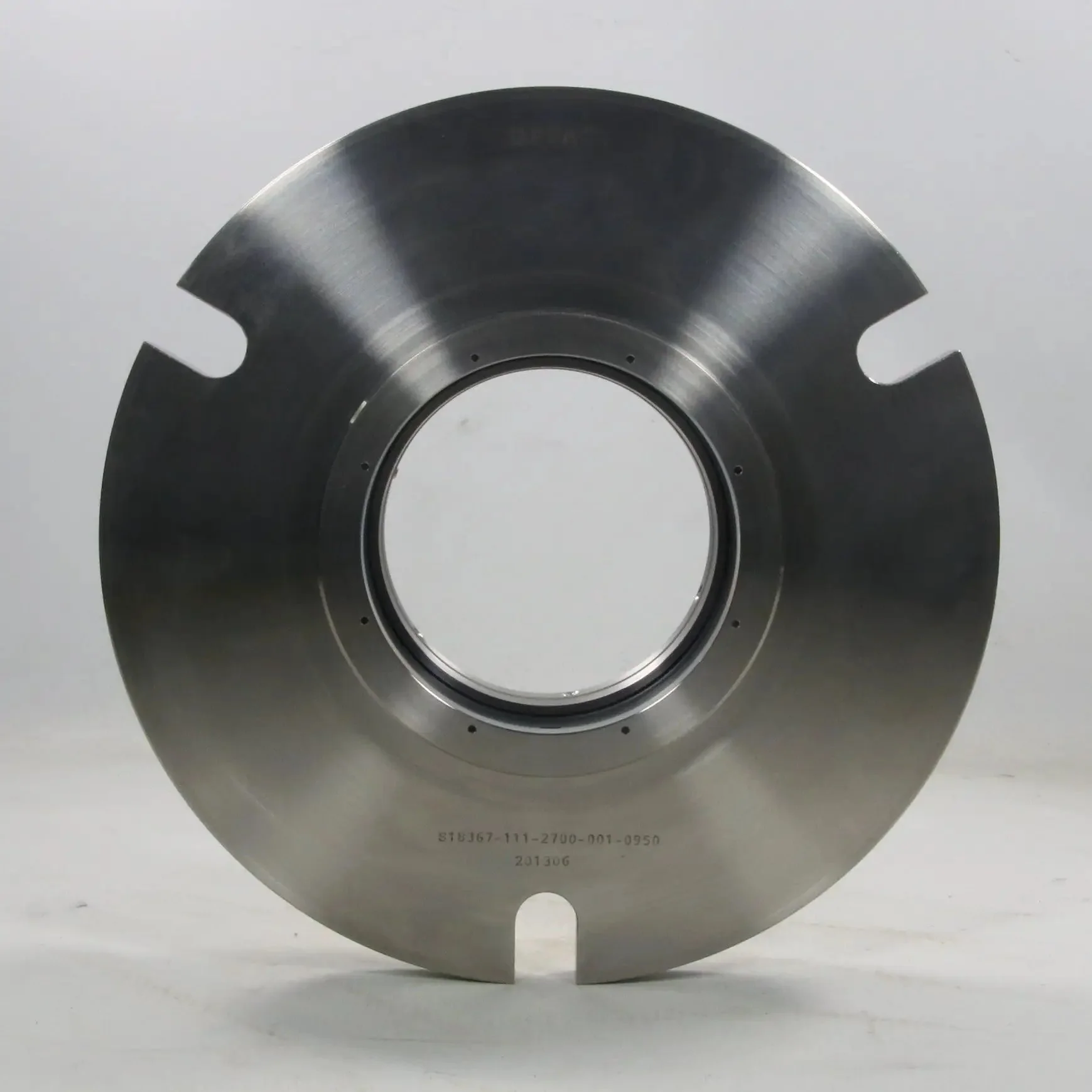

- Part number: S18367-111-2700-001-0950

- Technical specifications:
- Shaft diameter: 95 mm
- Seal design: Cartridge-mounted
- Operating limits:
  - Pressure: 10 bar
  - Temperature: -40°C to +150°C
  - Speed: 20 m/s
- Materials:
  - Seal faces: Silicon Carbide vs. Silicon Carbide (SiC)
  - Secondary seals: Viton (FKM)
  - Metal parts: 1.4571 / 316Ti stainless steel (corrosion-resistant)
  - Springs/Bellows: Hastelloy
- Installation: Cartridge design
- Direction of rotation: Independent
- Compatibility: Pumps and agitators with 95 mm shaft (Depac 270 series fits many standard pump makes; common in chemical, food, wastewater, or process pumps)
- Additional features: Balanced design for low heat generation and longer life; cartridge for error-free installation; high chemical resistance; low leakage; maintenance-friendly
- Standards: Compliant with EN 12756 / ISO 21049; RoHS compliant

Weight: 6.0 kg

Dimensions: 248 diam. x 56 mm

Country of origin: Germany

HS code: 8484.20
