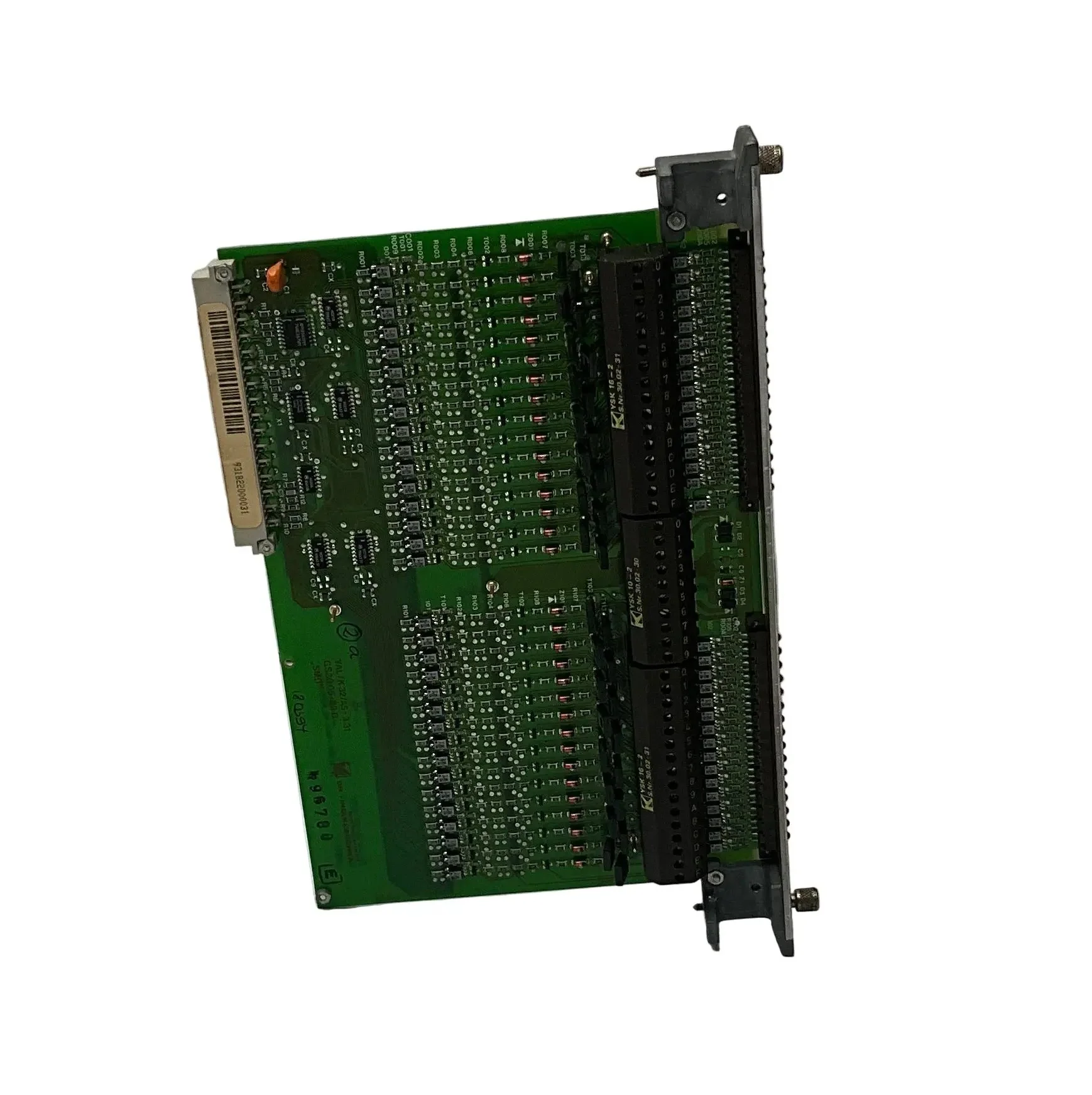

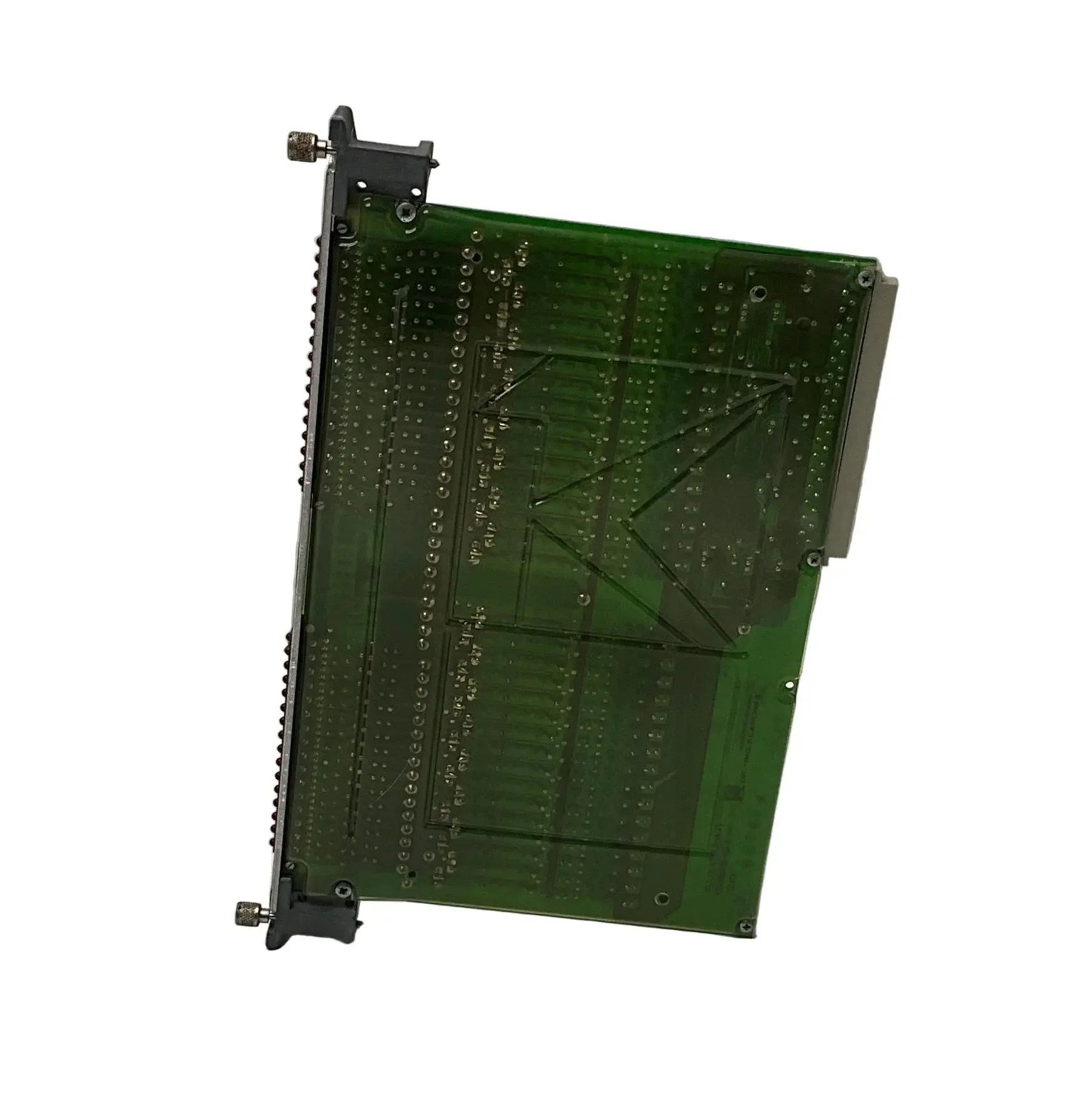

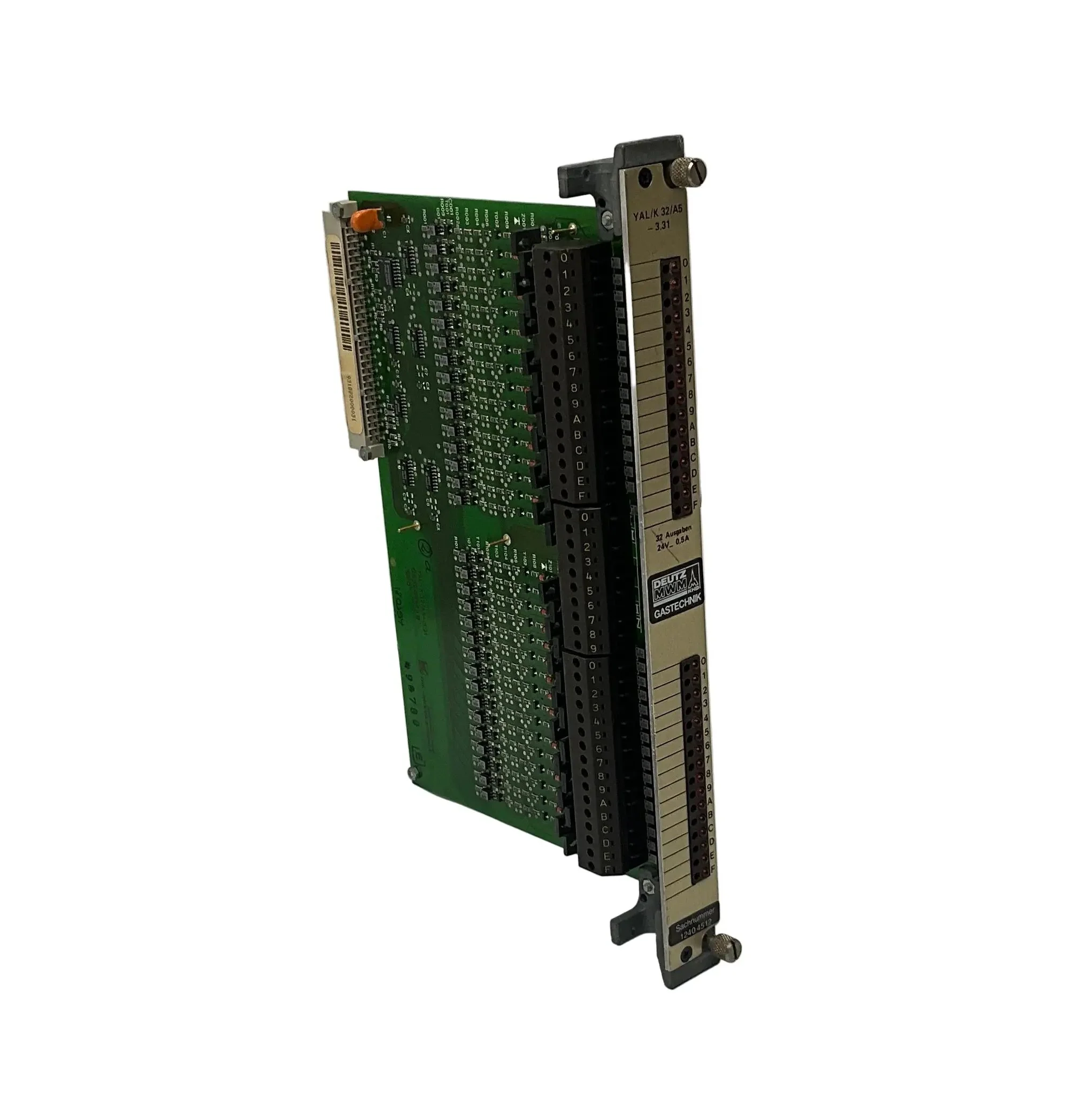

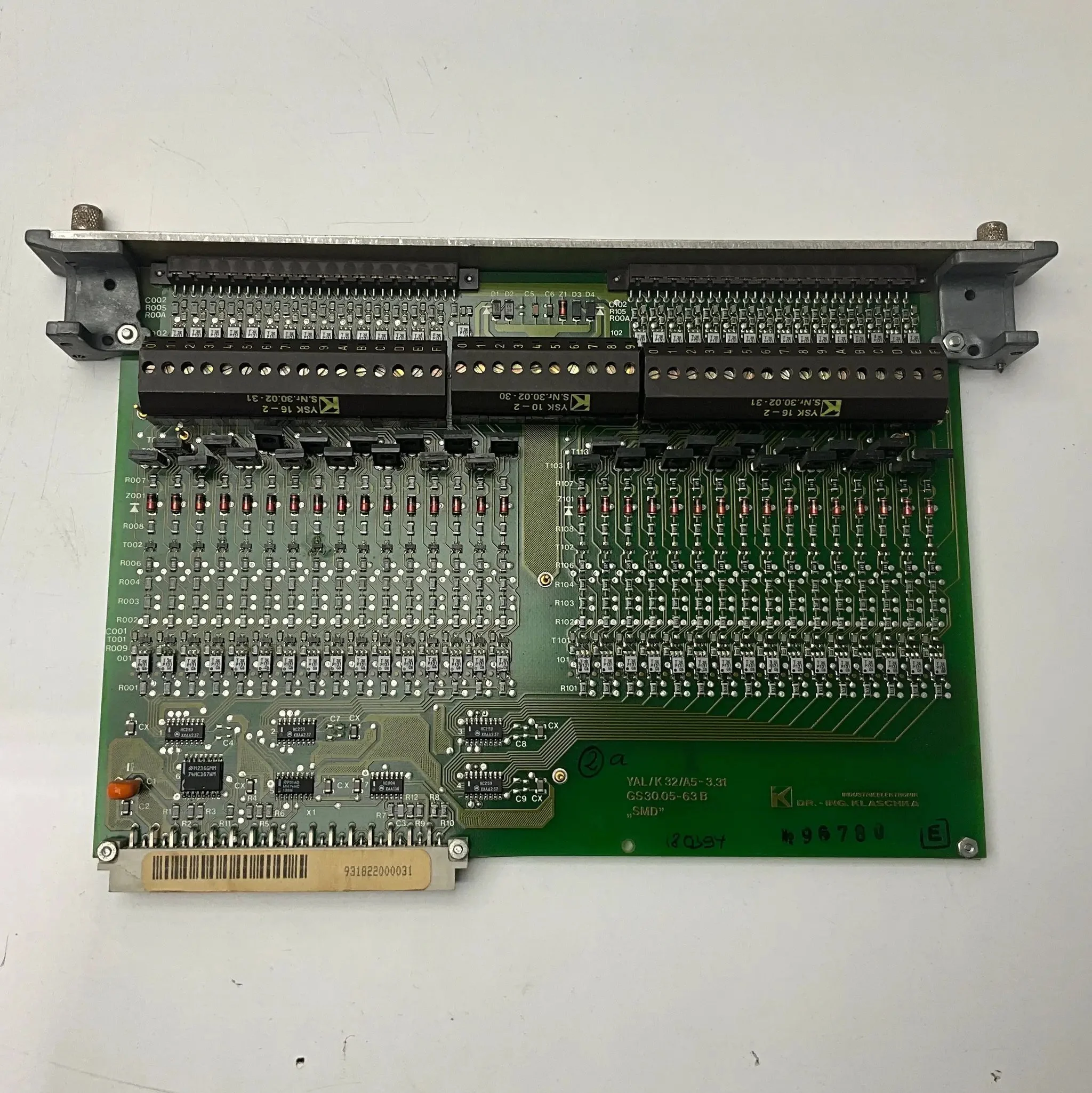

Deutz MWM Klaschka YAL/K 32/A5 - 3.31 GS30.05 - 63B SMD PC Output Board

Brand: Klaschka (for Deutz MWM)
Model: YAL/K32/A5-3.31 GS30.05 - 63B SMD
Type: PC Output Board
Part Number: GS30.05-63B

Technical Specs:
- Function: PC Output board for processing sensor signals in Deutz MWM engine control systems, part of the TEM (Total Electronic Management)
- Voltage: 24 V DC
- Current: 0.5 A
- Inputs/Outputs: Output board,  relay/transistor outputs. 42 screw terminals
- Compatibility: Deutz MWM gas and diesel engines (e.g., TBG 616, 620, 632, TCG 2016, 2020, 2032)
- Operating Temperature Range: -20°C to 60°C
- Protection Rating: IP20
- Material: PCB with SMD components
- Additional Features:
  - Surface-mount device (SMD) technology for compact design
  - Discontinued by manufacturer
  - Modular design for integration with Deutz MWM TEM systems
- Certifications: CE compliant

Dimensions: 280 x 170 x 30 mm

Weight: 440 g

Country of Origin: Germany

HS Code: 8537.10
