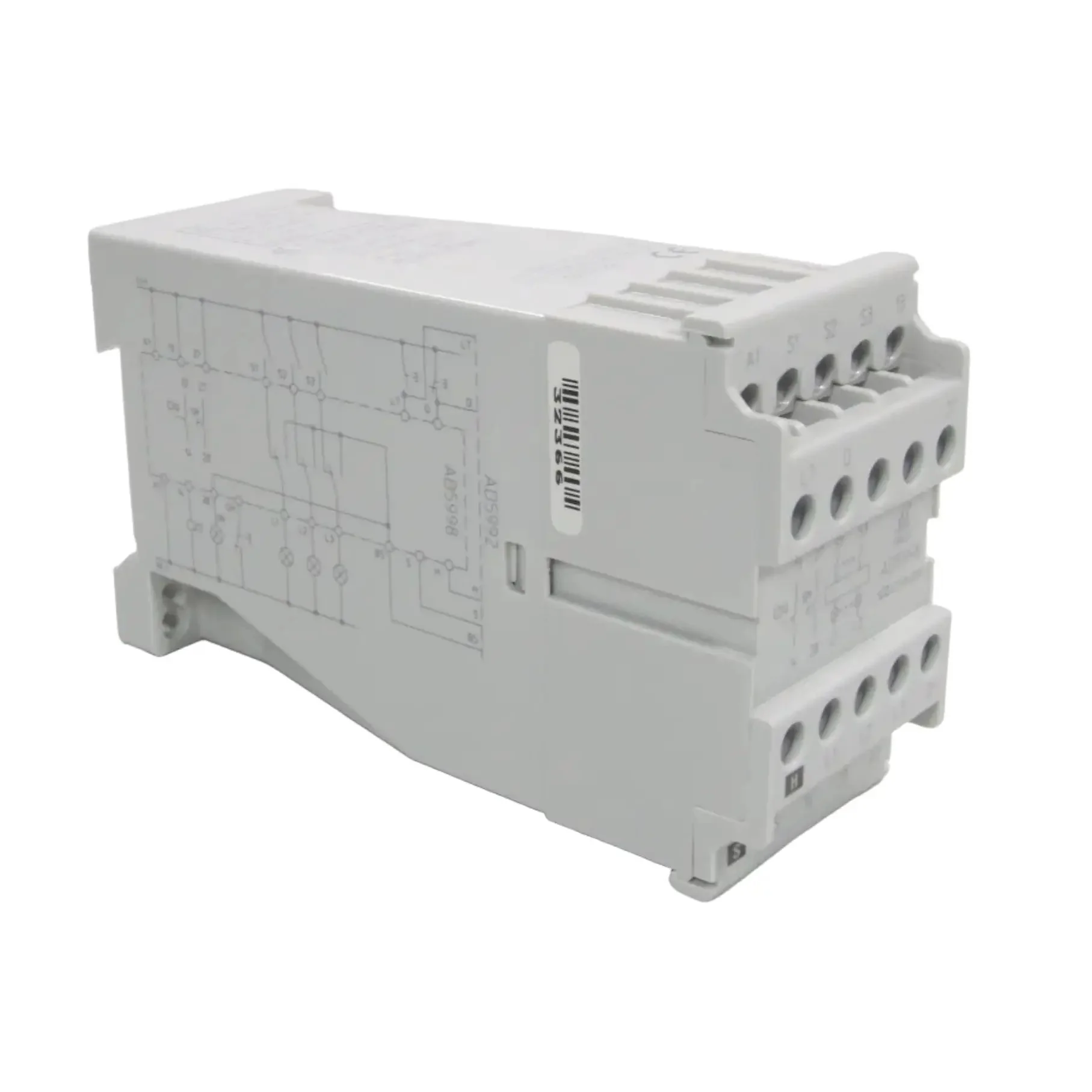

Dold AD 5998 Fault Annunciator Control Unit

- Brand: DOLD (E. Dold & Söhne GmbH & Co. KG)

- Model: AD 5998

- Type: Fault Annunciator Control Unit / Fault Indication Relay

- Part number: 0032366

- Technical specifications:
- Supply voltage: AC 24 V 50/60Hz
- Alarm inputs: 3 fault inputs
- Outputs: 1 relay for common alarm + 1 relay for horn
- Operating principle: Energized on trip
- Expansion: Modular – connect multiple AD 5992 units to AD 5998
- Operating temperature: -20°C to +60°C
- Protection: IP20
- Mounting: DIN rail
- Standards: Compliant with DIN 19235 (fault annunciation); relevant IEC/EN for relay modules; CE marked

Weight: 450 g

Dimensions: 90 x 60 x 140 mm

Country of origin: Germany

HS code: 8536.49
