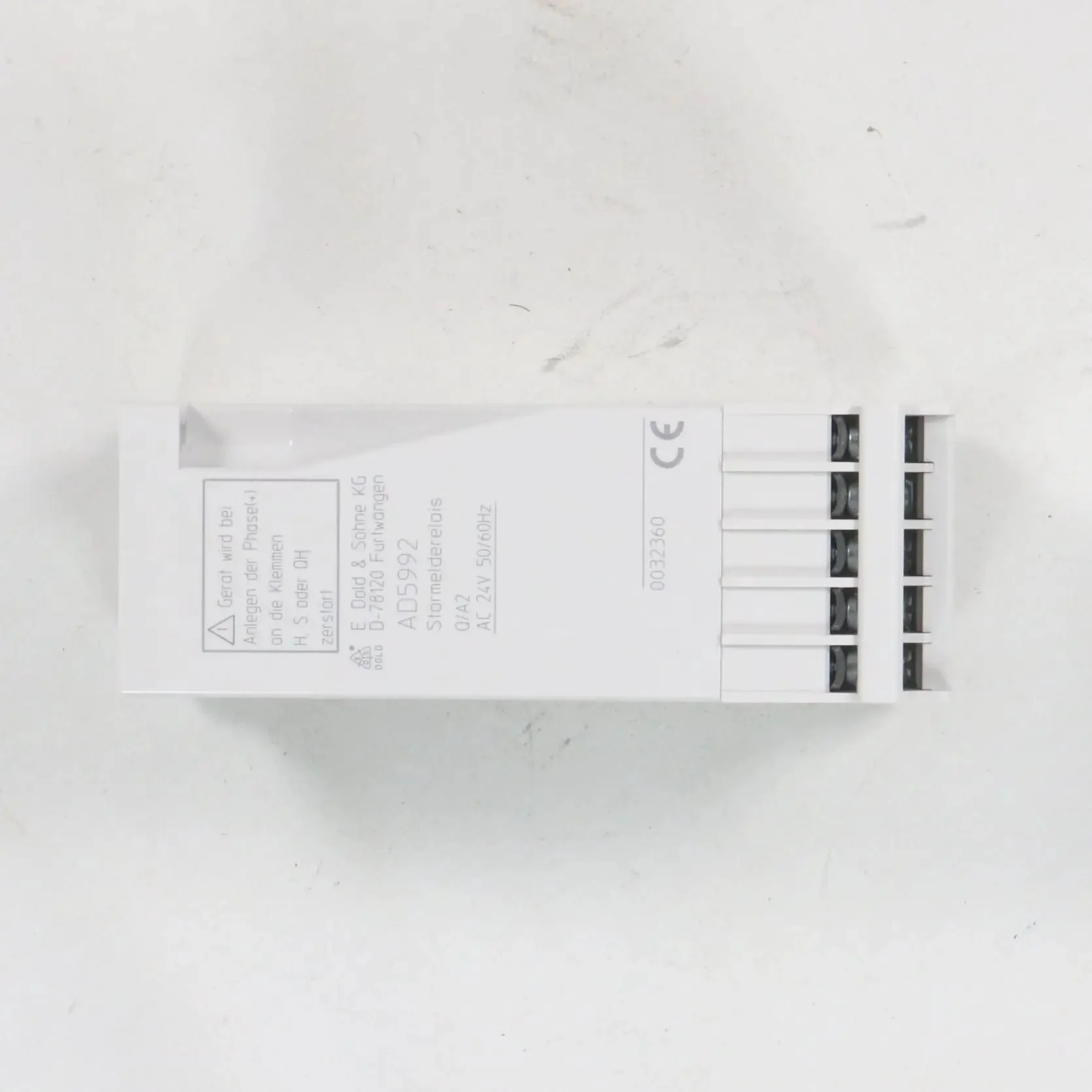

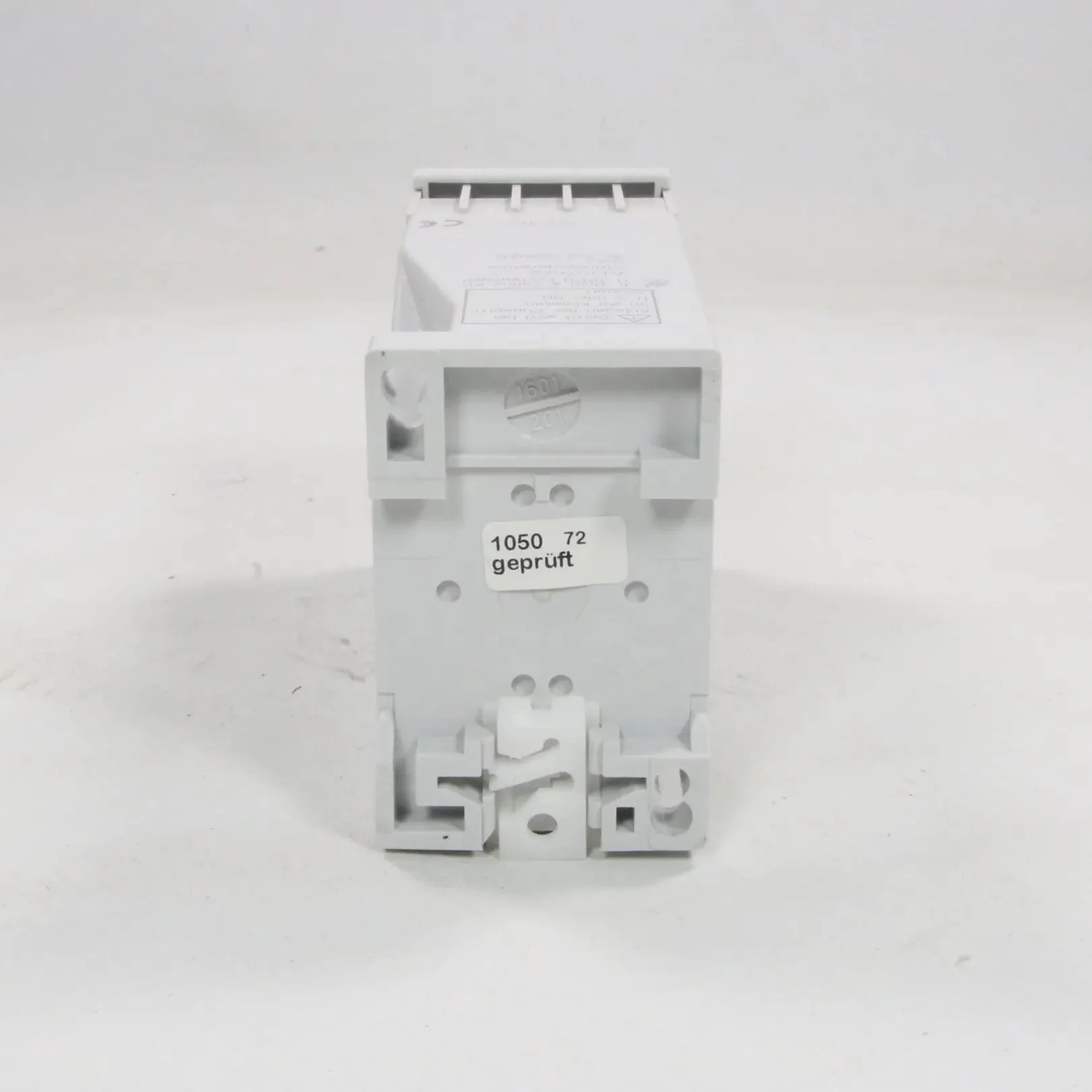

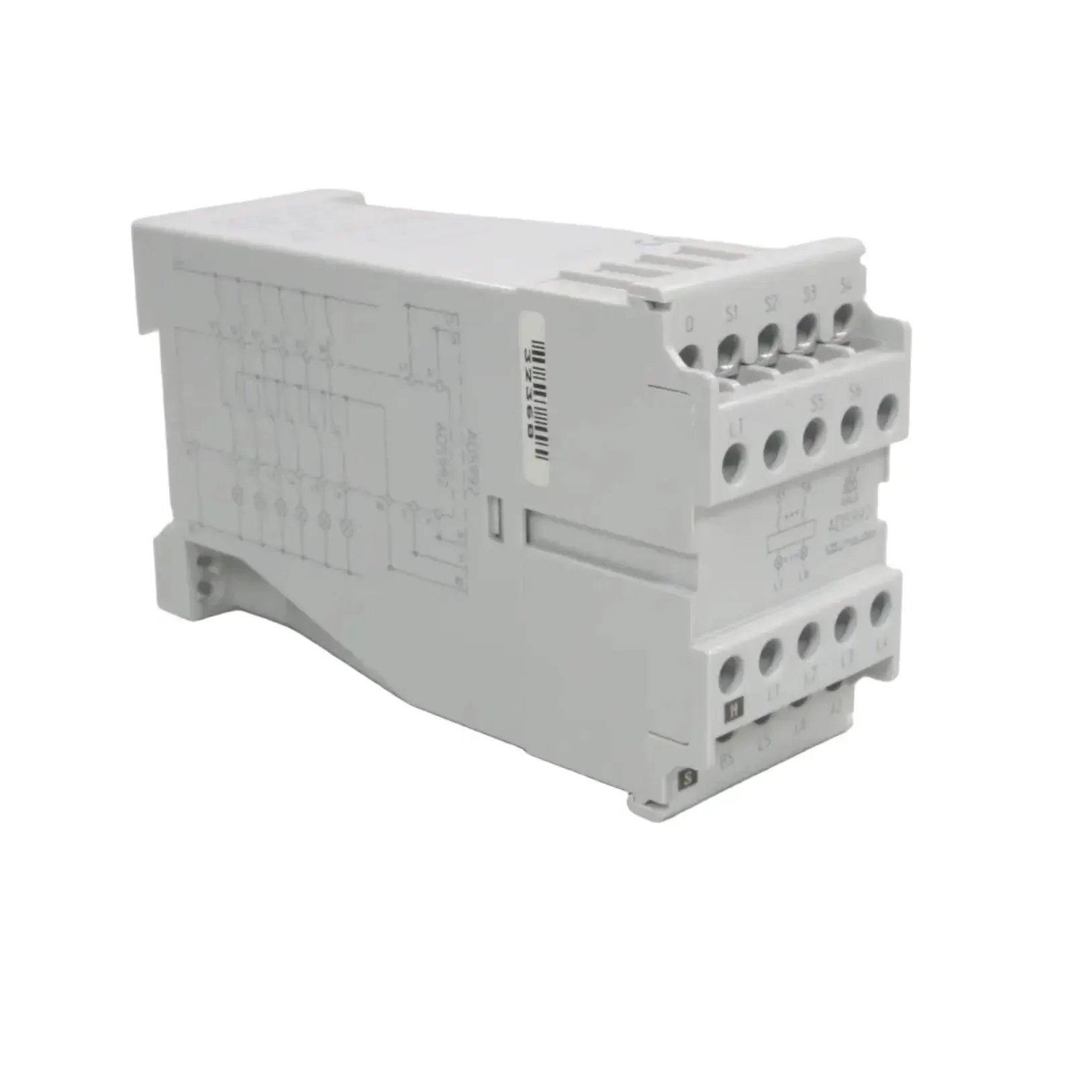

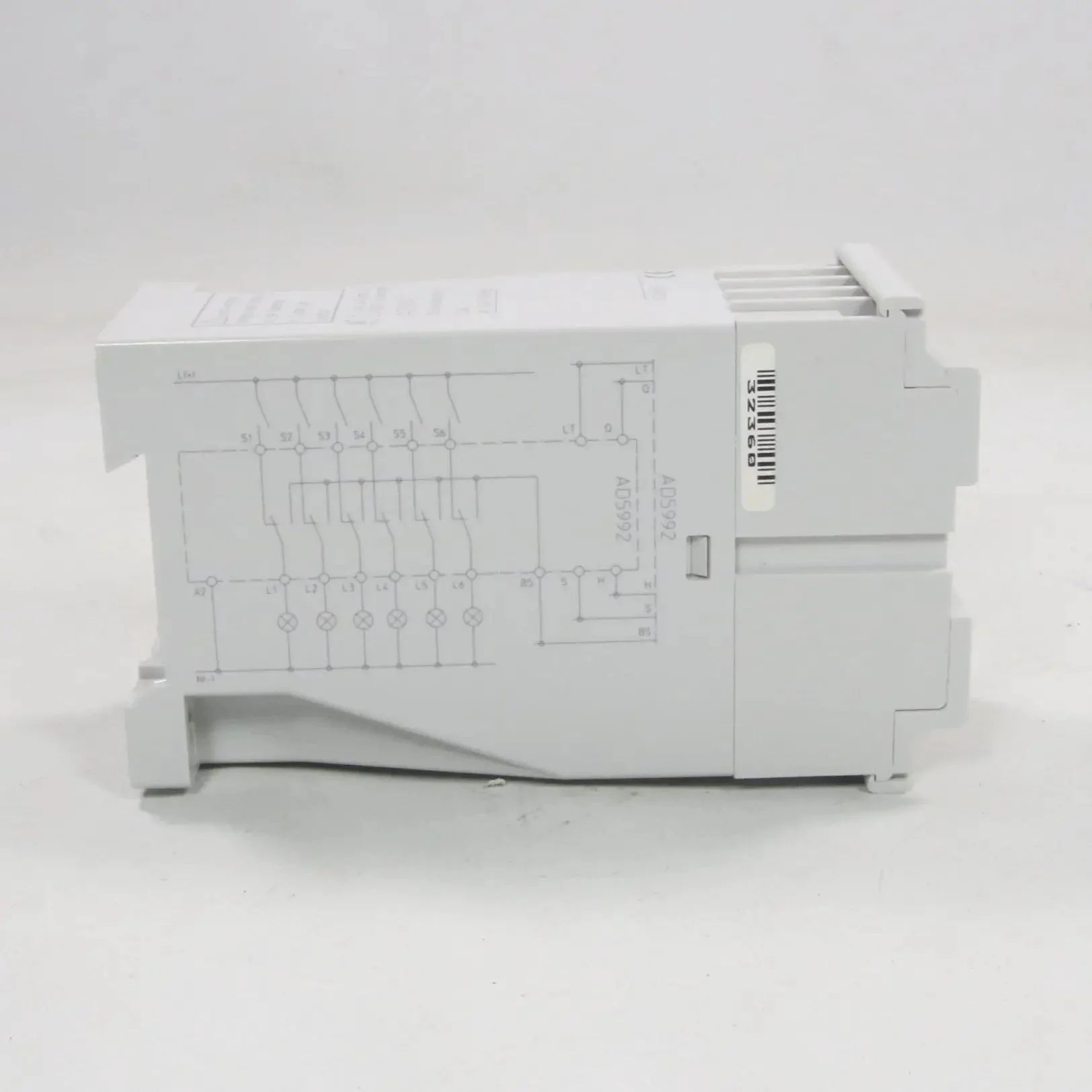

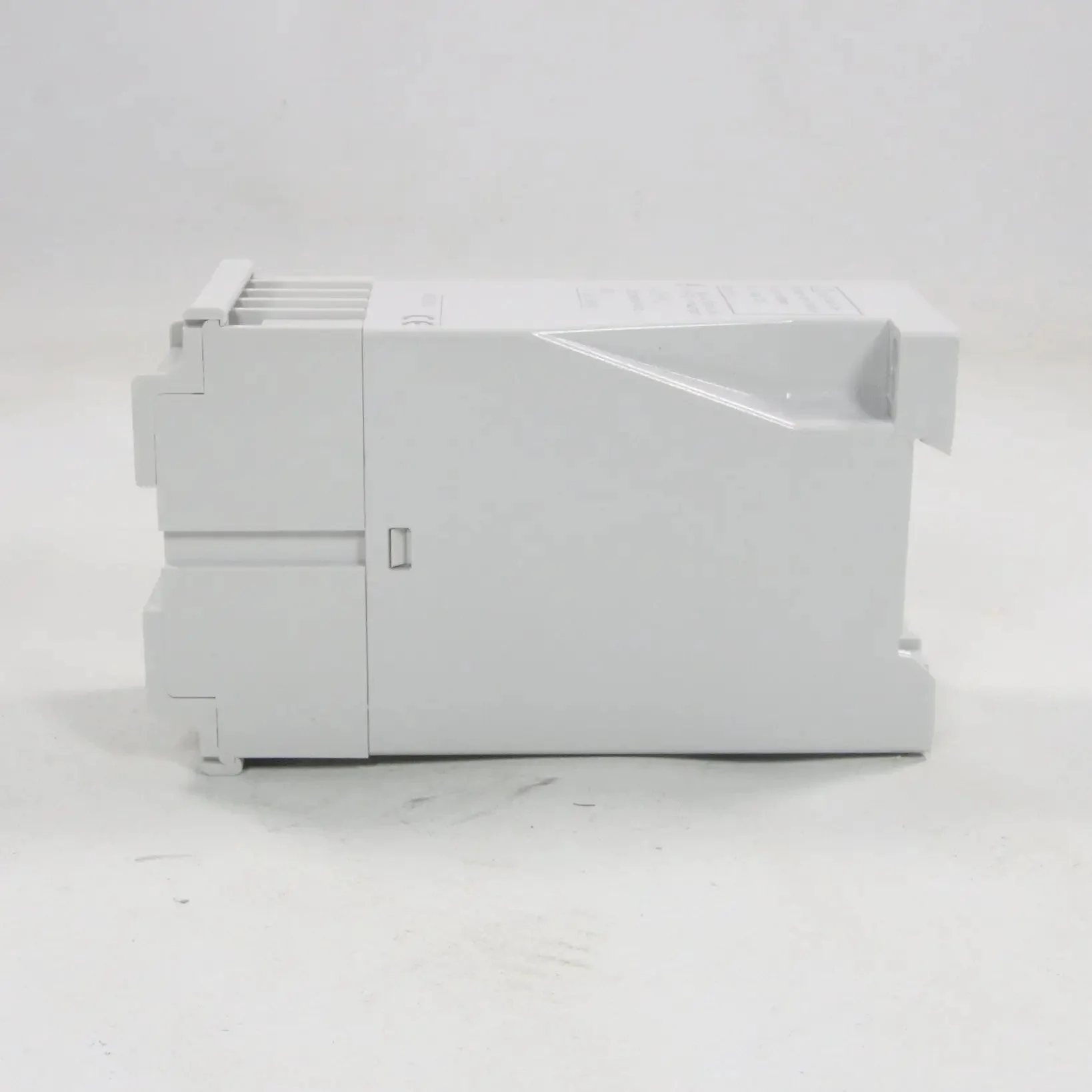

Dold AD 5992 Fault Indication Expansion Module

- Brand: DOLD (E. Dold & Söhne GmbH & Co. KG)

- Model: AD 5992

- Type: Fault Indication Expansion Module

- Part number: 0032360

- Technical specifications:
- Function: Expansion unit for fault annunciation system
- Inputs: 6 fault inputs
- Supply voltage: 24 V AC/DC (AC 50/60 Hz; permissible range typically ±20–25%)
- Fault indication: According to DIN 19235
- Expansion: Modular – connect multiple AD 5992 units to AD 5998 control unit
- Additional features: High reliability for industrial monitoring; suitable for fault localisation in electrical/mechanical systems
- Operating temperature: -20°C to +60°C
- Protection: IP20
- Mounting: DIN rail
- Standards: Compliant with DIN 19235 (fault annunciation); relevant IEC/EN for relay modules; CE marked

Weight: 450 g

Dimensions: 85 x 60 x 140 mm (box)

Country of origin: Germany

HS code: 8536.49
