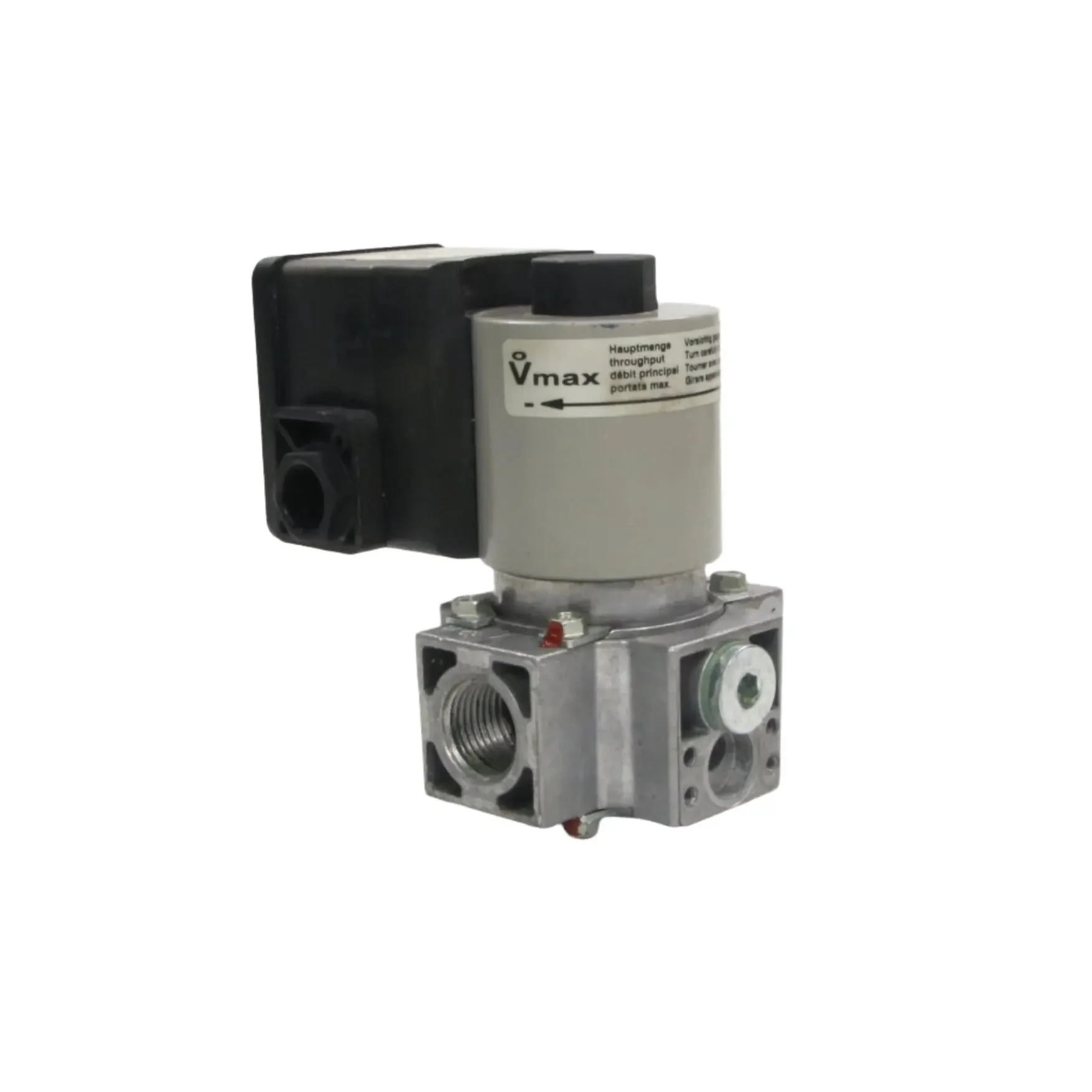

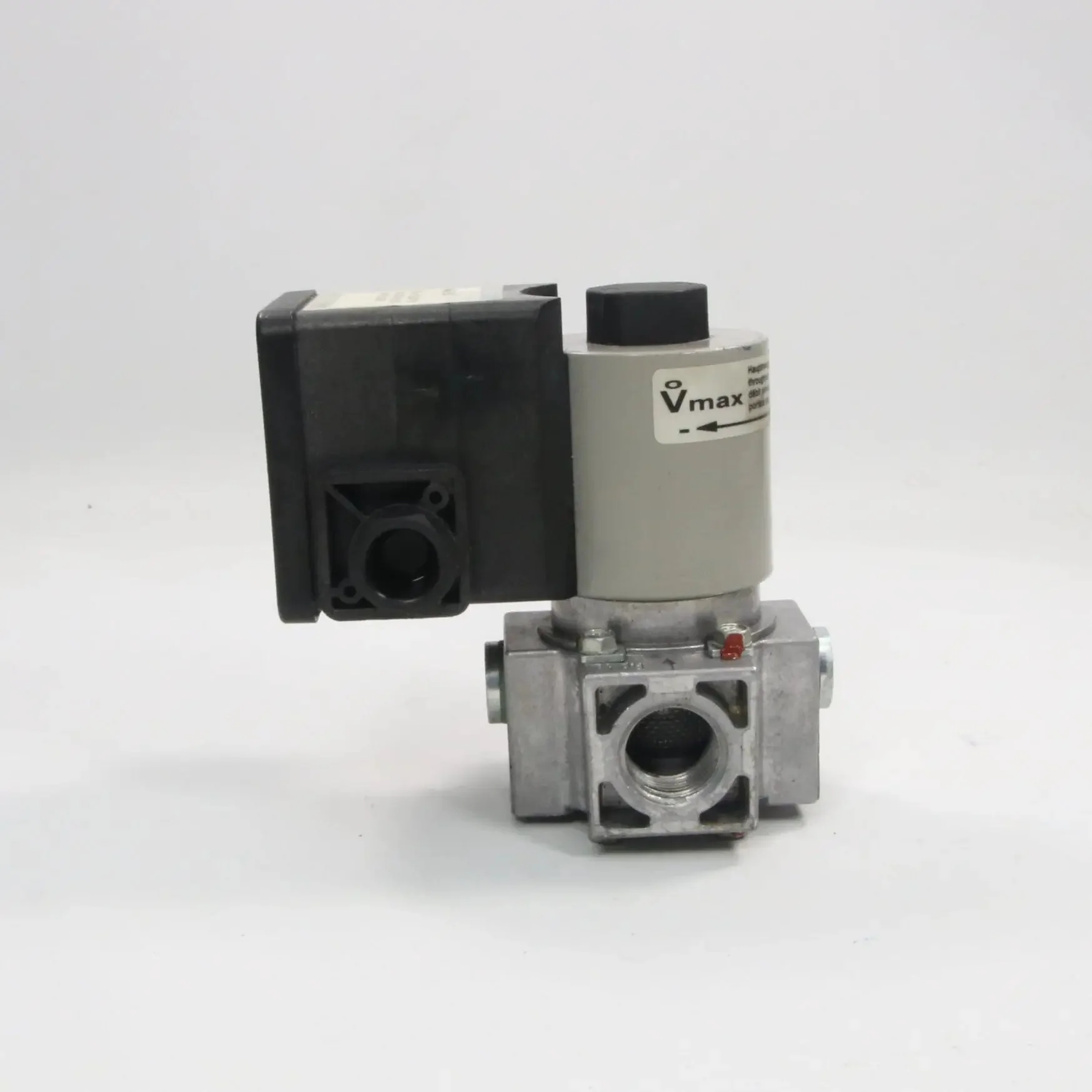

Dungs MVD 205/5 S02 Safety Solenoid Valve
-
Product Description:
The Dungs MVD 205/5 S02 is a single-stage safety solenoid valve designed for gas burners and appliances. It ensures secure gas shut-off and is suitable for gases of families 1, 2, and 3, as well as other neutral gaseous media. This valve complies with EN 161 standards and is ideal for applications requiring reliable and rapid gas control. - Key Features:
- Nominal Diameter: Rp 1/2
- Max. Operating Pressure: 360 mbar (36 kPa)
- Voltage: 230 V AC, 50/60 Hz
- Power Consumption: 15 VA
- Closing Time: < 1 second
- Opening Time: < 1 second
- Fast Stroke: Adjustable
- Main Volume Adjustment: Manual
- Degree of Protection: IP54
- Ambient Temperature Range: -15°C to +60°C
- Material: Aluminium body with NBR seals
- Approvals: EN 161, Class A, Group 2
- Additional Information:
- Mounting Position: Vertical with solenoid upwards; horizontal installation possible
- Connection for Pressure Measurement: G1/4 ISO 118 with metal mesh filter (1 mm)
- Electrical Connection: Screw terminal PG 11; plug-in connection per DIN 175301-803 (can be modified)
- Max. Switching Cycles: 1000 per hour
- Leakage Test Block Compatibility: VDK 200 A S02
- Position Indicator: K01/1
- Sealing Material: NBR
