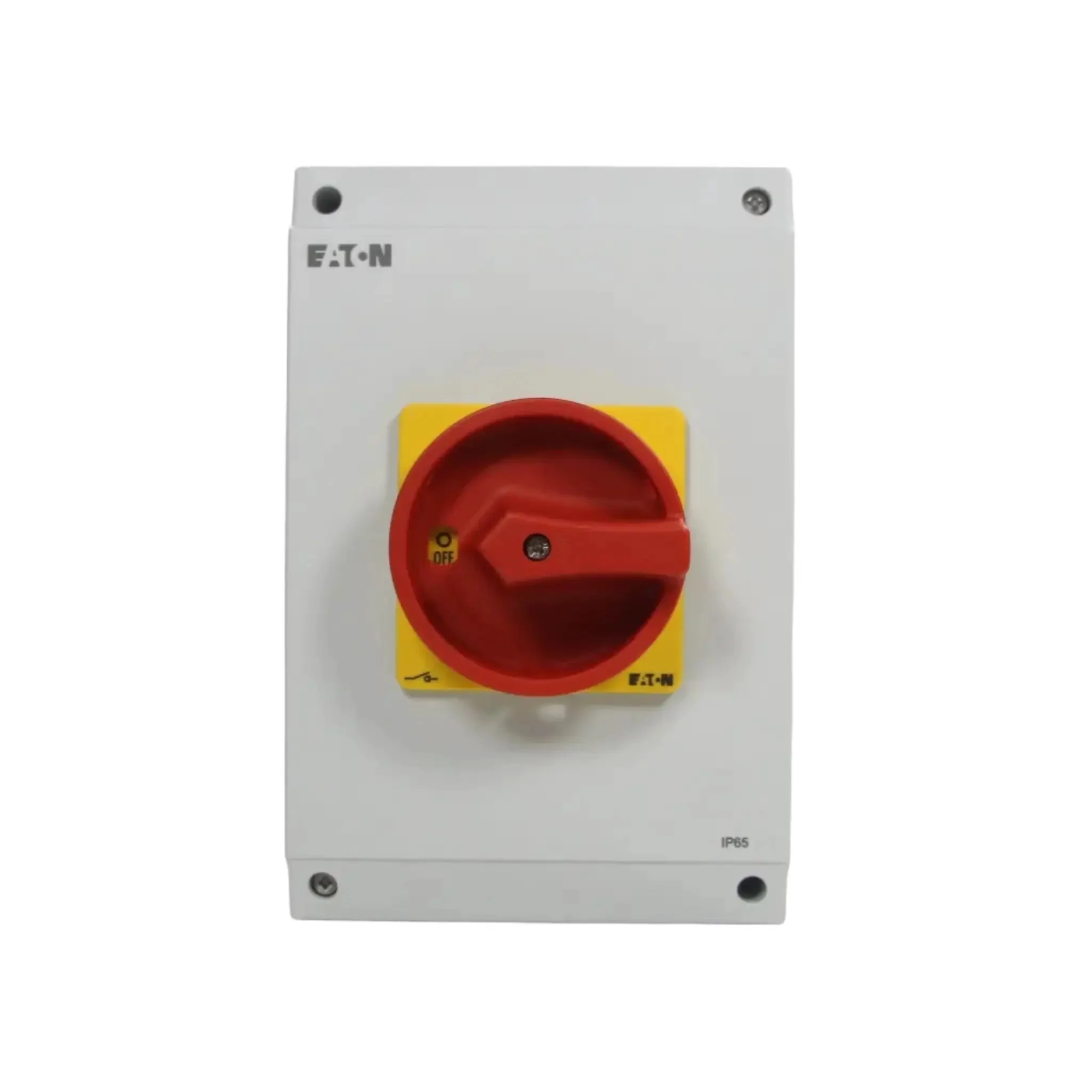

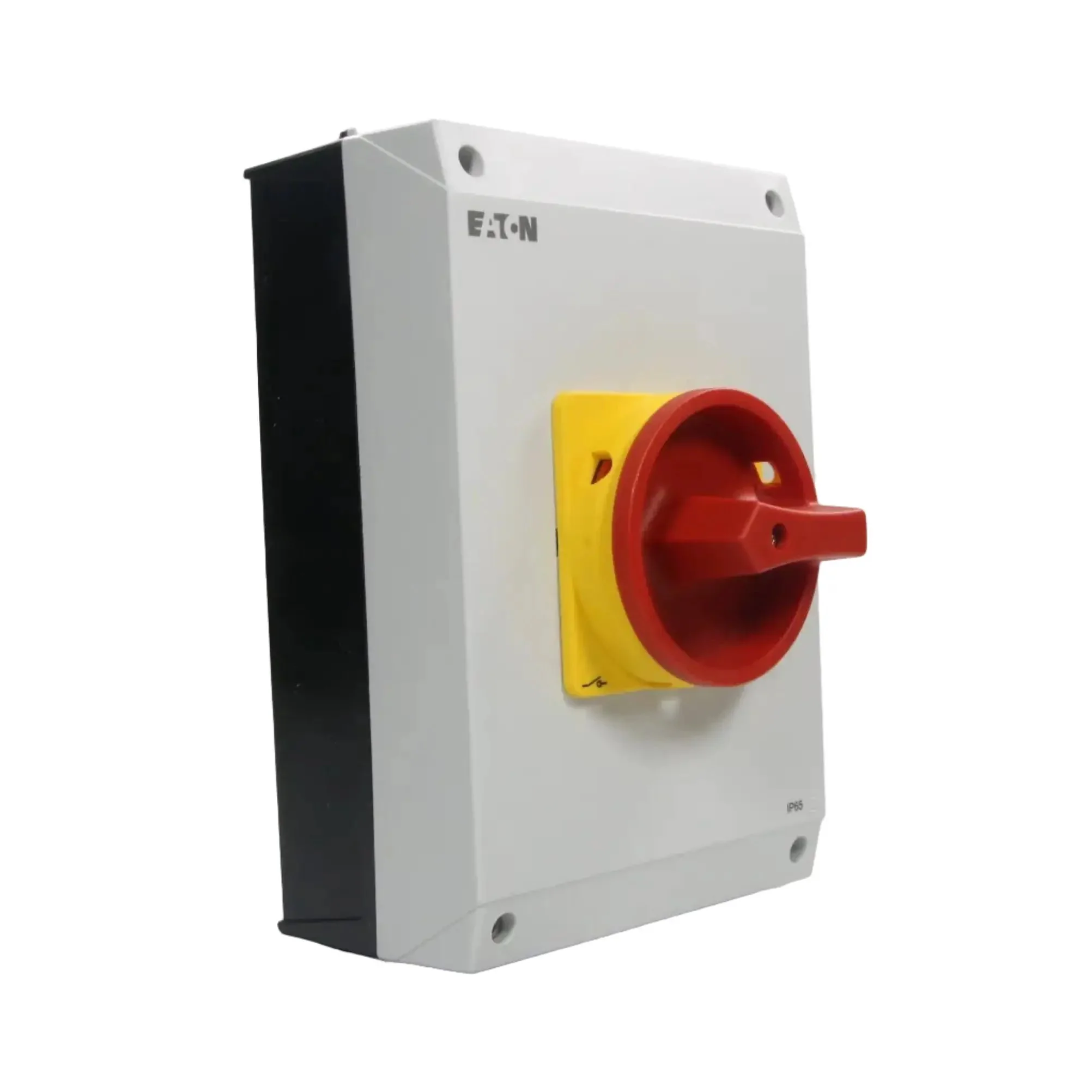

Eaton P3-63/I4/SVB/N Switch Disconnector

- Brand: Eaton

- Model: P3-63/I4/SVB/N

- Type: Main Switch / Switch Disconnector

- Part number: 207349

- All tech specs:
  - Function: On-load switch disconnector for main switch applications, motor control and isolation
  - Rated Operational Voltage (Ue): 690 V AC (50/60 Hz)
  - Rated Impulse Withstand Voltage (Uimp): 6 kV
  - Rated Current (Ie): 63 A
  - Utilisation Category: AC-23A (motor load), AC-22A (resistive load)
  - Number of Poles: 4-pole
  - Number of Switch Positions: 2 (0 – I)
  - Switching Angle: 90°
  - Handle: Red/yellow door coupling rotary handle
  - Terminal Type: Screw terminals
  - Conductor Cross Section: 2.5 – 16 mm² (solid/flexible)
  - Short-Circuit Withstand Current (Icw): 5 kA for 1 s
  - Mechanical Endurance: > 100,000 operations
  - Electrical Endurance: > 10,000 operations at rated load
  - Operating Temperature: -25°C to +40°C
  - Storage Temperature: -40°C to +80°C
  - Protection Rating: IP65
  - Certifications: IEC/EN 60947-3, VDE, UL, CSA, CCC
  - Features: Positive opening contacts, padlockable handle, compact design, optional auxiliary contacts

- Dimensions: 160 x 150 x 240 mm

- Weight: 1.3 kg

- Country of origin: Germany

- HS code: 853650
