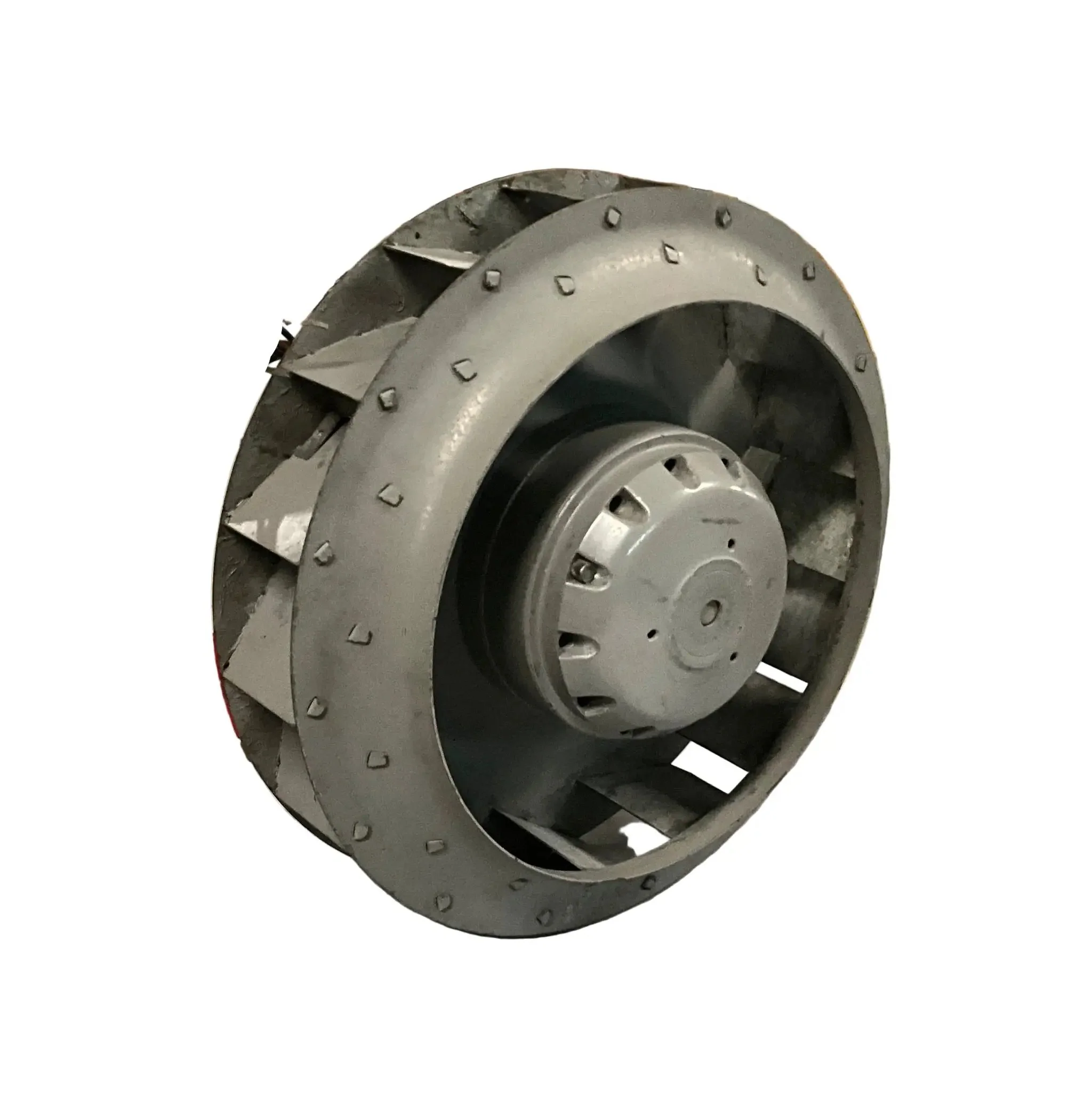

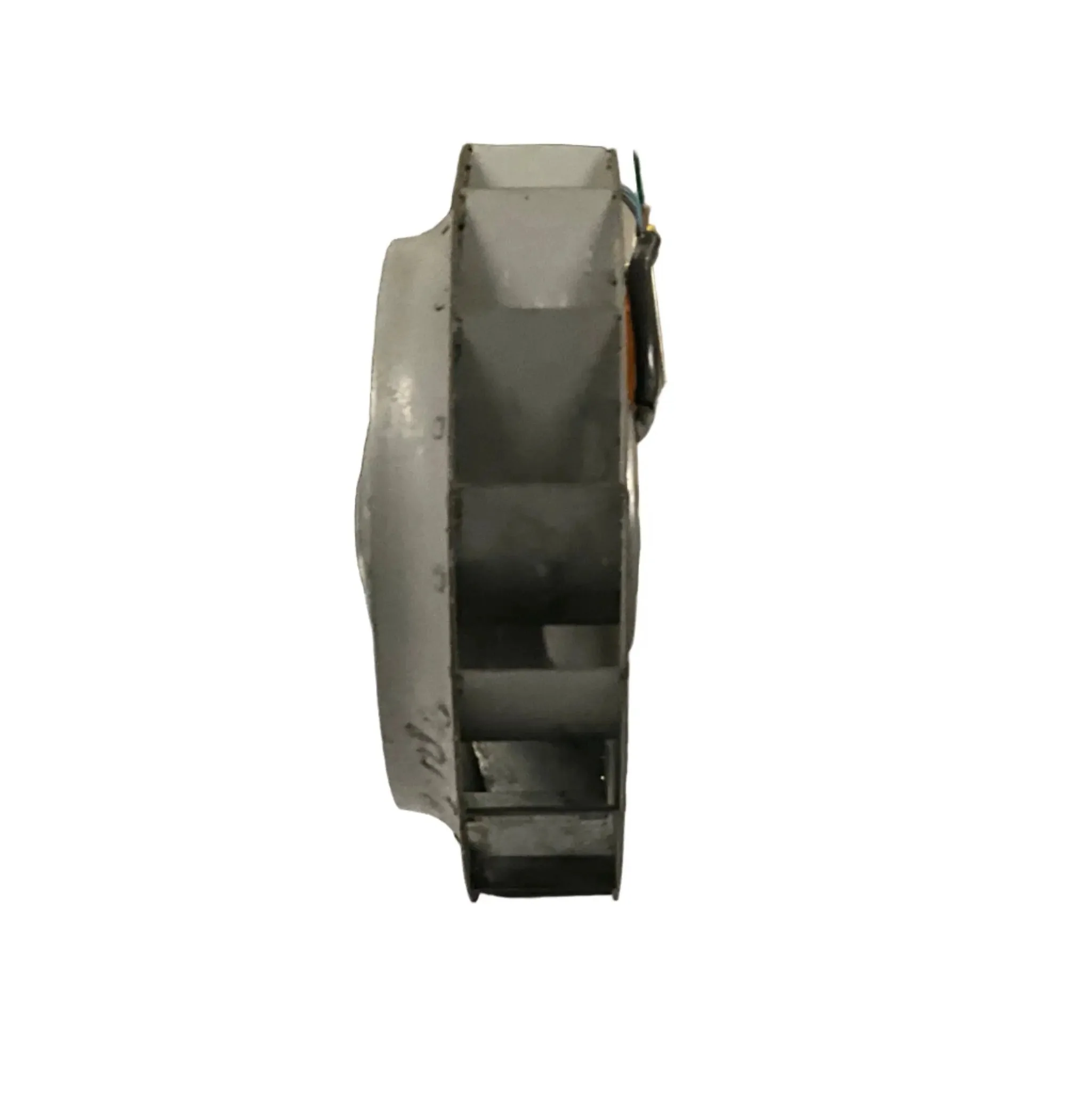

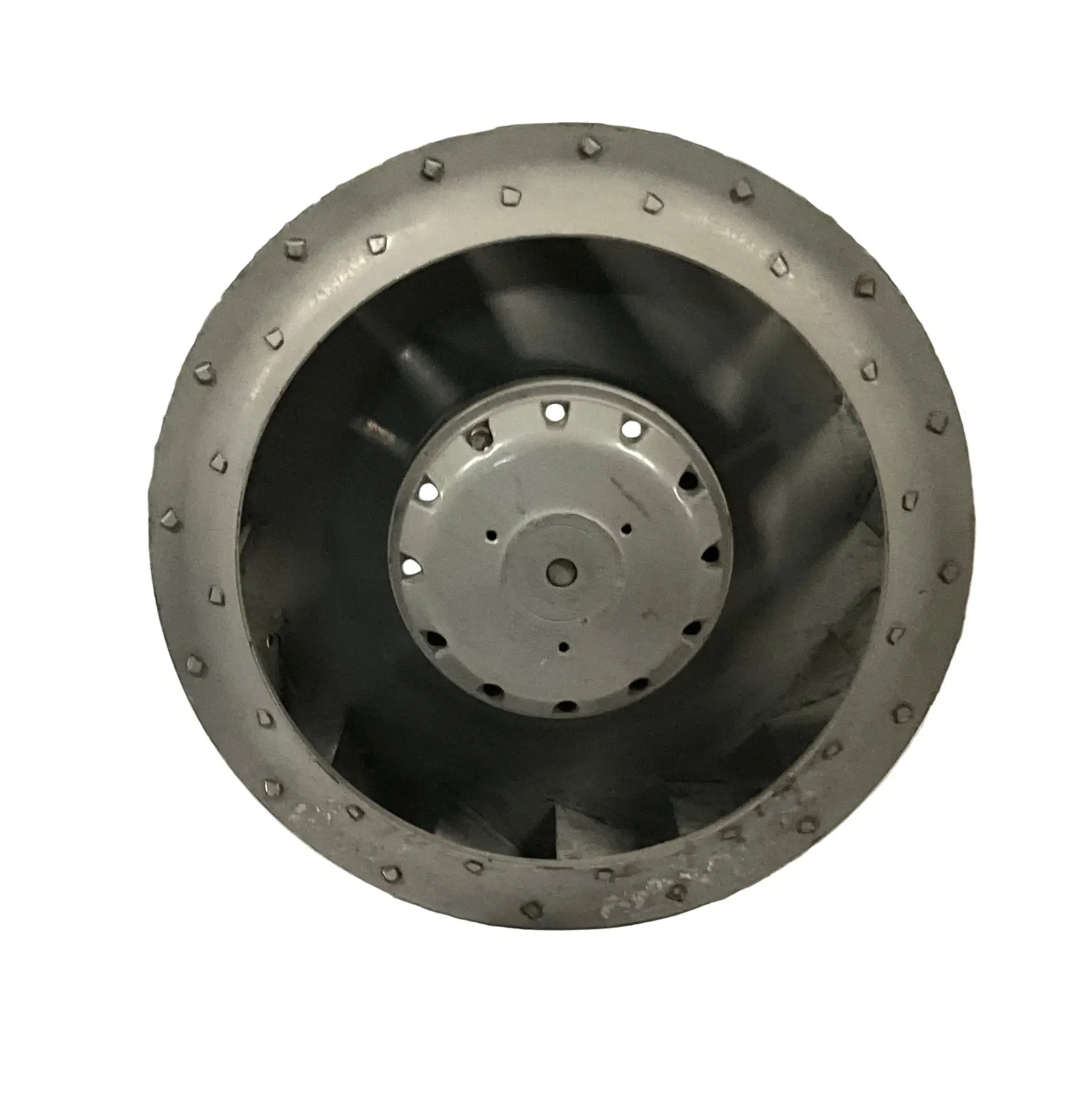

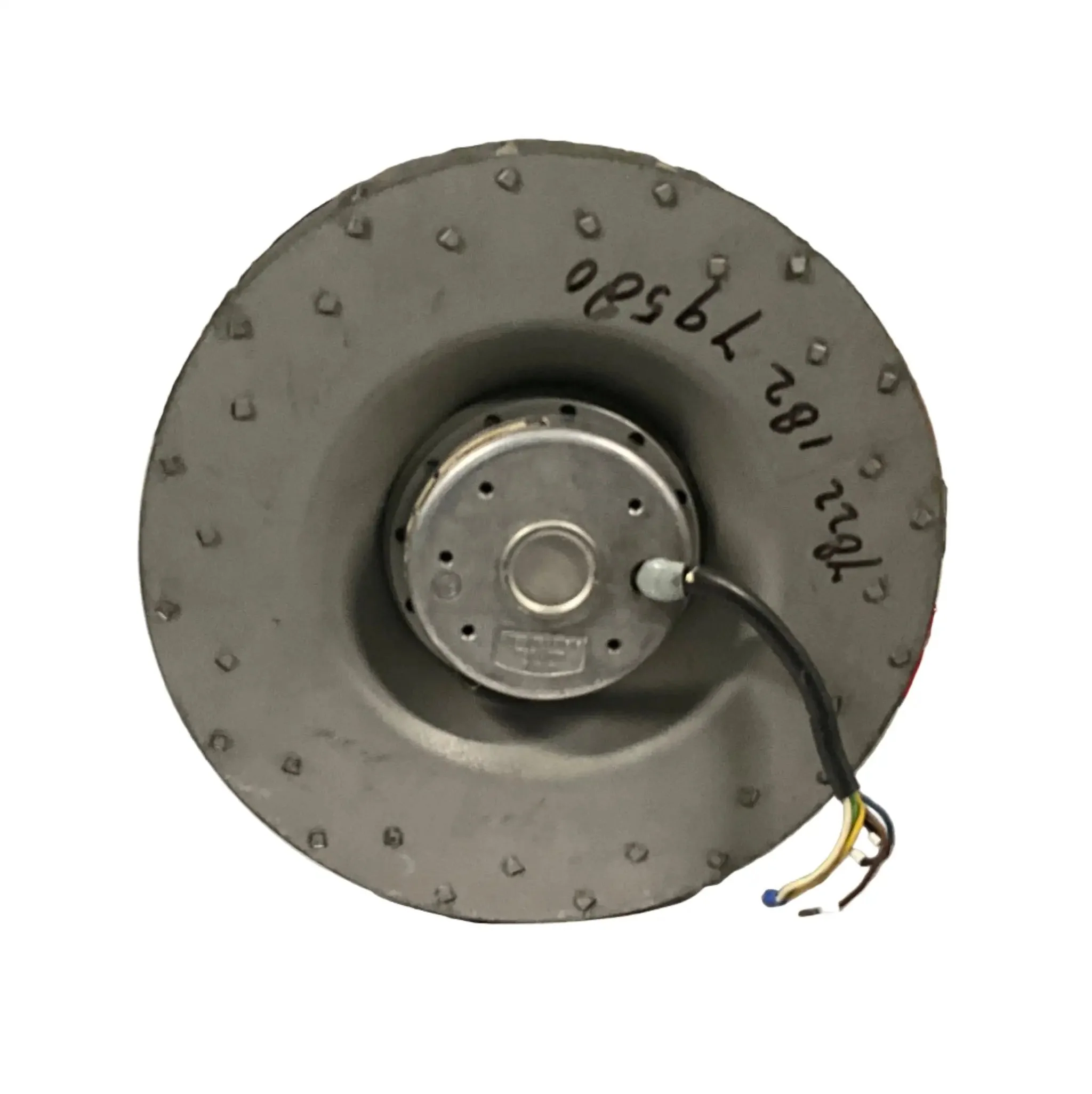

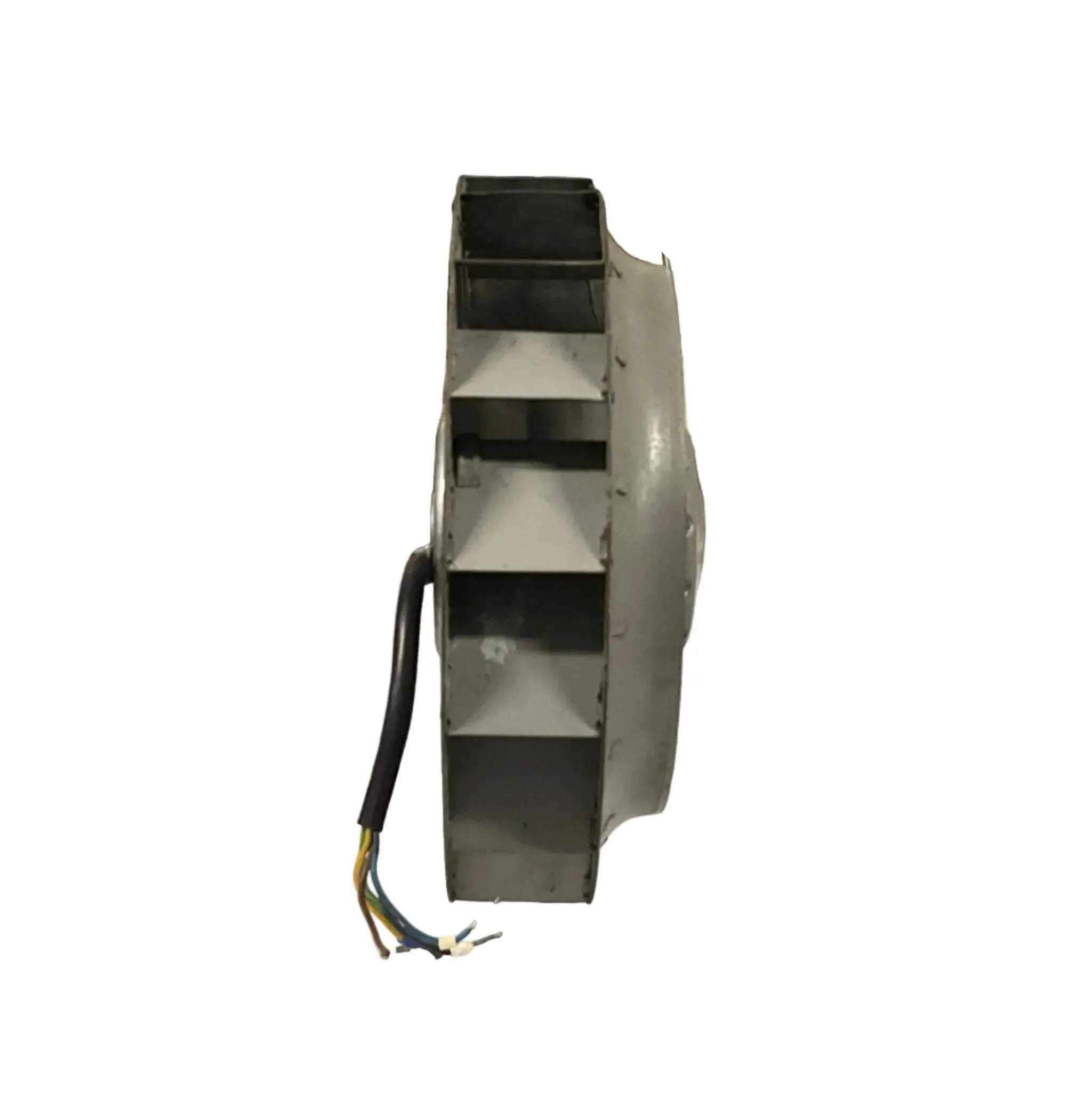

EBM-Papst R2D225-AB02-09 Centrifugal Fan

Brand: EBM-Papst
Model: R2D225-AB02-09
Type: Centrifugal Fan (Backward-Curved, Motorized Impeller)
Part Number: R2D225-AB02-09

Technical Specs:
- Fan Type: Centrifugal, backward-curved blades
- Diameter: 225 mm
- Voltage: 230 - 380 V AC (dual voltage, 3-phase)
- Frequency: 50/60 Hz
- Power Consumption: 125 W
- Speed: 2700 rpm

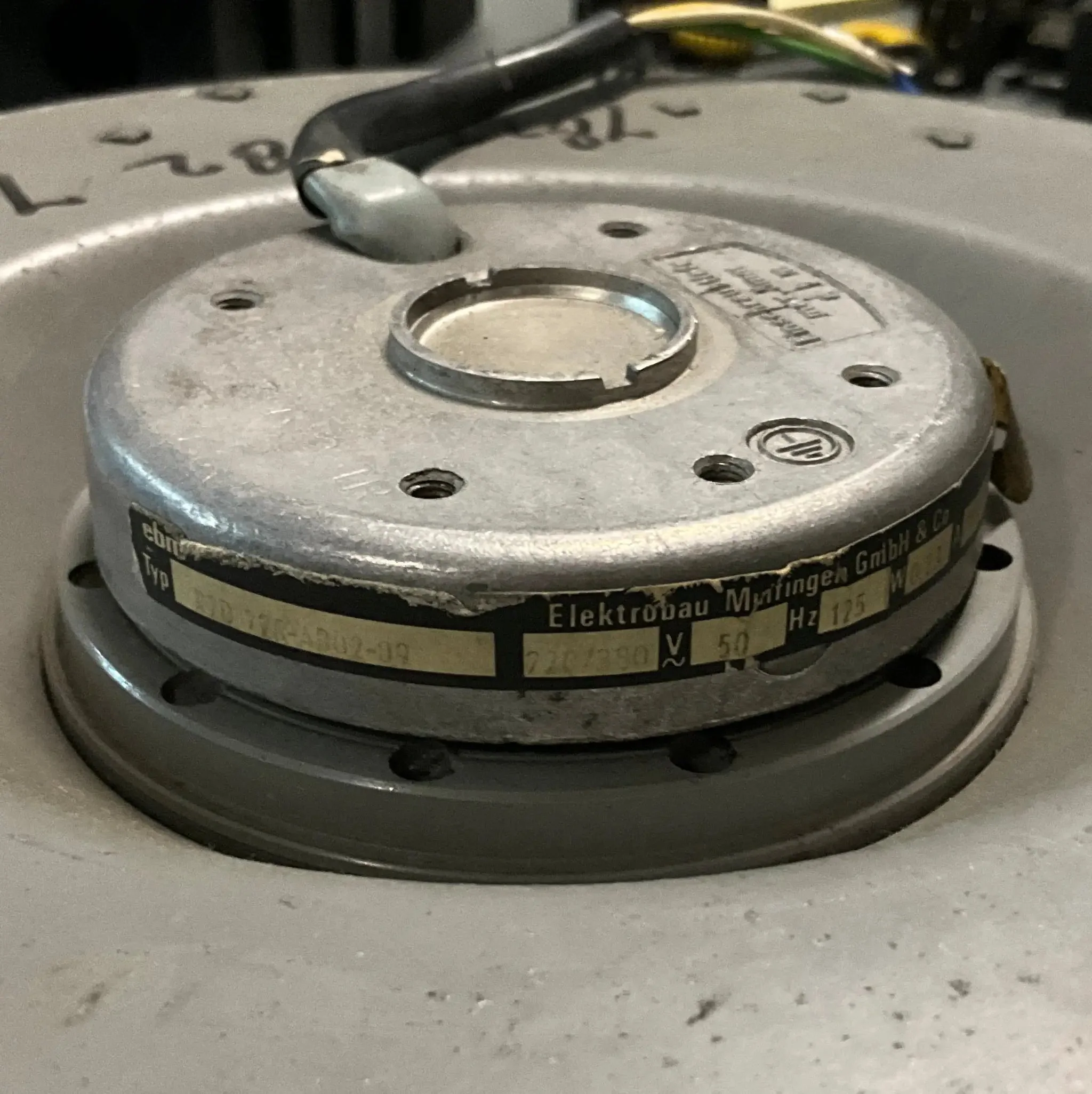

- Motor Type: External rotor motor
- Bearing Type: Ball bearing
- Degree of Protection: IP20
- Insulation Class: F
- Operating Temperature Range: -25°C to 75°C
- Impeller Material: sheet steel
- Electrical Connection: Cable
- Current Rating: 0.23 A
- Additional Features:
  - Backward-curved blades designed as freewheel fans (no scroll housing required)
  - Compact design with motor integrated in impeller for optimal cooling
  - Energy-efficient operation with AC technology
- Certifications: CE, EAC

Dimension:
- Diameter: 225 mm
- Depth: 99 mm

Weight: 2.5 kg

Country of Origin: Germany

HS Code: 8414.59
