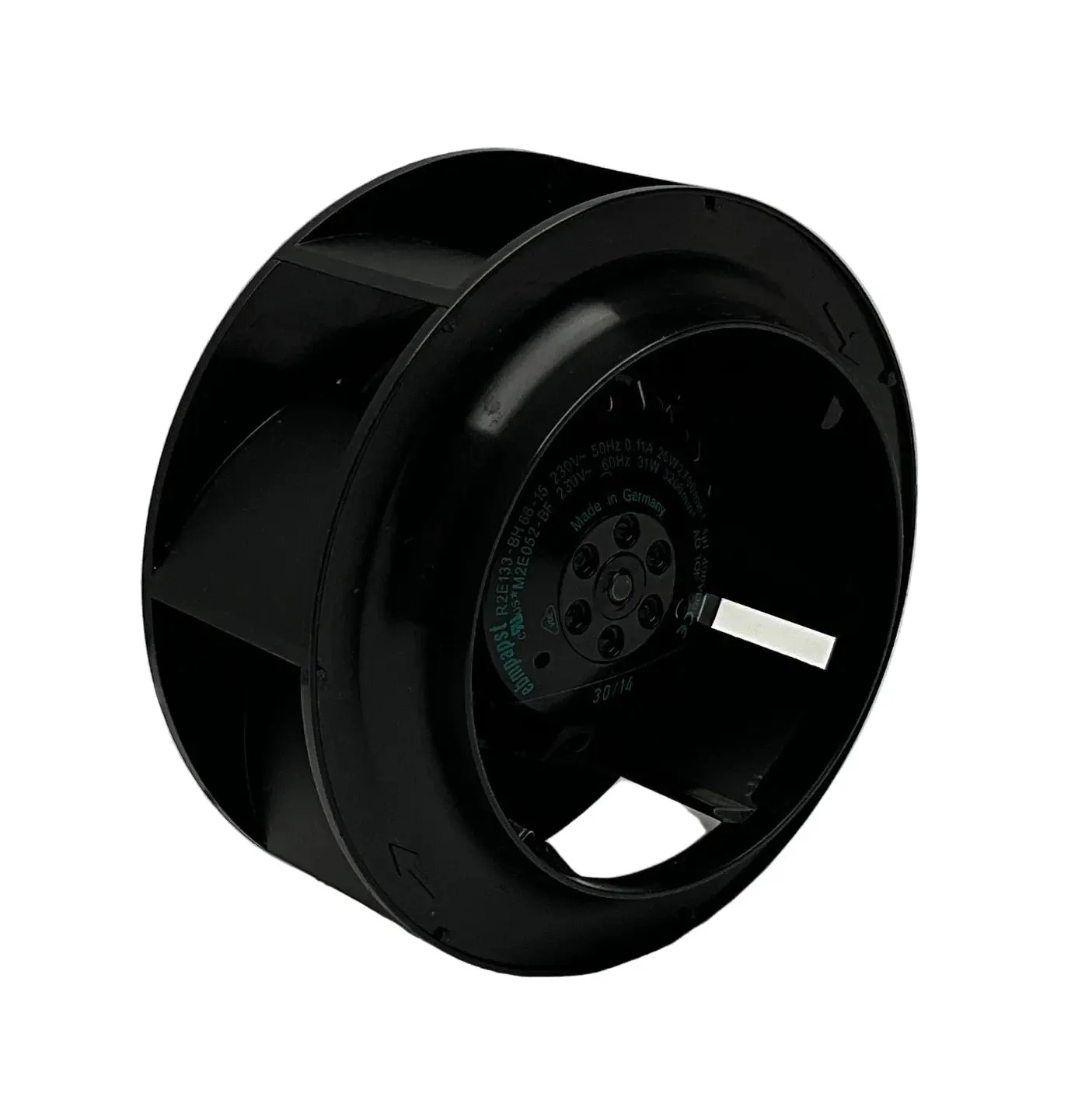

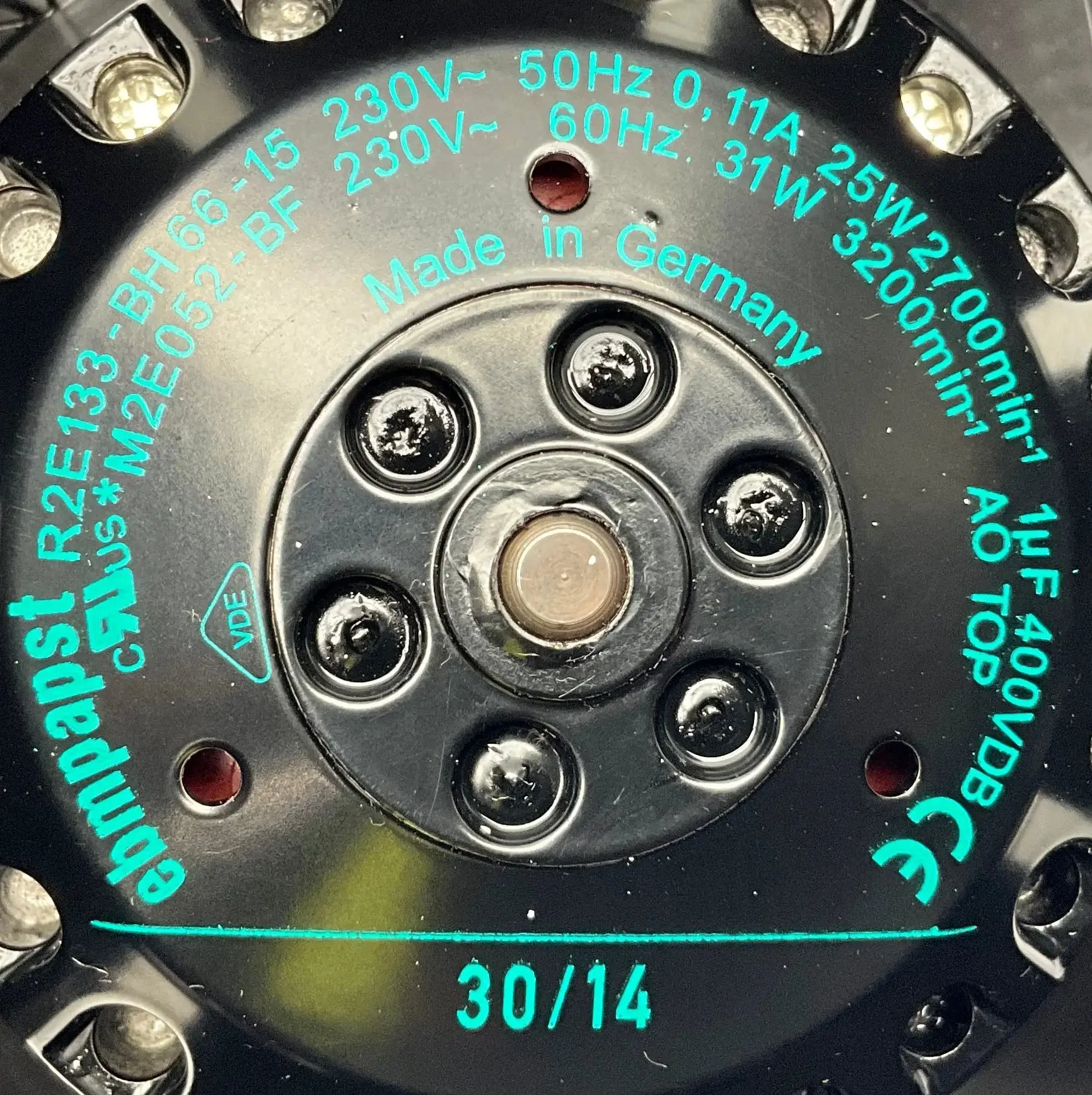

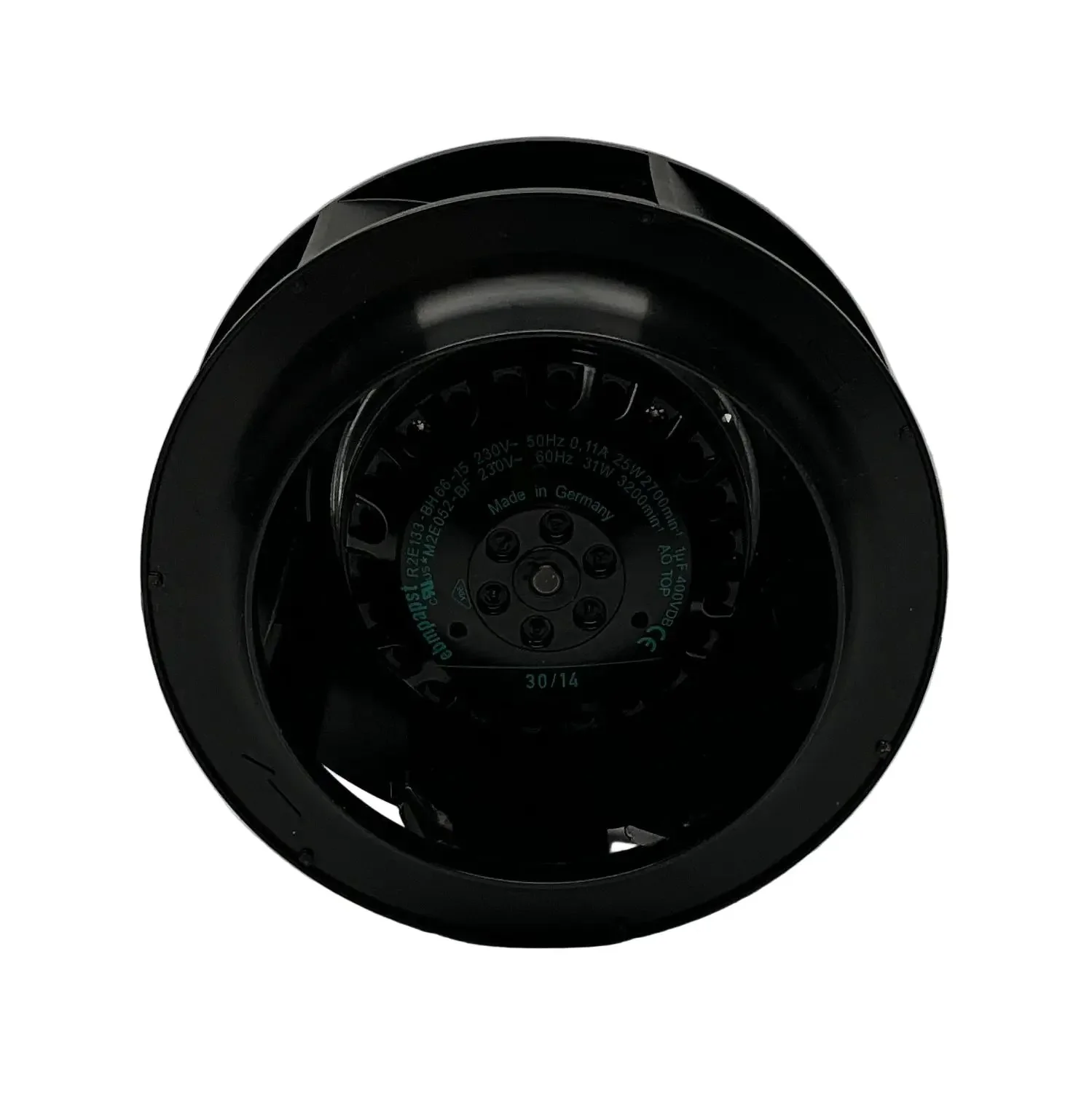

EBM Papst R2E133-BH66-15 Centrifugal Fan
Brand: EBM Papst
Model: R2E133-BH66-15
Type: Centrifugal Fan (Backward-Curved Impeller)
Part Number: R2E133-BH66-15
Technical Specs:
- Fan Type: AC centrifugal blower with backward-curved blades
- Nominal Voltage: 230 V AC
- Frequency: 50/60 Hz
- Rated Power: 25/32 W (at 50/60 Hz)
- Rated Current: 0.11/0.13 A
- Speed: 2700/3200 rpm (at 50/60 Hz)
- Air Flow: 290 m³/h
- Static Pressure: 250 Pa
- Sound Pressure Level: 55dB
- Bearing Type: Ball bearing
- Motor Type: External rotor motor
- Protection Rating: IP44
- Insulation Class: B
- Operating Temperature Range: -20°C to 70°C
- Cable Length: 250 mm
- Direction of Rotation: Clockwise
- Additional Features:
- Compact motorized impeller design without scroll housing
- Low vibration and noise operation
- Thermal overload protection
Dimensions: 130 dia. X 80 mm
Weight: 700 g
Country of Origin: Germany
HS Code: 8414.59
Description
Brand: EBM Papst
Model: R2E133-BH66-15
Type: Centrifugal Fan (Backward-Curved Impeller)
Part Number: R2E133-BH66-15
Technical Specs:
- Fan Type: AC centrifugal blower with backward-curved blades
- Nominal Voltage: 230 V AC
- Frequency: 50/60 Hz
- Rated Power: 25/32 W (at 50/60 Hz)
- Rated Current: 0.11/0.13 A
- Speed: 2700/3200 rpm (at 50/60 Hz)
- Air Flow: 290 m³/h
- Static Pressure: 250 Pa
- Sound Pressure Level: 55dB
- Bearing Type: Ball bearing
- Motor Type: External rotor motor
- Protection Rating: IP44
- Insulation Class: B
- Operating Temperature Range: -20°C to 70°C
- Cable Length: 250 mm
- Direction of Rotation: Clockwise
- Additional Features:
- Compact motorized impeller design without scroll housing
- Low vibration and noise operation
- Thermal overload protection
Dimensions: 130 dia. X 80 mm
Weight: 700 g
Country of Origin: Germany
HS Code: 8414.59
