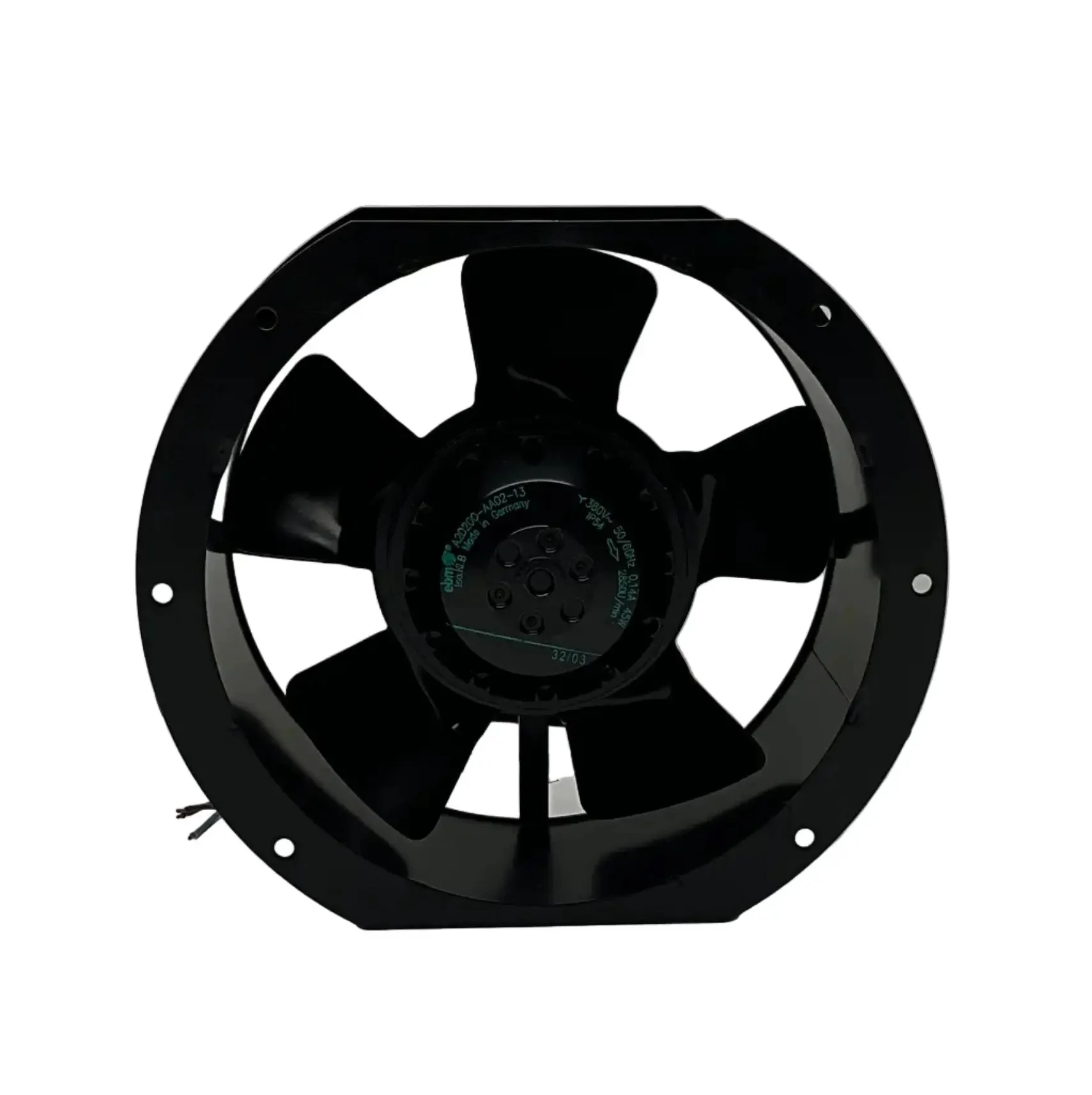

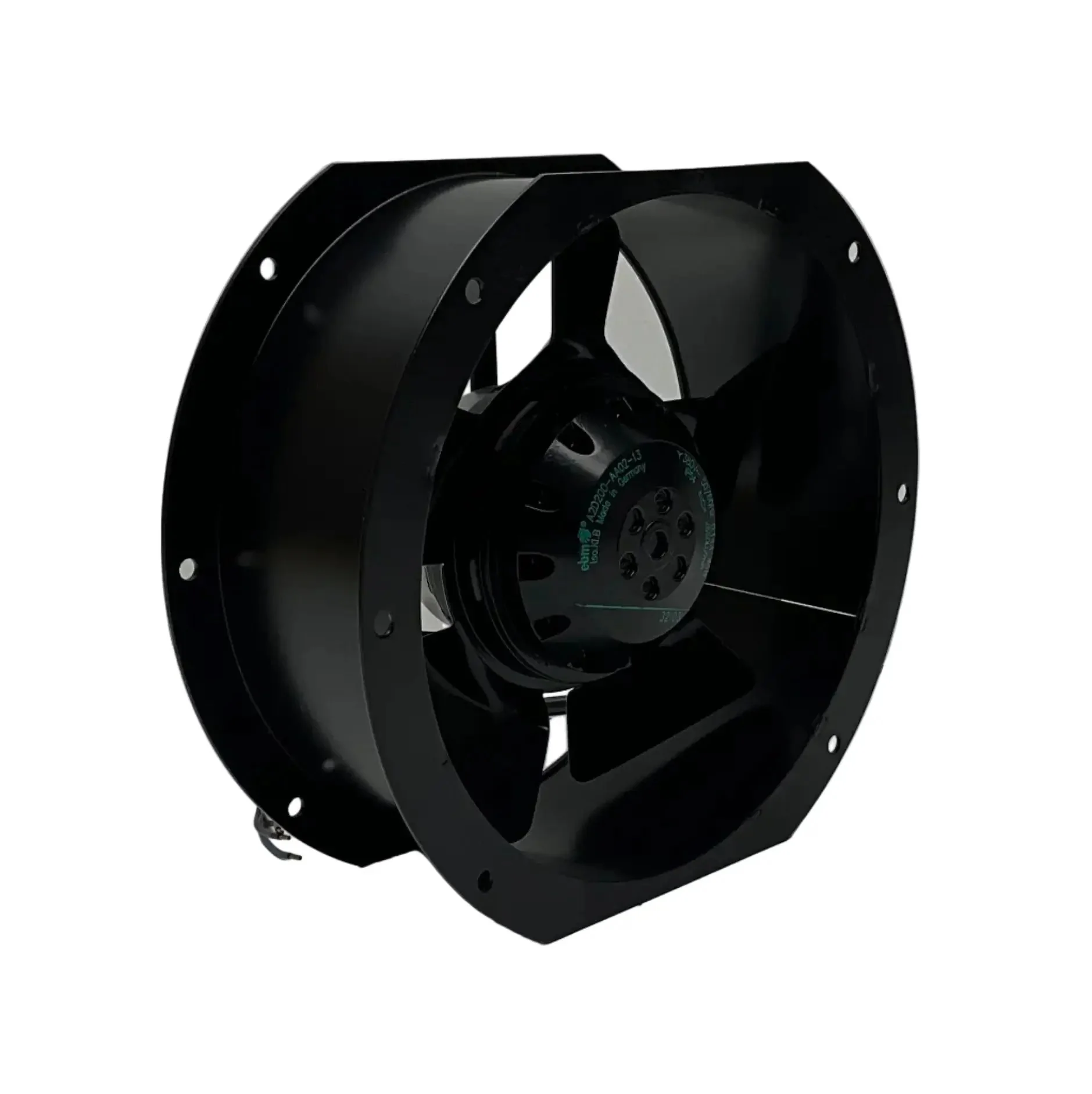

EBM-Papst / RC-Technik AC Axial Fan

Brand: EBM-Papst / RC-Technik
Model: A2D200-AA02-13 (ebm-papst) / RC-T DCTLL 200-2sP (RC-Technik)
Type: AC Axial Fan
Part Number: A2D200-AA02-13

- Technical Specs:
- Fan Type: AC axial fan, round, tubeaxial design
- Nominal Voltage: 385/400 V AC (3-phase)
- Frequency: 50/60 Hz
- Power Consumption: 53 W (50 Hz) / 70 W (60 Hz)
- Current Draw: 0.16 A / 0.14 A
- Speed: 2850 rpm (50 Hz) / 3350 rpm (60 Hz)
- Air Flow: 830–940 m³/h
- Static Pressure: 200–300 Pa
- Noise Level: 67–70 dB(A)
- Bearing Type: Ball bearing
- Motor Type: External rotor motor
- Protection Rating: IP54
- Insulation Class: B
- Direction of Rotation: Clockwise
- Number of Blades: 5
- Blade Material: Sheet steel, painted black
- Rotor Surface: Painted black
- Motor Size: 68 mm
- Ambient Temperature Range: -25 °C to +75 °C
- Connection: Wire lead

Dimensions: 240 x 210 x 90 mm

Weight: 2.8 kg

Country of Origin: Germany

HS Code: 8414.59
