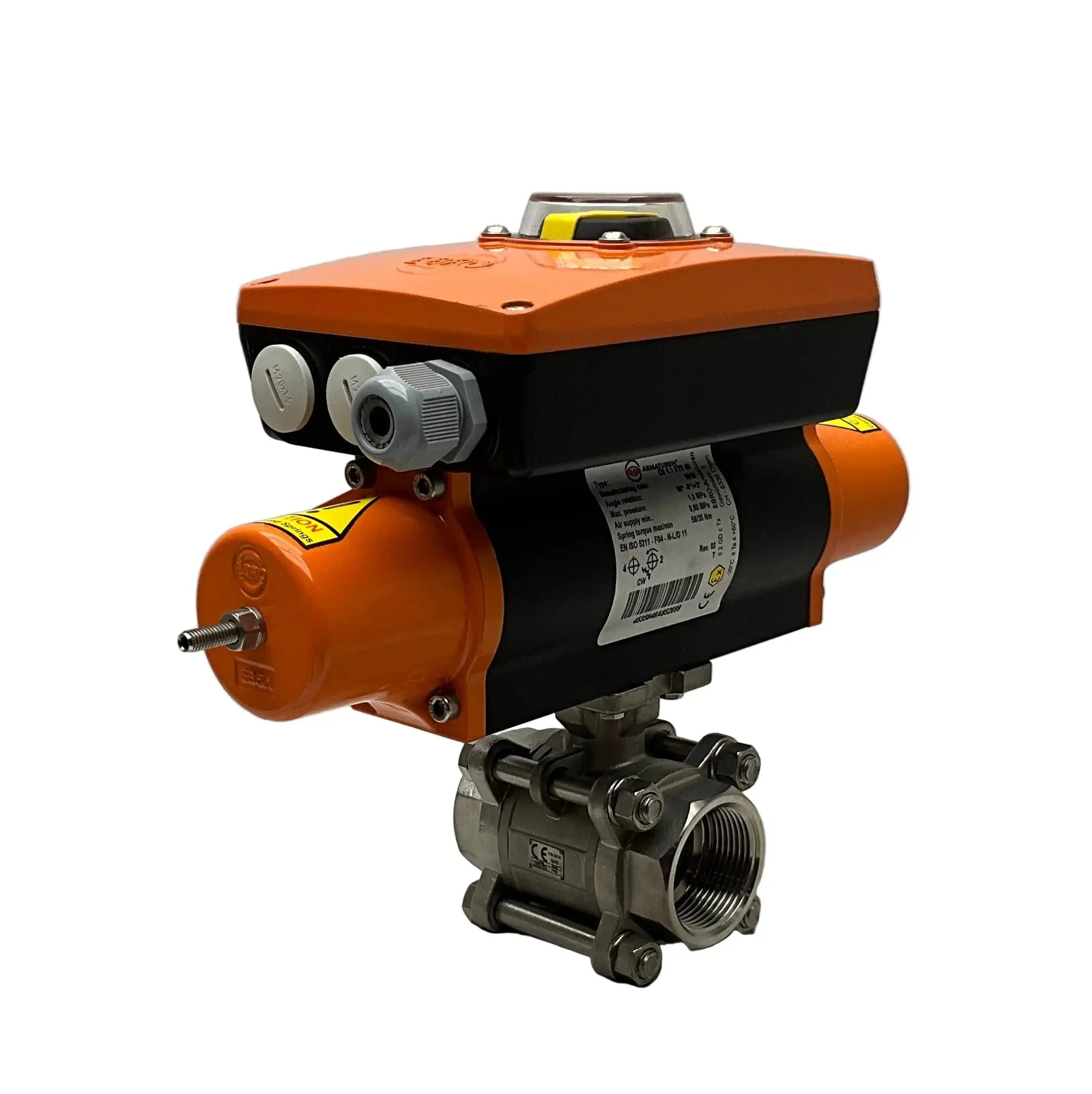

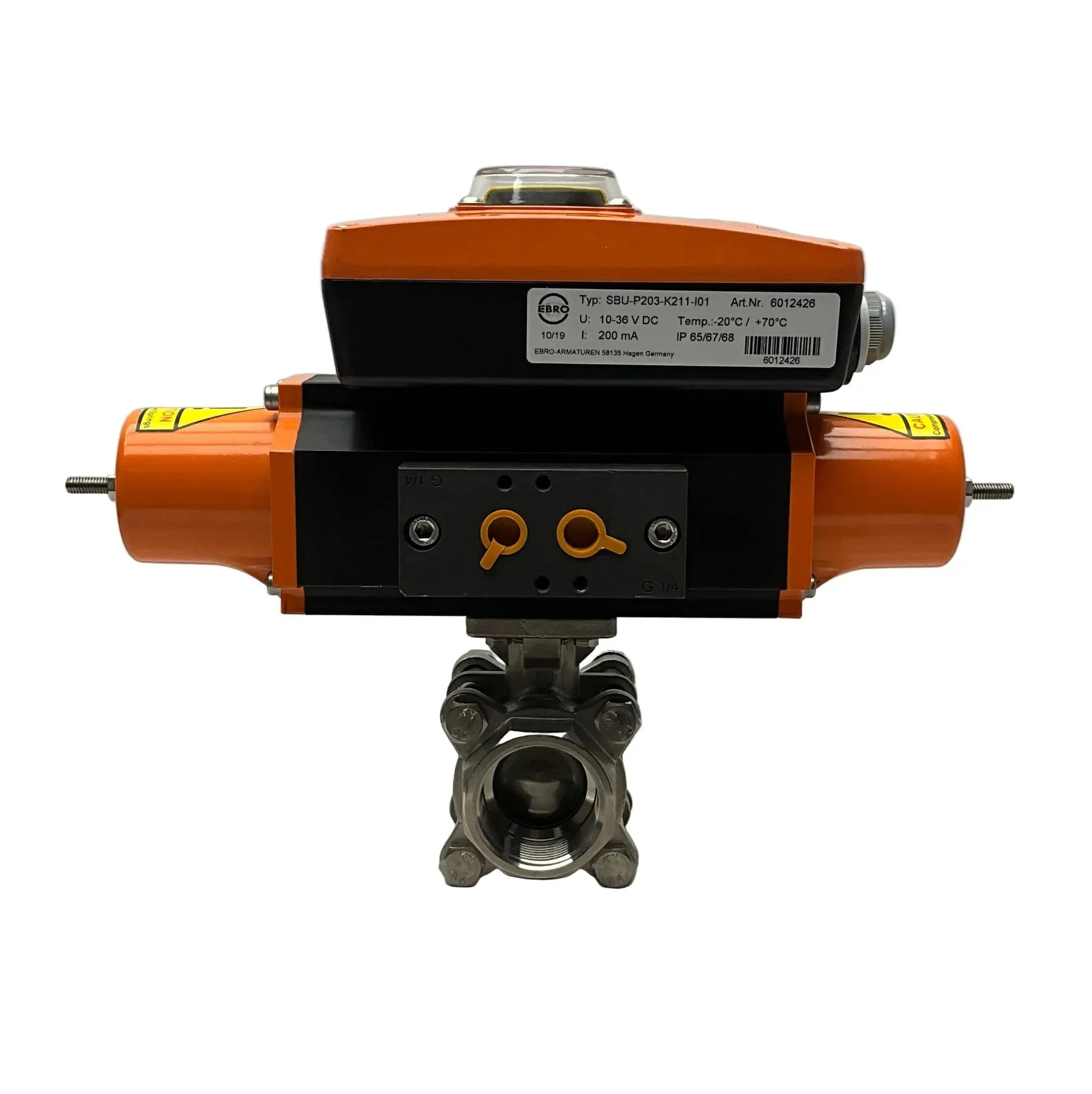

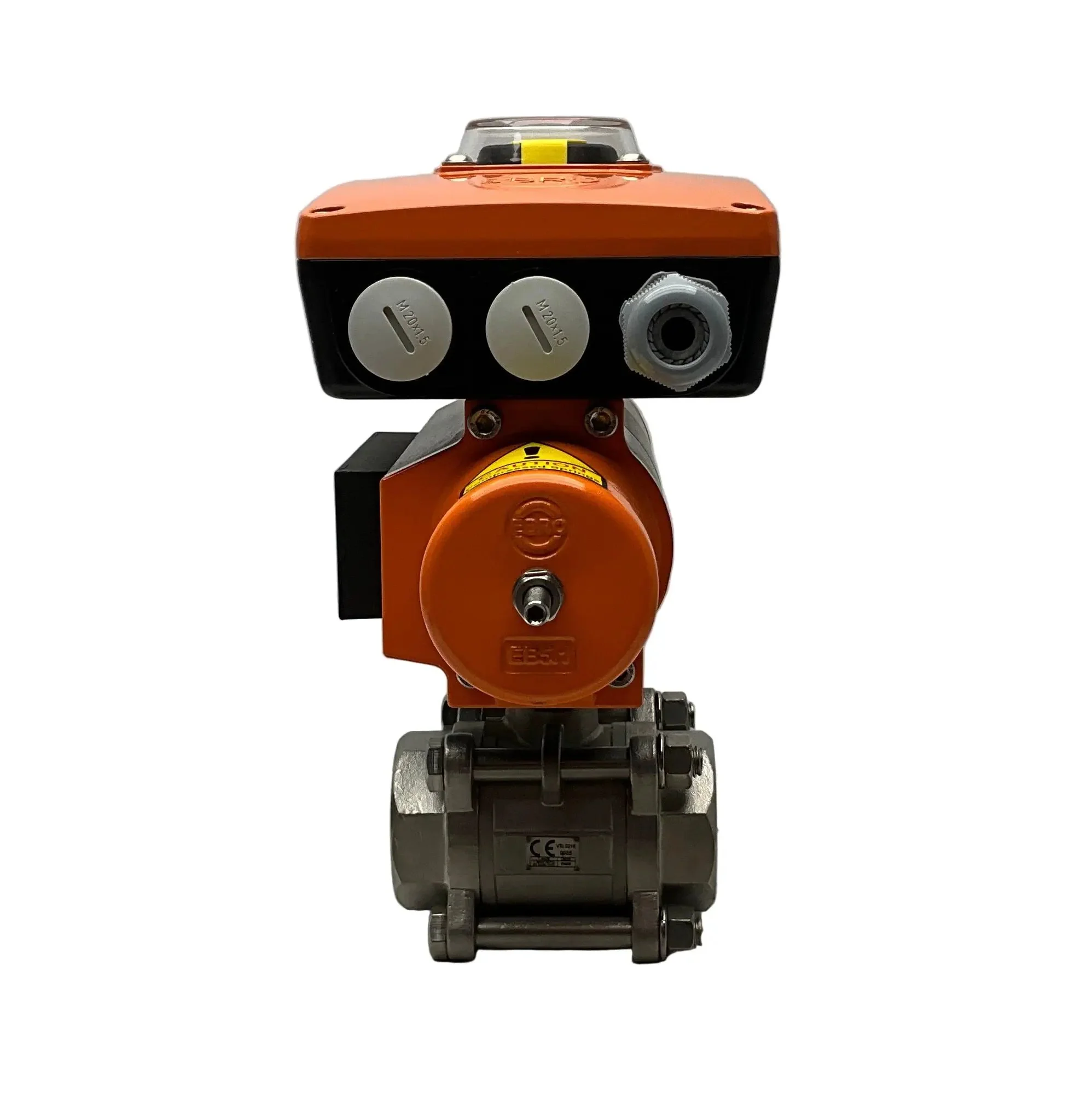

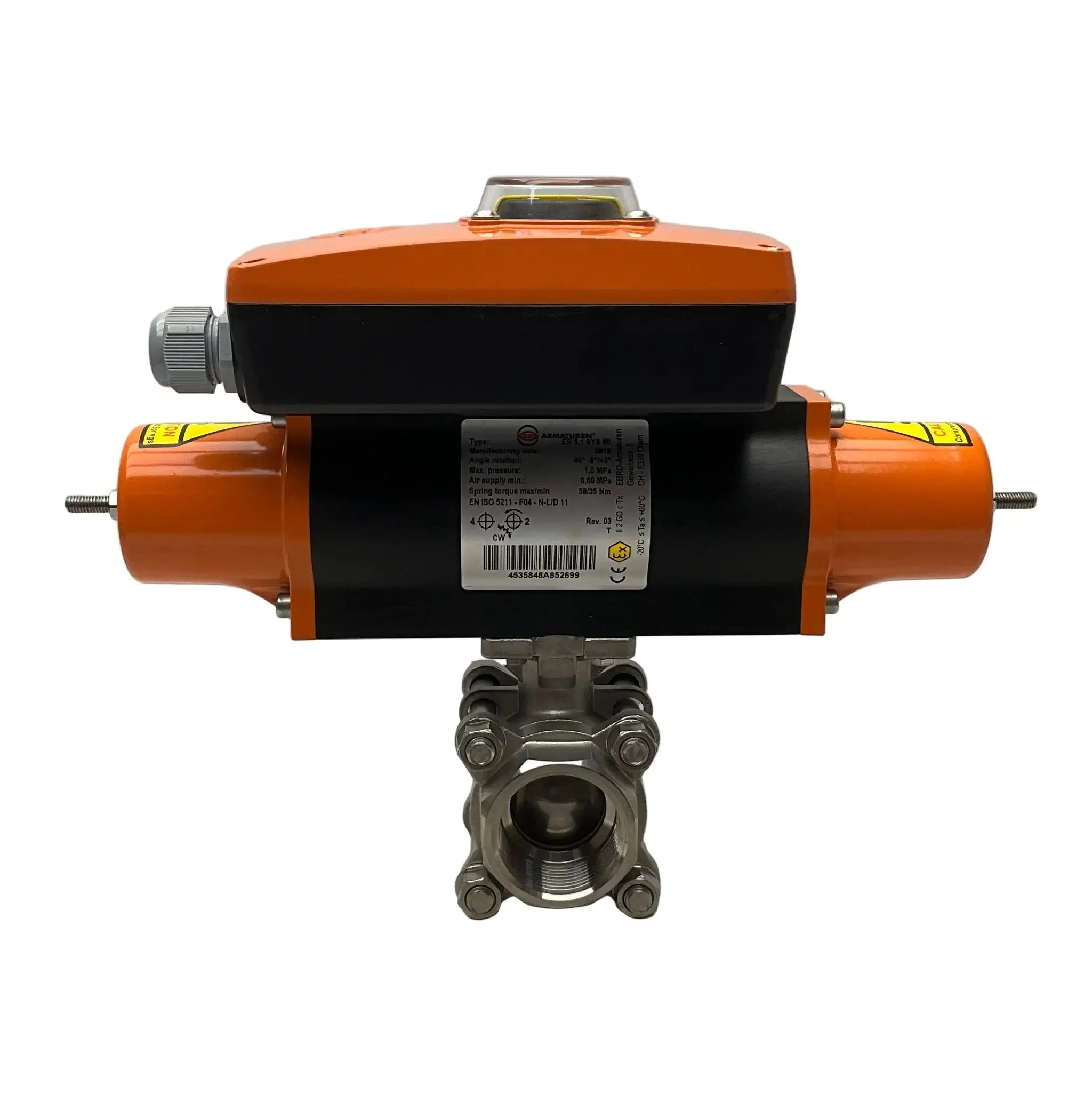

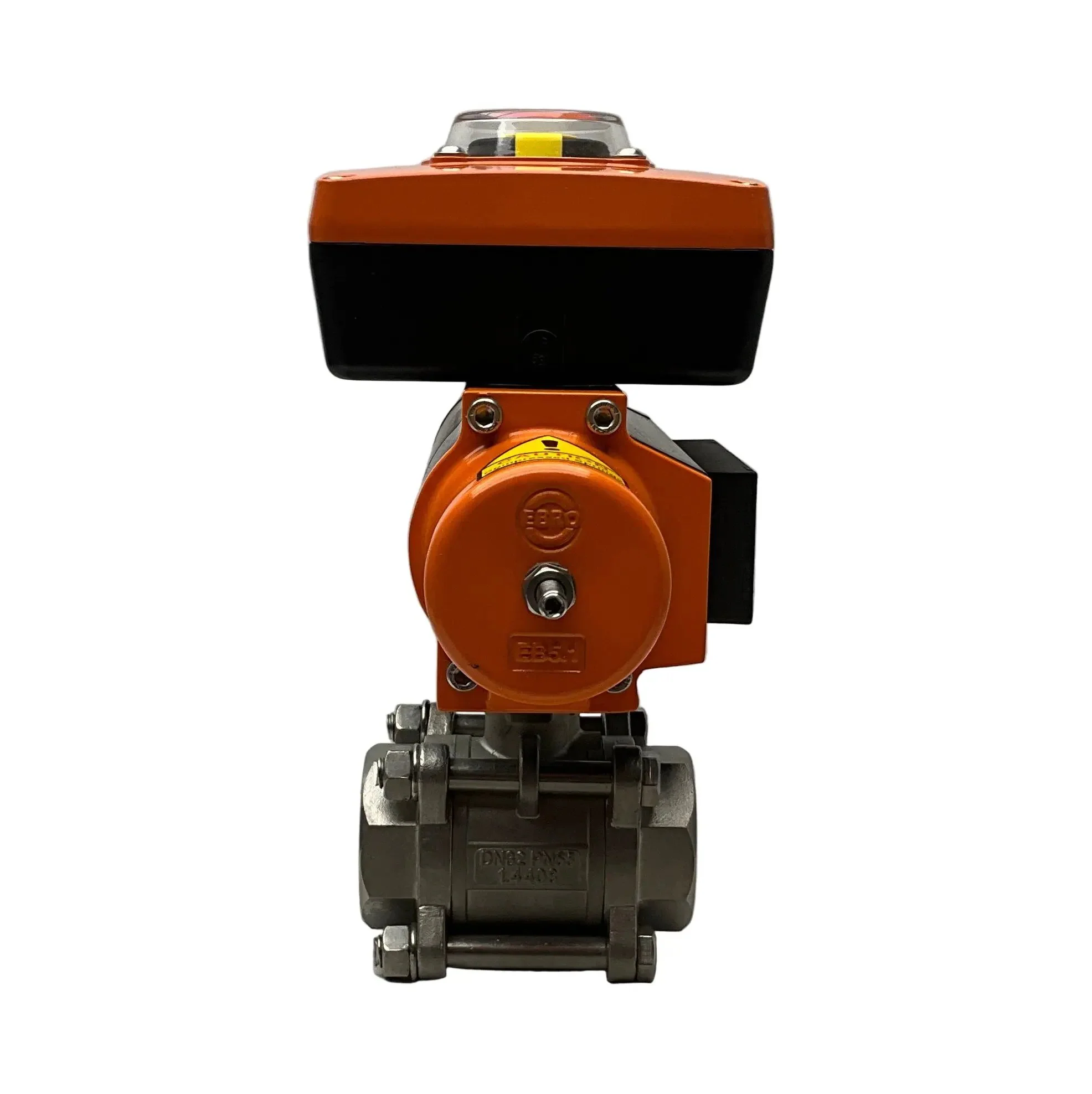

EBRO Armaturen EB 5.1 SYS 60 Pneumatic Actuator with Switch Box

Brand: EBRO Armaturen

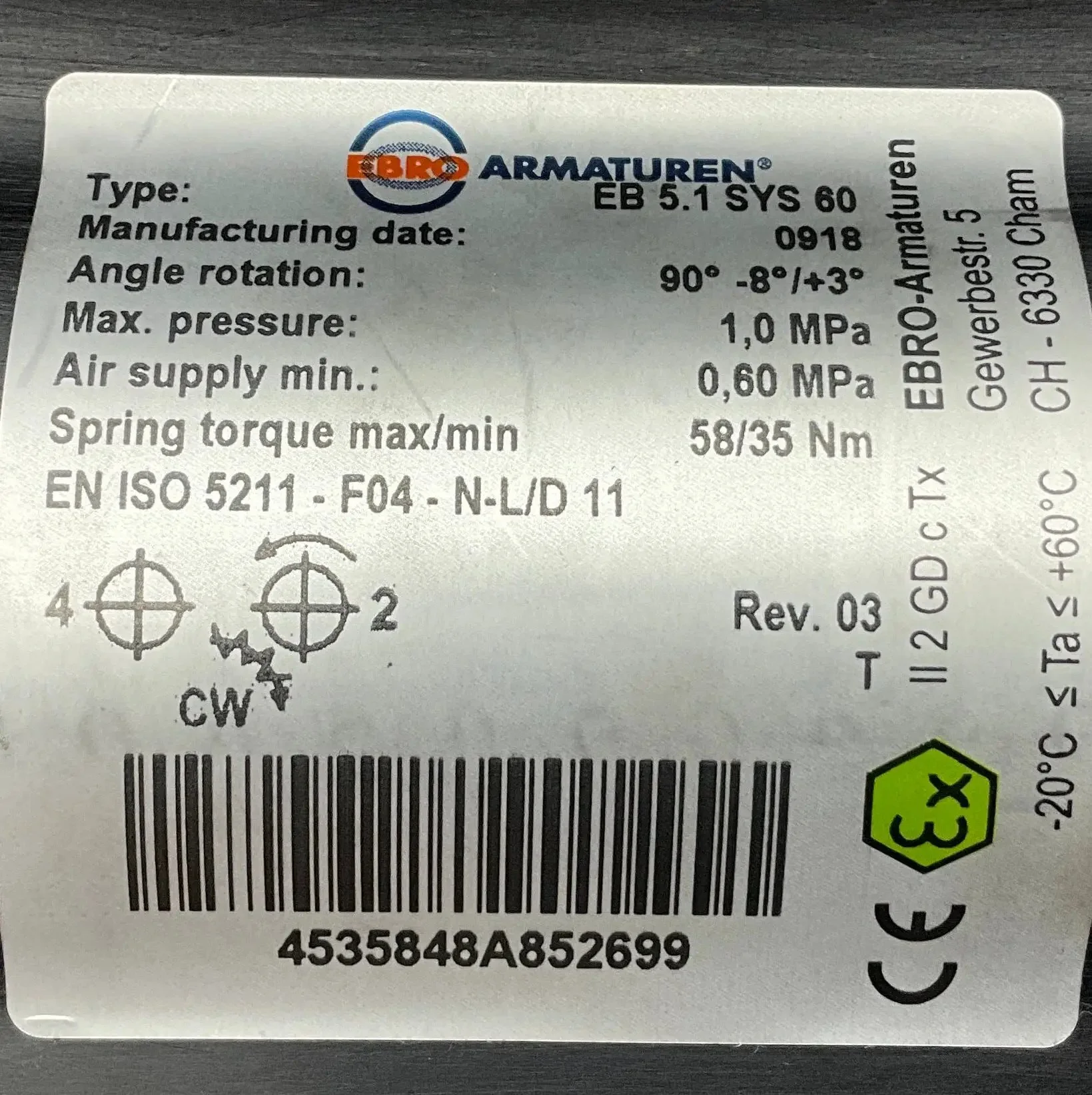

Model: EB 5.1 SYS 60
Type: Pneumatic Actuator & Switch Box
Part Numbers: EB 5.1 SYS 60 / SBU-P203-K211-I01

Technical Specs:
- Actuator Type: Single-acting pneumatic actuator with spring return
- Torque Range: Up to 60 Nm
- Supply Pressure: 6 bar
- Air Quality: Class 3
- Particle Size: Max 40 µm (Class 5)
- Operating Temperature: -20°C to +80°C
- Angle Rotation: 90 degrees

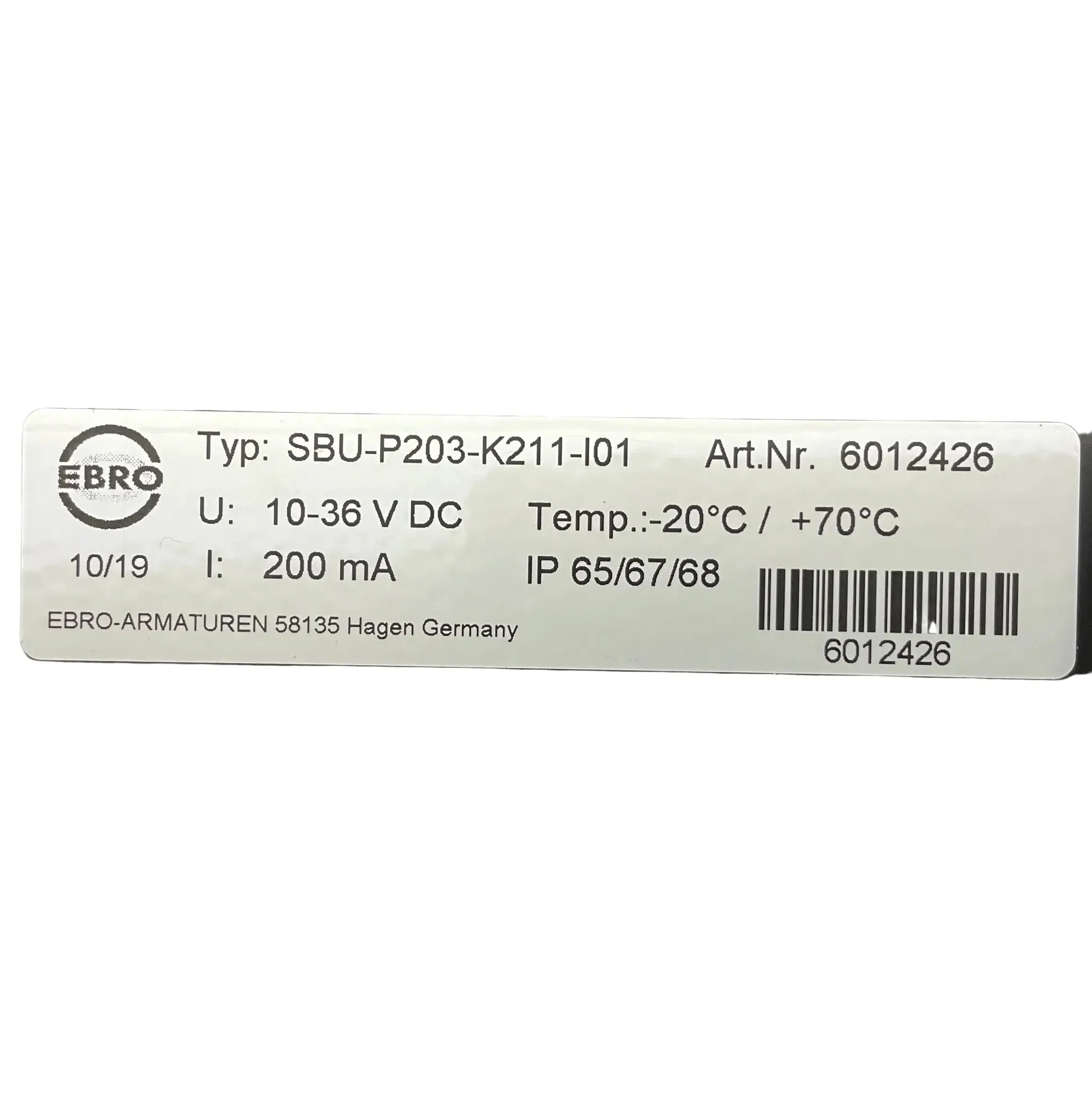

- Switch box unit: SBU-P203-K211-I01, 10…36V DC, 1NO + 1NC
- Closing/Opening Time Adjustment: Up to 60 s

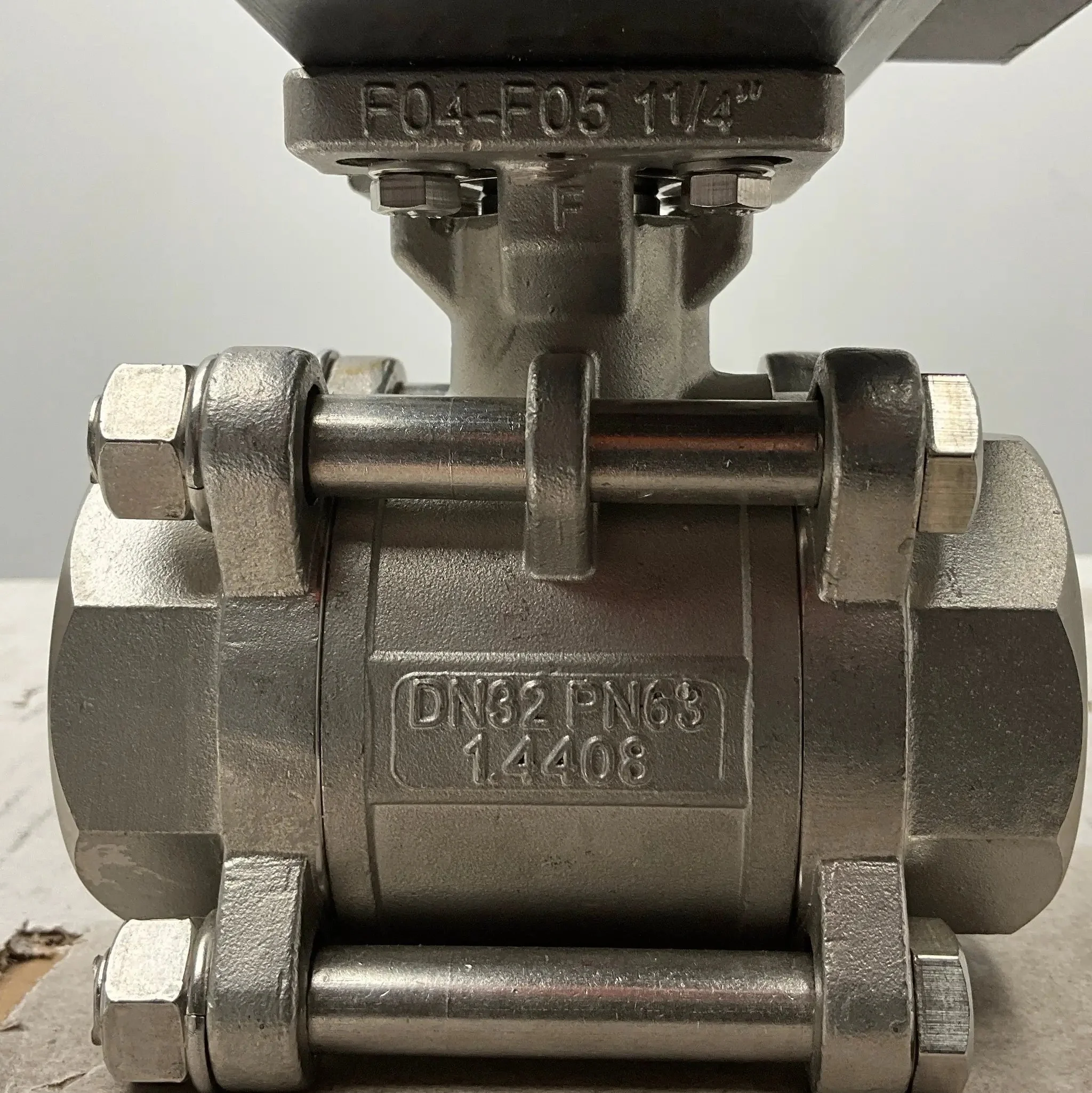

- Valve Type: Stainless Steel Ball Valve, DN32, PN63, 1.4408
- Additional Features:
  - Scotch-yoke principle for matching valve torque characteristics
  - Maintenance-free design with blow-out proof shaft
  - Long service life (8 million cycles)

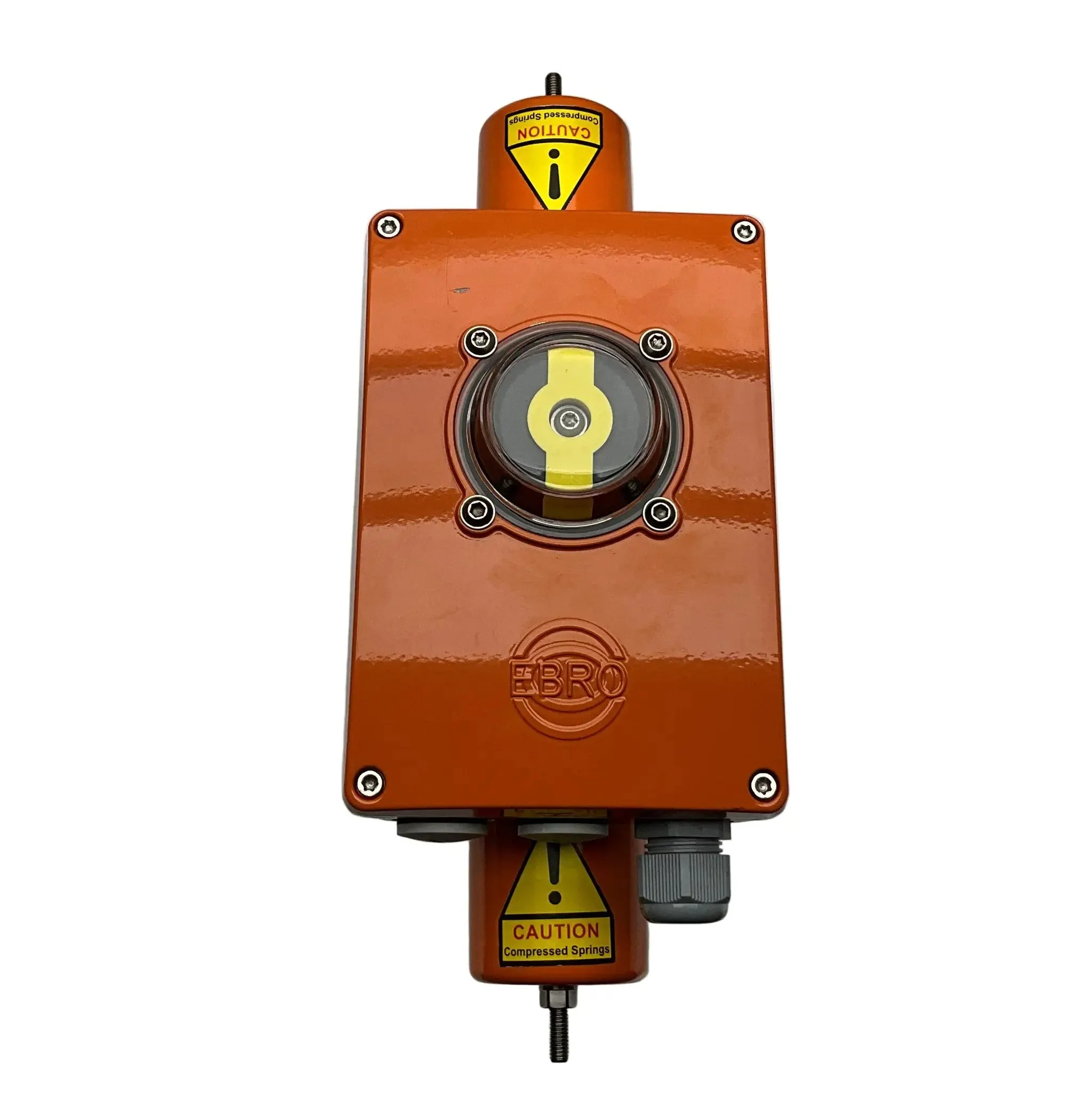

  - Optical position indicator with integrated limit switch operator
  - SIL 2 (SIL 3 as redundant system) per IEC 61508
- Certifications: CE, ATEX (II 2 G Ex d IIC T6, II 2 D Ex tb IIIC T80°C), PED (Category III, Module H)

Dimensions:  340 x 240 x 120 mm

Weight: 5 kg

Country of Origin: Germany

HS Code: 8481.80
