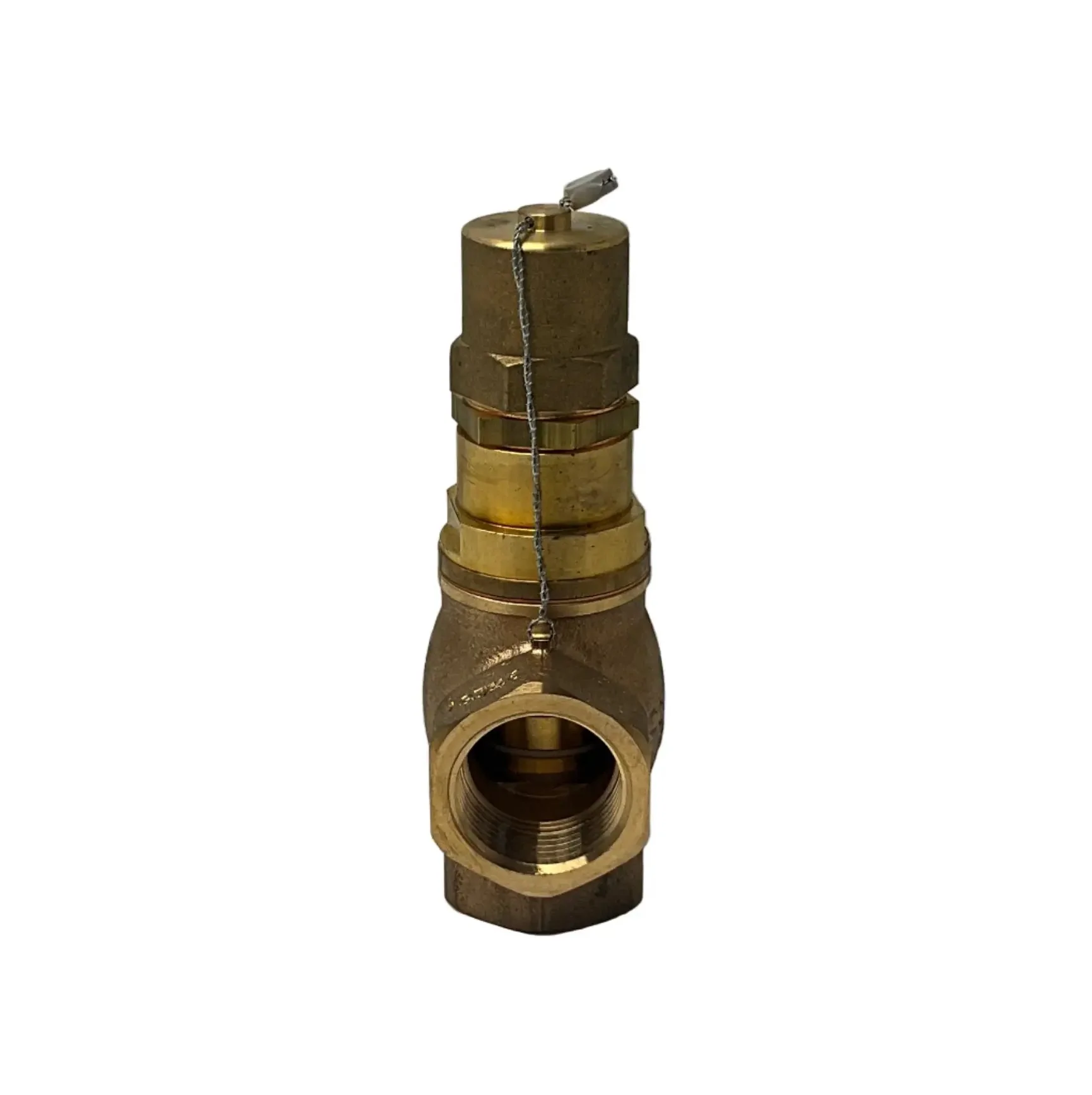

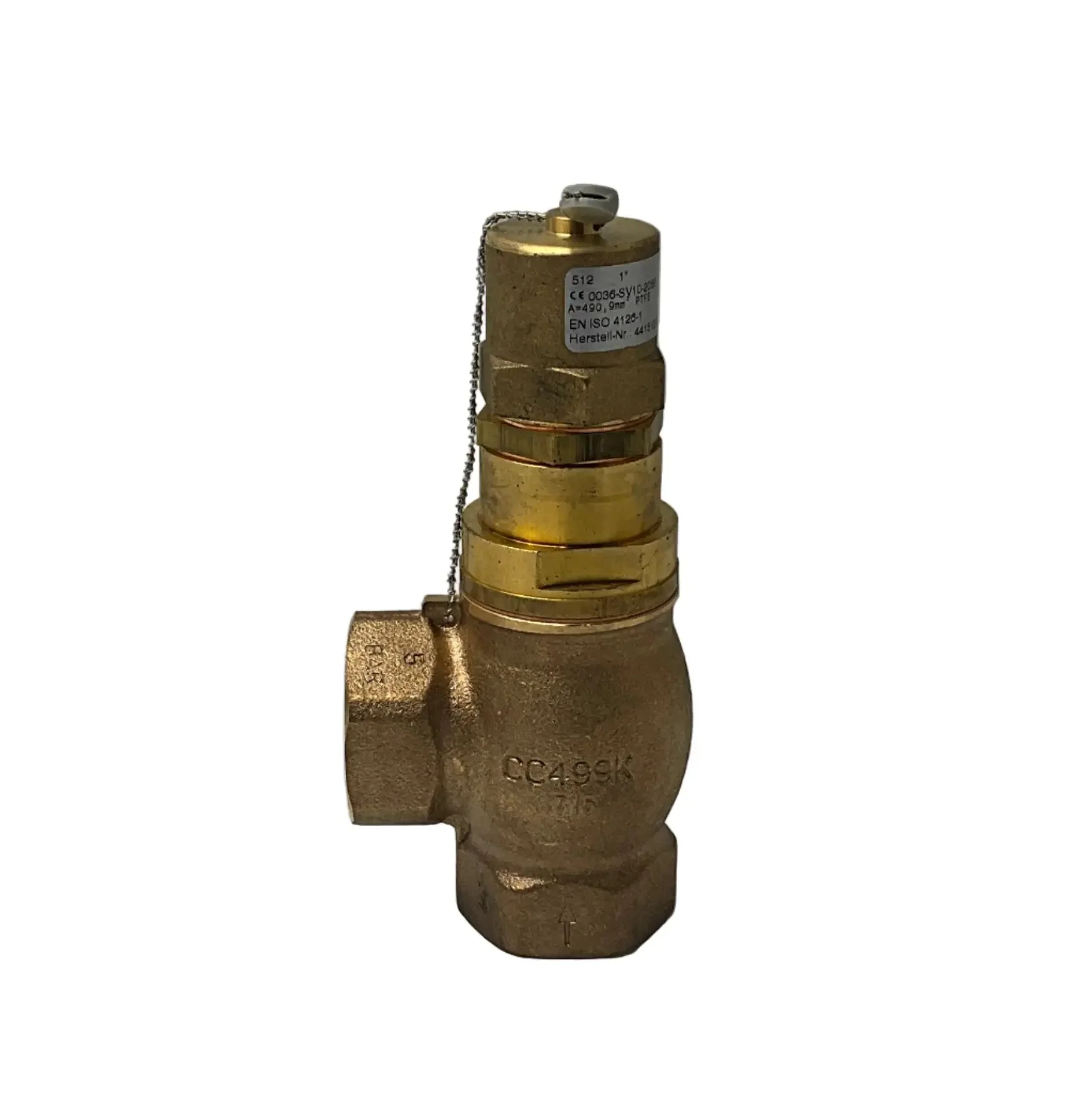

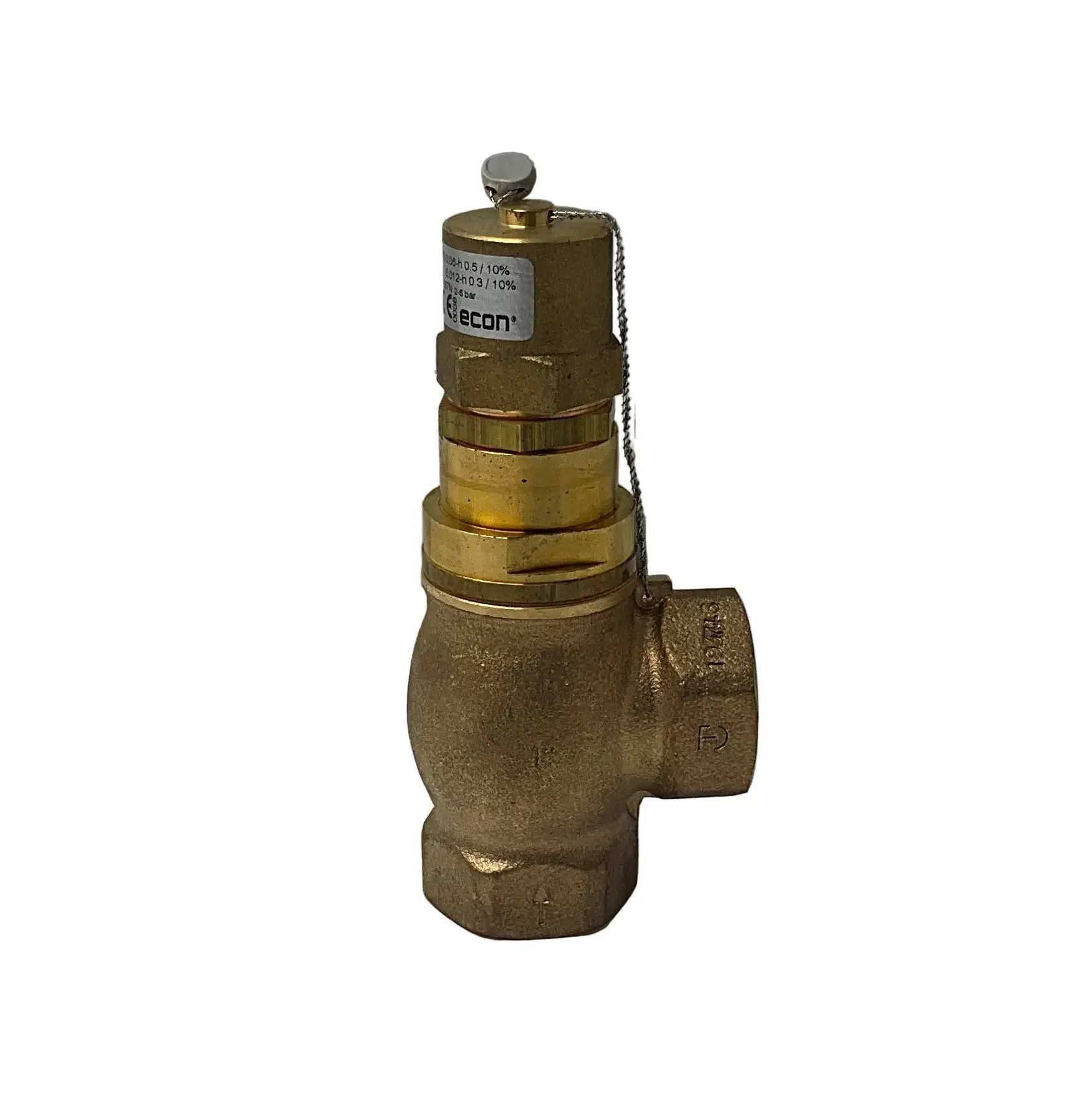

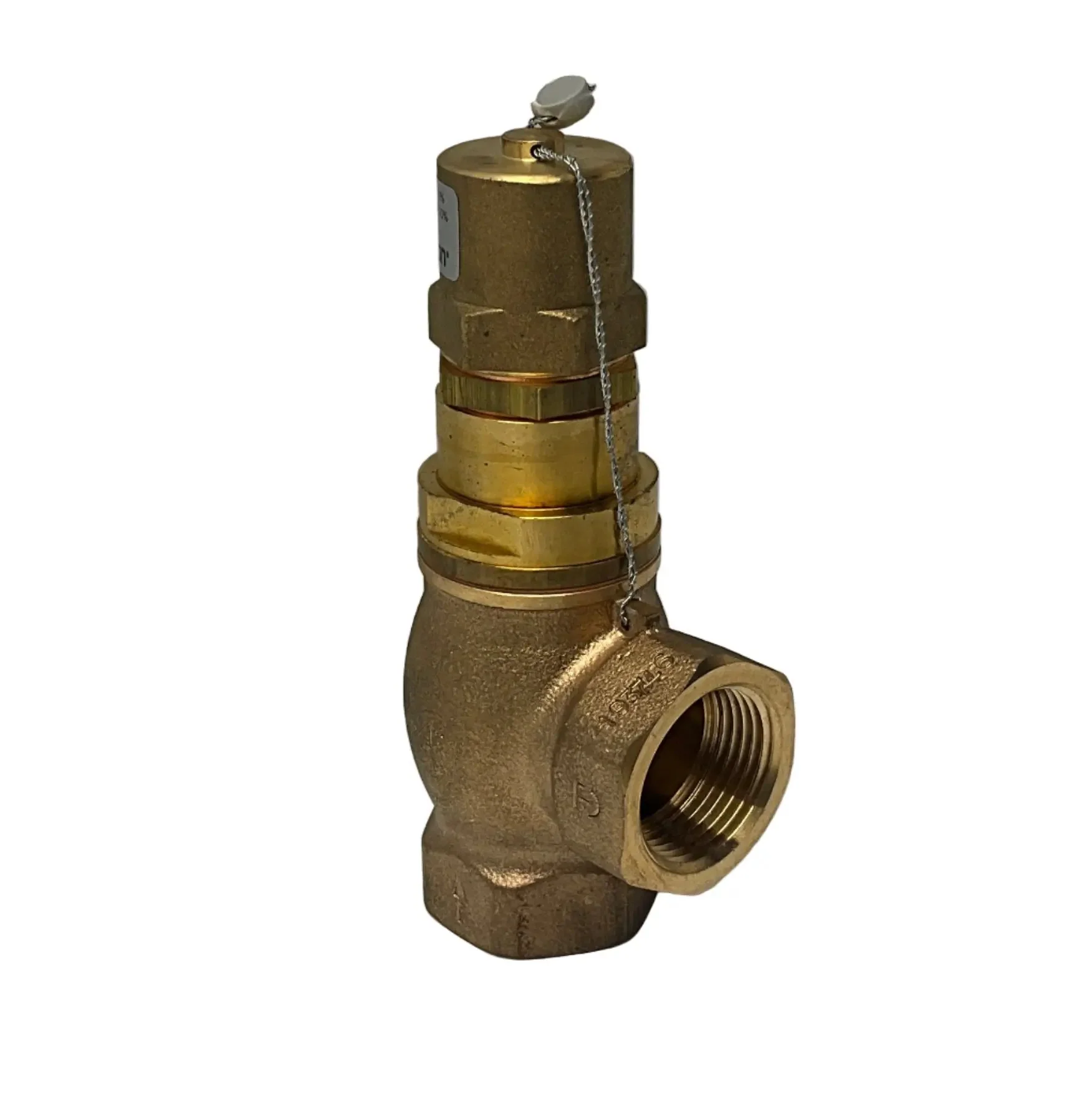

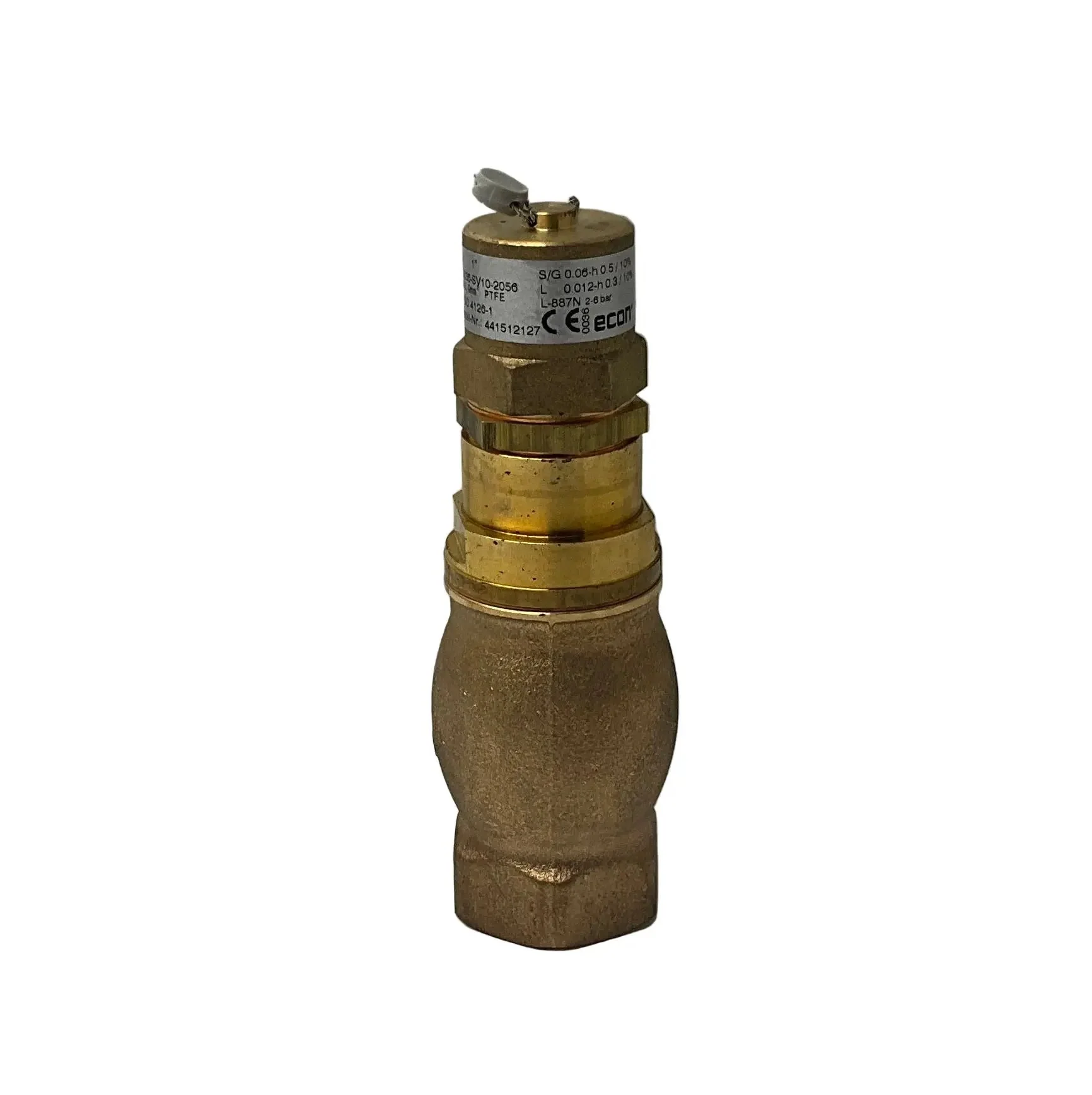

Econ Fig. 512 Spring Loaded Safety Valve

Brand: Econ
Model: Fig. 512
Type: Spring-Loaded Safety Valve
Part Number: 0036-SV10-2056

Technical Specs:
- Valve Type: Spring-loaded safety relief valve, standard lift
- Body Material: Bronze (CC499K)
- Sealing Material: PTFE
- Disc Material: Bronze
- Seat Material: Brass
- Connection Type: Threaded, BSPP (G) female inlet and outlet
- Nominal Diameter:
  - Inlet: 1"
  - Outlet: 1”
- Set Pressure Range: 2 to 6 bar
- Operating Temperature Range: -10°C to 200°C
- Media: Saturated steam, gases, vapors, liquids
- Back Pressure: No back pressure allowed
- Enclosure Rating: IP54
- Additional Features:
  - Type-tested according to ISO 4126-1
  - Approved PED Category IV (Module B+D)
  - Gas-tight cap and closed spring cap for safety
  - Precise sealing surfaces for reliable operation
  - Handle with care due to precise sealing surfaces
- Certifications: CE, PED (Pressure Equipment Directive), ISO 4126-1

Dimensions: 140 x 70 x 50 mm

Weight: 1 kg

Country of Origin: Germany

HS Code: 8481.40
