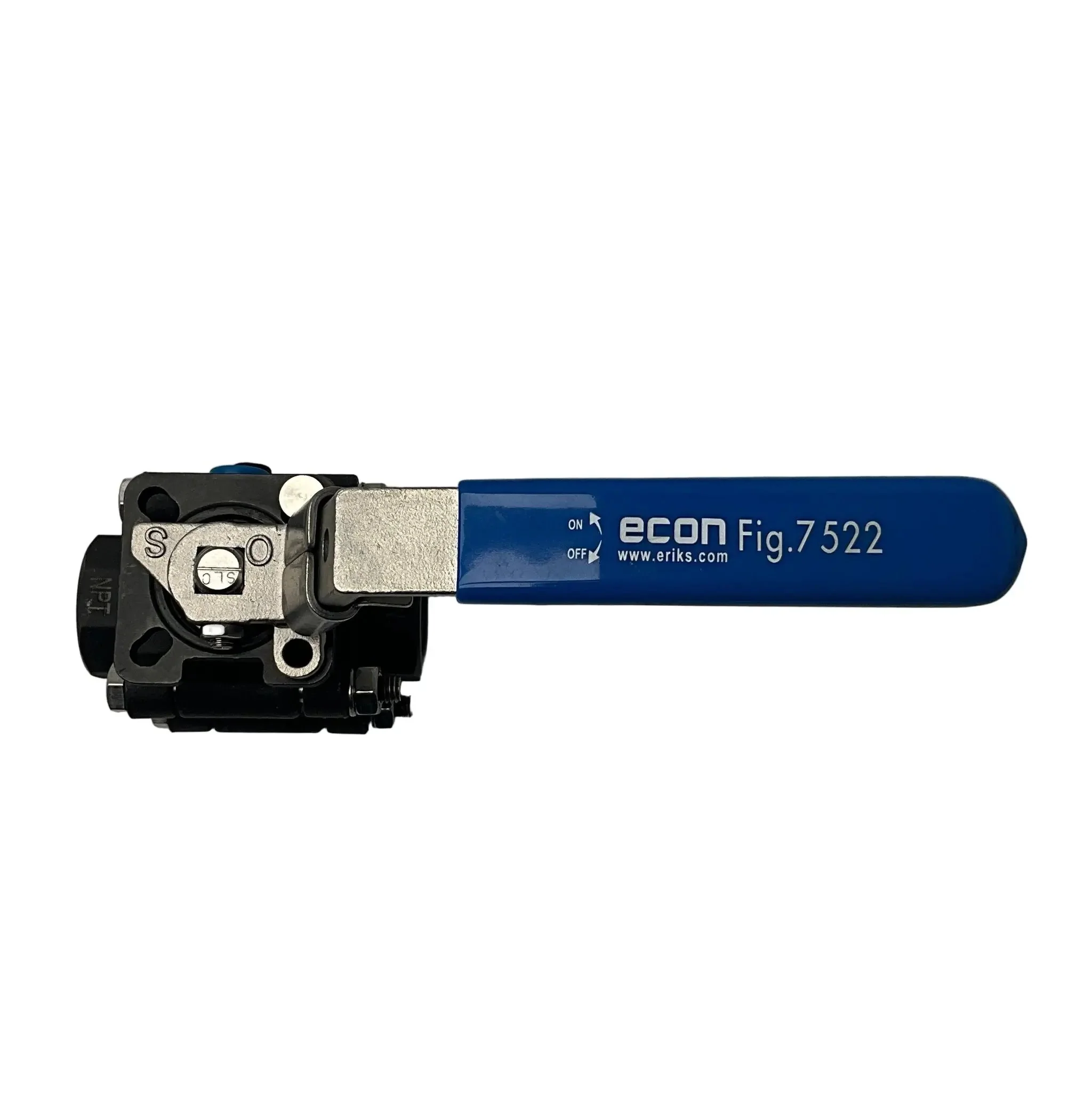

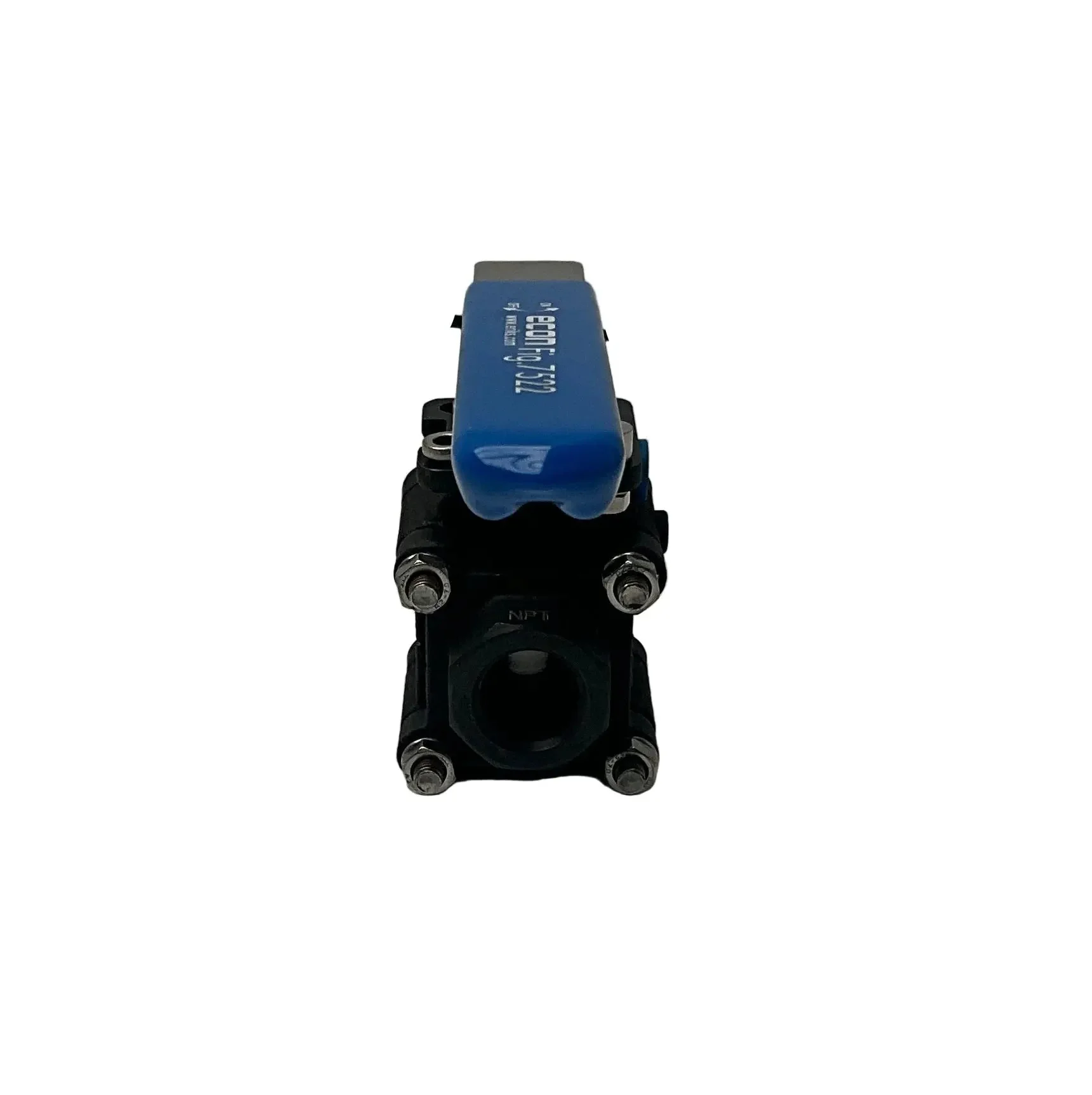

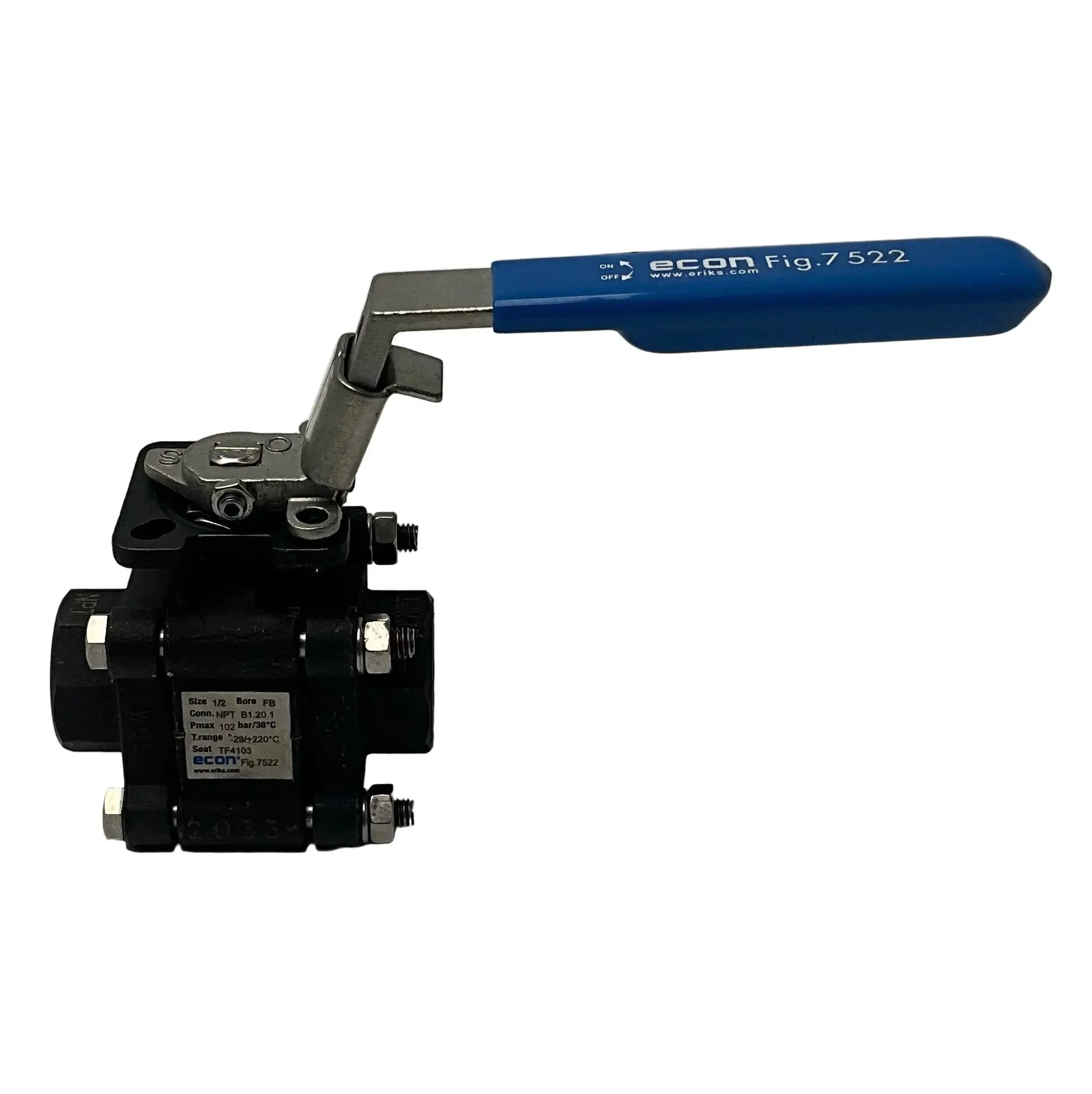

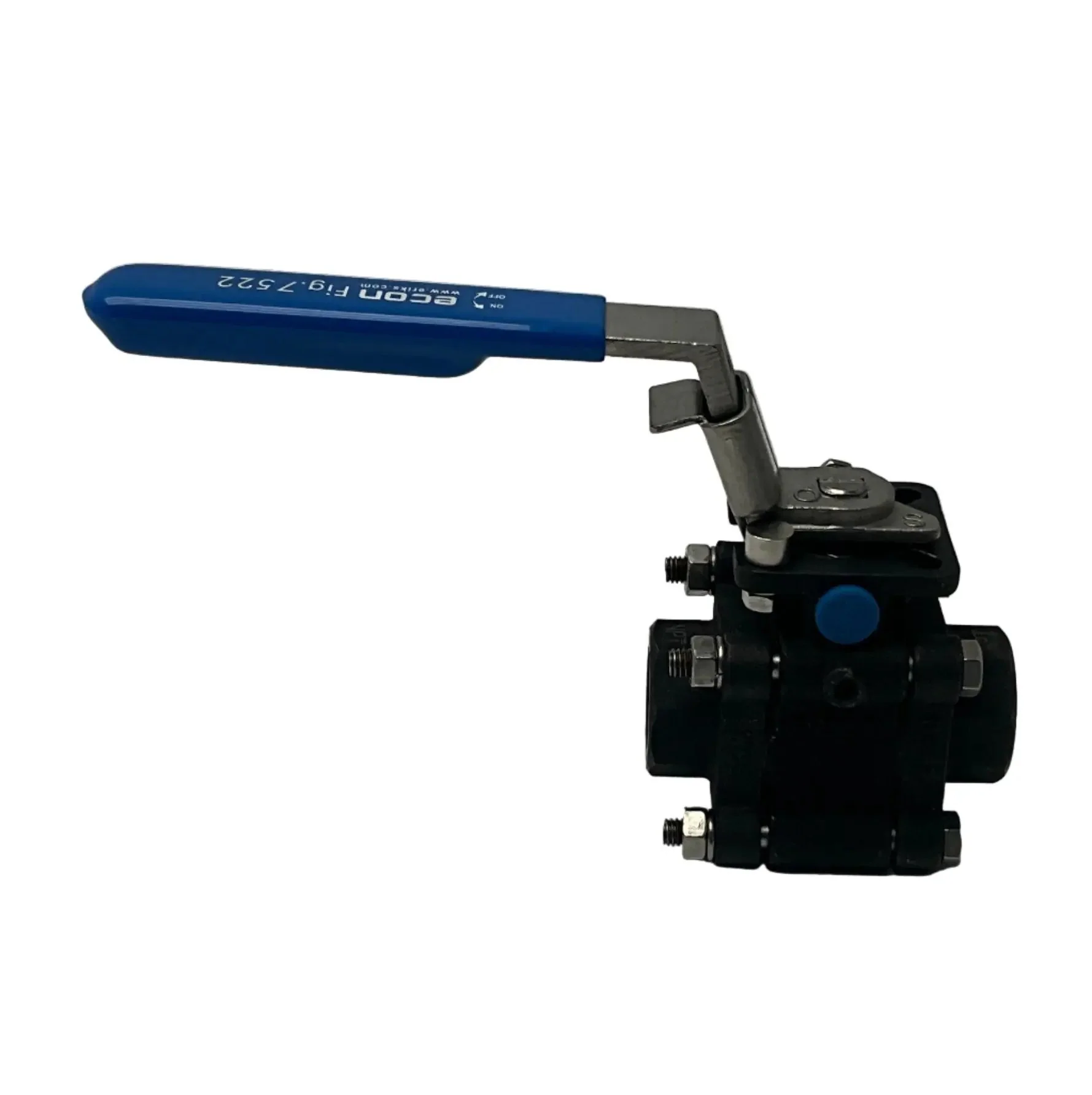

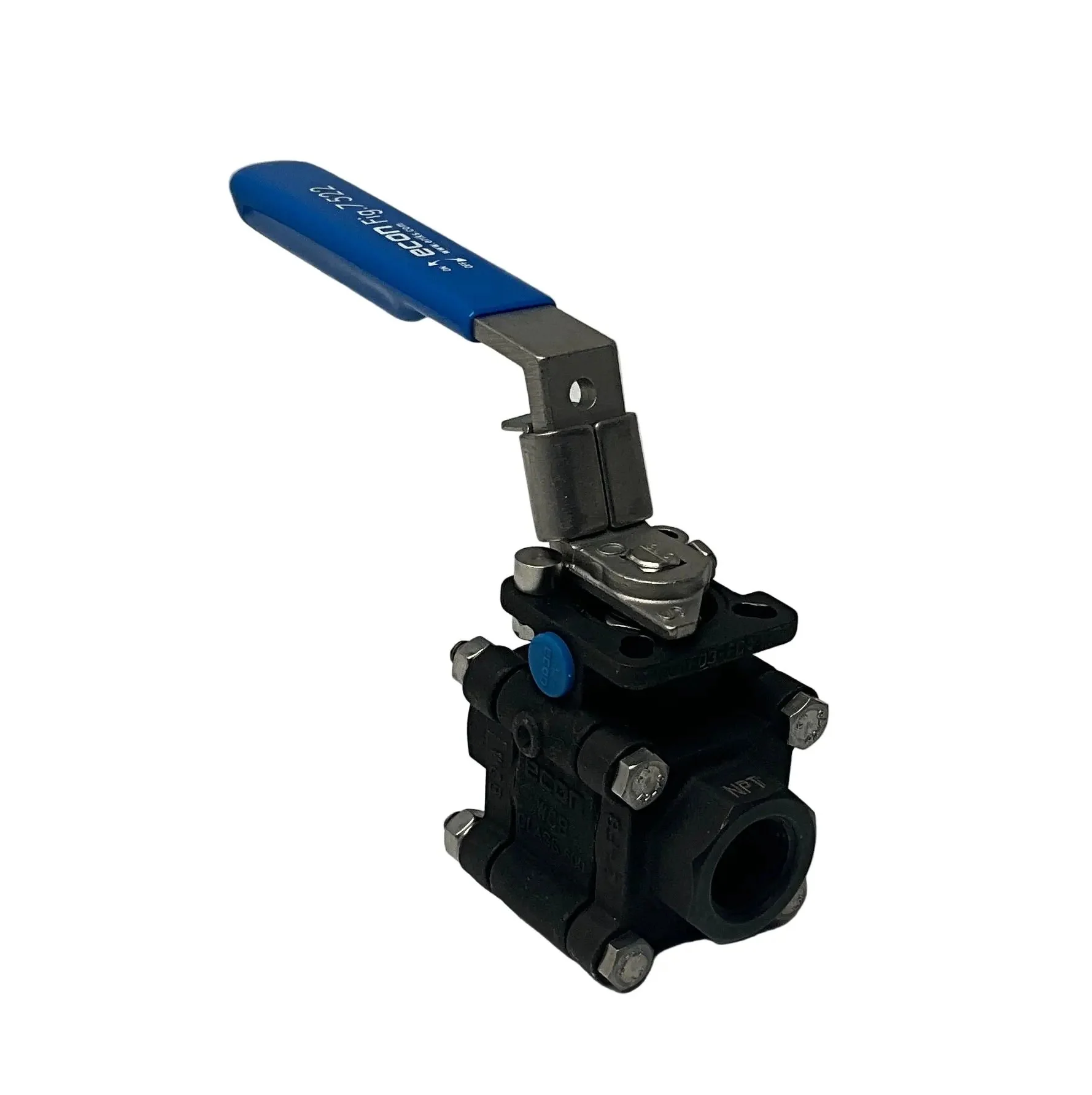

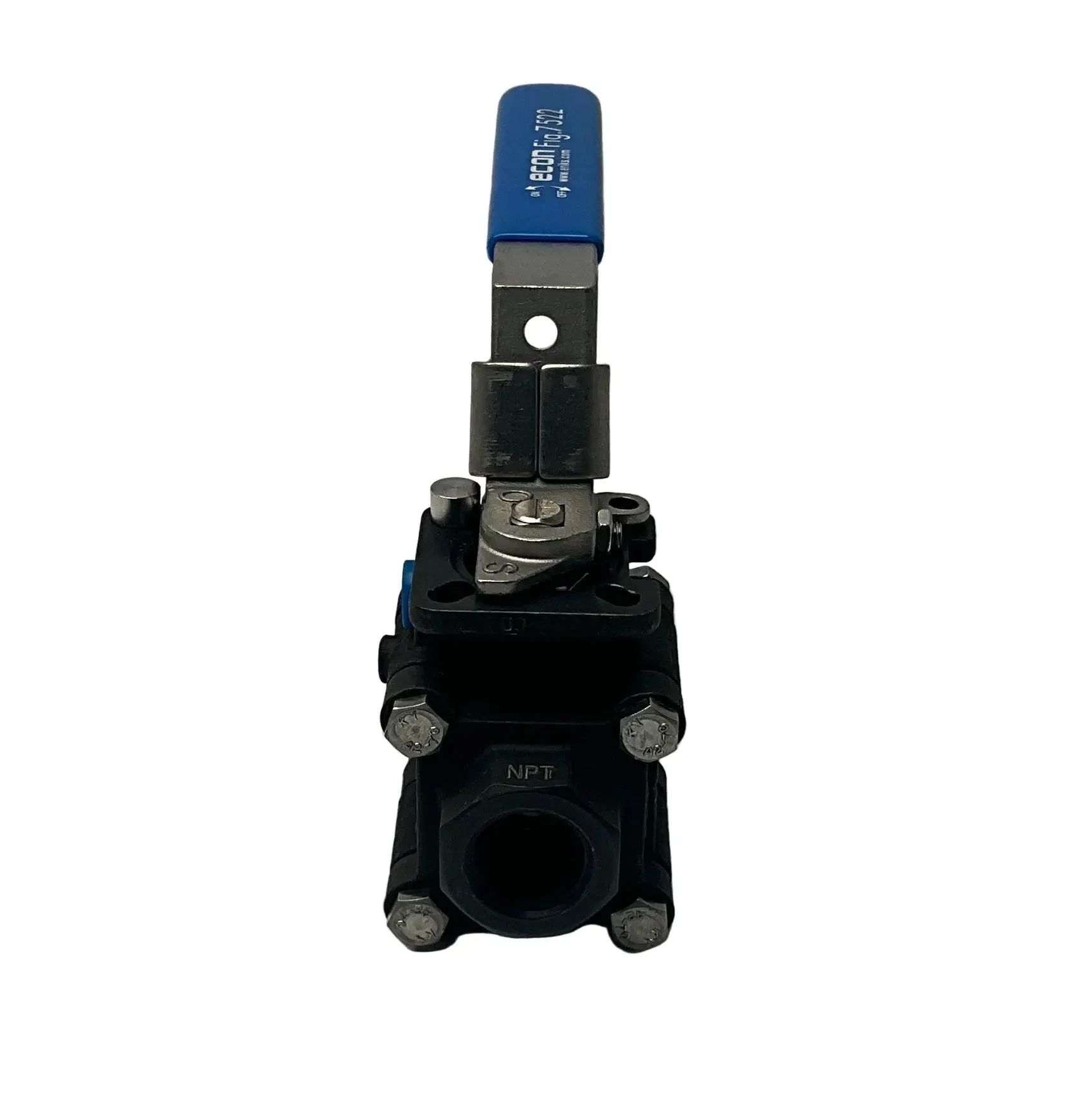

Econ Fig. 7522 1/2” Ball Valve
Brand: ECON®
Model: Fig. 7522
Type: Ball Valve (3-Piece, Full Bore)
Part Number: EC0752201/2SPND
Technical Specs:
- Body Material: Carbon steel (1.0619)
- Ball Material: Stainless steel
- Seat Material: TF 4103
- Seal Material: FPM
- Connection Type: Internal thread (NPT per ASME B1.20.1)

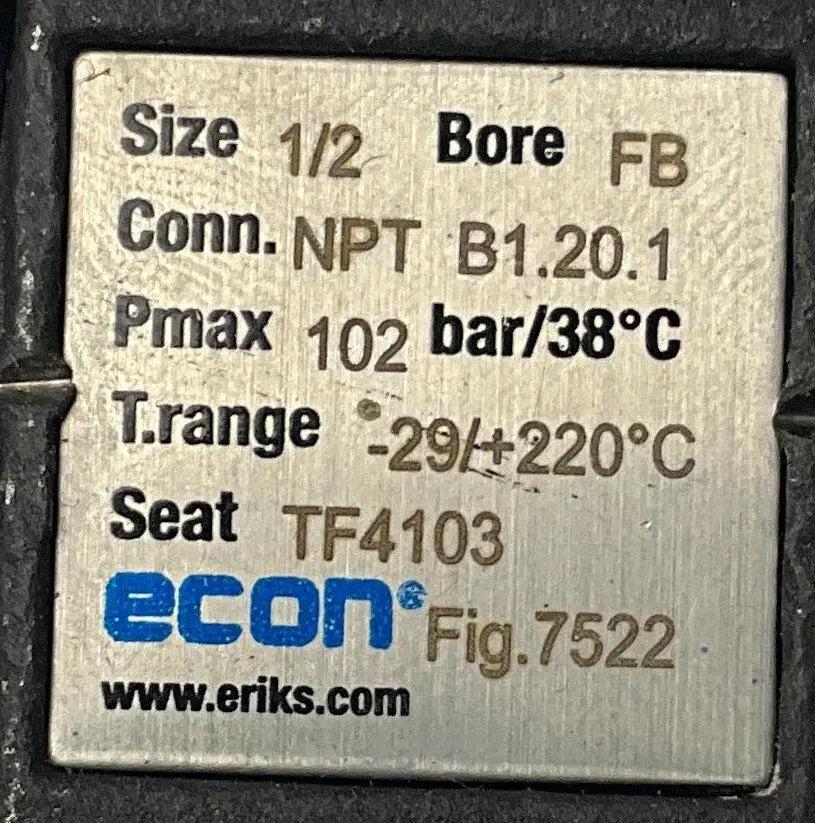

- Nominal Diameter: 1/2" DN 15
- Pressure Class: 600
- Pmax: 102 bar/38 °C
- Operating Temperature Range:
- Standard TF 4103 seats: -29°C to +220°C
- PEEK seats: Up to 280°C
- Media: Liquid and gaseous media, suitable for industrial and maritime applications, especially in chemical industries
- Design Standards: ISO 7121, MSS SP-110, MSS SP-72, EN 12516-1, ASME B16.34
- Top Flange: ISO 5211 direct-mount for actuators
- Operation: Manual handle (standard)
- Flow: Full bore
- Additional Features:
- 3-piece construction for easy maintenance
- Chevron seal set for spindle and axial seals, ensuring longer service life and lower torque
- Antistatic equipment between ball and housing
- Fugitive emission certified: TA-Luft (VDI 2440), ISO 15848-1 (CO1 and CO2)
- SIL (Safety Integrity Level) certified
- Certifications: CE, PED (Pressure Equipment Directive), SIL, TA-Luft, ISO 15848-1
Dimension: 200 x 110 x 55 mm
Weight: 1 kg
Country of Origin: Germany
HS Code: 8481.80
Original: $97.91
-70%$97.91
$29.37
