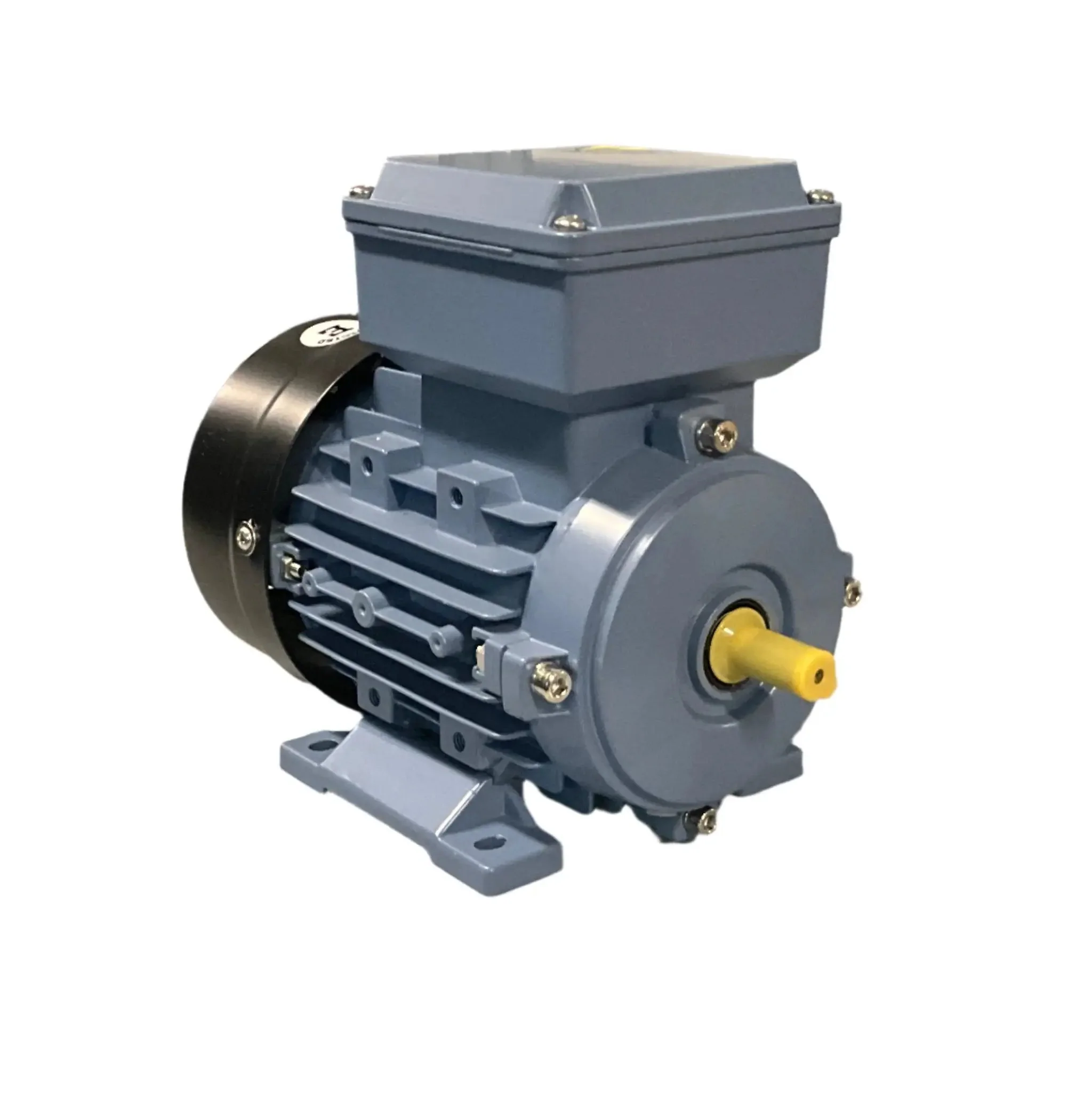

Electramo EMS632-4 3 Phase AC Motor

Brand: Electramo
Part Number: EMS632-4
Type: Three-Phase AC Motor
Motor Frame Size: IEC 63
Poles: 4 poles (1500 RPM at 50 Hz)
Power Output: 0.18 kW
Voltage: 230/400 V (Δ/Y) for 50 Hz supply
Frequency: 50 Hz
Speed (Synchronous): ~1500 RPM
Mounting Type: B3 (foot-mounted)
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Ingress Protection: IP55
Insulation Class: F
Duty: S1 (continuous)
Housing Material: Aluminium
Bearings: Sealed ball bearings
Standards: IEC 60034, CE compliant

Description:
The Electramo EMS632-4 is a compact 3-phase asynchronous motor designed for continuous-duty industrial and commercial applications. With a 4-pole configuration and IEC 63 frame size, it offers dependable performance at approximately 1500 RPM on 50 Hz supply. Constructed with an aluminium housing, IP55-rated enclosure, and Class F insulation, this motor is suitable for general-purpose machinery, pumps, fans, and automation systems. The motor is CE-marked and built to IEC standards for global compatibility.
