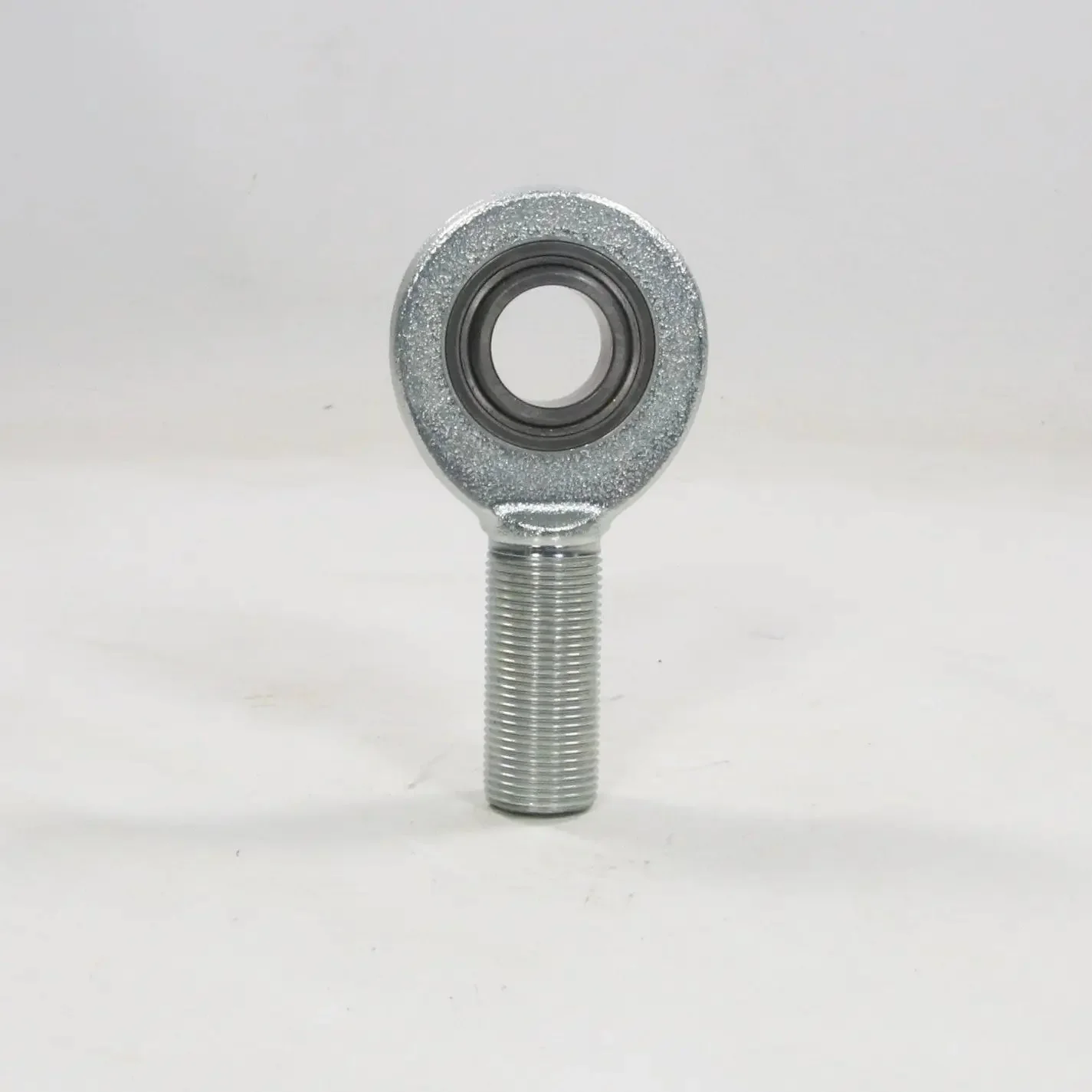

Elges GAR20-UK Rod End Bearing

- Brand: Elges

- Model: GAR20-UK

- Type: Rod End Bearing / Spherical Plain Bearing

- Part number: GAR20-UK

- Technical specifications:
- Bore diameter bearing (d): 20 mm
- Outside diameter bearing (D): 35 mm
- Width inner ring (B): 16 mm (tolerance 0 / -0.12 mm)
- Total length (l): 104.5 mm
- Thread size (d3): M20 x 1.5 (right-hand male thread)
- Thread length external (l1): 43 mm
- Head diameter / Outer eye diameter (d2): 53 mm
- Ball diameter / Head circle diameter (dk): 29 mm
- Housing eye width (C1): 13 mm
- Basic dynamic load rating radial (Cr): 57,000–60,000 N
- Basic static load rating radial (C0r): 75,600 N
- Radial internal clearance: 0–0.04 mm
- Contact surface: Steel
- Lubrication: Maintenance-free
- Sealing: Open
- Housing material: Zinc-plated steel
- Inner ring material: Hardened steel
- Additional features: Suitable for axial and radial loads; high misalignment capability; corrosion-resistant housing; for low-speed oscillating or alignment applications
- Standards: DIN ISO 12240-1 / DIN ISO 12240-4

Weight: 350 g

Dimensions: Bore 20 mm; Outer diameter bearing 35 mm; Total length 104.5 mm; Head diameter 53 mm; Thread M20x1.5 right-hand

Country of origin: Germany

HS code: 8483.30
