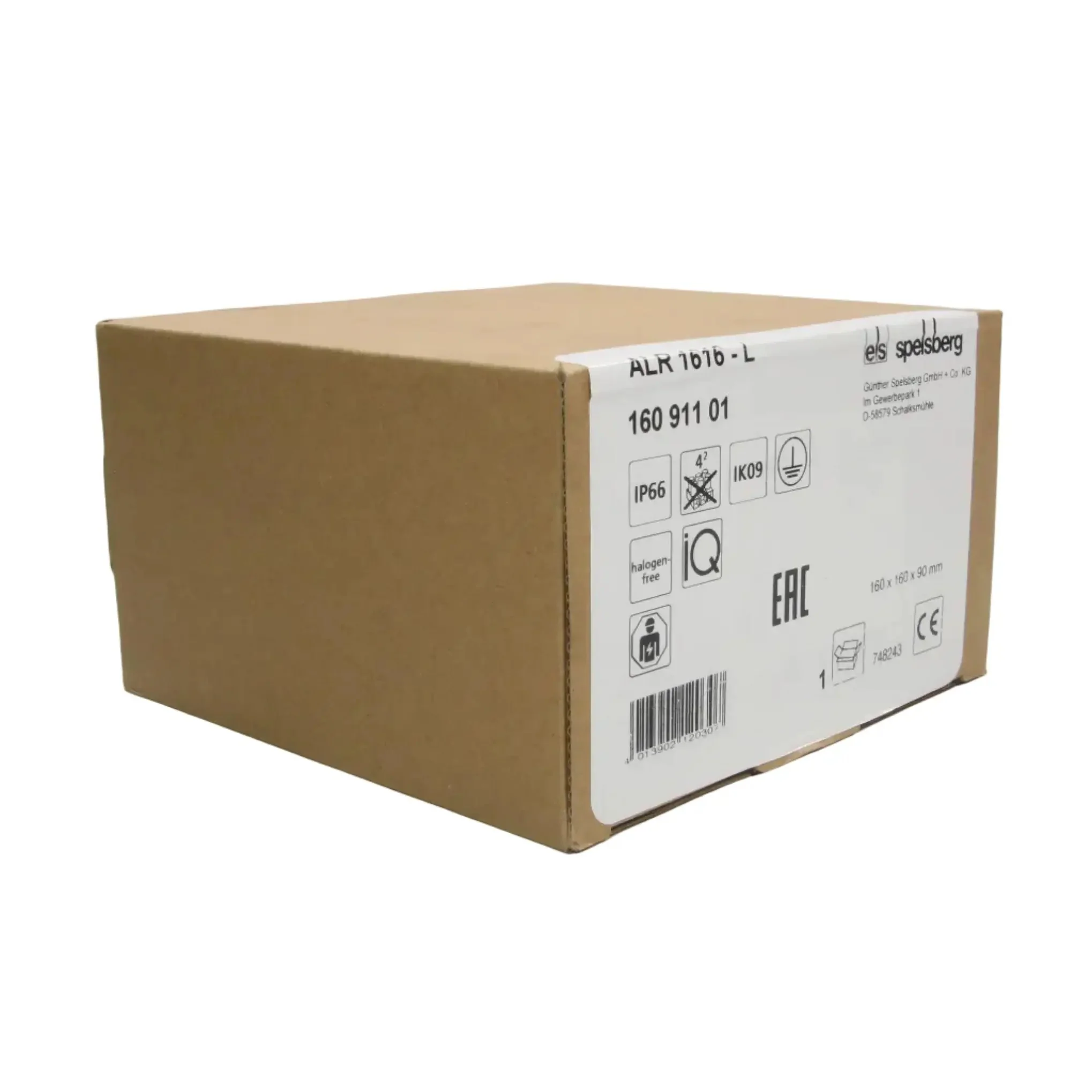

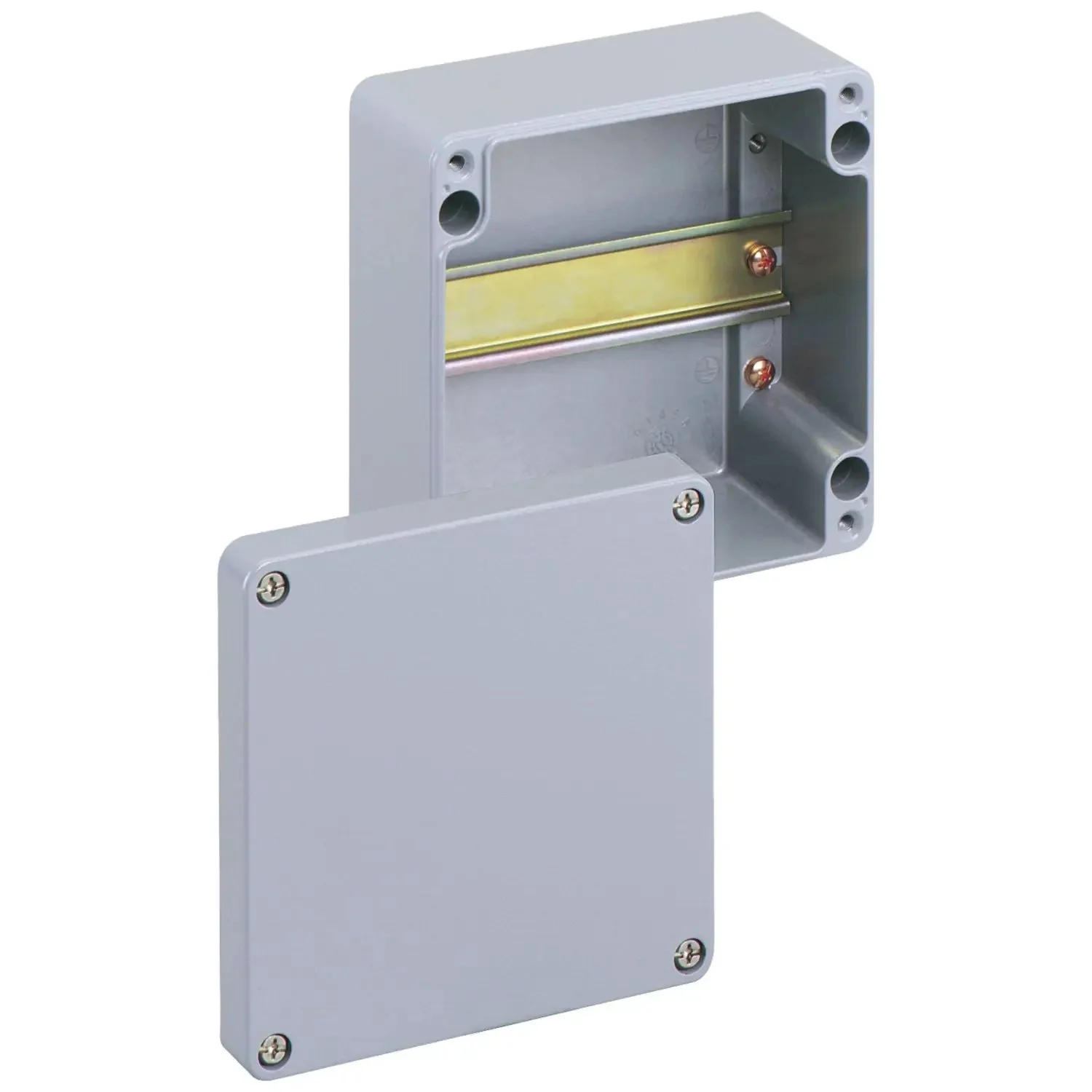

Spelsberg ALR 1616-L Terminal Block Enclosure

- Brand: Spelsberg (Gunther Spelsberg GmbH & Co. KG)

- Model: ALR 1616-L

- Part Number: 16091101

- Type: Aluminium Terminal Block Enclosure

- All tech specs:
- Material: Aluminium, powder-coated silver grey
- Protection class: IP66
- Impact resistance: IK09
- Rated insulation voltage (Ui): 400 V AC
- Nominal cross-section: Suitable for up to 4 mm²
- Terminals: Empty/without terminals
- Includes: NS 35 DIN rail for mounting terminal blocks
- Features: Internal fastening points, halogen-free, internal fixing points for component mounting
- Mounting: Surface-mounted (wall mount)
- Gasket: Integrated sealing for IP66
- Operating environment: Suitable for industrial environments and protected outdoor areas
- Cover: Screw-on lid
- Part of Spelsberg ALR series: Robust aluminium enclosures for terminal blocks and junction boxes

Dimensions: 160 x 160 x 90 mm

Weight: 1.8 kg

Country of origin: Germany

HS code: 761699
