Endress + Hauser 11961 Level Detection Rod Probe

Brand: Endress + Hauser
Model: 11961
Type: Conductive Point Level Detection Rod Probe
Part Number: 11961

Technical Specs:
- Probe Type: Single rod probe, partially insulated
- Process Pressure: Vacuum to 160 bar
- Process Temperature: 200°C to +250°C
- Minimum Medium Conductivity: 20 µS/cm
- Insulation: Ceramic (steam and hot water resistant)
- Rod Material: Corrosion-resistant stainless steel - 316L

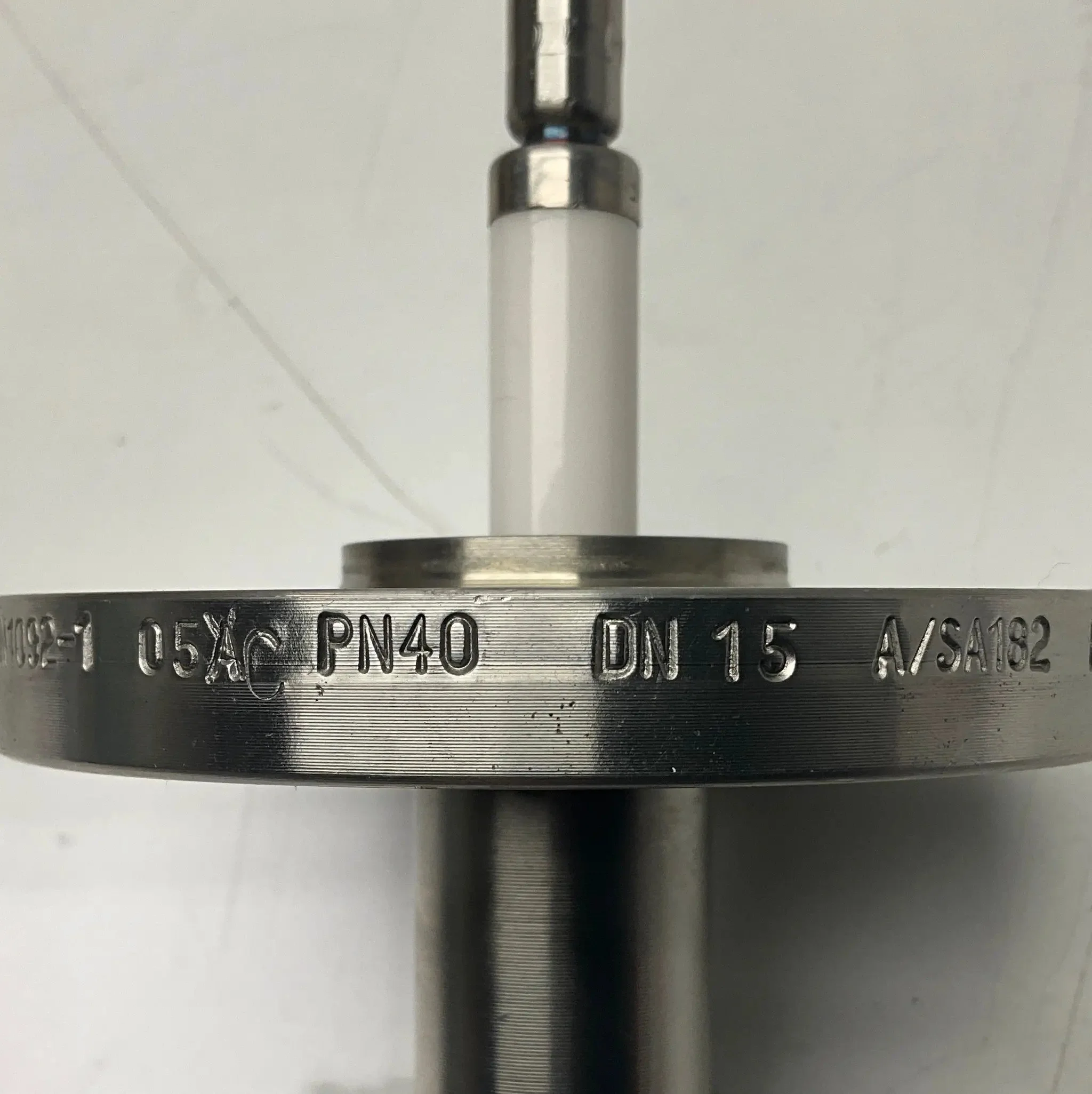

- Mounting: Flange 100mm - DN15 A/SA182 PN40
- Additional Features:
  - Millimeter precision switch point
  - Simple rod shortening or replace
  - High resistance to corrosion and mechanical stress
- Certifications: WHG (German Water Resources Act for overfill prevention), EAC (TR CU 020/2011), Food Hygiene (10/2011, 1935/2004)

Dimension:
- Rod Length: 150 mm (115 mm uninsulated)
- Rod Diameter: 6mm

Weight: 1.10 kg

Country of Origin: Germany

HS Code: 9026.10
