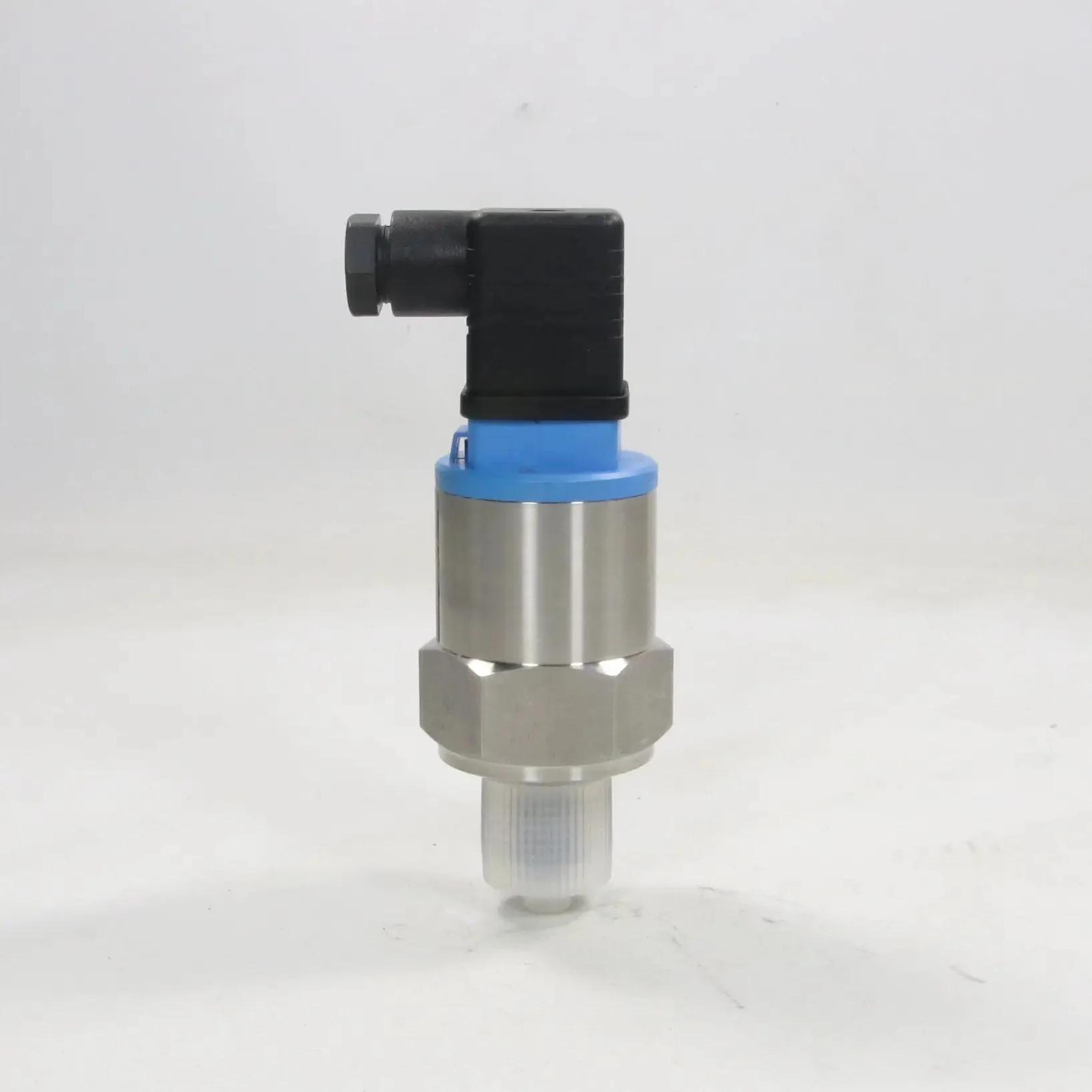

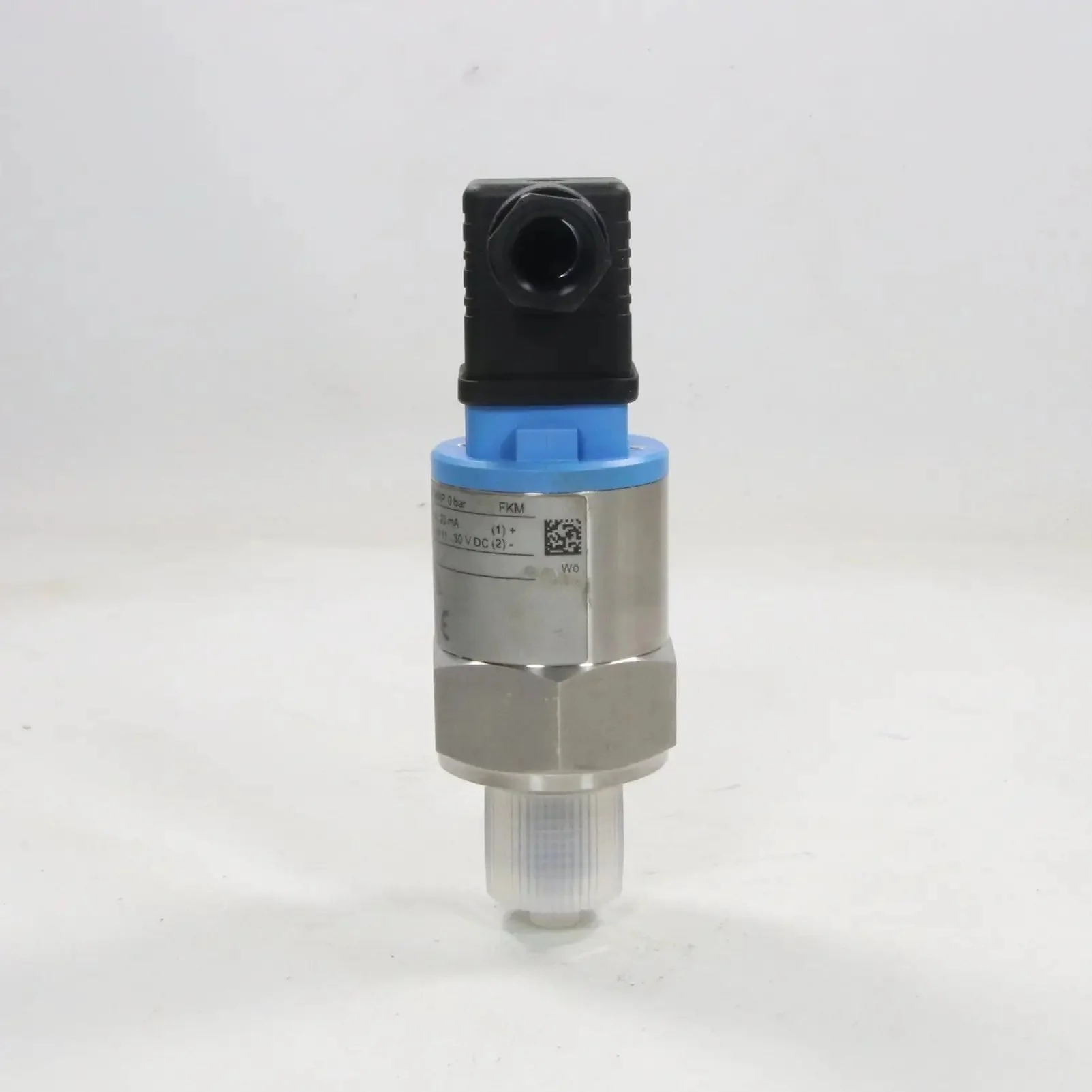

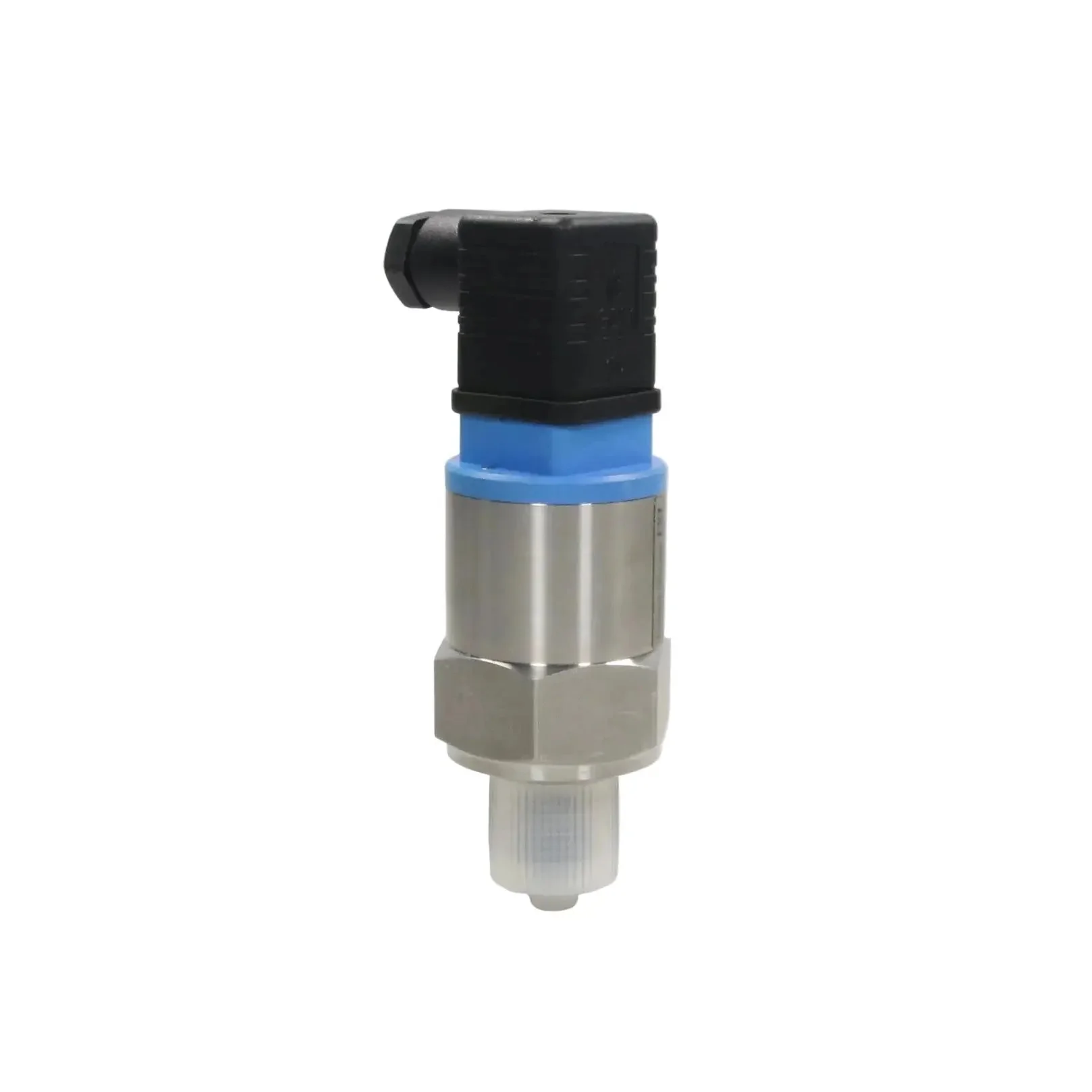

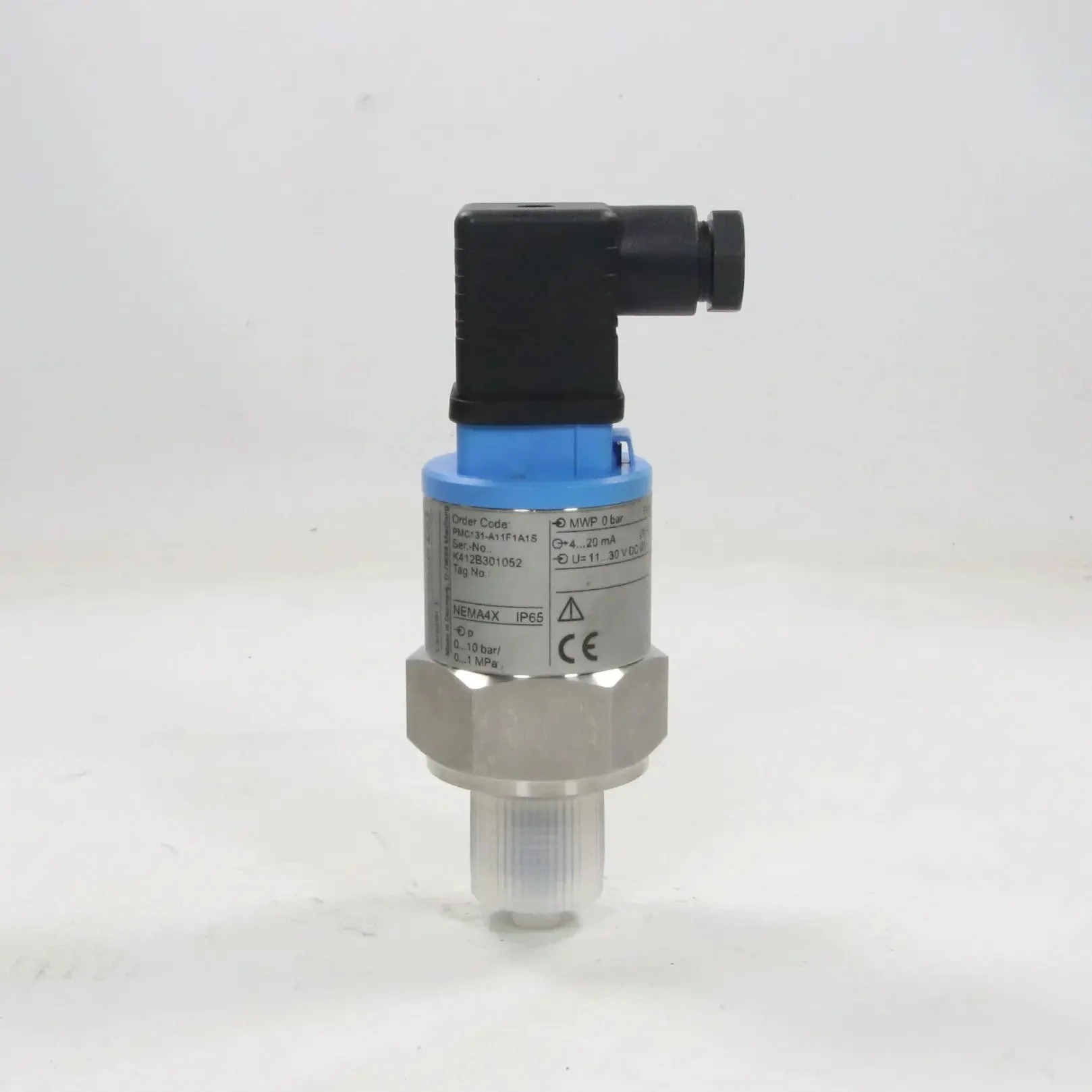

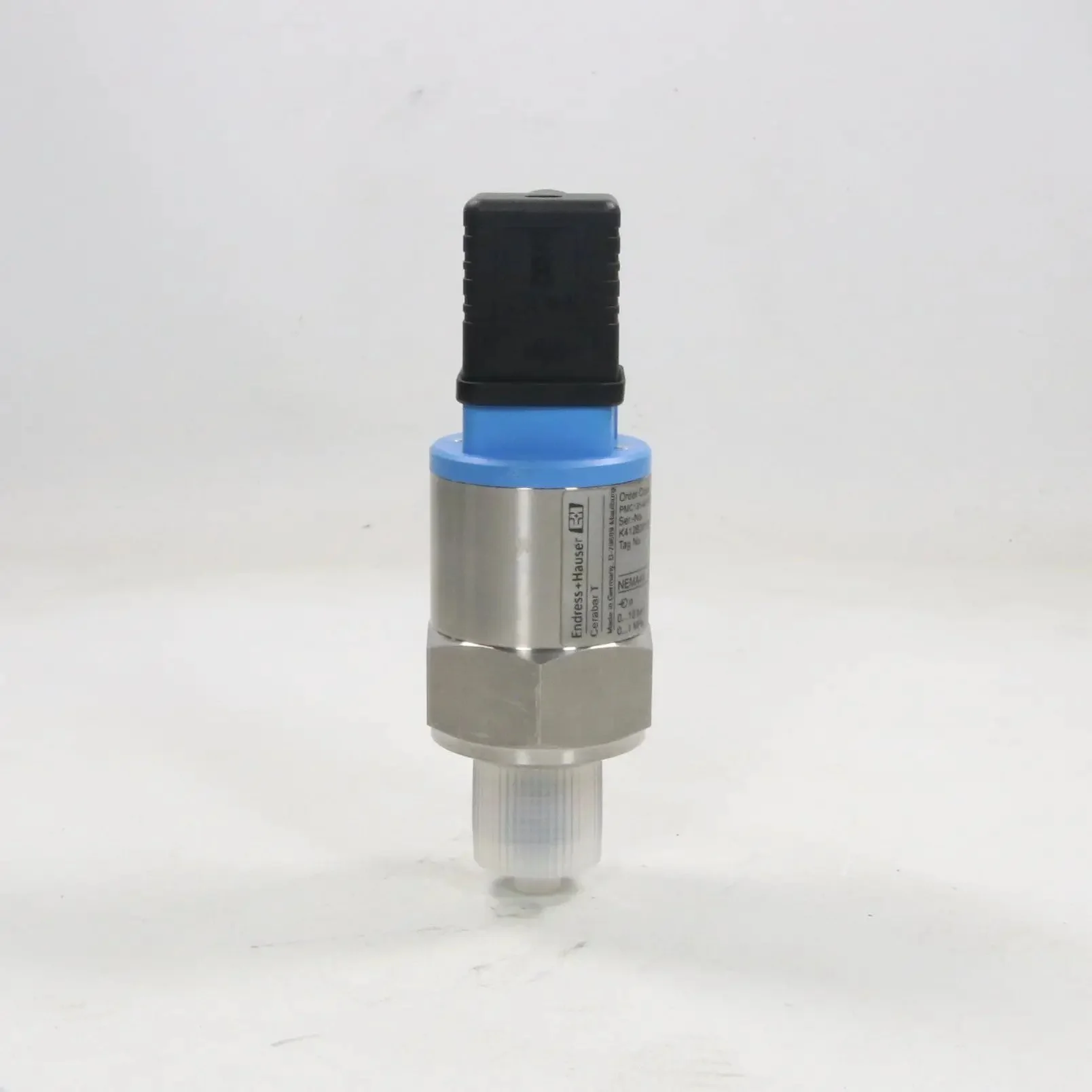

Endress+Hauser Cerabar T PMC131-A11F1A1S Pressure Transmitter

- Brand: Endress+Hauser

- Model: Cerabar T PMC131

- Type: Pressure Transmitter / Pressure Sensor

- Part number: PMC131-A11F1A1S

Technical specifications:
- Measuring principle: Ceramic capacitive
- Pressure range: 0–10 bar
- Overload resistance: 40 bar
- Output signal: 4–20 mA
- Supply voltage: 11–30 V DC
- Accuracy: ±0.3% of span
- Process temperature: -25°C to +85°C
- Ambient temperature: -40°C to +85°C
- Process connection: Threaded - G1/2
- Wetted materials: Ceramic diaphragm (Al2O3 99.9%); stainless steel 304 (1.4301) process connection
- Housing: Stainless steel
- Protection class: IP65
- Additional features: Dry ceramic cell; high long-term stability; overload-resistant; compact design; suitable for CIP/SIP in food/pharma; EMC compliant
- Standards: Compliant with IEC/EN 61010, 61326; CE, hygienic approvals

Status: Discontinued

Weight: 350 g

Dimensions: 130 x 70 x 50 mm

Country of origin: Germany

HS code: 9026.20
