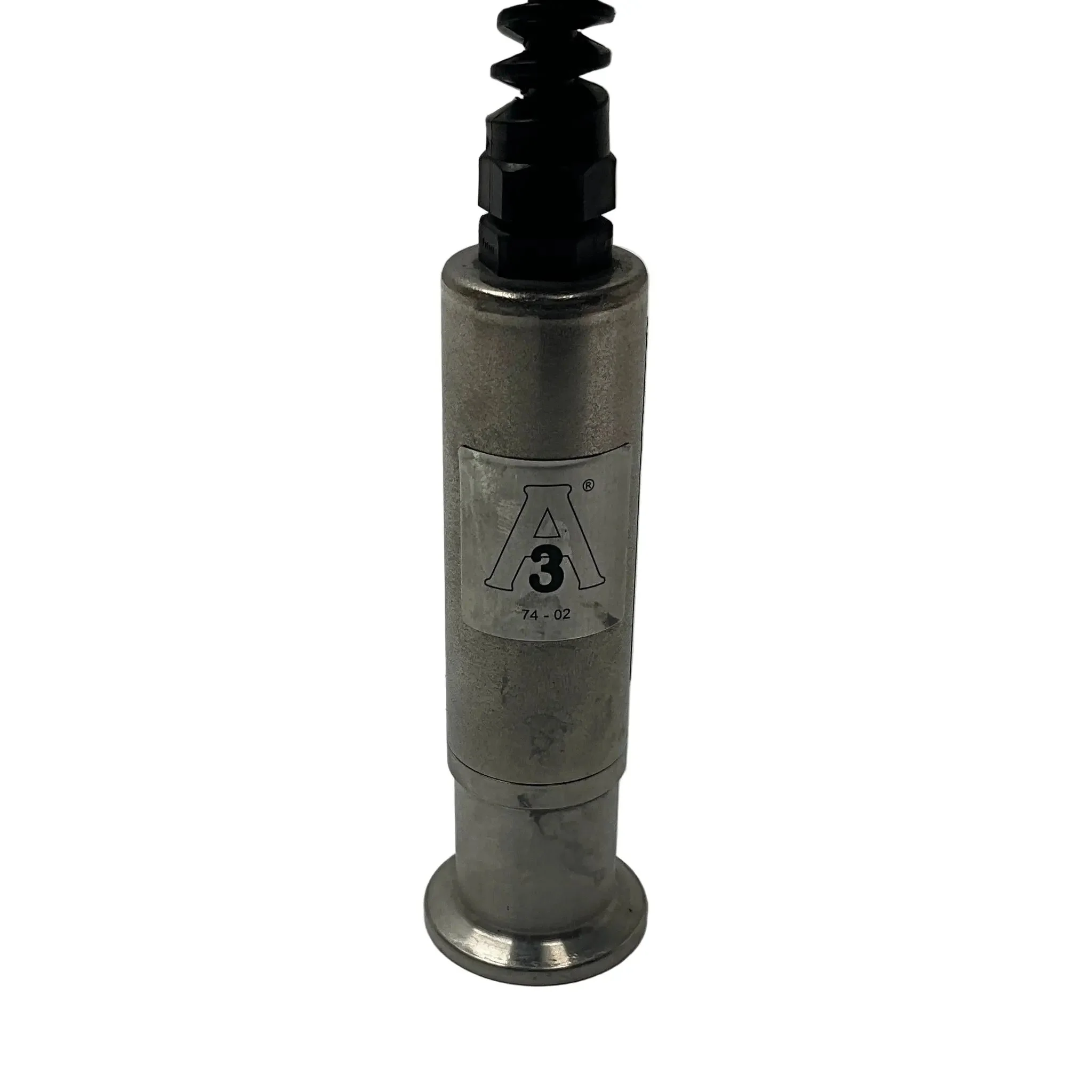

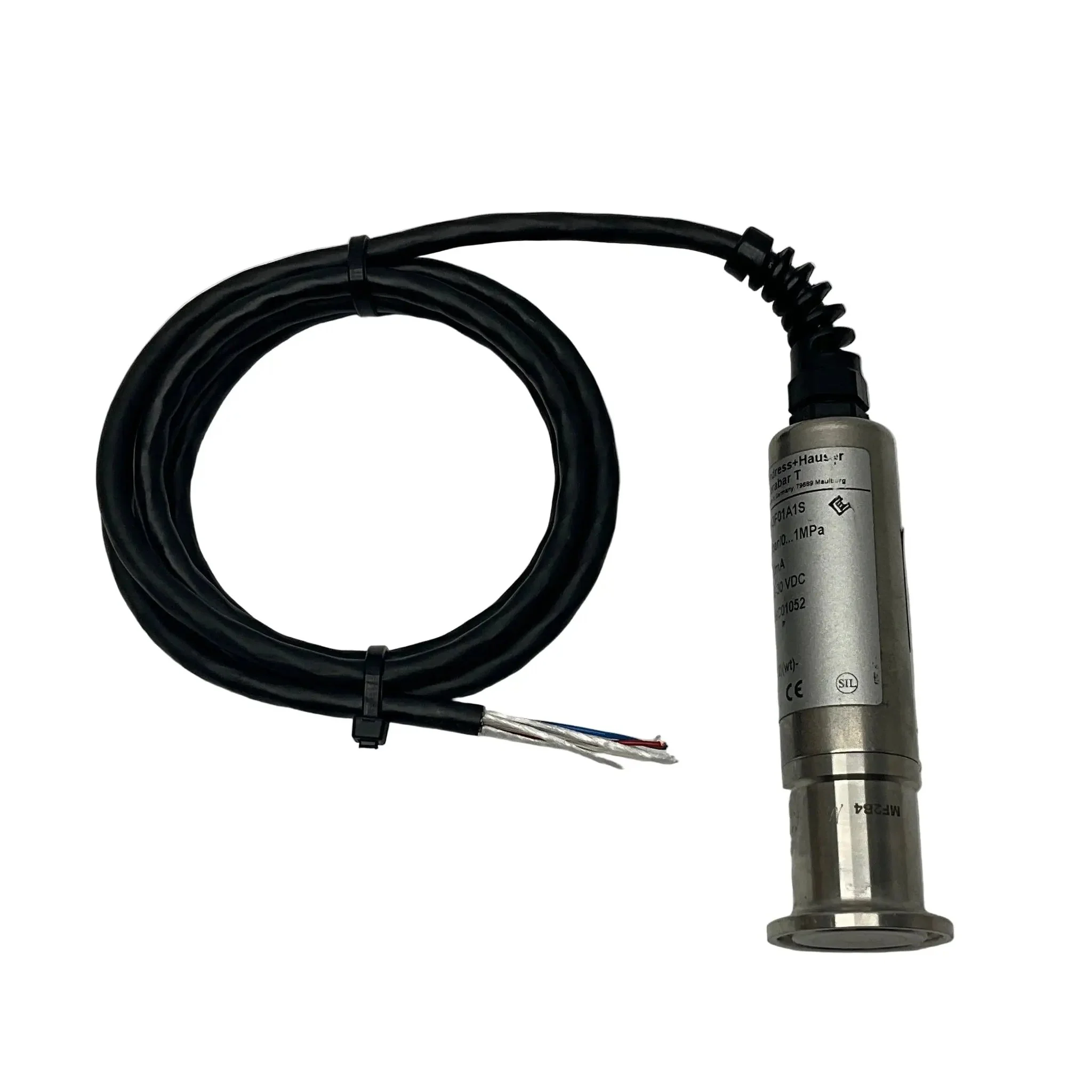

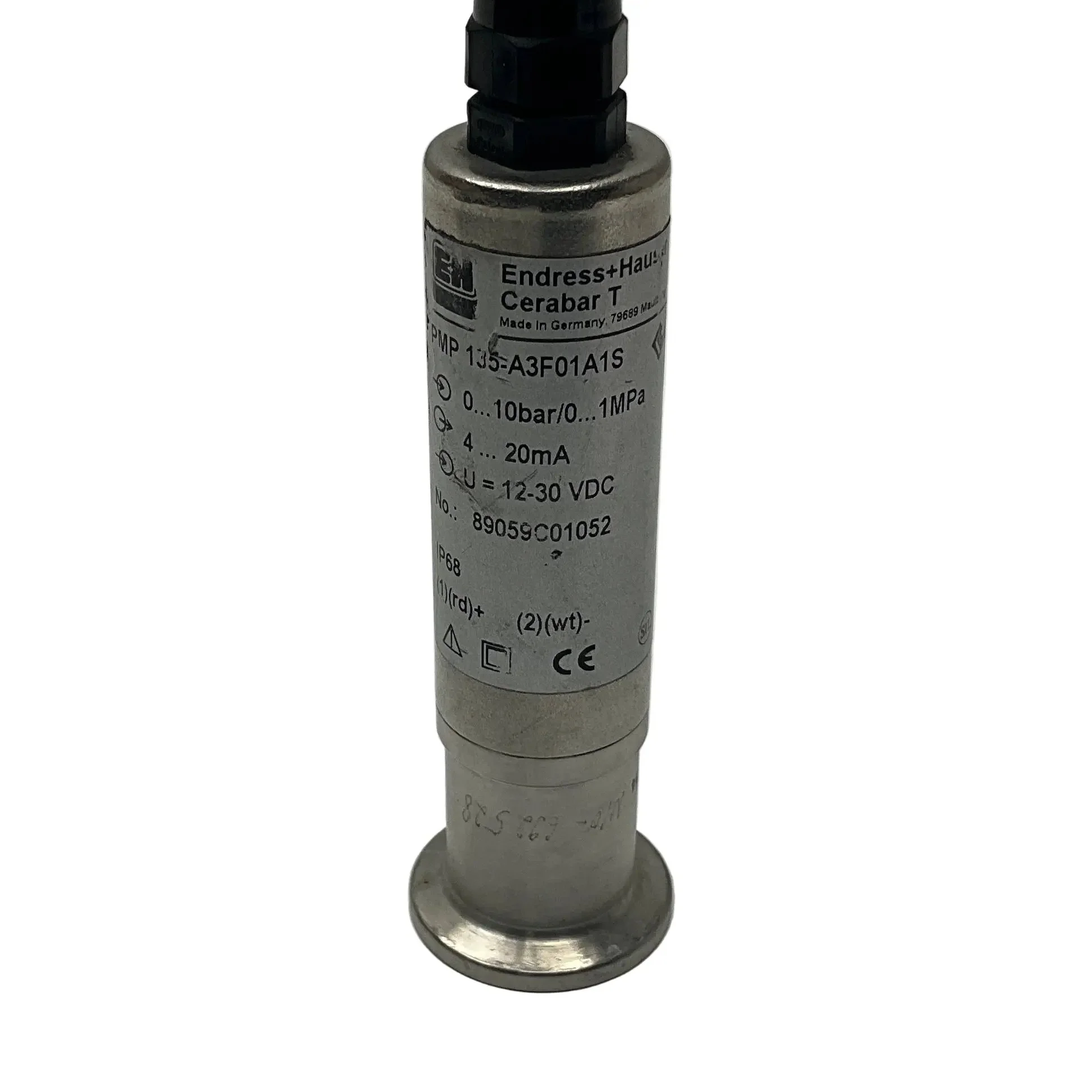

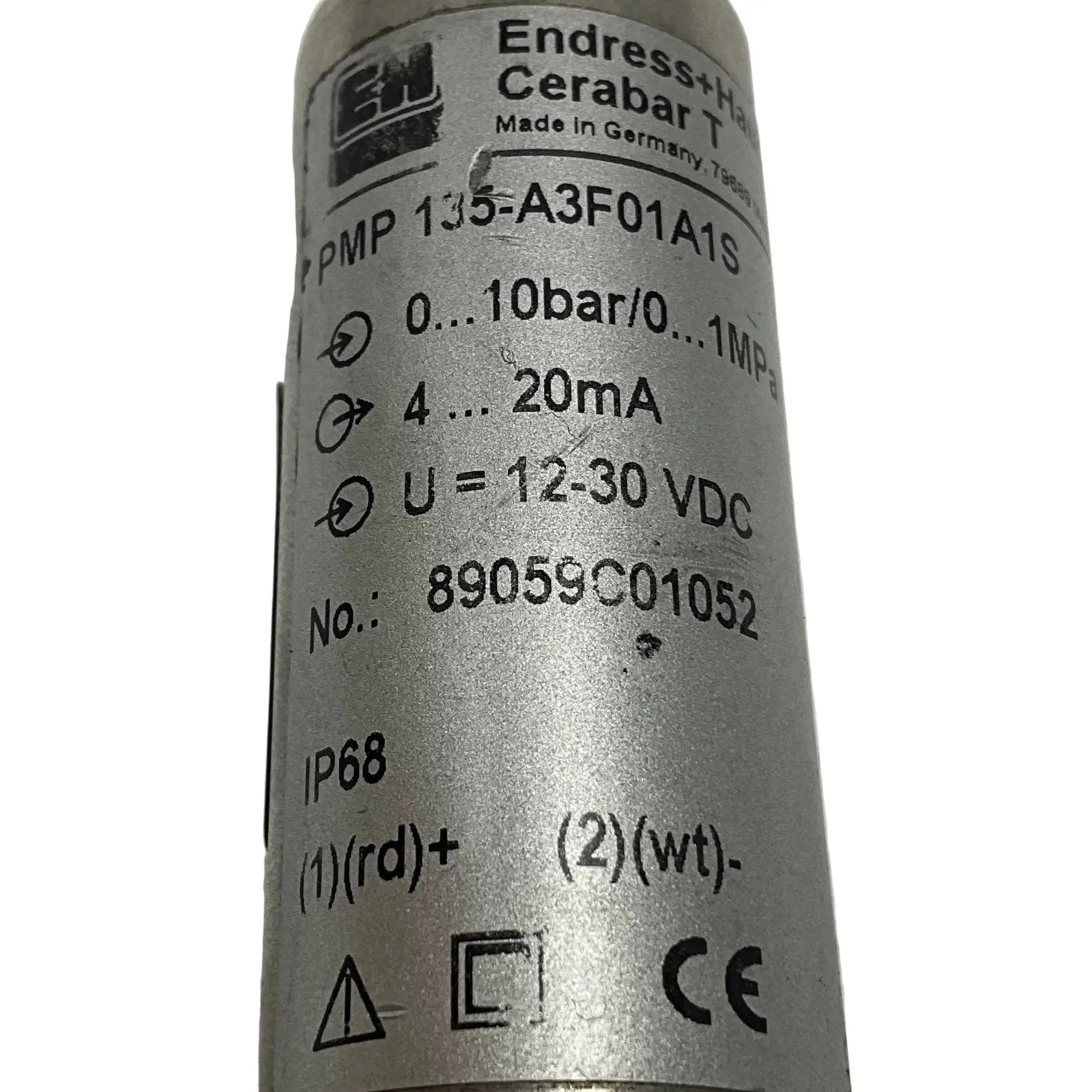

Endress+Hauser Cerabar T PMP135-A3F01A1S Pressure Transmitter
Brand: Endress+Hauser
Model: Cerabar T PMP135
Type: Pressure Transmitter
Part Number: PMP135-A3F01A1S
Technical Specs:
- Measuring Principle: Piezoresistive sensor with metallic measuring diaphragm
- Measuring Range: 0 to 10 bar
- Overload Pressure: 100 bar
- Process Temperature Range: –25 °C to +100 °C
- Ambient Temperature Range: –25 °C to +70 °C
- Supply Voltage: 12 to 30 V DC
- Output Signal: 4–20 mA
- Accuracy: ≤ ±0.5 % of span
- Long-term Stability: ≤ 0.15 % of URL/year
- Process Connection: Cable
- Diaphragm Material: 316L stainless steel
- Fill Fluid: None
- Housing Material: Stainless steel
- Protection Class: IP68
- Additional Features:
- EHEDG, 3-A, FDA-compliant materials
- Certifications: 3-A, EHEDG, FDA
Dimensions: 160 x 160 x 40 mm
Weight: 300 g
Country of Origin: Germany
HS Code: 9026.20
Original: $172.78
-70%$172.78
$51.83
Description
Brand: Endress+Hauser
Model: Cerabar T PMP135
Type: Pressure Transmitter
Part Number: PMP135-A3F01A1S
Technical Specs:
- Measuring Principle: Piezoresistive sensor with metallic measuring diaphragm
- Measuring Range: 0 to 10 bar
- Overload Pressure: 100 bar
- Process Temperature Range: –25 °C to +100 °C
- Ambient Temperature Range: –25 °C to +70 °C
- Supply Voltage: 12 to 30 V DC
- Output Signal: 4–20 mA
- Accuracy: ≤ ±0.5 % of span
- Long-term Stability: ≤ 0.15 % of URL/year
- Process Connection: Cable
- Diaphragm Material: 316L stainless steel
- Fill Fluid: None
- Housing Material: Stainless steel
- Protection Class: IP68
- Additional Features:
- EHEDG, 3-A, FDA-compliant materials
- Certifications: 3-A, EHEDG, FDA
Dimensions: 160 x 160 x 40 mm
Weight: 300 g
Country of Origin: Germany
HS Code: 9026.20
