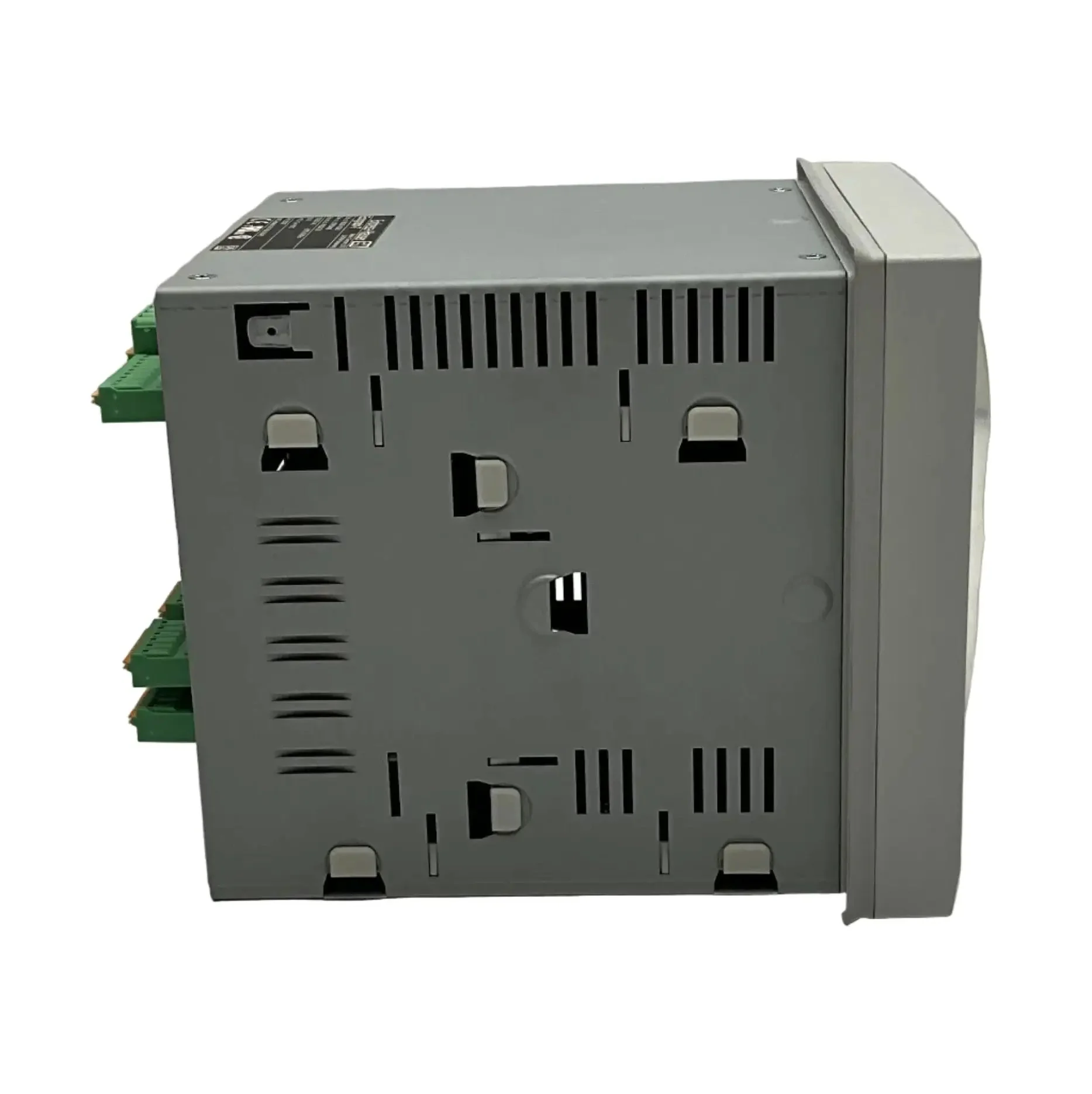

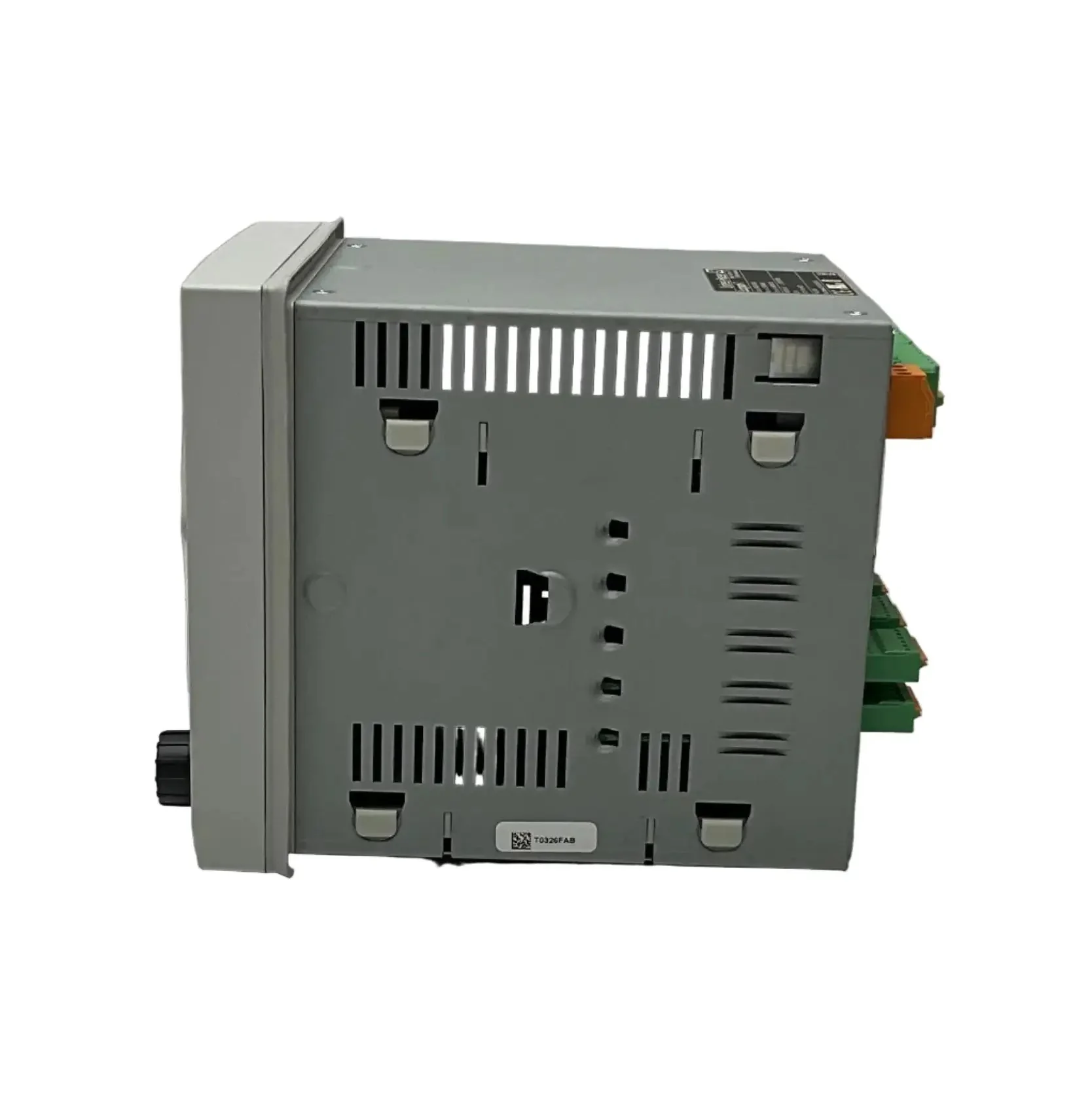

Endress+Hauser Ecograph - T RSG35 Universal Graphic Data Manager
- Brand: Endress+Hauser
- Model: Ecograph - T RSG35
- Type: Universal Graphic Data Manager / Paperless Recorder

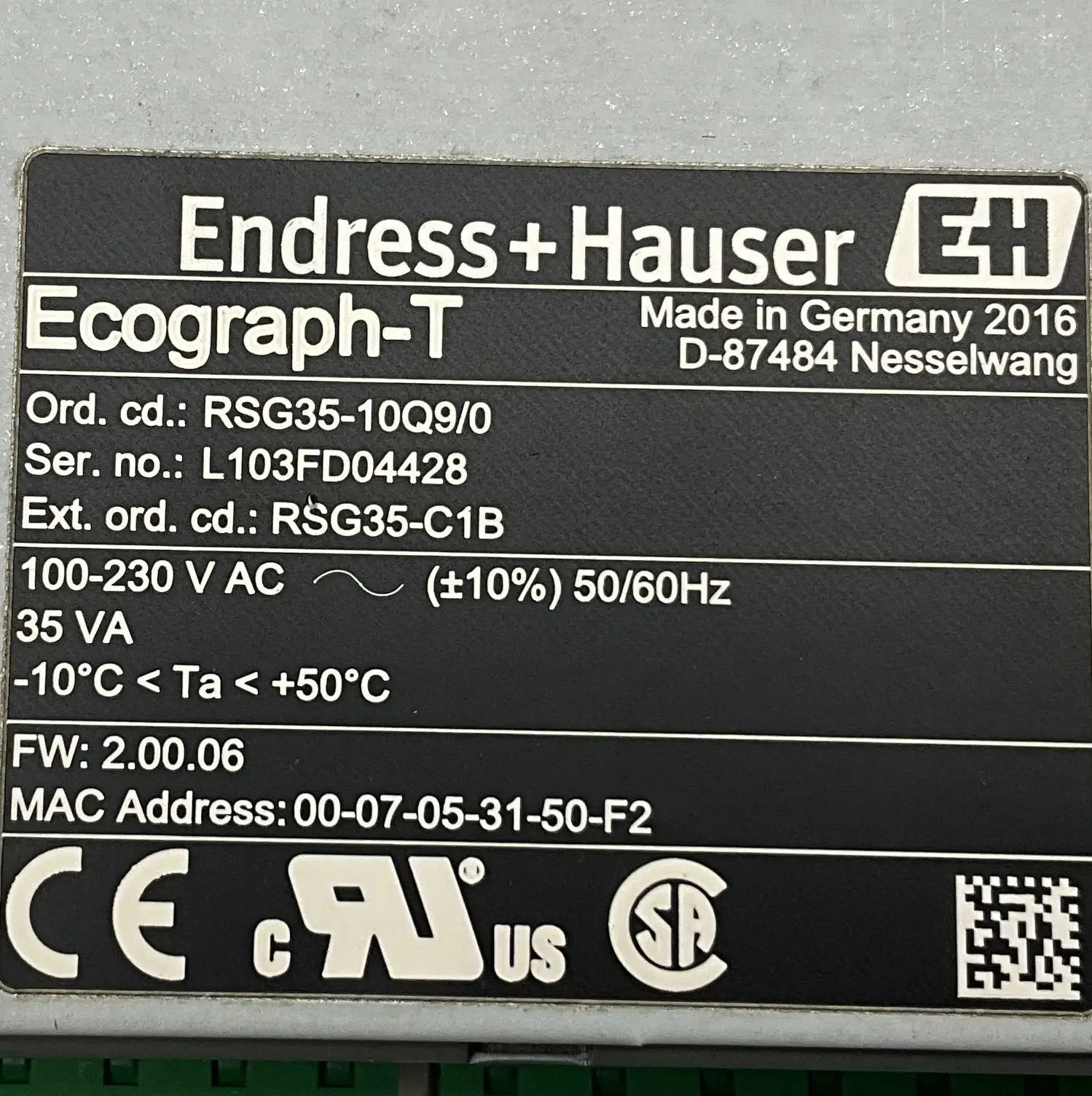

- Part Number: RSG35-10Q9/0
- Technical Specs:
- Input: 12 universal analog inputs
- Output: Up to 6 relays (max) + 1 transmitter power supply (24 V DC loop power for sensors)
- Display: 5.7" TFT color graphic display with backlight
- Power Supply: 100–230 V AC (±10%) 50/60 Hz
- Storage/Recording: Internal memory (128 MB), 1GB SD Card
- Scan Rate: 100 ms for all channels

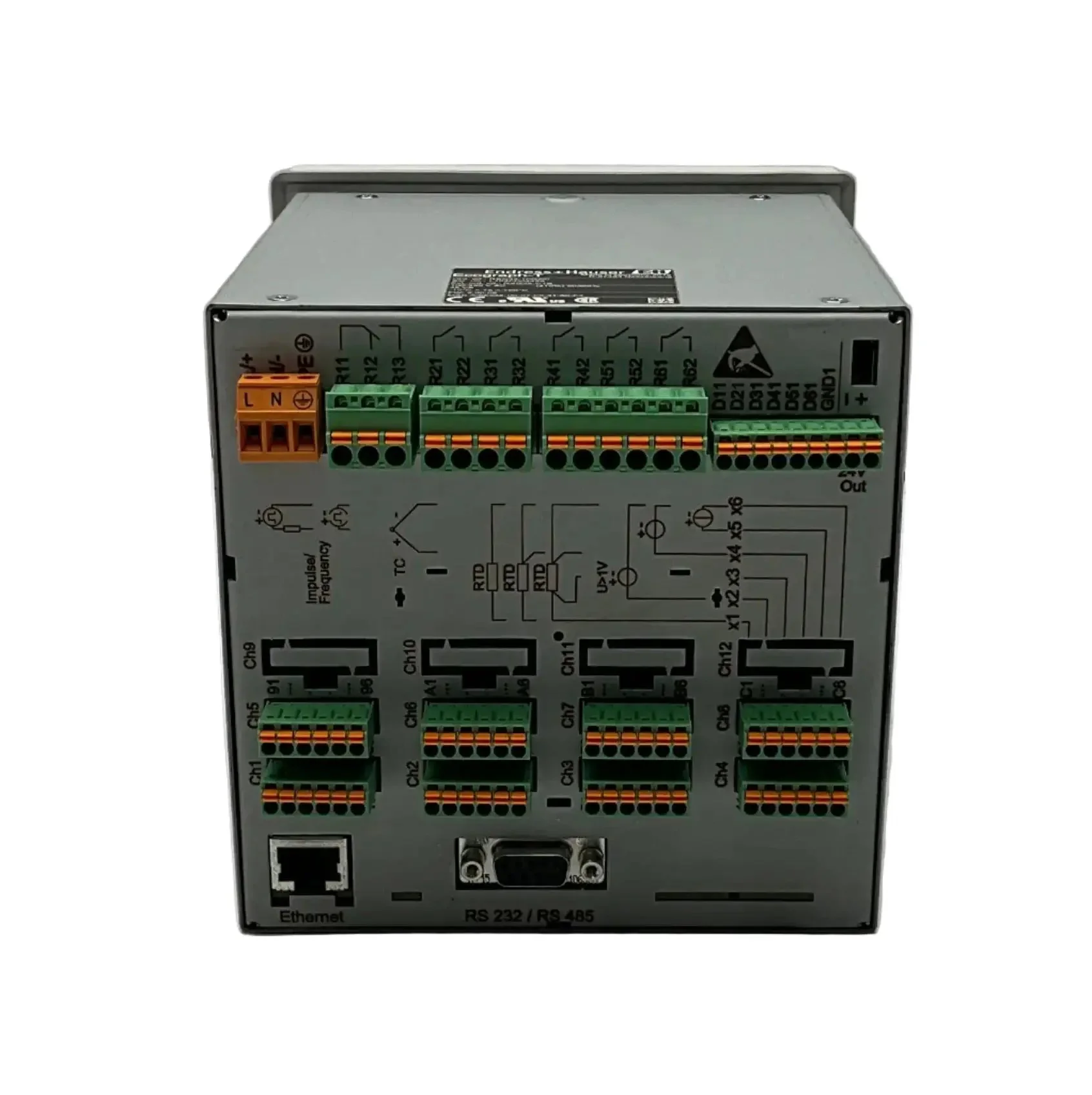

- Interfaces: USB, Ethernet (web server), RS232/485
- Functions: Records, visualises, monitors analog/digital signals; limit monitoring, alarm notification, linearisation, group display (up to 4 groups), curve/bar/digital display
- Operating Temperature: -10 °C to +50 °C
- FW: 2.00.06
- Enclosure Rating: IP20
- Housing: Panel-mount (144 × 144 mm cutout), low installation depth
- Additional Features:
- Intuitive operation via navigator (jog/shuttle dial) or web server
- Reliable data archiving with internal memory and SD card
- E-mail notification on alarms/limit violations
- Simple system integration (Ethernet, RS232/485, USB)
- Optional mathematics functions for calculated values
- Certifications: CE, WHG overfill protection
Dimensions: 144 x 144 x 190 mm
Weight: 3.0 kg
Country of Origin: Germany
HS Code: 9031.80
Original: $234,728.47
-70%$234,728.47
$70,418.54
Description
- Brand: Endress+Hauser
- Model: Ecograph - T RSG35
- Type: Universal Graphic Data Manager / Paperless Recorder
- Part Number: RSG35-10Q9/0
- Technical Specs:
- Input: 12 universal analog inputs
- Output: Up to 6 relays (max) + 1 transmitter power supply (24 V DC loop power for sensors)
- Display: 5.7" TFT color graphic display with backlight
- Power Supply: 100–230 V AC (±10%) 50/60 Hz
- Storage/Recording: Internal memory (128 MB), 1GB SD Card
- Scan Rate: 100 ms for all channels
- Interfaces: USB, Ethernet (web server), RS232/485
- Functions: Records, visualises, monitors analog/digital signals; limit monitoring, alarm notification, linearisation, group display (up to 4 groups), curve/bar/digital display
- Operating Temperature: -10 °C to +50 °C
- FW: 2.00.06
- Enclosure Rating: IP20
- Housing: Panel-mount (144 × 144 mm cutout), low installation depth
- Additional Features:
- Intuitive operation via navigator (jog/shuttle dial) or web server
- Reliable data archiving with internal memory and SD card
- E-mail notification on alarms/limit violations
- Simple system integration (Ethernet, RS232/485, USB)
- Optional mathematics functions for calculated values
- Certifications: CE, WHG overfill protection
Dimensions: 144 x 144 x 190 mm
Weight: 3.0 kg
Country of Origin: Germany
HS Code: 9031.80
