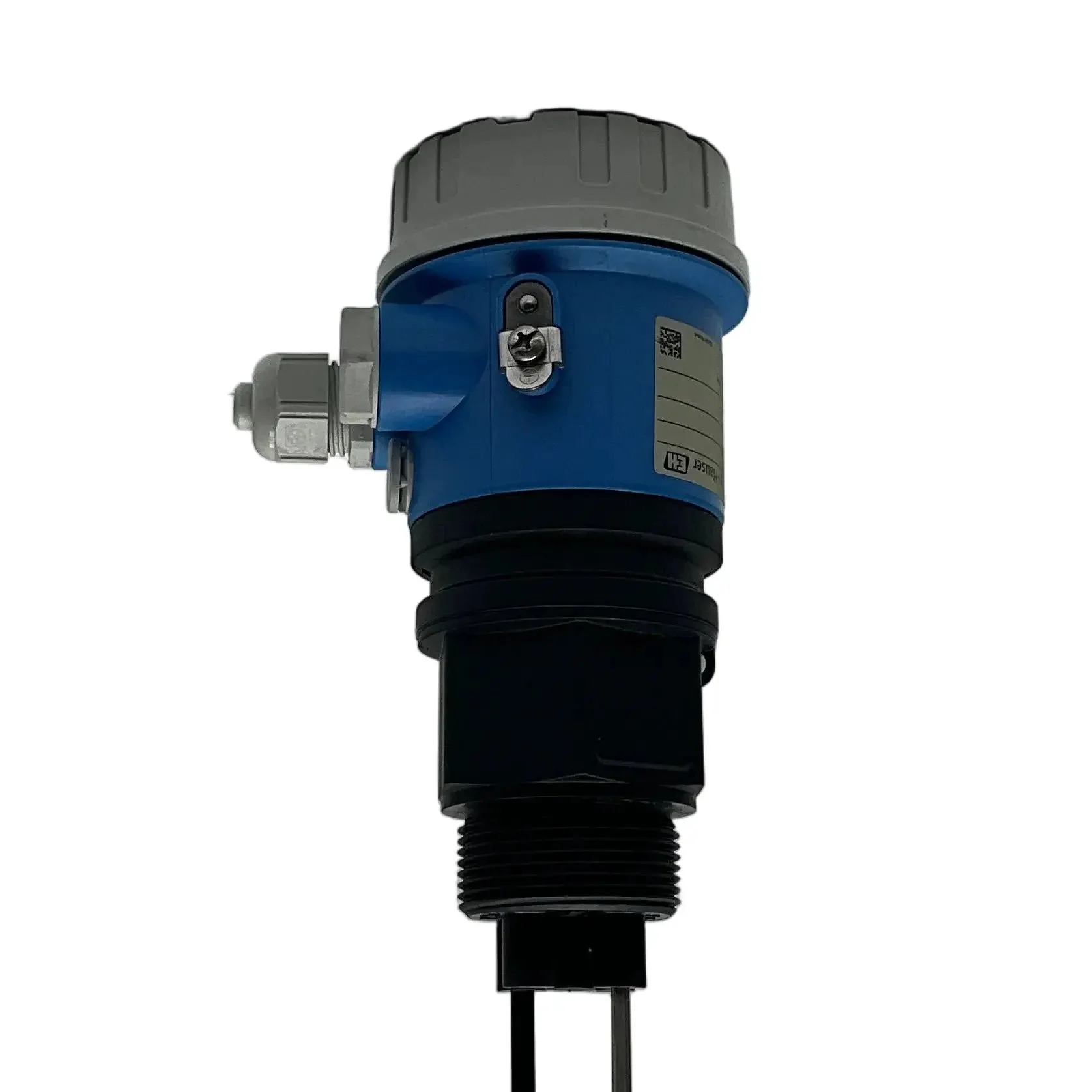

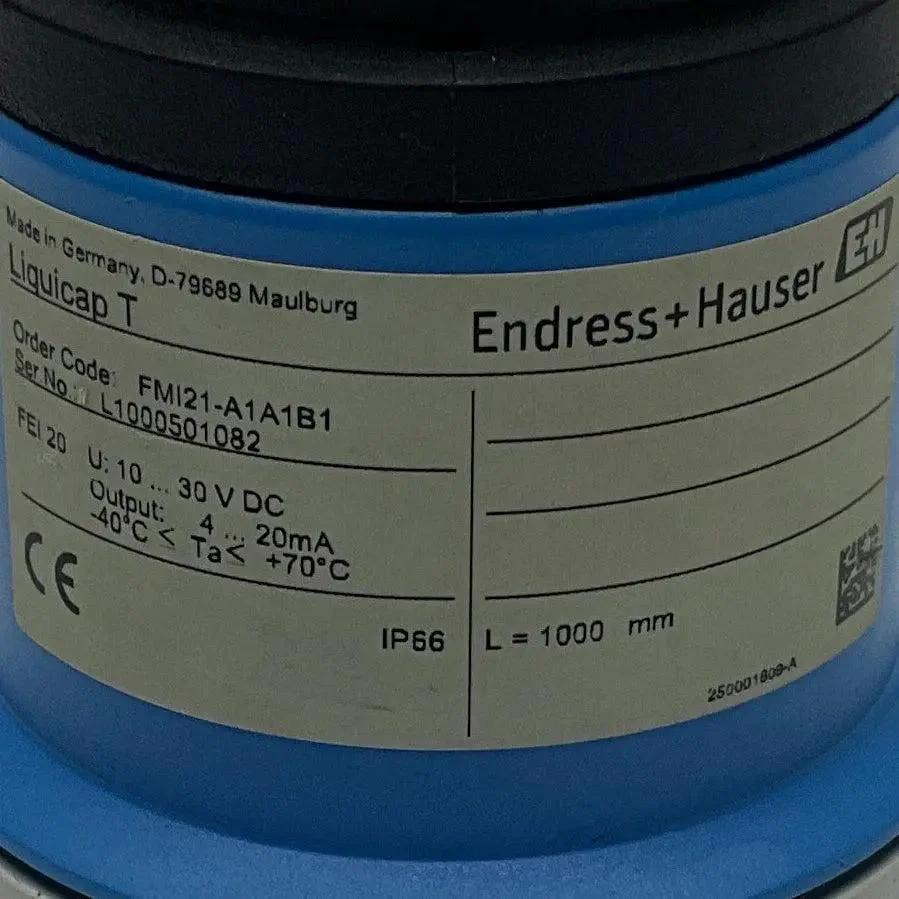

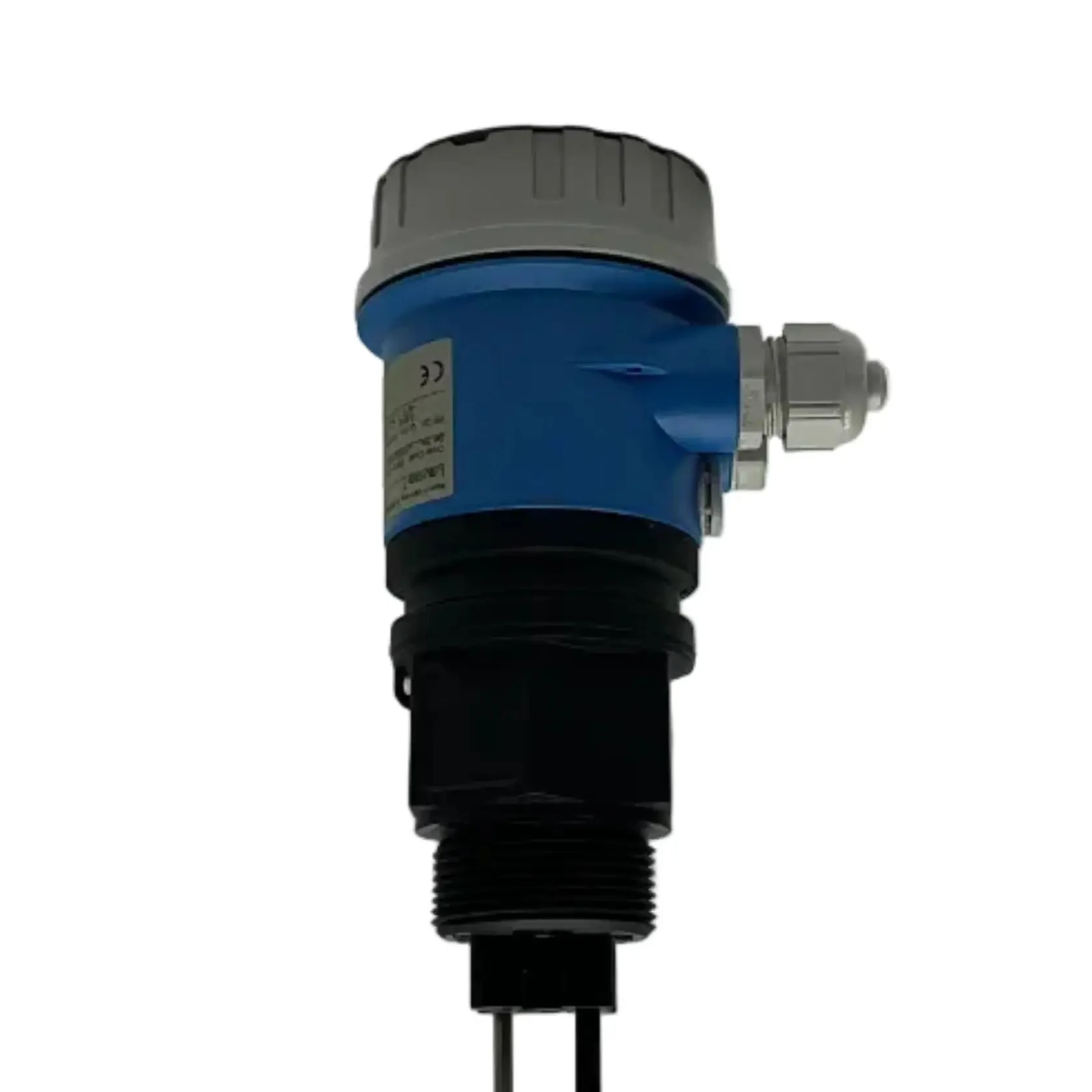

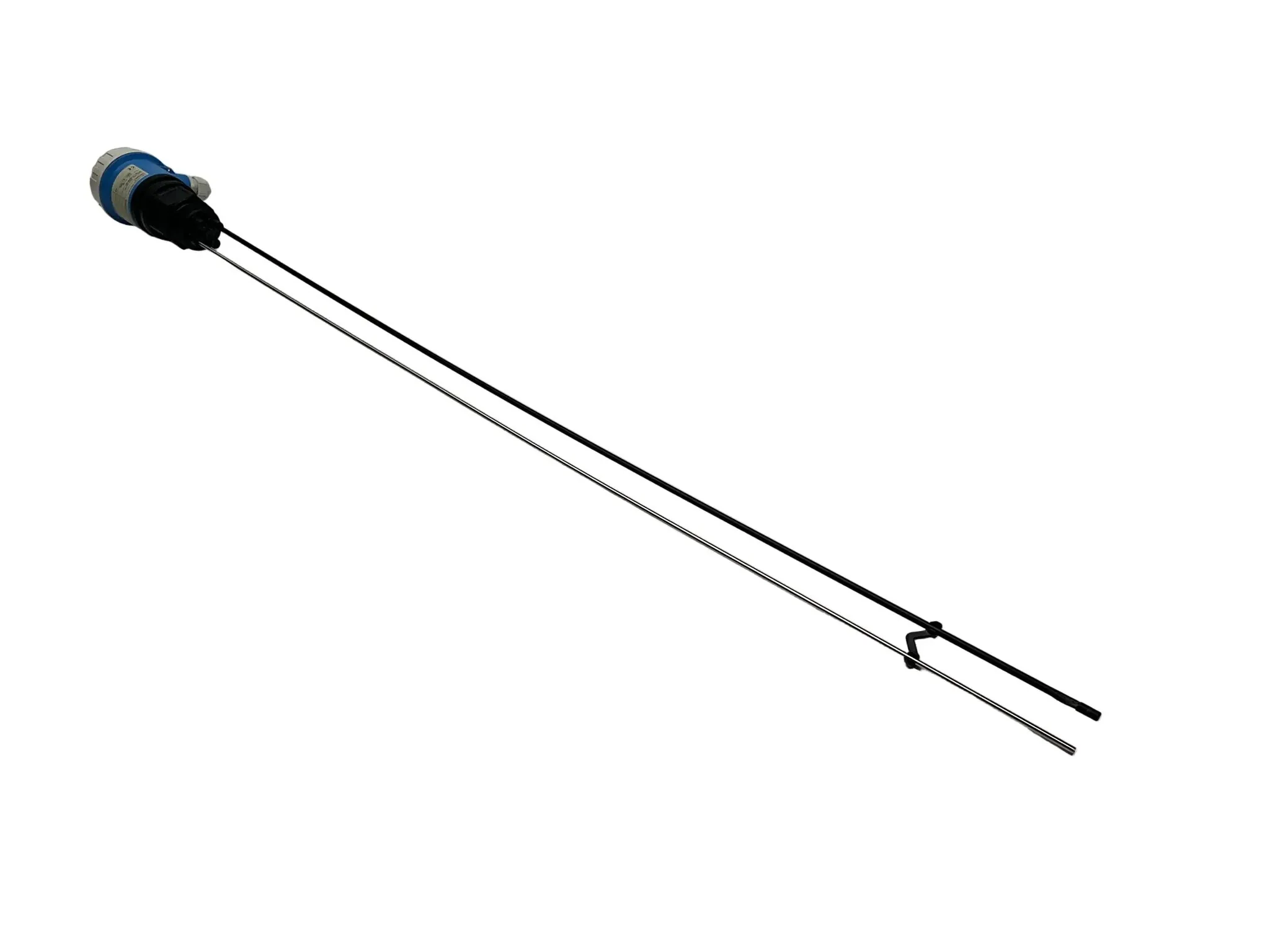

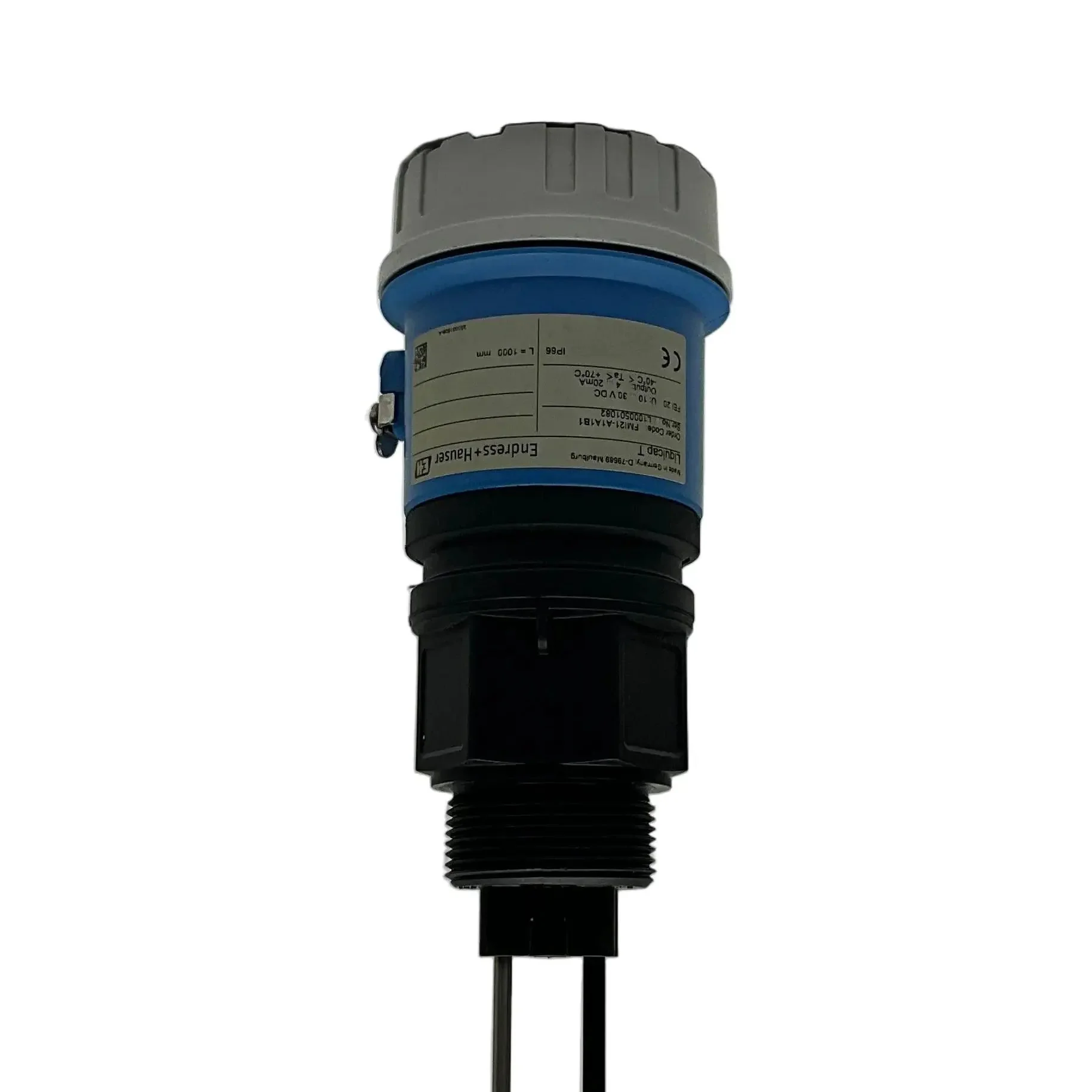

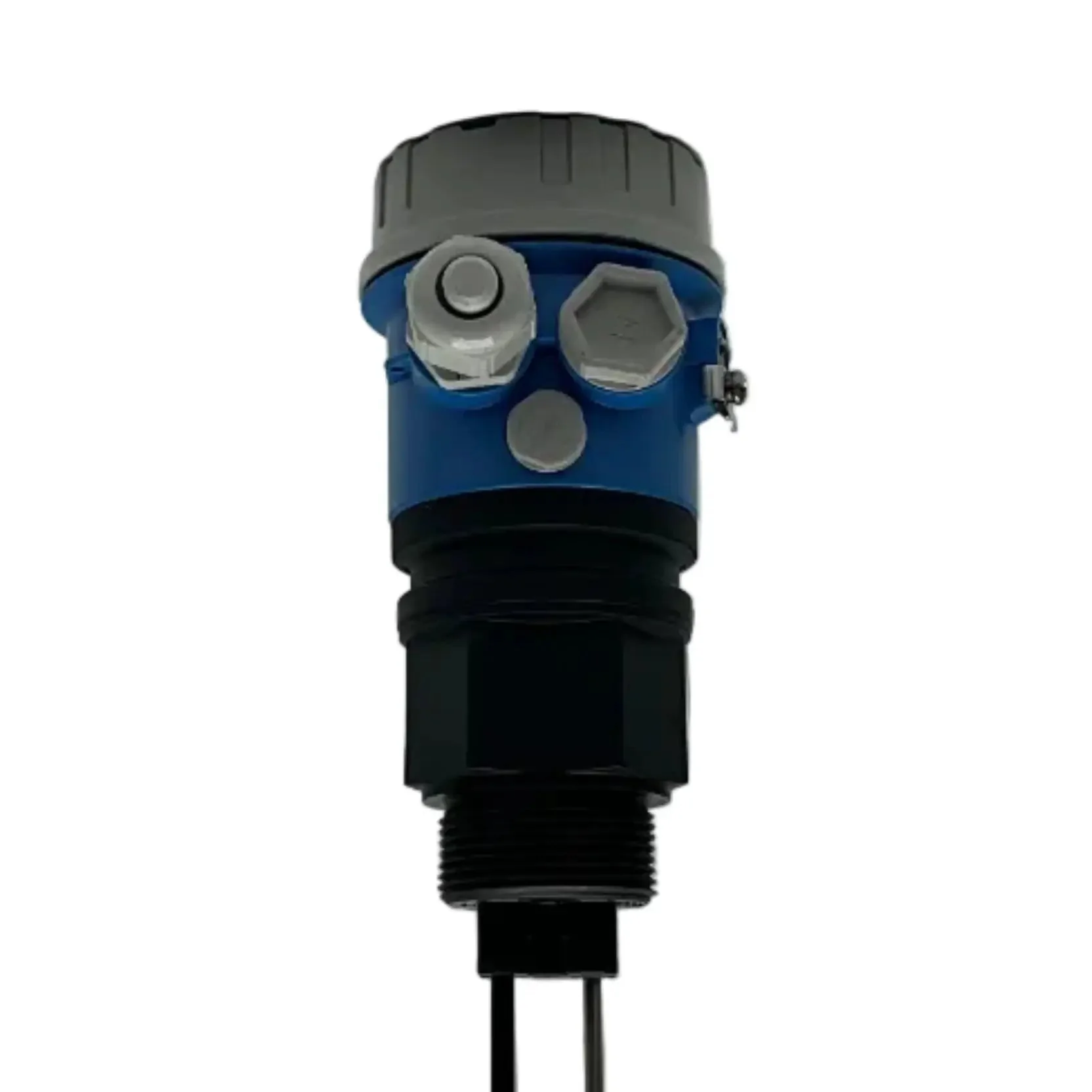

Endress+Hauser Liquicap T FMI21-A1A1B1 Capacitance Level Transmitter

- Brand: Endress+Hauser

- Model: Liquicap T FMI21

- Type: Capacitance Level Transmitter / Probe

- Part number: FMI21-A1A1B1

- Technical specifications:
- Measuring principle: Capacitance
- Measuring range: Up to 2.5 m
- Process pressure: Vacuum to 10 bar
- Process temperature: -40°C to +100°C
- Output: Analog 4–20 mA
- Supply voltage: 10.5–45 V DC
- Accuracy: <1% of span
- Wetted materials: Probe rods 316L/1.4404 stainless steel; PP coated
- Housing: Plastic
- Protection class: IP66 / IP67
- Additional features: High overload resistance; compact design; easy installation; suitable for CIP/SIP in food/pharma; EMC compliant
- Standards: Compliant with IEC/EN 61010, 61326; CE

Weight: 900 g

Dimensions: 1140 x 90 x 120 mm

Country of origin: Germany

HS code: 9026.20
