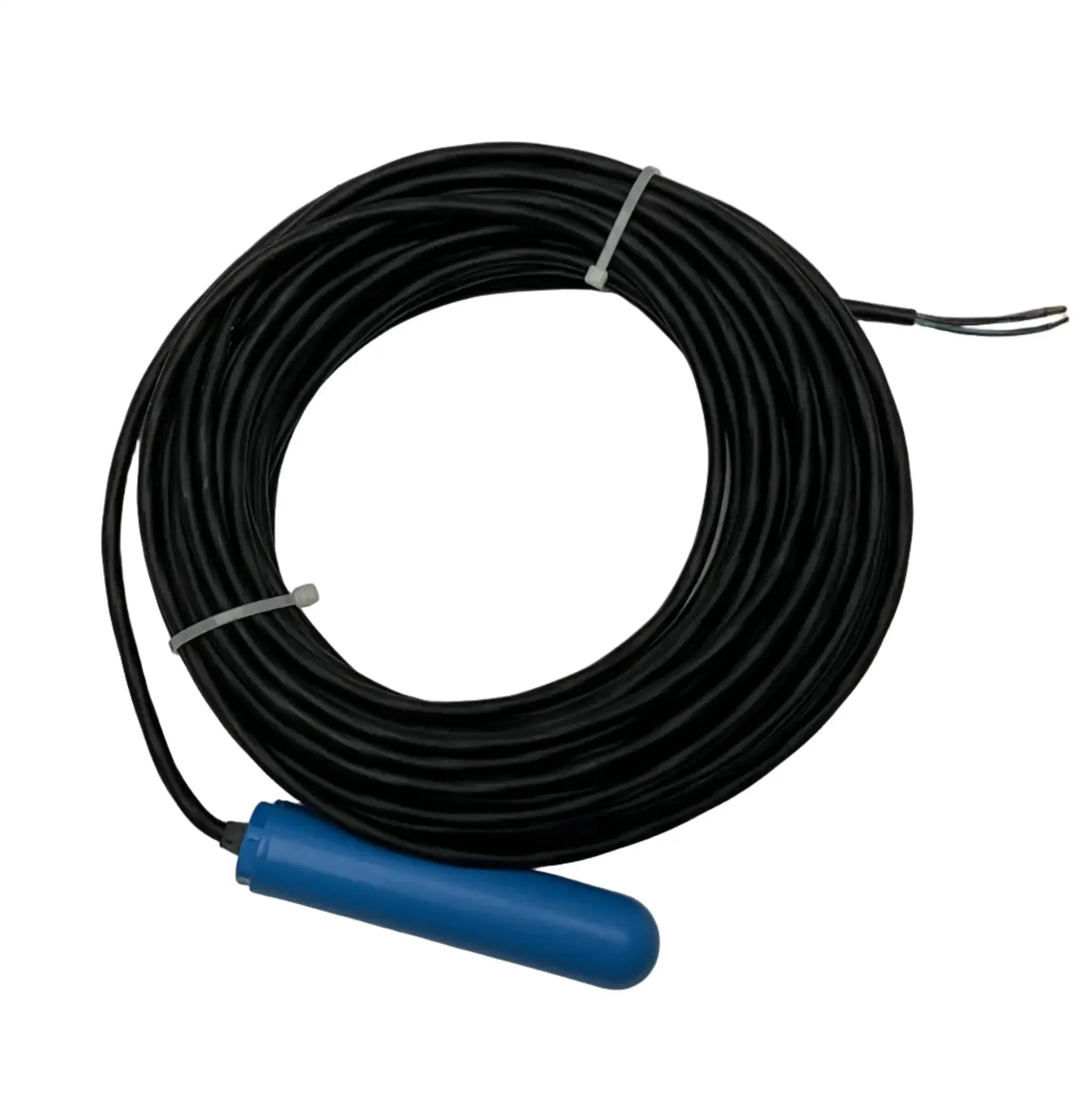

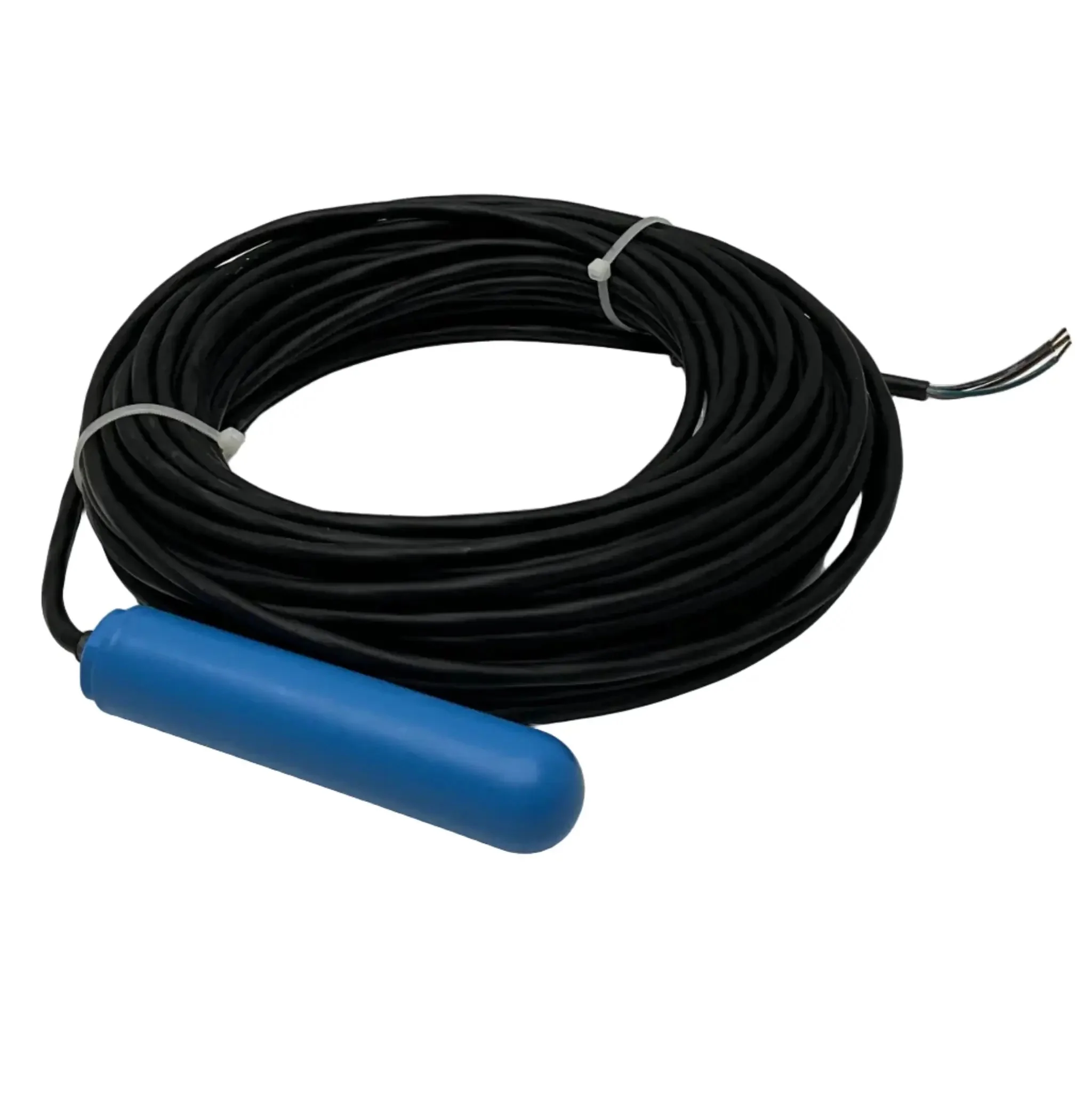

Endress+Hauser Liquifloat FTS20 Point Level Switch

- Brand: Endress+Hauser
- Model: Liquifloat FTS20
- Type: Point Level Switch
- Part Number: 71035522

- Technical Specs:
- Measuring Principle: Float-operated with microswitch
- Function: Simple, reliable point level detection for liquids in tanks, vessels, sumps, and open channels
- Switch Type: SPDT
- Switching Capacity: Max 4 A at 250 V AC / 150 V DC
- Switching Accuracy: ±3 mm (hysteresis)
- Process Pressure: -1 to +6 bar
- Process Temperature: -20 °C to +70 °C
- Density: ≥ 0.7 g/cm³
- Ingress Protection: IP68
- Cable Length: 20 m
- Cable Material: CSM
- Float Material: Polypropylene (PP) – chemically resistant
- Housing Material: Polypropylene (PP)
- Process Connection: Cable suspension
- Additional Features:
  - Simple installation (suspension)
  - High chemical resistance
  - Maintenance-free operation
  - Robust and reliable even in dirty or viscous media
- Certifications: CE, WHG overfill protection (German Water Resources Act)

Dimensions: 250 x 250 x 60 mm

Weight: 1.3 kg

Country of Origin: Czechia

HS Code: 9026.10
