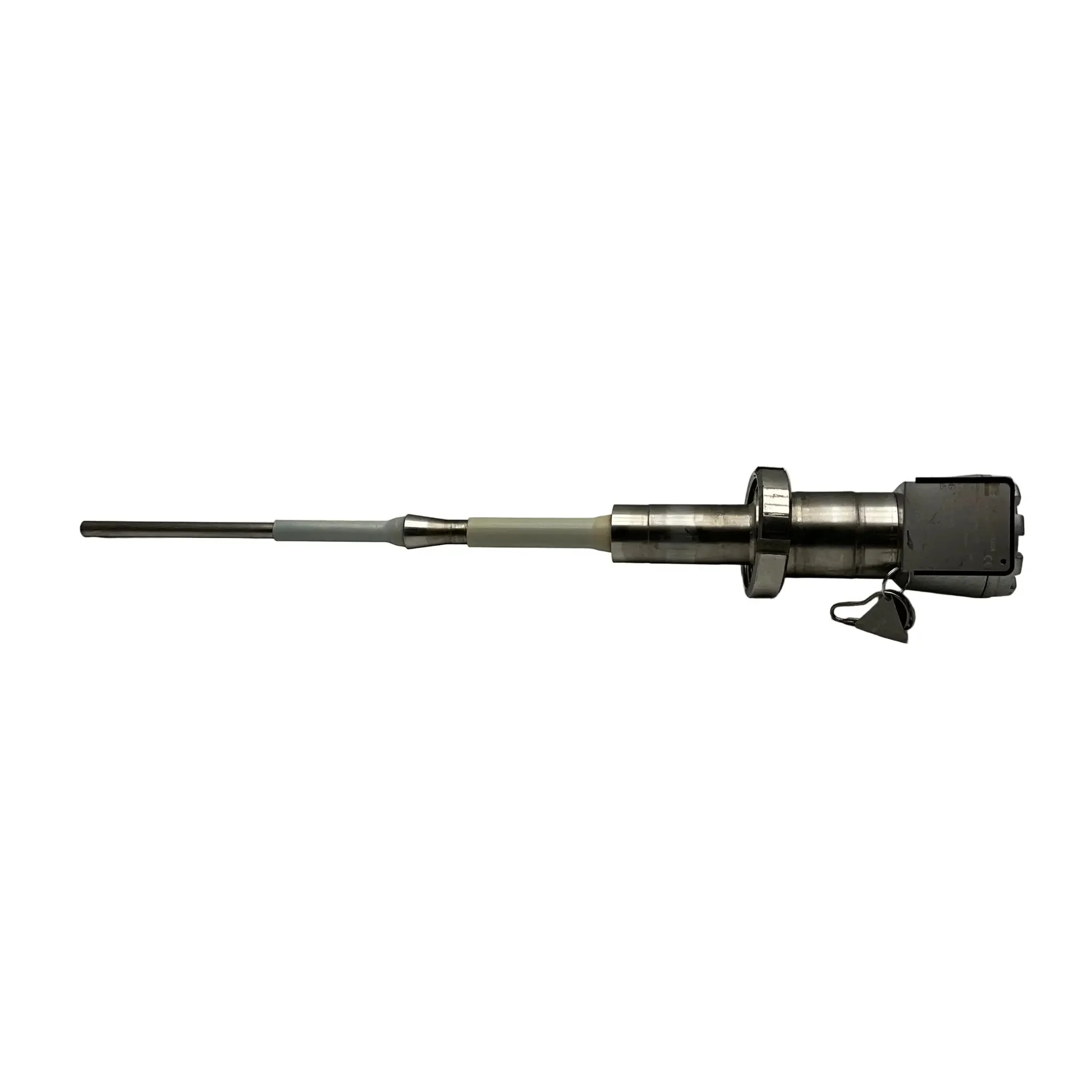

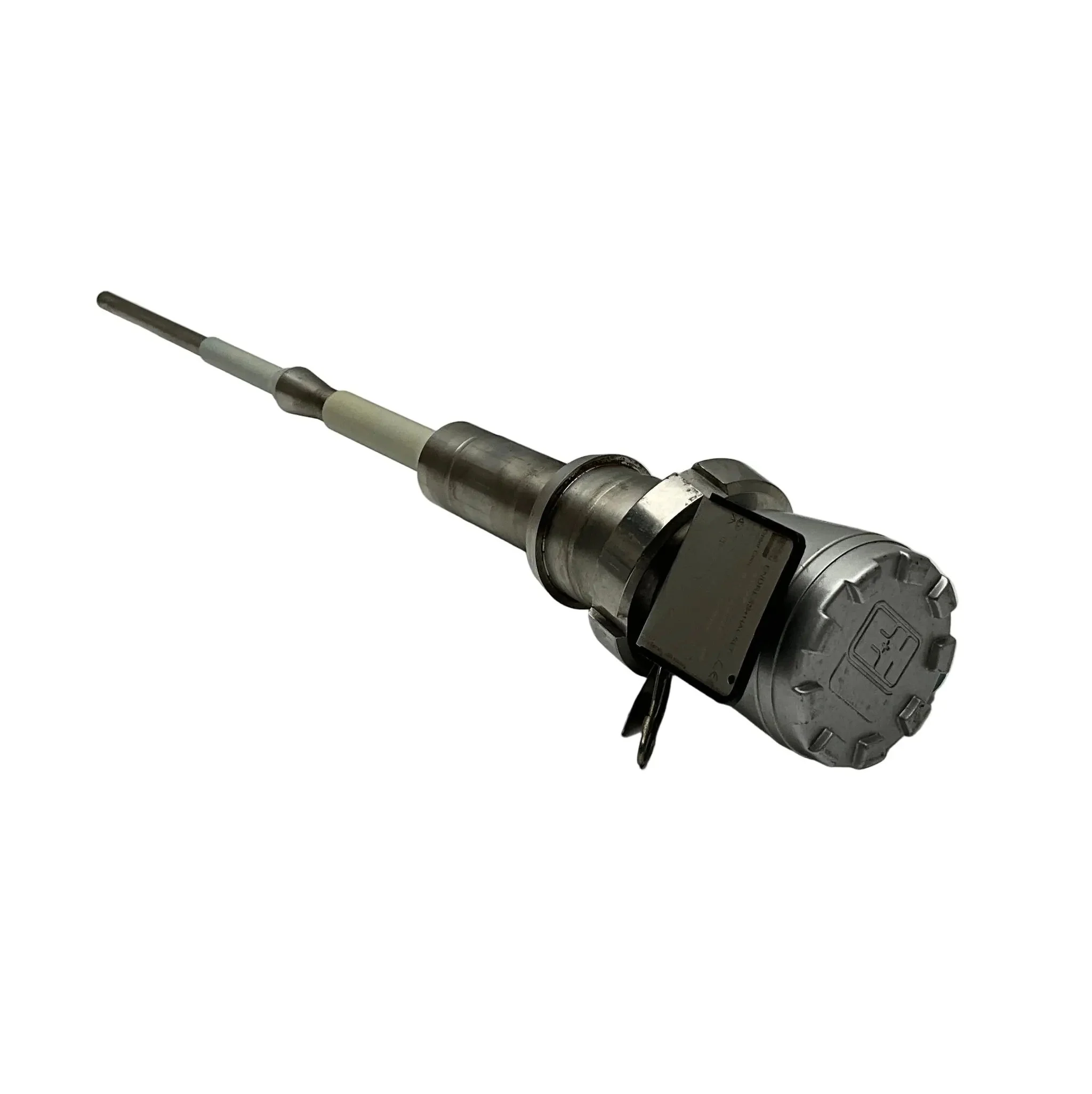

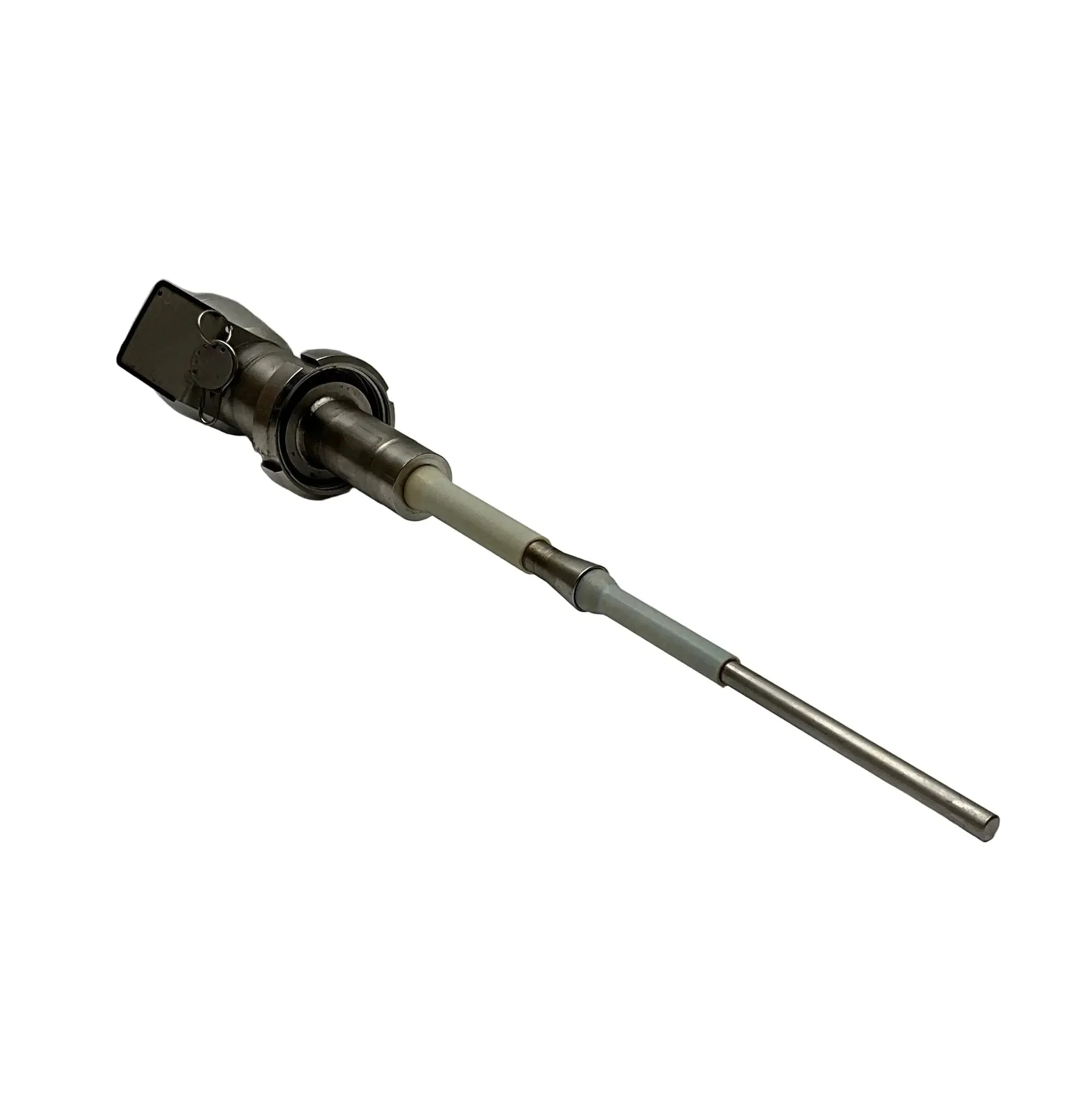

Endress + Hauser Multicap DC16-6FME2C3B12E Capacitive Level Sensor

Brand: Endress+Hauser
Model: Multicap DC16
Type: Capacitive Level Sensor (Rod Probe)

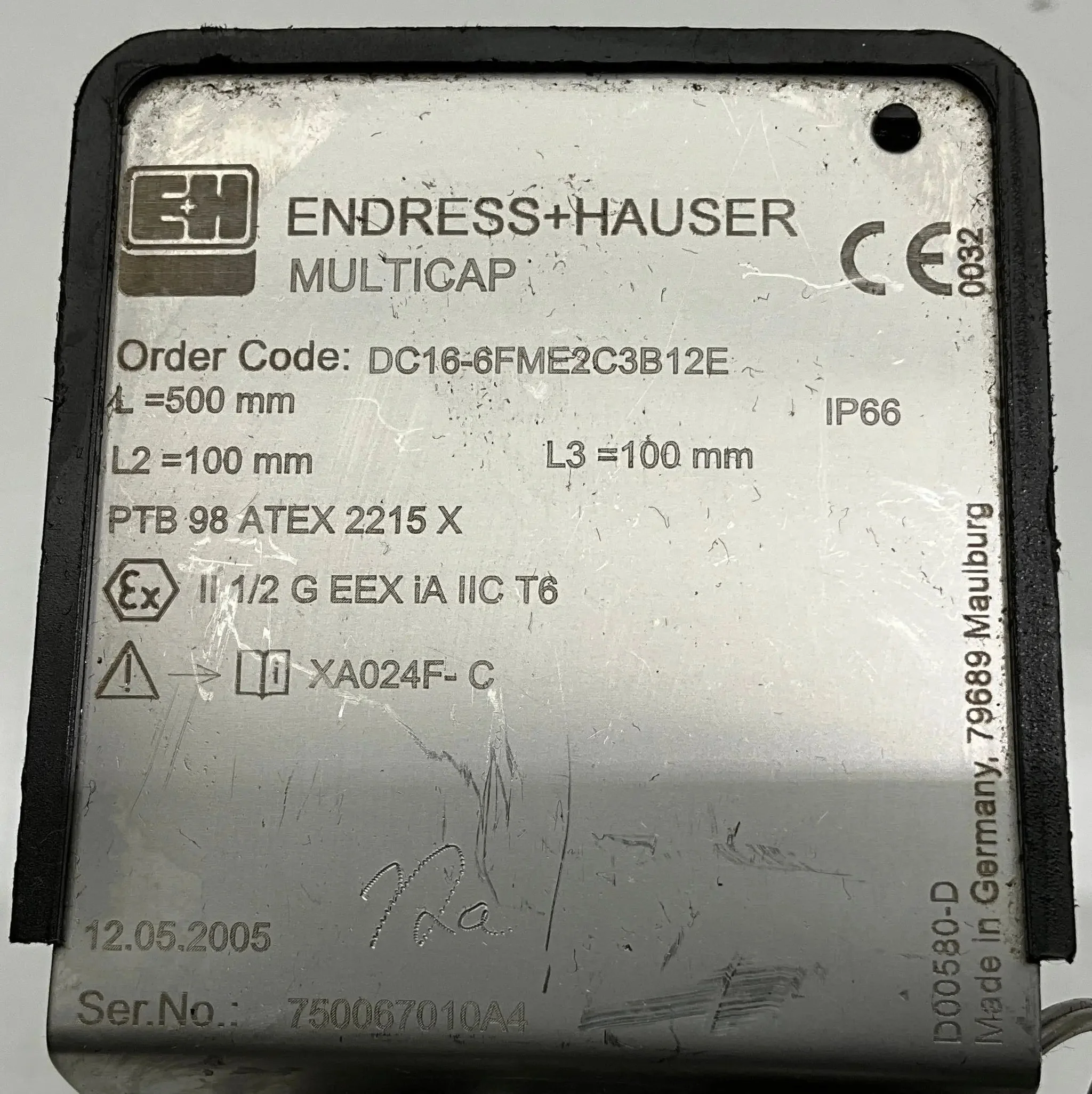

Part Number: DC16-6FME2C3B12E

Technical Specs:
- Sensor Type: Capacitive probe for limit detection in liquids, partly insulated rod probe
- Probe Length: 500 mm
- Process Pressure: -1 to 100 bar
- Process Temperature: -50°C to +150°C
- Medium: Liquids - heavy process conditions, high pressure/high temperature
- Insulation: Partly insulated
- Probe Material: Rod: 316L stainless steel; Insulation: PTFE

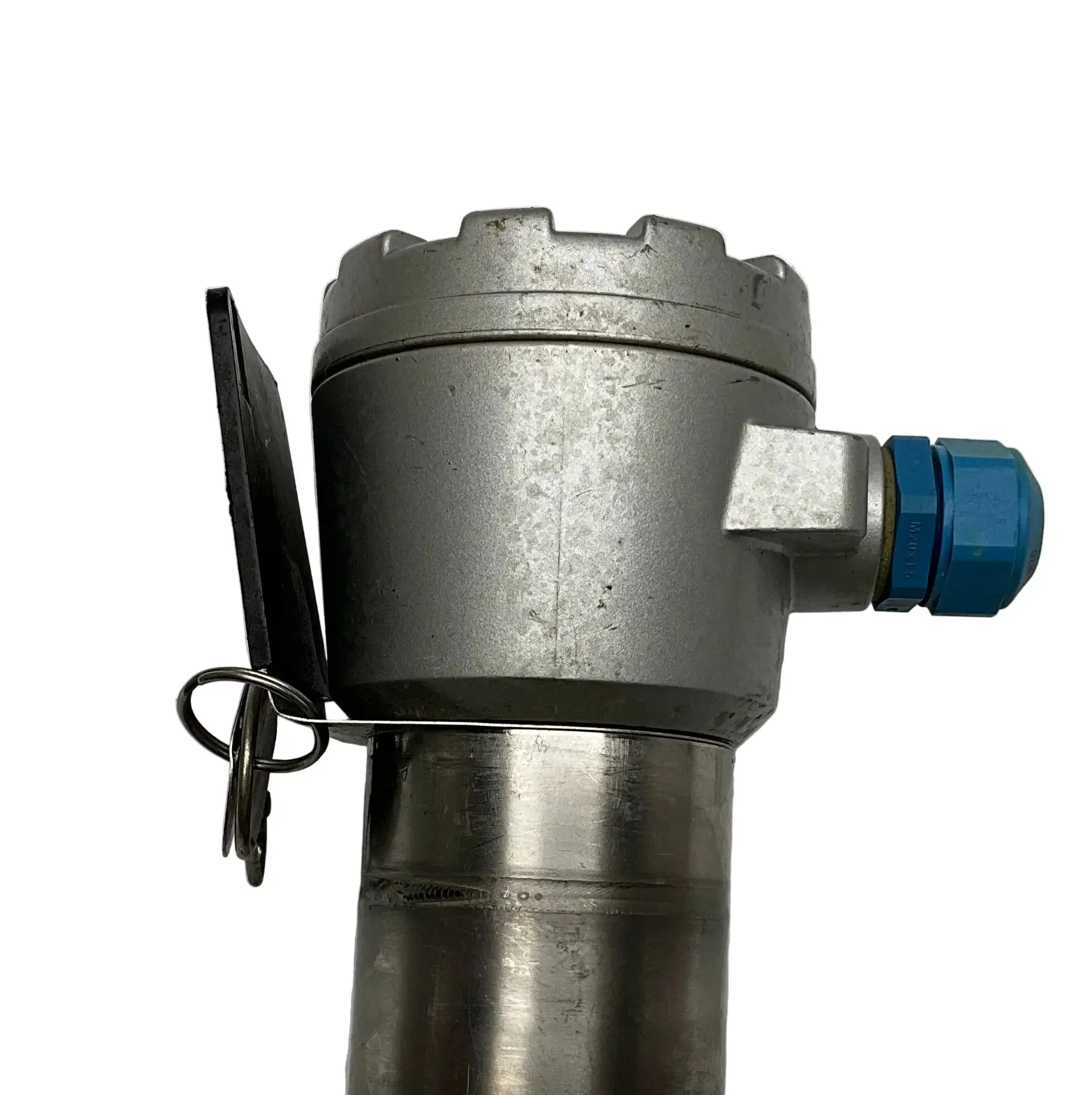

- Housing: Separate terminal chamber, aluminum
- Output: PNP/NPN switch output
- Response Time: < 0.5 s
- Enclosure Rating: IP66
- Additional Features:
  - Longtime stable tightness for reliable operation
  - High mechanical stability against side forces
  - Easy installation with threaded connection
  - Certified for WHG overfill protection (DIBt approved)
- Certifications: ATEX (II 1/2 G EEx ia IIC T6), IECEx, DIBt (overfill prevention)

Dimensions: 670 x 160 x 120 mm

Weight: 3.0 kg

Country of Origin: Germany

HS Code: 9026.10
