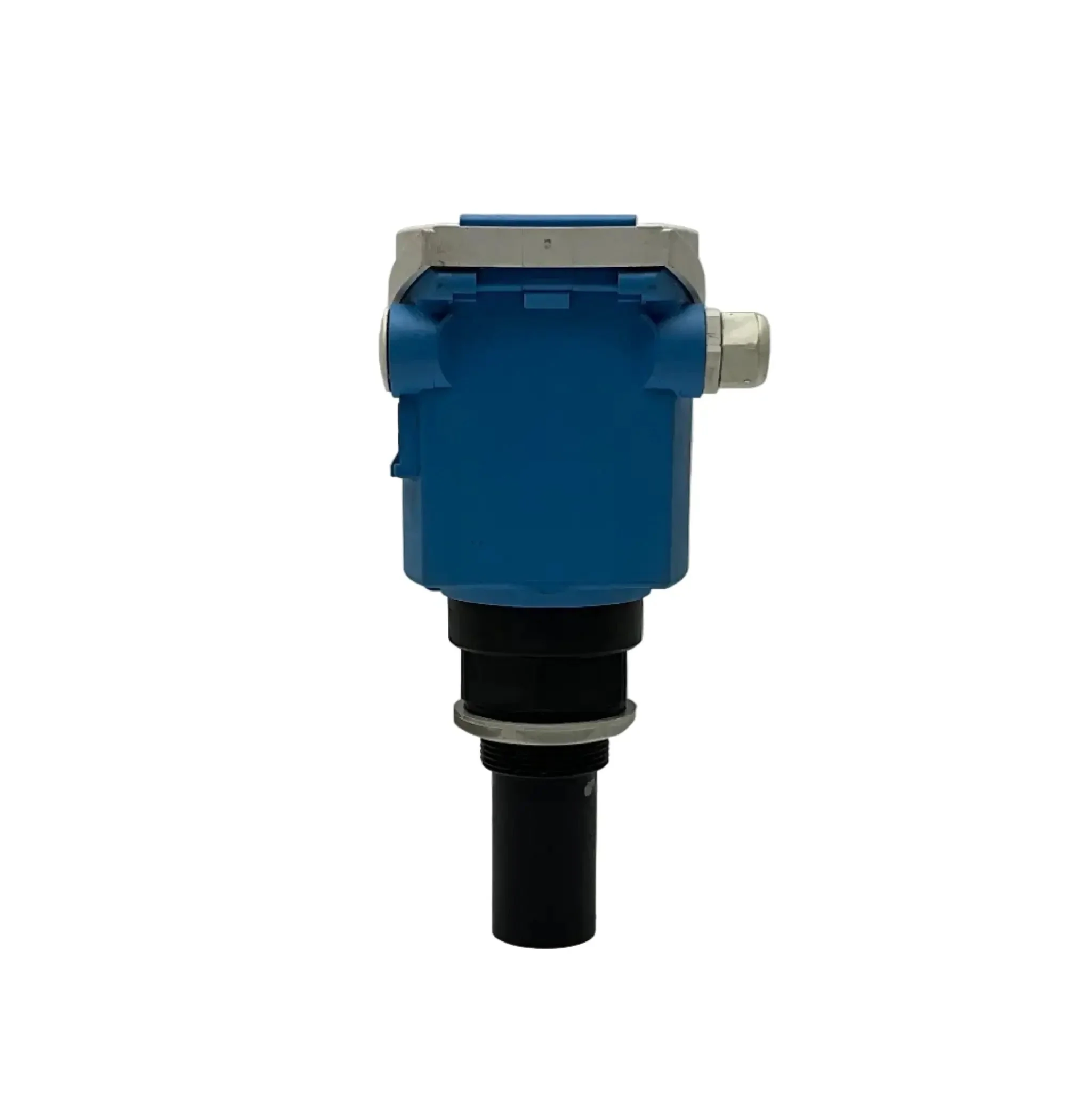

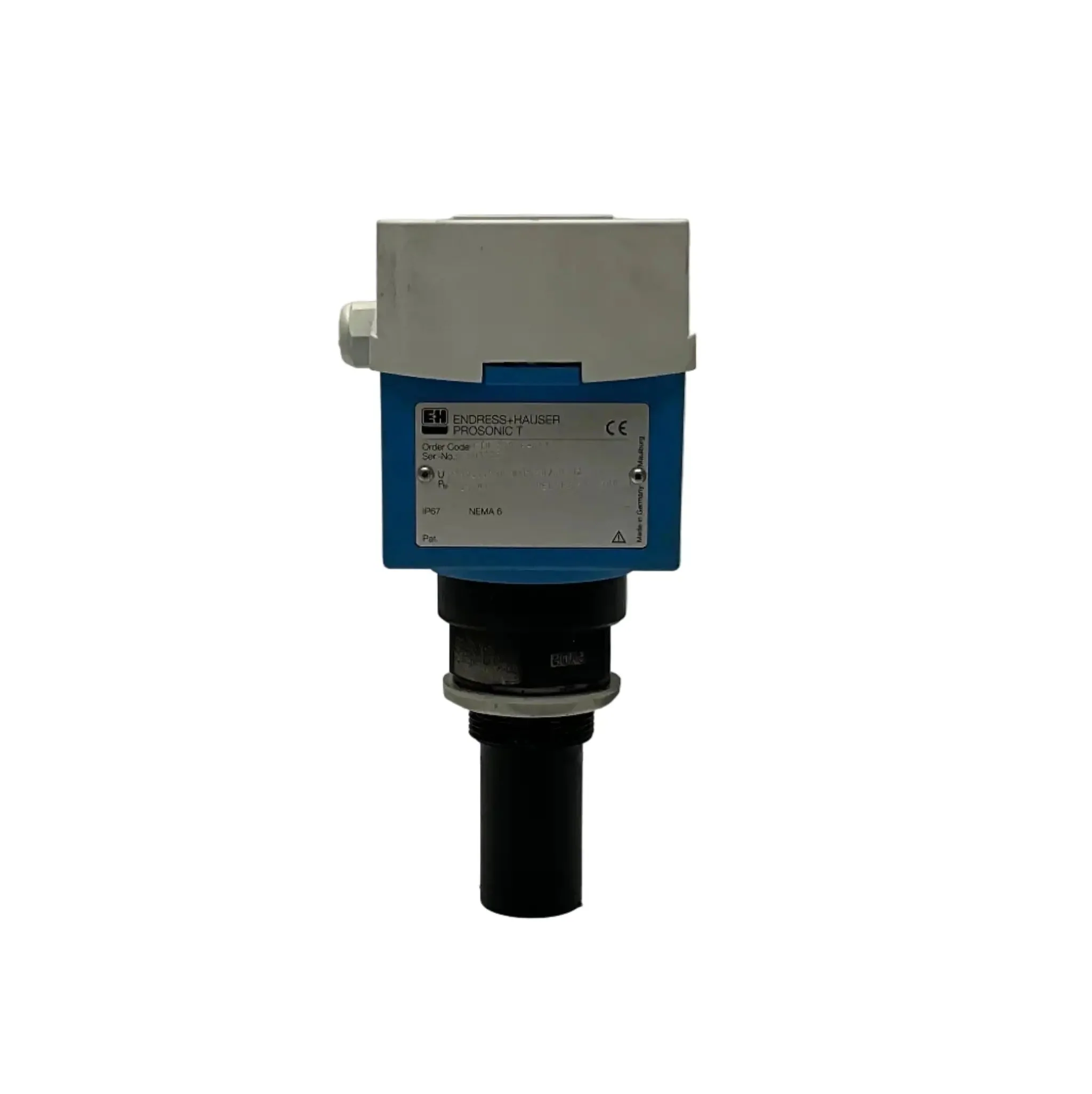

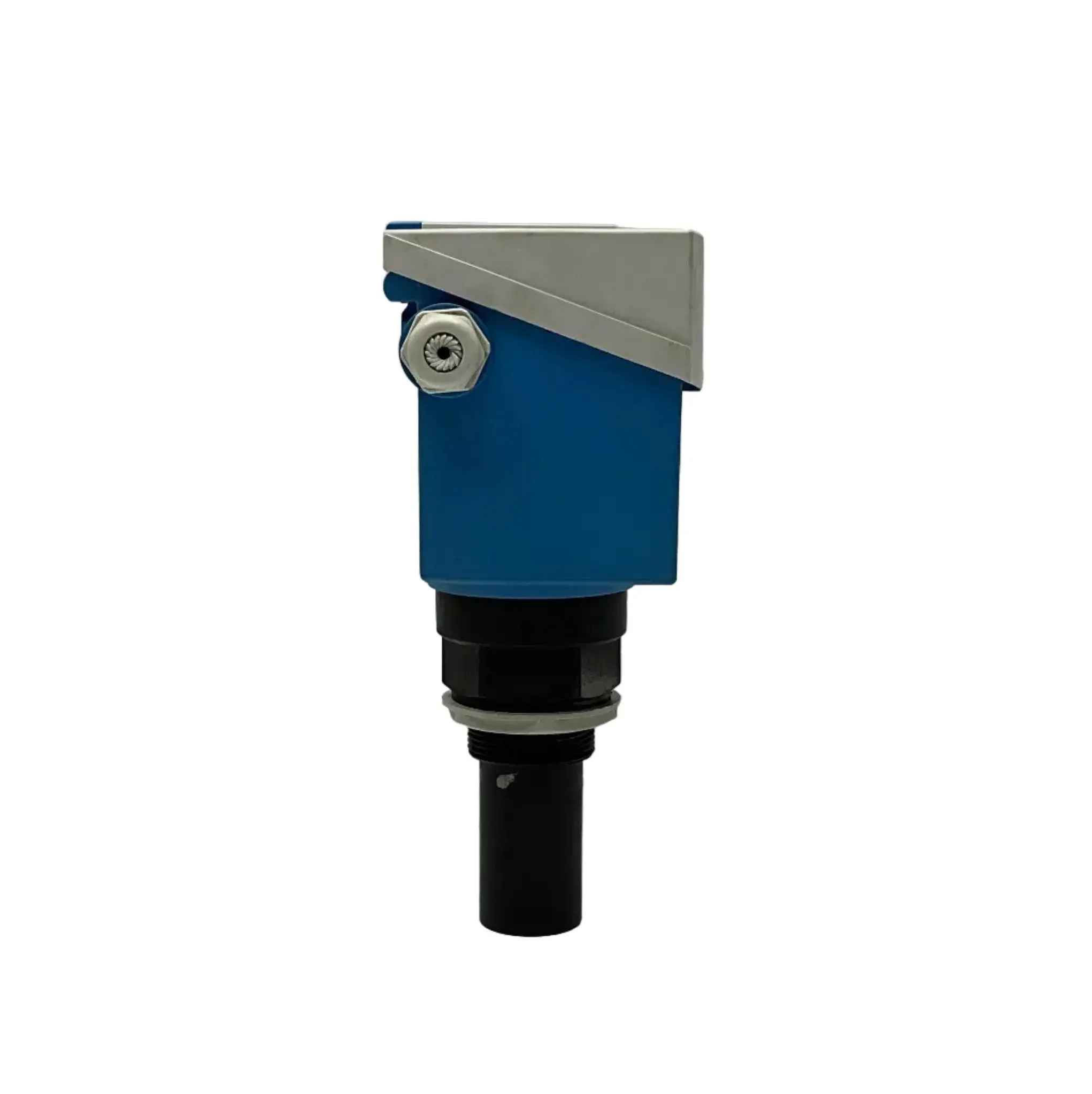

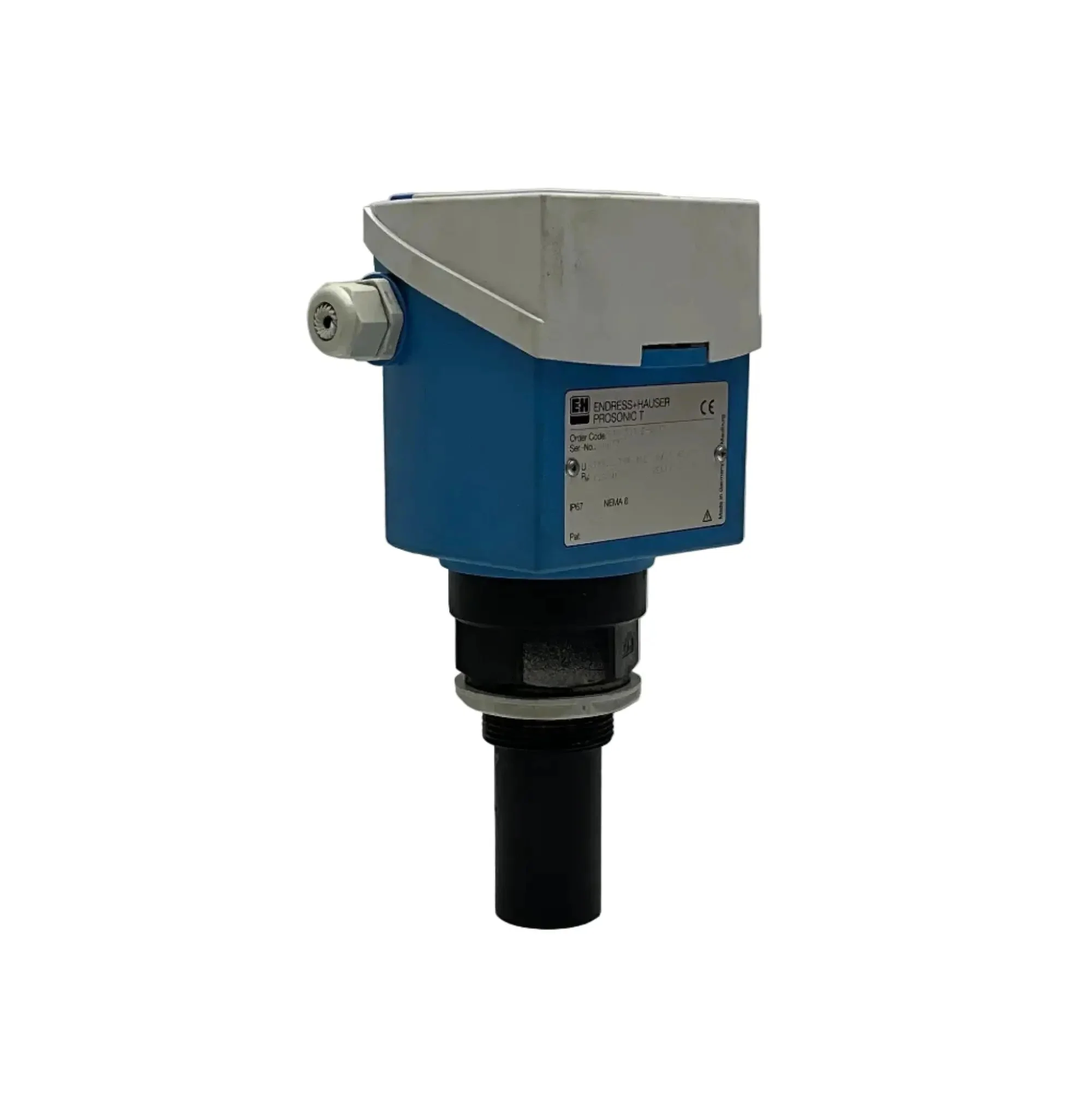

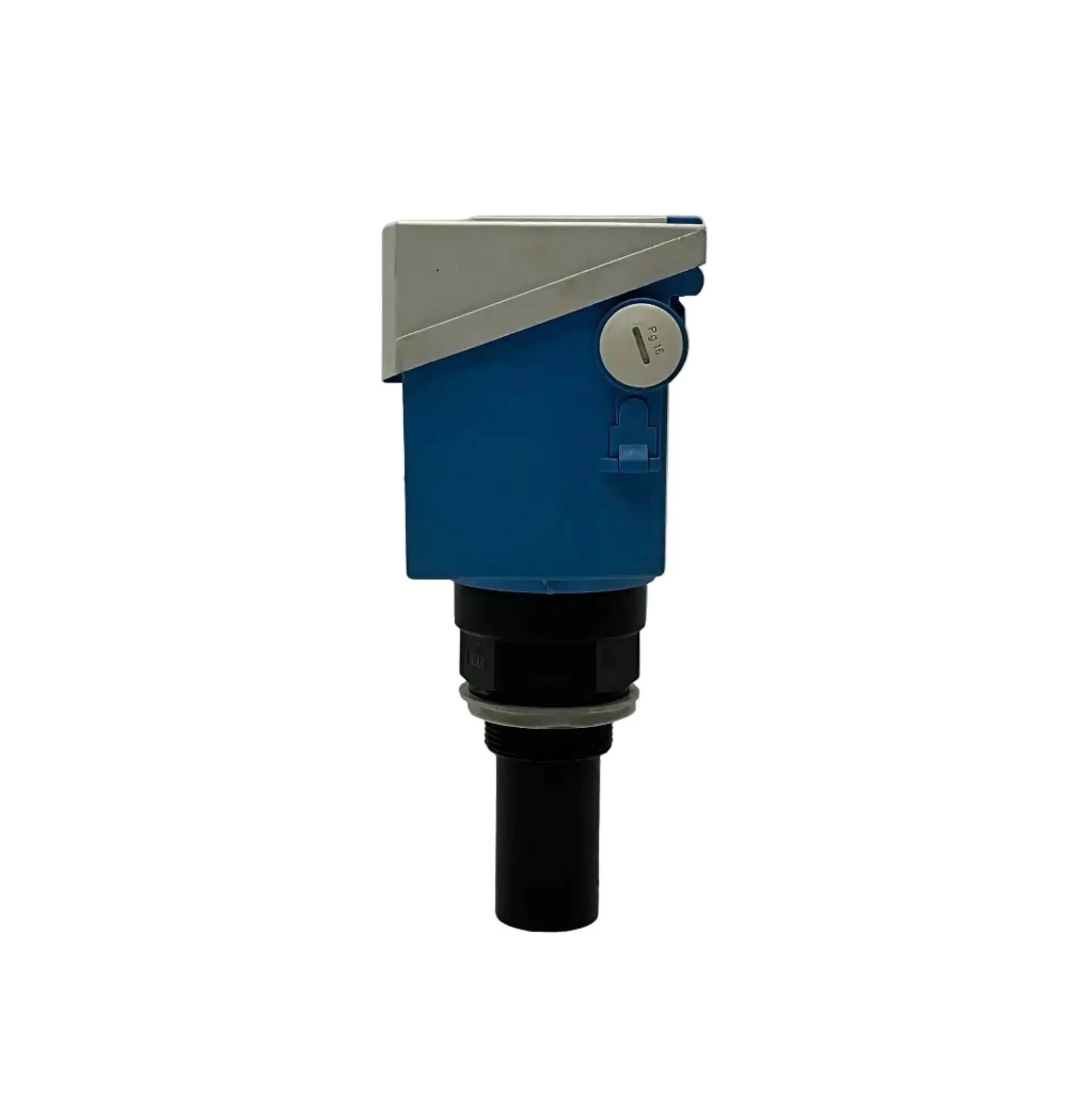

Endress+Hauser Prosonic T FTU 230 E-AA12 Ultrasonic Level Transmitter

- Brand: Endress+Hauser
- Model: Prosonic T FTU230
- Type: Ultrasonic Level Transmitter
- Part Number: FTU230 E-AA12

Technical Specs:
- Measuring Principle: Ultrasonic
- Measuring Range: Liquids: 5 m, Solids: 2 m
- Accuracy: ±0.2 % of measured distance
- Grain size: <10 mm
- Process Temperature: -40 °C to +80 °C
- Process Pressure: 0.7 to +3 bar (absolute)
- Frequency: 70 kHz
- Beam Angle: 12°
- Communication: Relay
- Supply Voltage: 180 …..250V AC 50/60 Hz
- Enclosure Rating: IP67 (NEMA 6)
- Housing Material: Plastic
- Process Connection: G 1 1/2
- Sensor Material: PVDF (polyvinylidene fluoride) – chemically resistant
- Additional Features:
  - Automatic sensor recognition
  - Linearisation table for volume calculation
  - Empty/full calibration with teach-in
  - Integrated data logger and event log
  - Easy 3-button operation or via Field Xpert
- Certifications: IECEx, CSA, FM, NEPSI, WHG overfill protection

Dimensions: 260 x 140 x 120 mm

Weight: 1.5 kg

Country of Origin: Germany

HS Code: 9026.10
