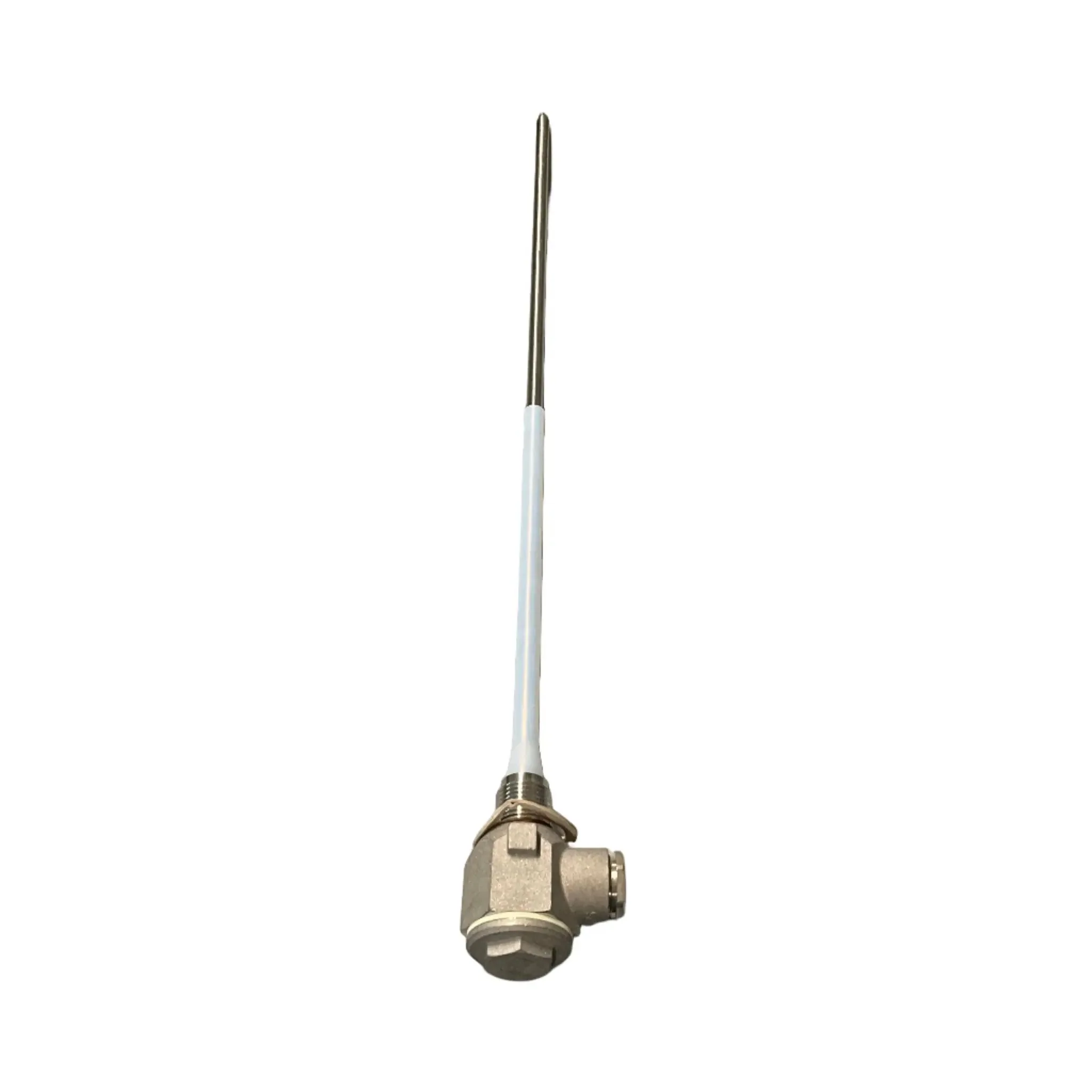

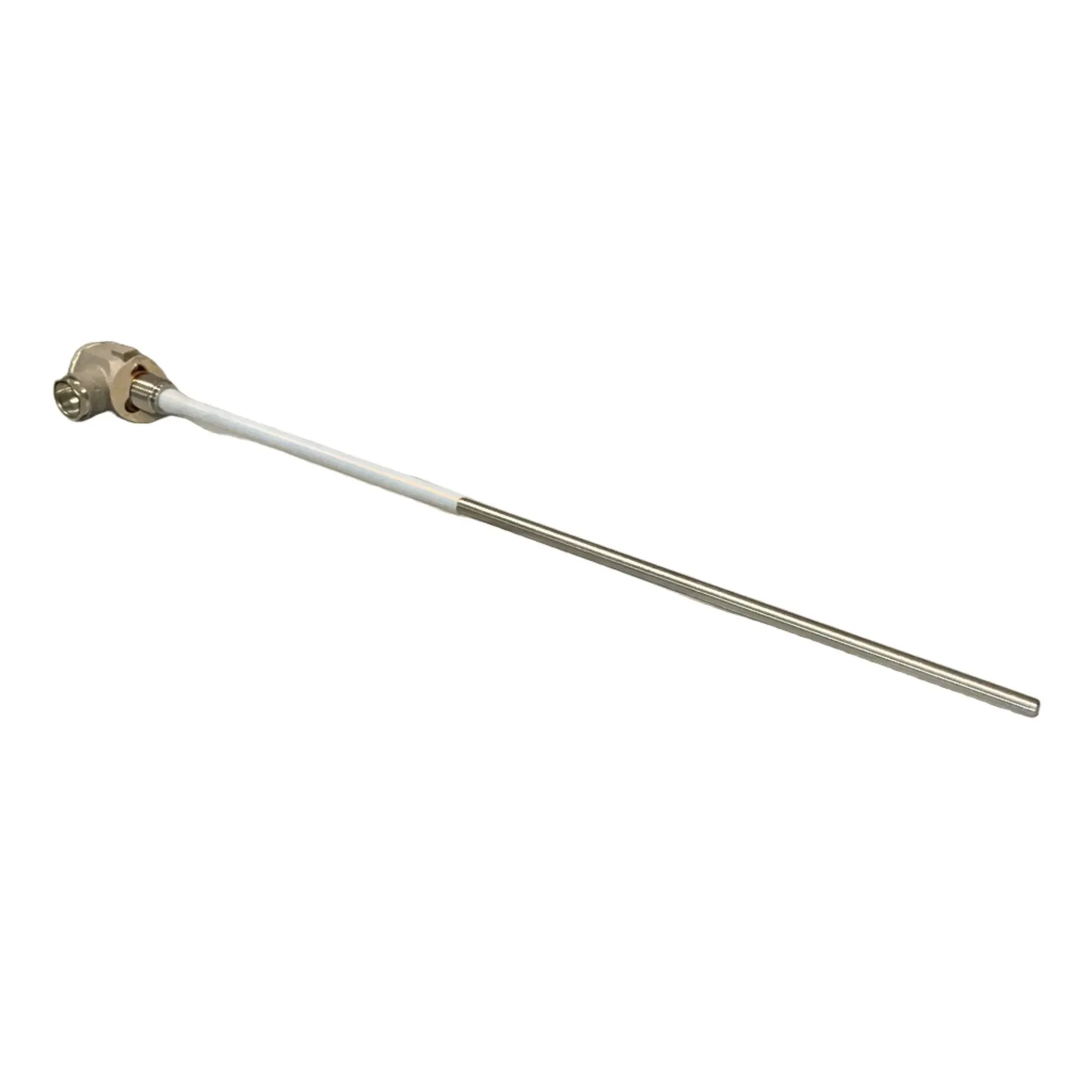

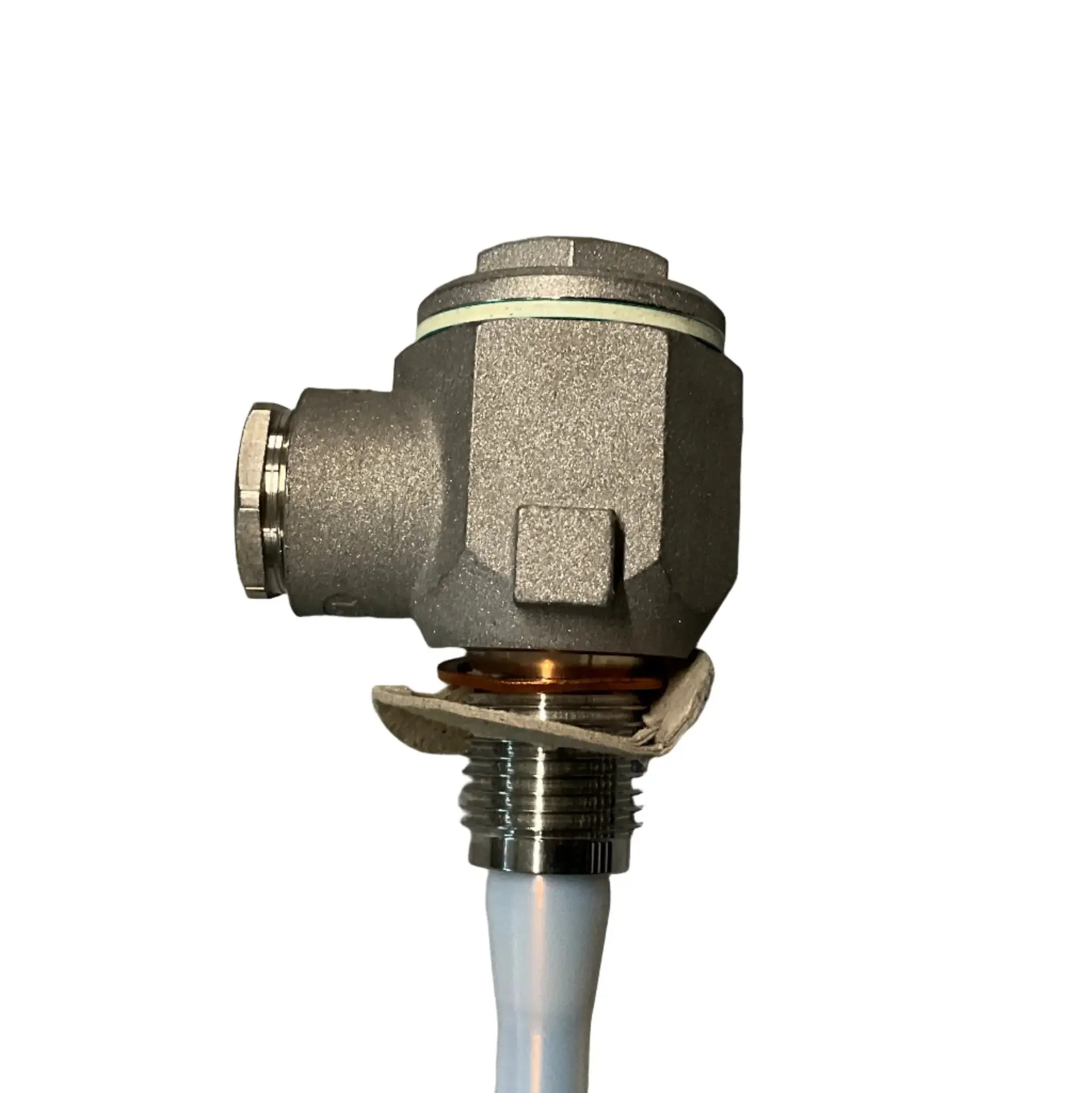

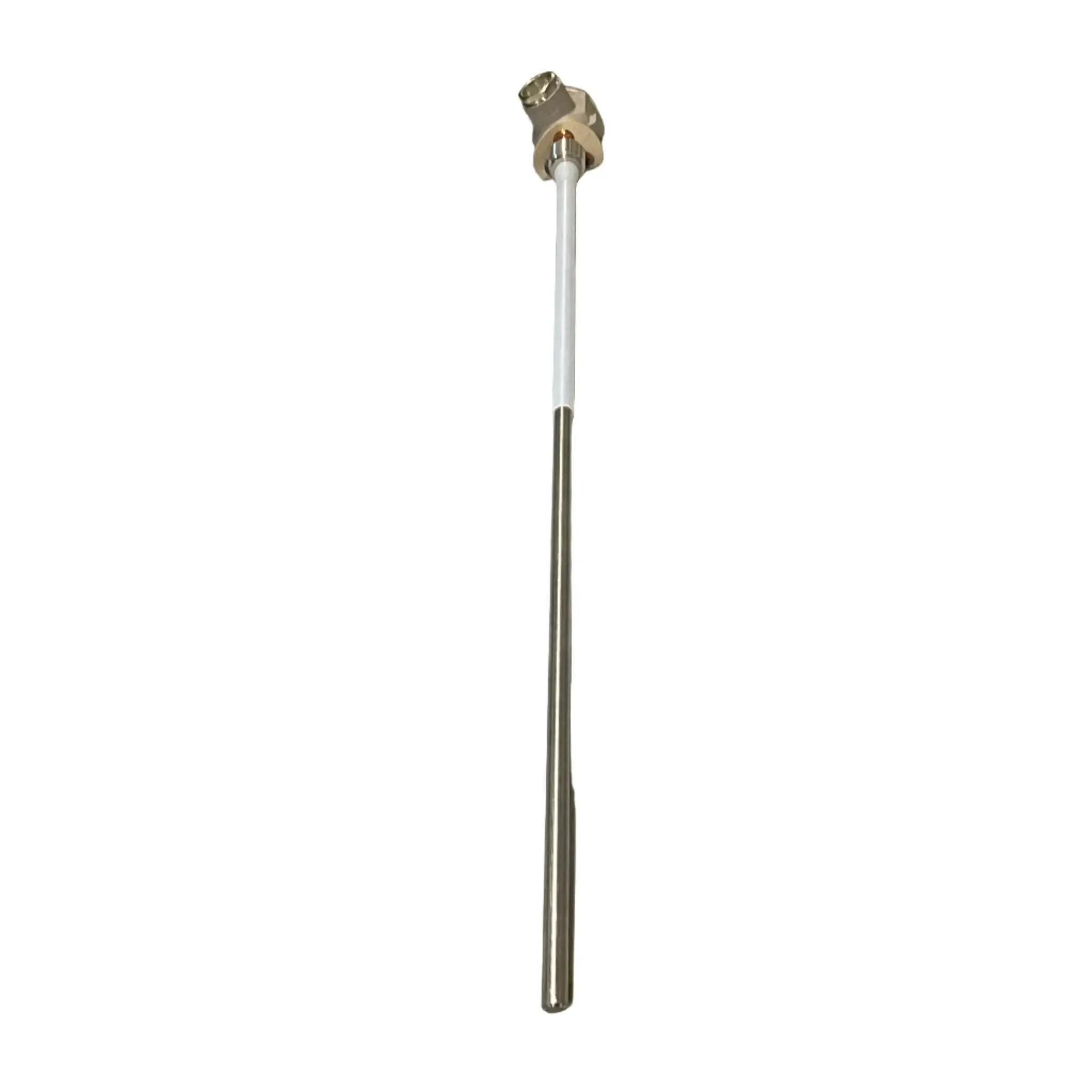

Endress+Hauser Sonde 11375Z-RXG1A2A3 Conductive Point Level Detection Probe

Brand: Endress+Hauser

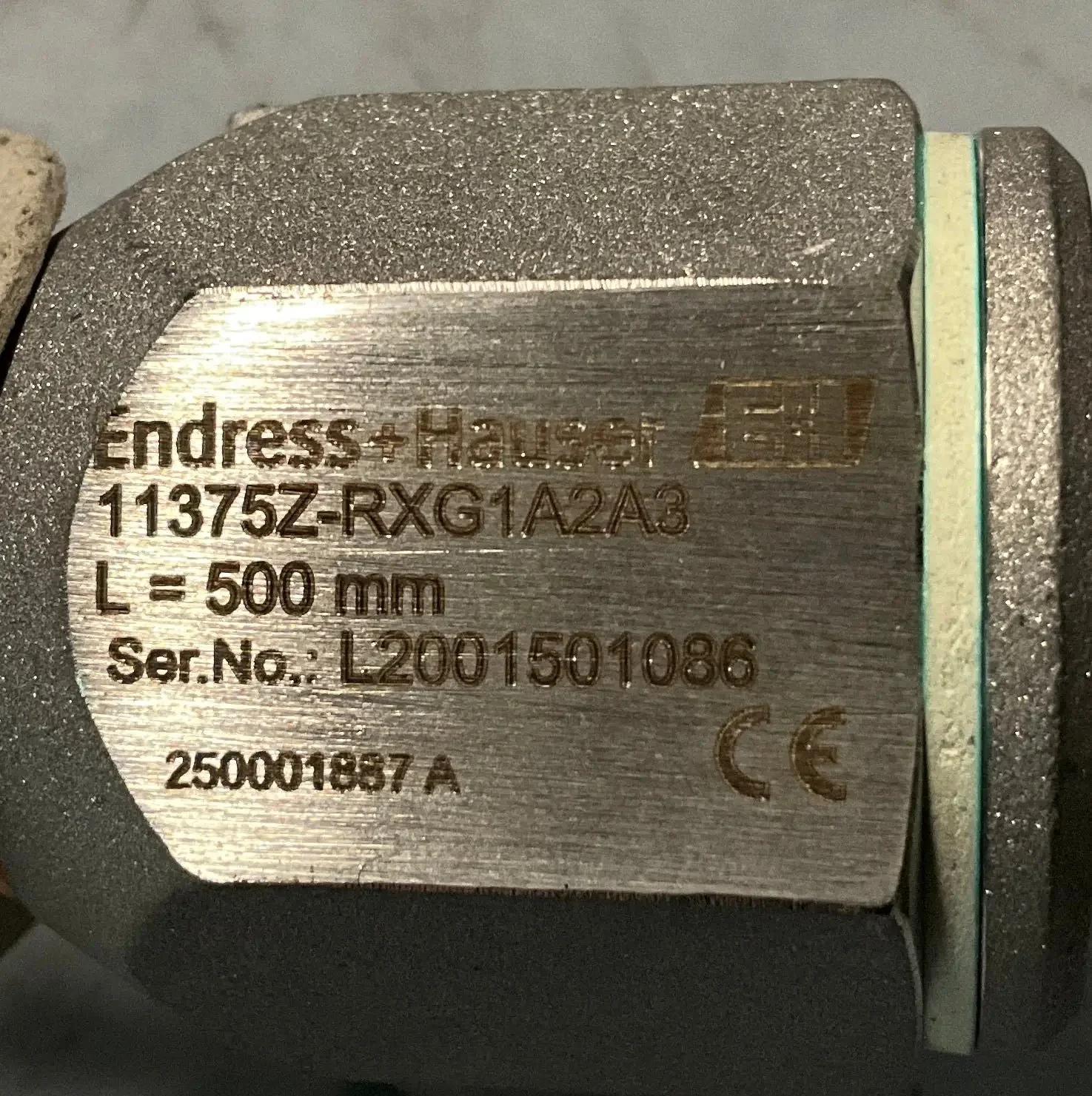

Model: 11375Z-RXG1A2A3
Type: Conductive Point Level Detection Probe
Part Number: 918642-9000

Technical Specs:
- Sensor Type: One rod probe, partially insulated
- Thread Connection: ISO228 G1/2"
- Probe Length: 500mm
- Insulation Length: 210mm
- Process Temperature: -40°C to 135°C
- Process Pressure: Vacuum to 50 bar
- Minimum Conductivity: 0.02 mS/cm
- Material:
  - Probe: 316Ti stainless steel
  - Insulation: PTFE
- Safety Features:
  - Certified for overfill prevention with WHG
  - Suitable for use in explosive atmospheres (Zone 0) with intrinsically safe signal circuit
- Electrical Connection: Terminal block
- Protection Rating: IP65
- Operating Temperature Range (Ambient): -40°C to 80°C
- Additional Features:
  - Long service life and reliable operation without wear due to no moving parts
  - Optional spacer for temperature reduction in high-temperature applications (above 100°C)
  - Corrosion-resistant design for harsh industrial environments
- Certifications:
  - Food hygiene: 10/2011, 1935/2004
  - EAC (TR CU 020/2011, Eurasian Economic Union)
  - WHG overfill prevention

Dimensions: 550 x 60 x 40 mm

 Weight: 500g

Country of Origin: Germany

HS Code: 9026.10
