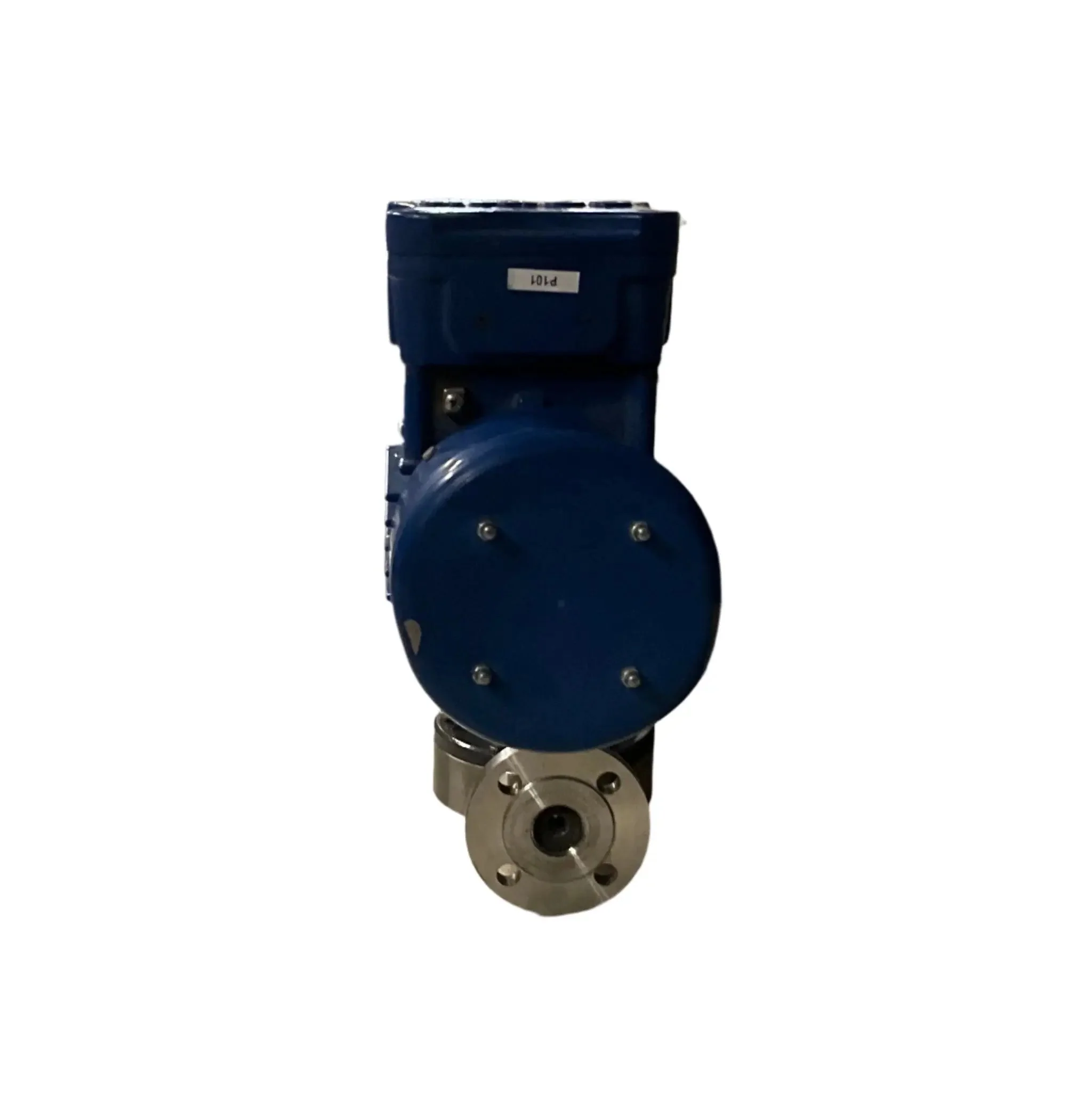

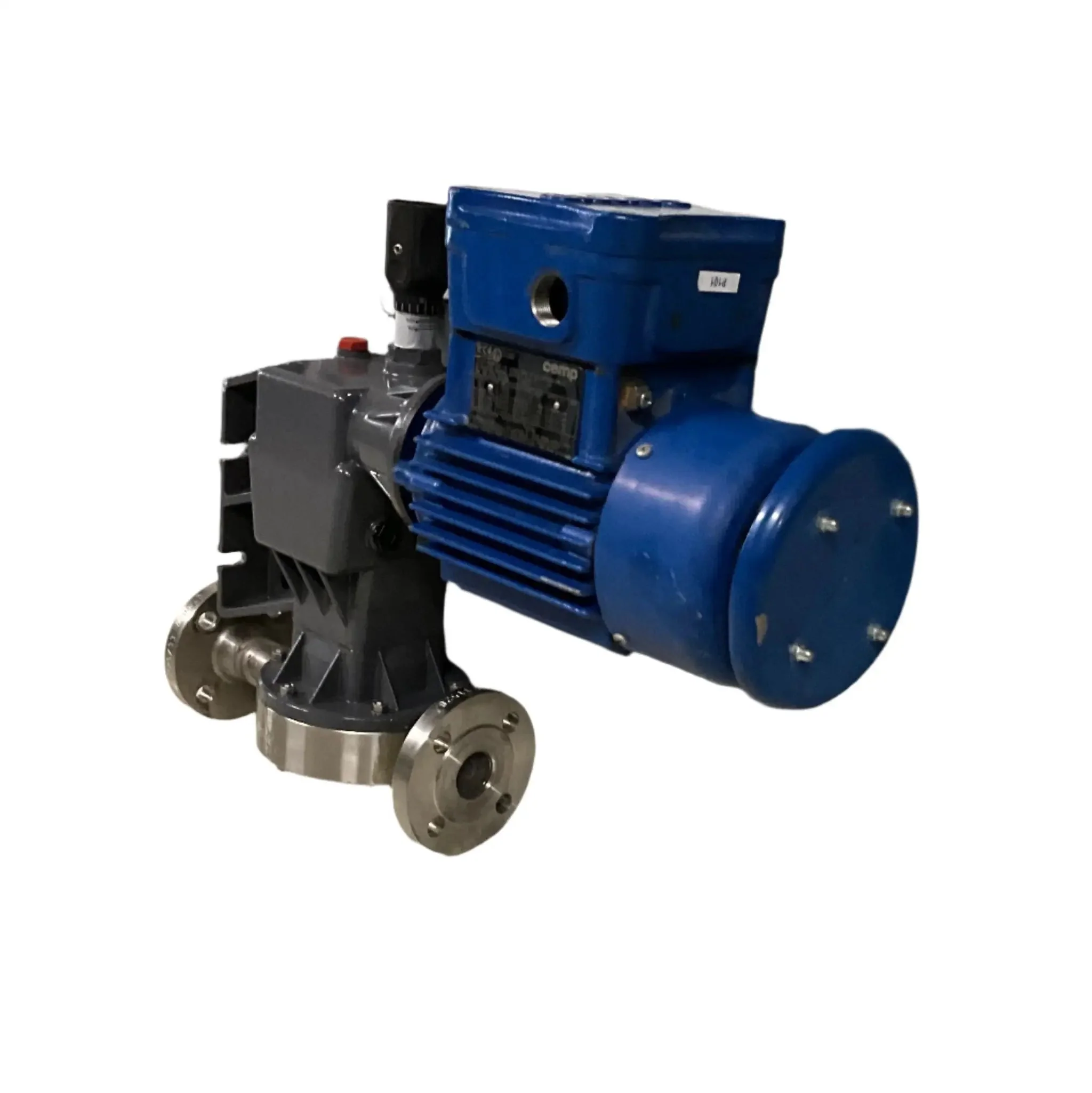

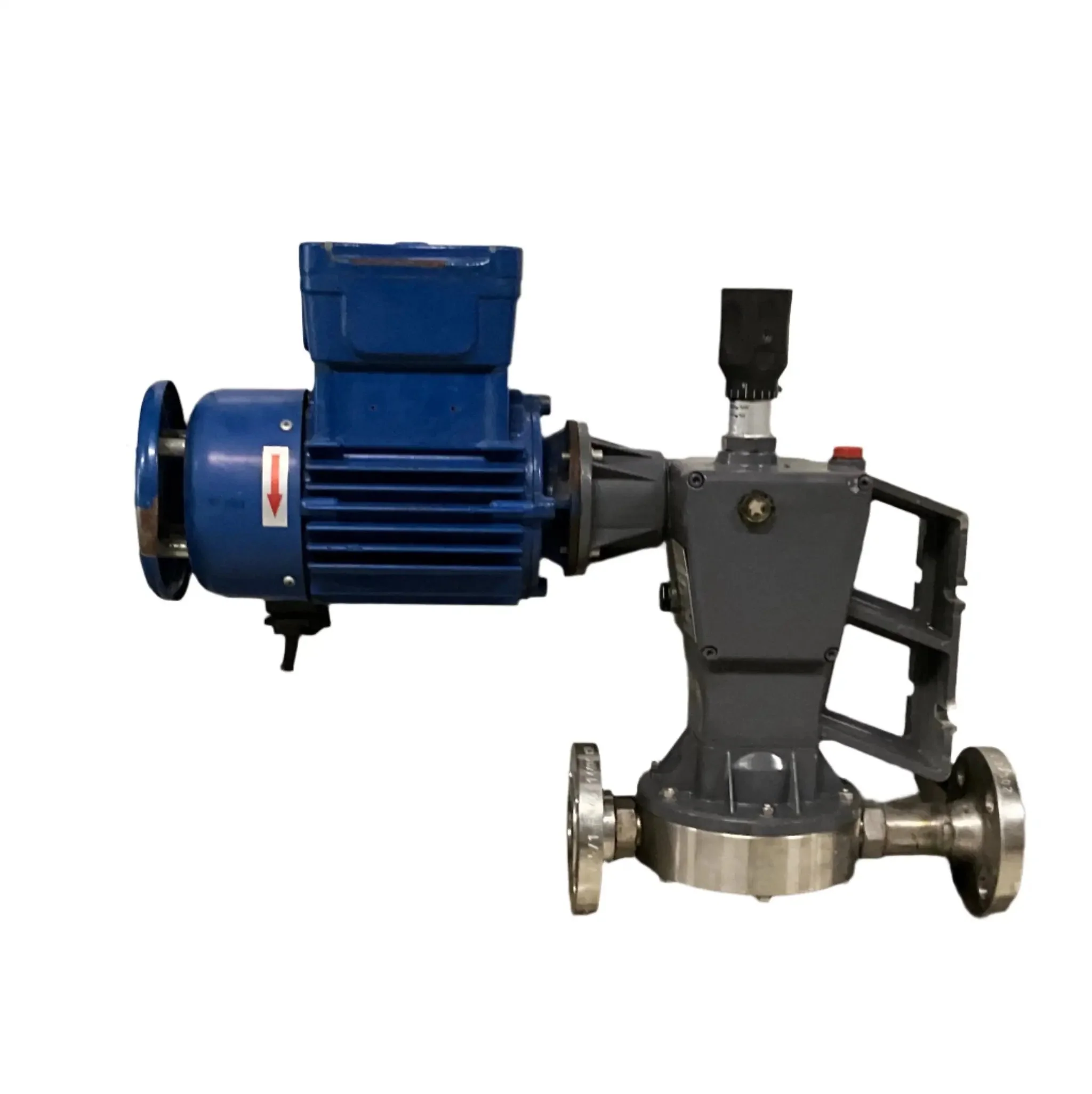

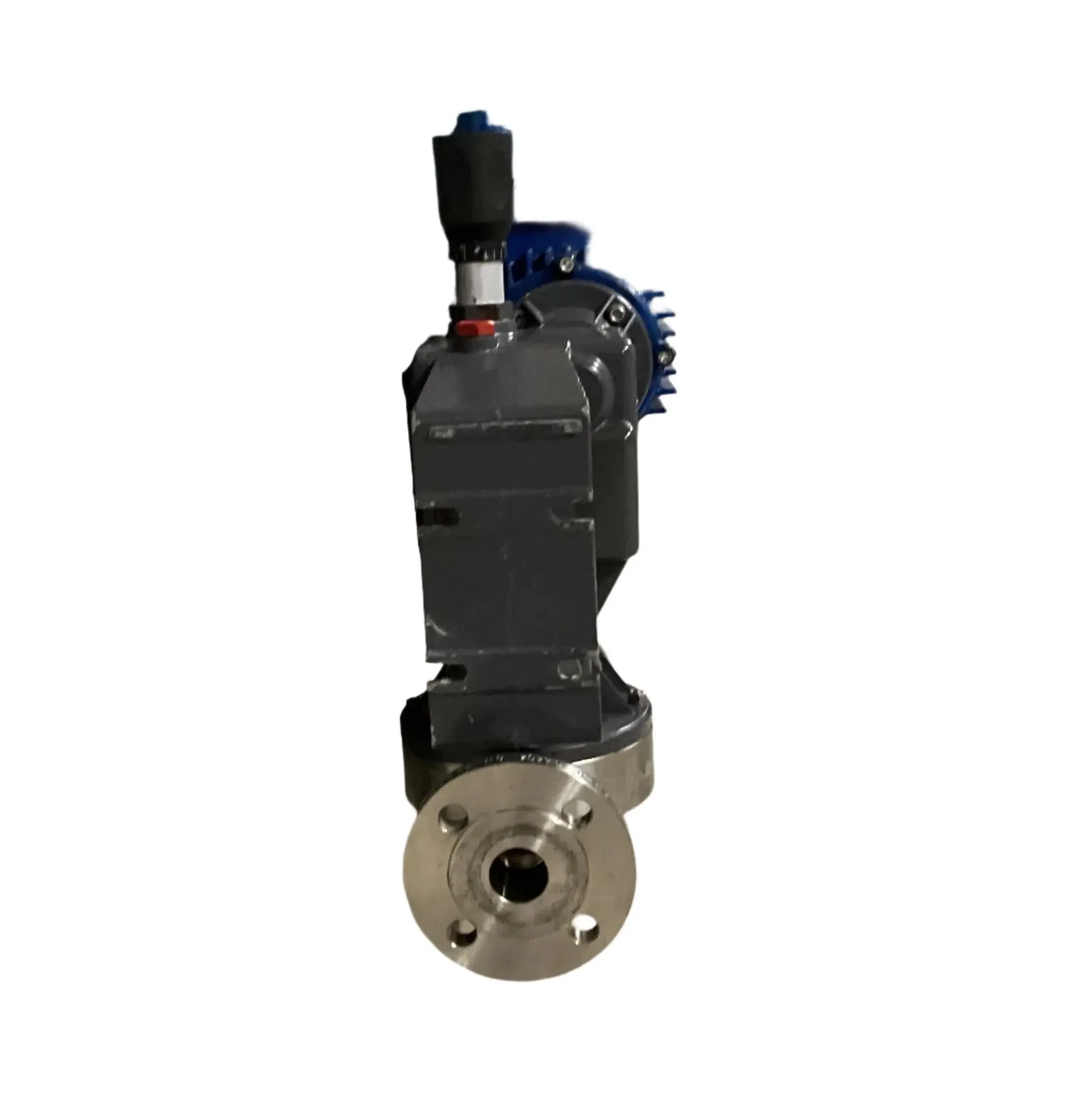

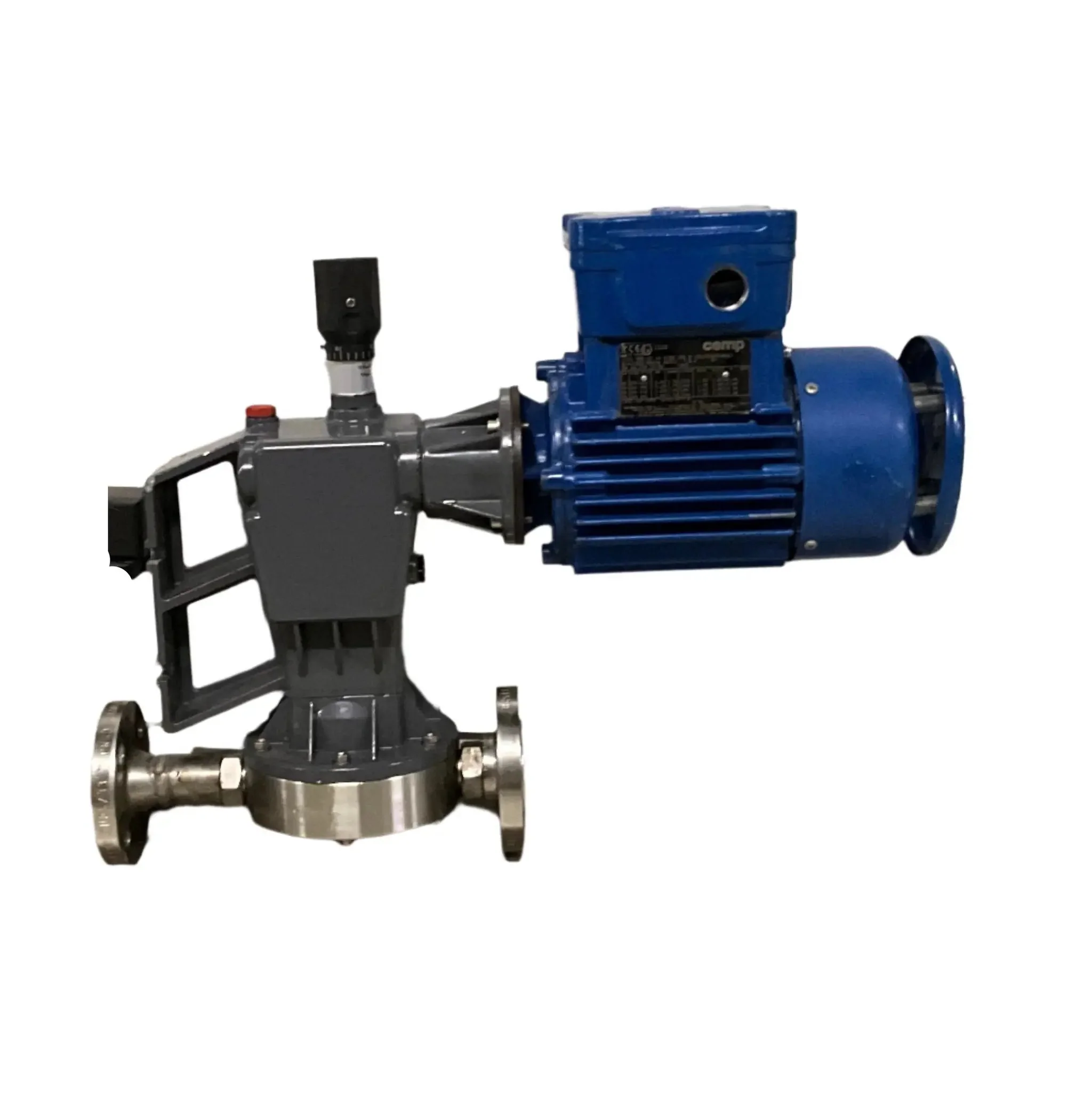

Etatron YD150AP00B000 Dosing Pump

Brand: Etatron
Model: YD150AP00B000
Type: Motor-Driven Piston/Plunger Dosing Pump
Part Number: YD150AP

Performance & Flow Rates

Maximum Flow Rate: 150 L/h (at 50 Hz)

Maximum Pressure: 10 bar

Stroke Rate (Motor-driven): 120 strokes/min (at 50 Hz), approx. 122 strokes/min (at 60 Hz)

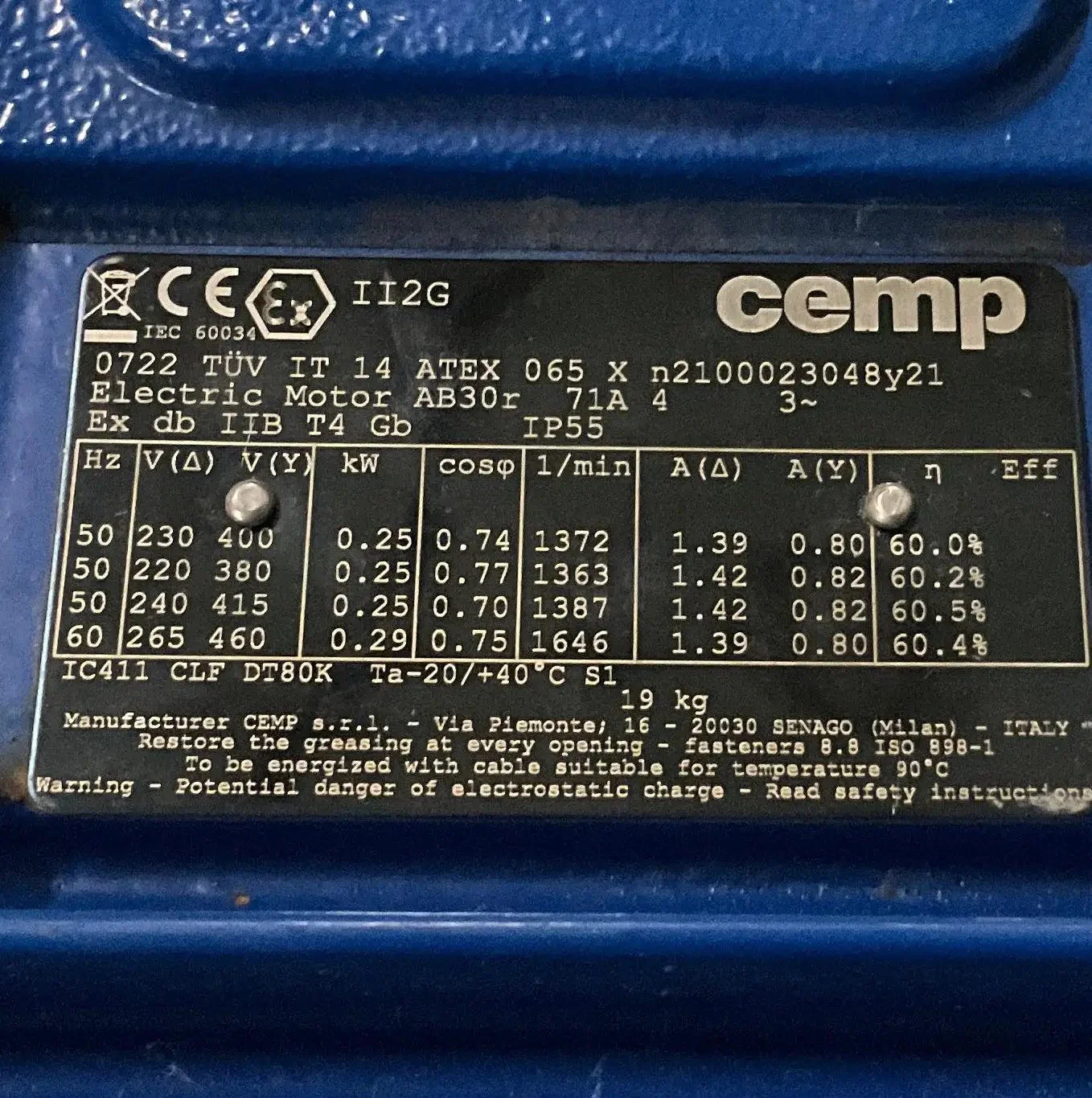

Motor & Power

Standard Motor Power: 0.29kW, 1400 rpm (three-phase TEFC)

Electrical Supply: 400 VAC 3-phase

Motor Rating: IP55 protection; Insulation Class F

Wetted Parts & Materials

Pump Head Options: AISI 316L stainless steel

Diaphragm: NBR/PTFE composite

Housing: Die-cast aluminum with epoxy/acid-resistant coating
