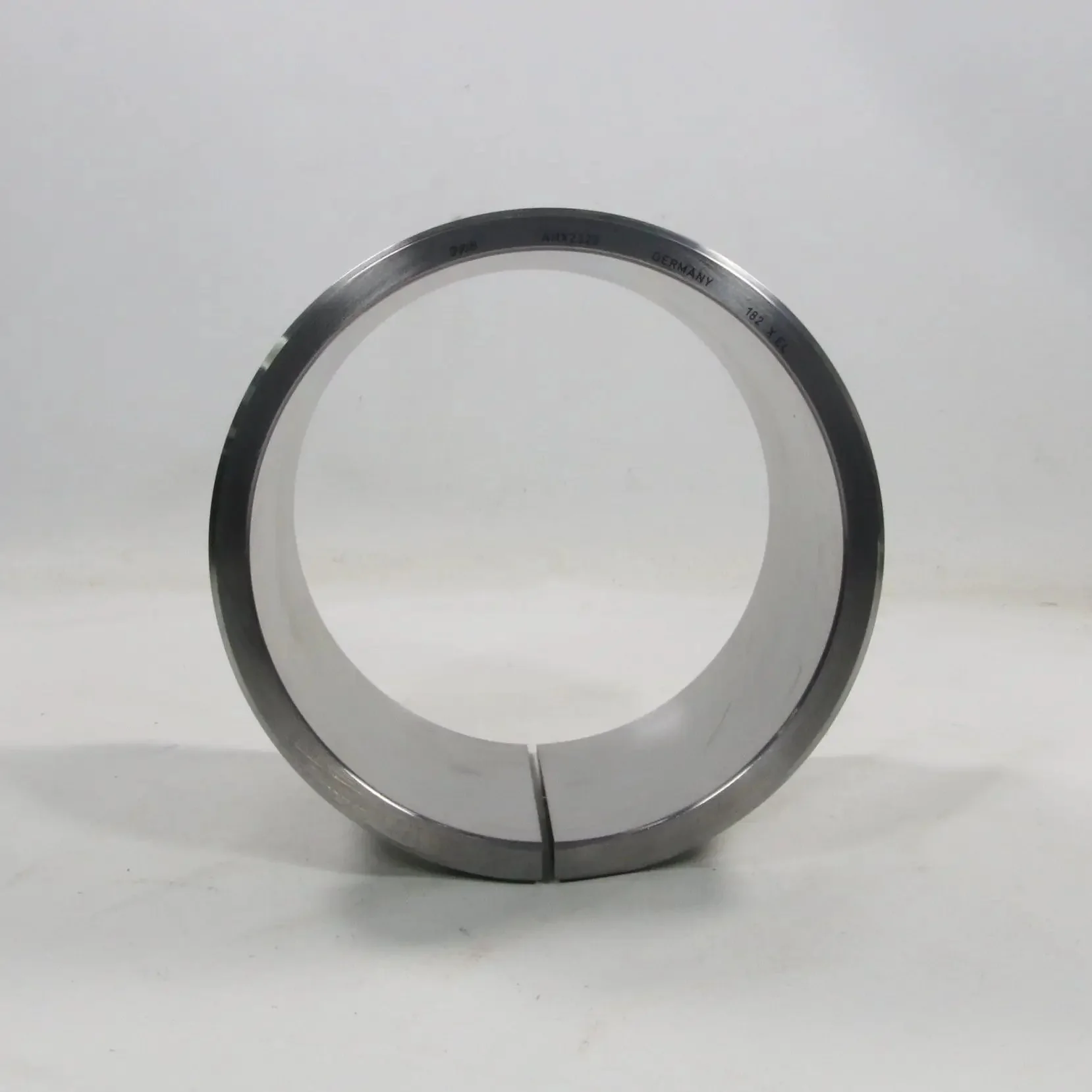

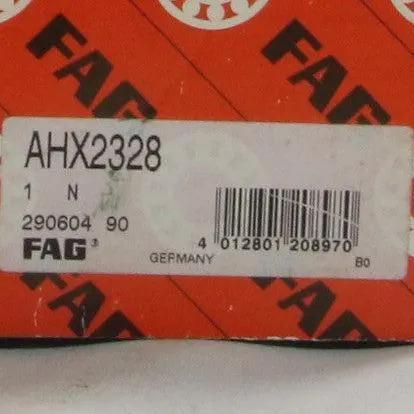

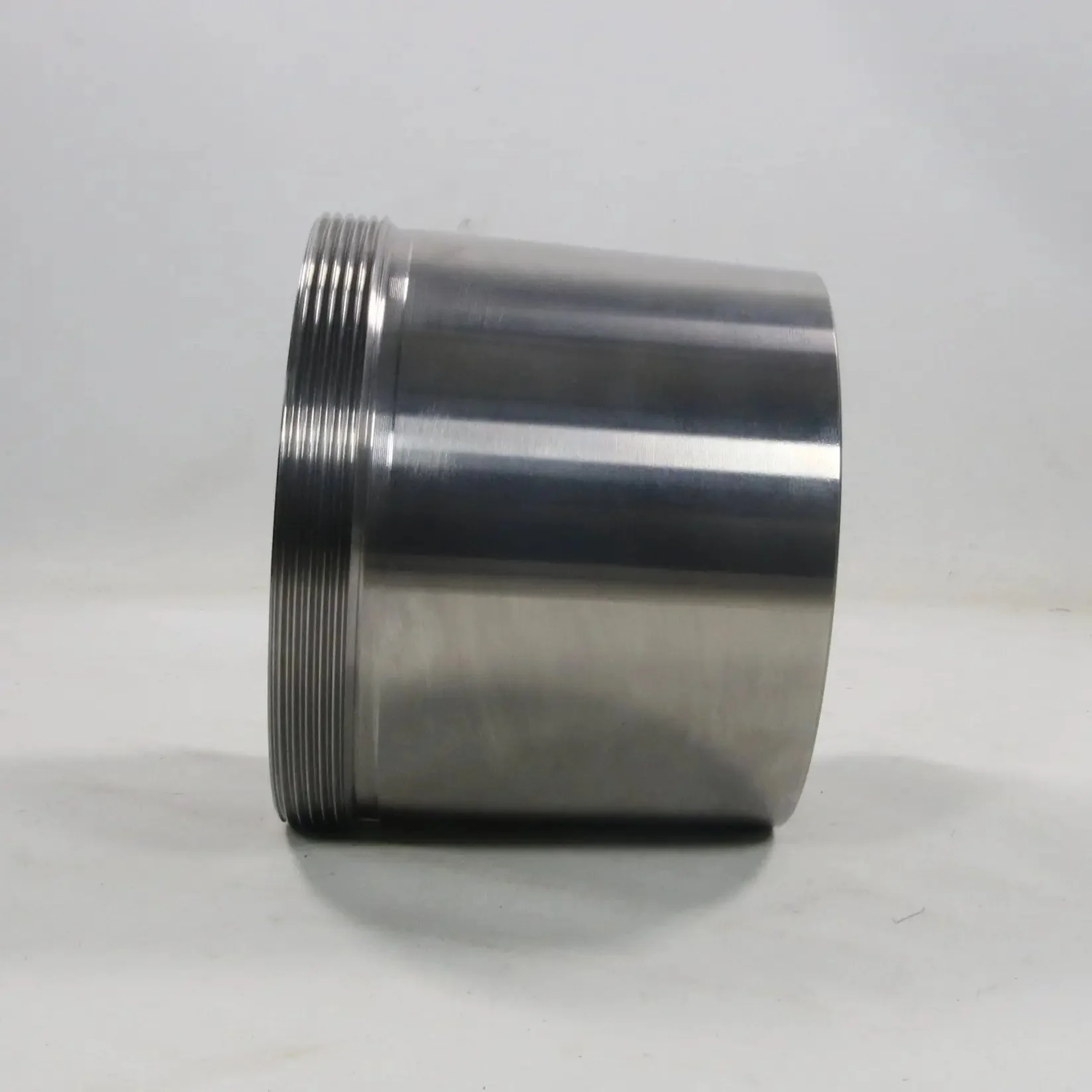

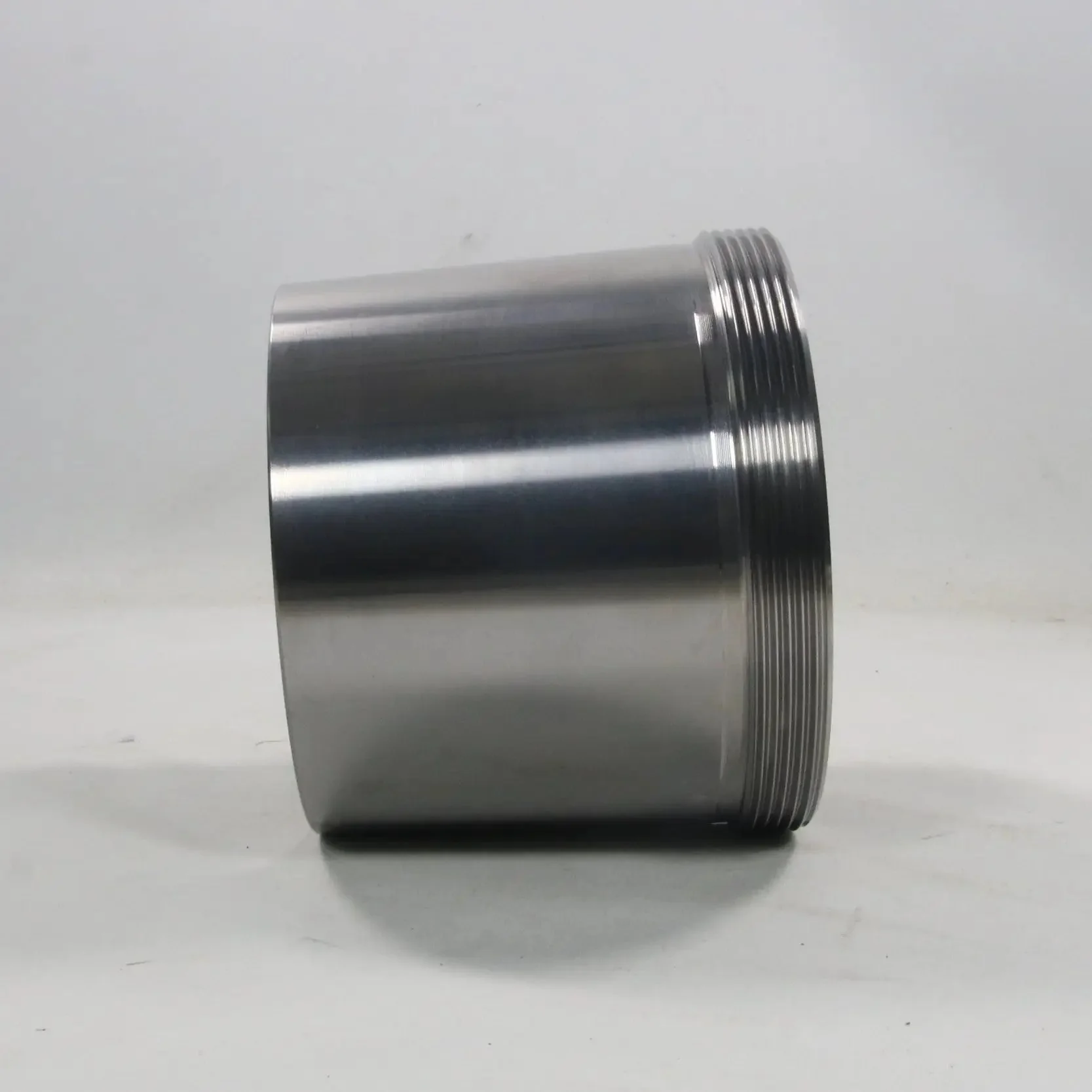

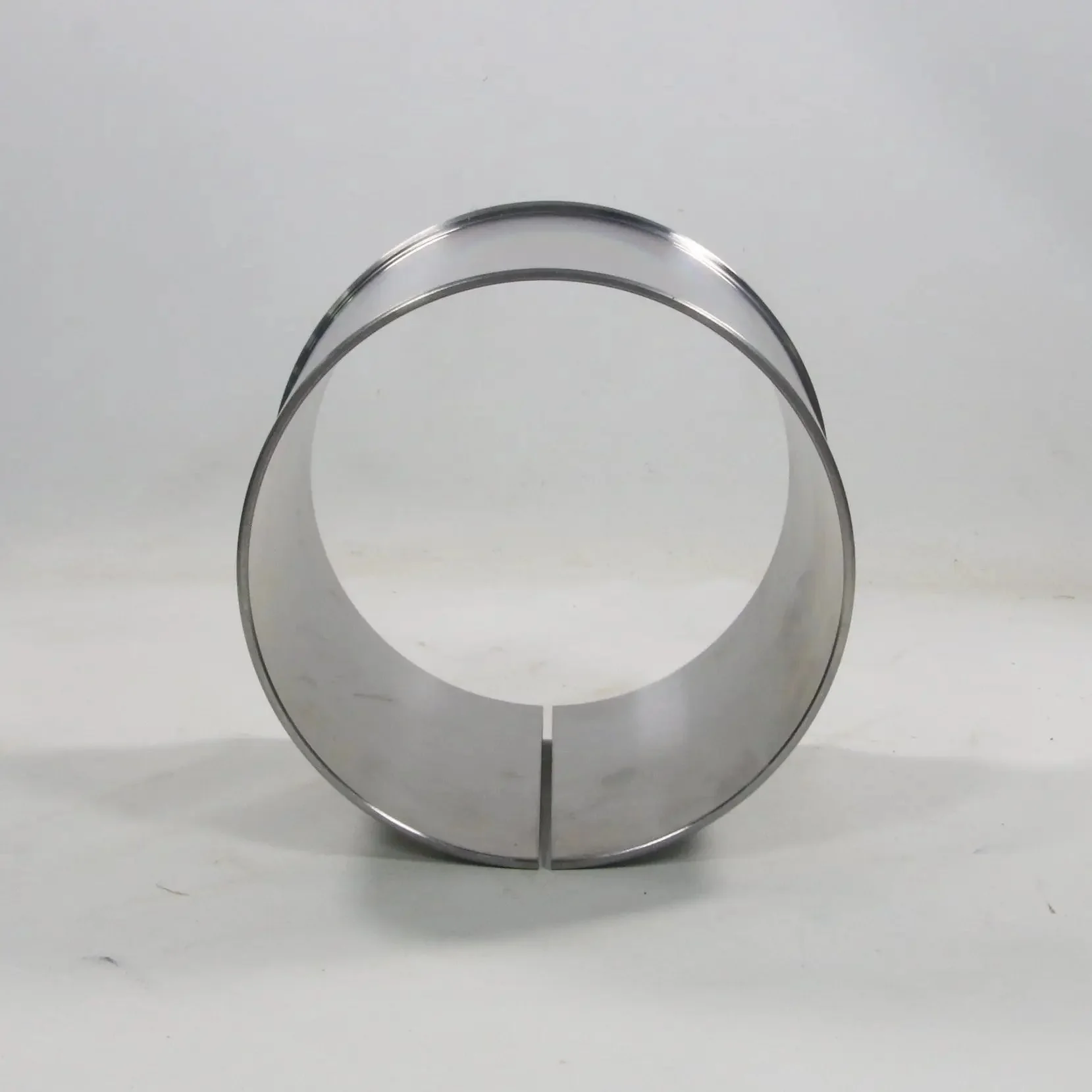

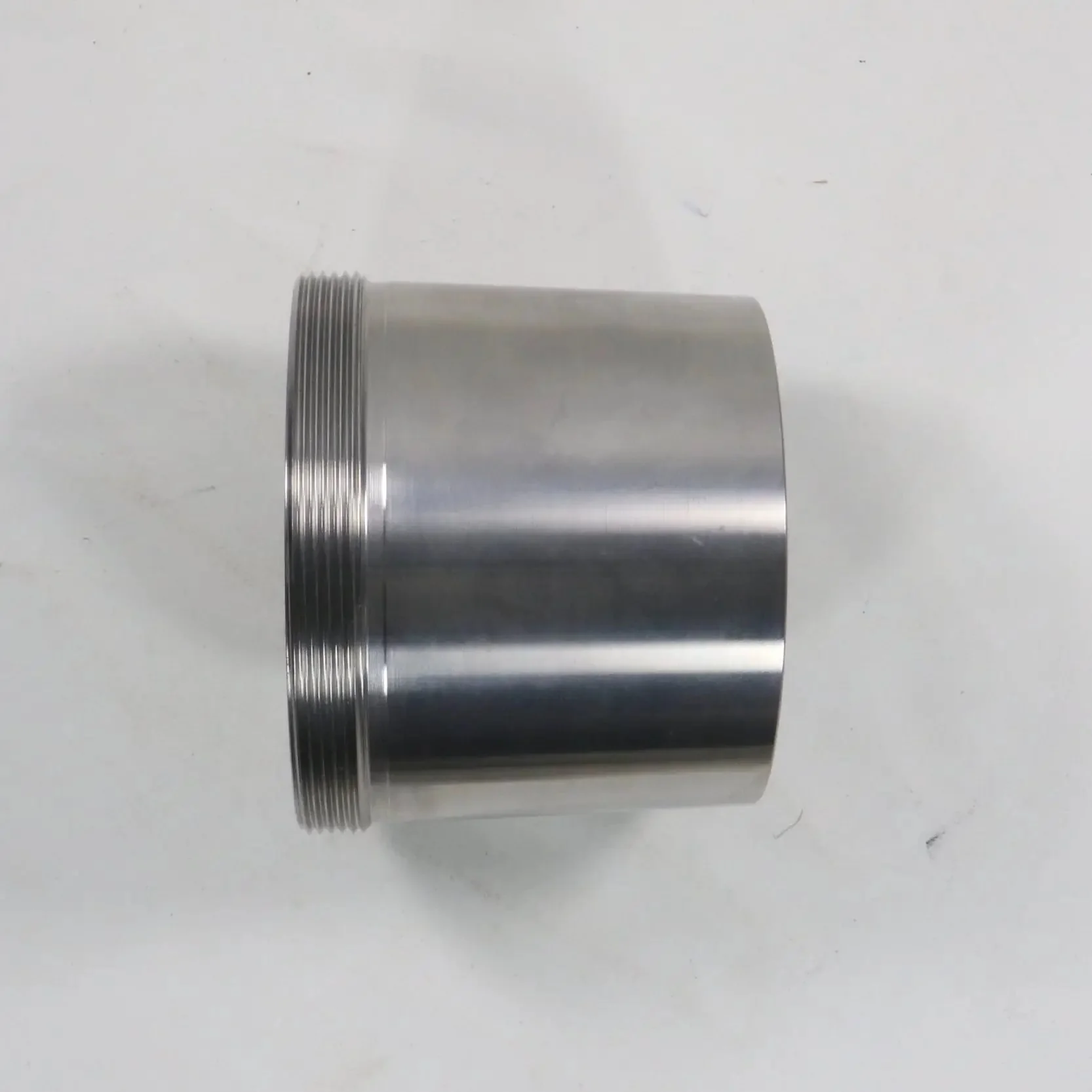

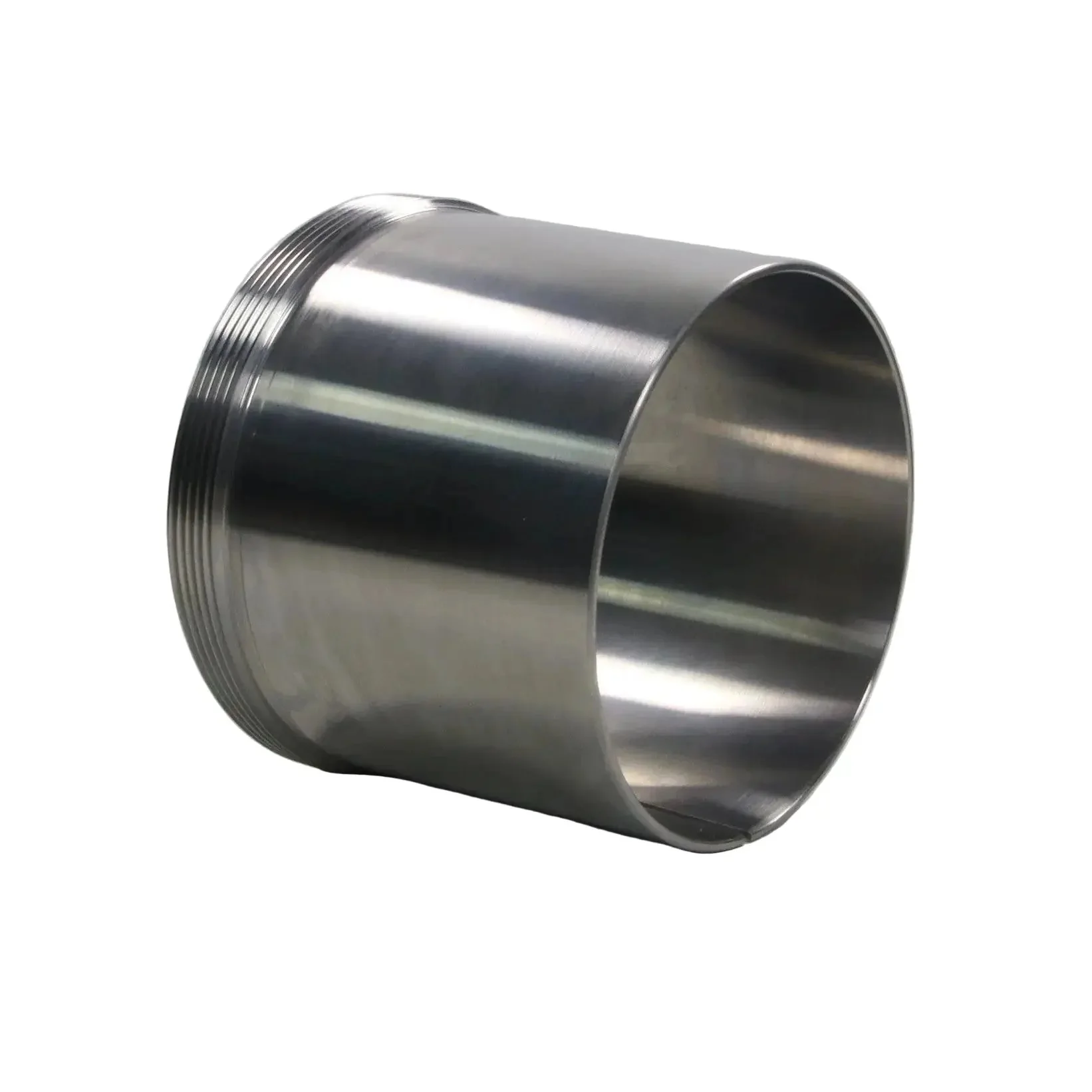

FAG AHX2328 Adapter Sleeve

- Brand: FAG (Schaeffler Group)

- Model: AHX2328

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: AHX2328

Technical specifications:
- Shaft diameter: 135 mm
- Taper: 1:12
- Sleeve length: 125 mm (B1 effective length)
- Thread size: M155 x 3
- Compatible bearings:
  - Spherical roller bearings: 22328 K, 23028 K, 23128 K, 23228 K, or similar
  - Self-aligning ball bearings: equivalents in tapered bore series
- Locknut: KM31 (not included)
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts); FAG/Schaeffler precision tolerances

Weight: 2.5 kg

Dimensions: 150 diam. x 125 mm

Country of origin: Germany

HS code: 8482.99
