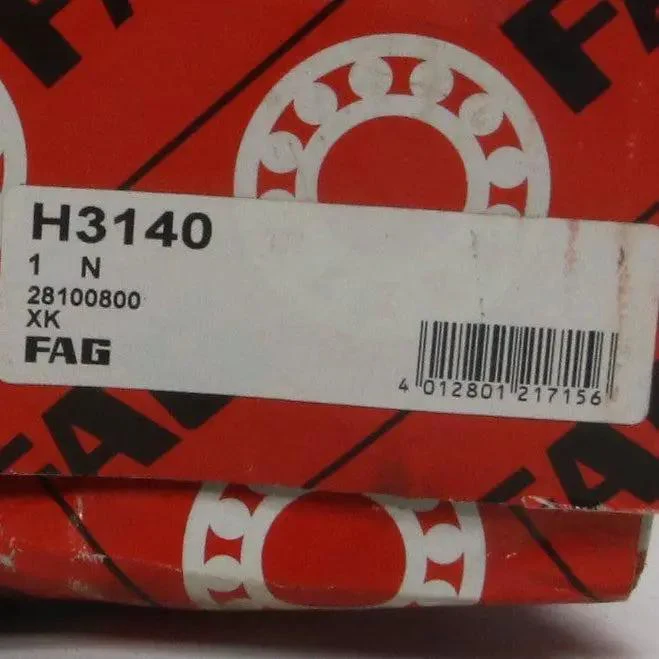

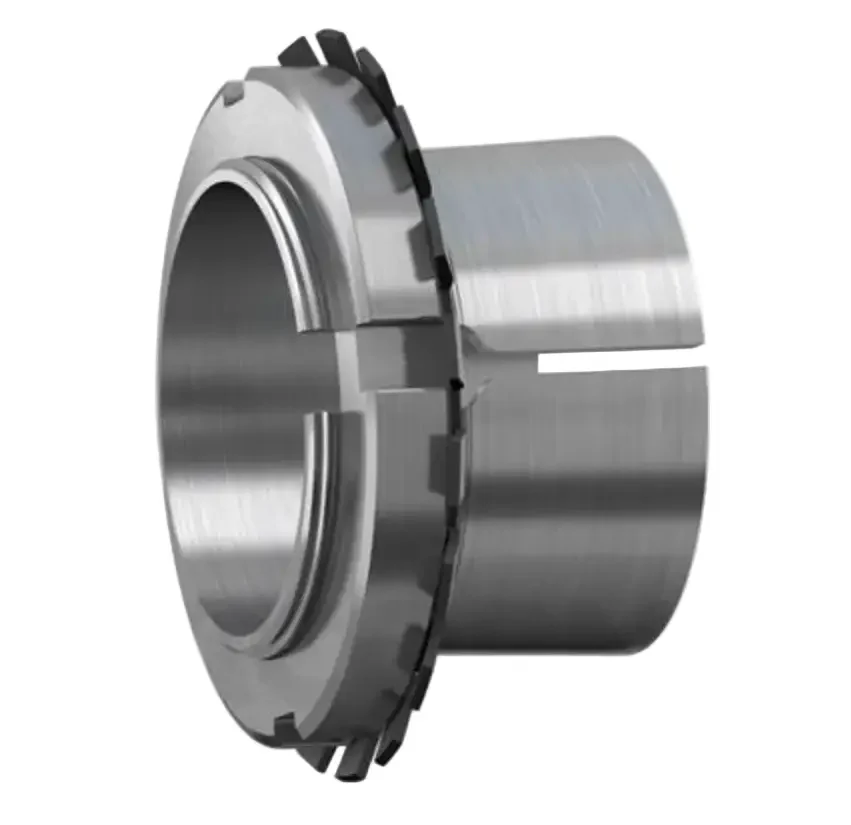

FAG H3140 Adapter Sleeve

- Brand: FAG (Schaeffler Group)

- Model: H3140

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: H3140; (H3140 + M200 locknut)

- Technical specifications:
- Bore diameter: 180 mm
- Taper: 1:12
- Sleeve length: 150 mm
- Compatible bearings:
  - Self-aligning ball bearings: equivalents in tapered bore series
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts)

Weight: 12.80 kg

Dimensions: 250 dia. x 150 mm

Country of origin: Germany

HS code: 8482.99
