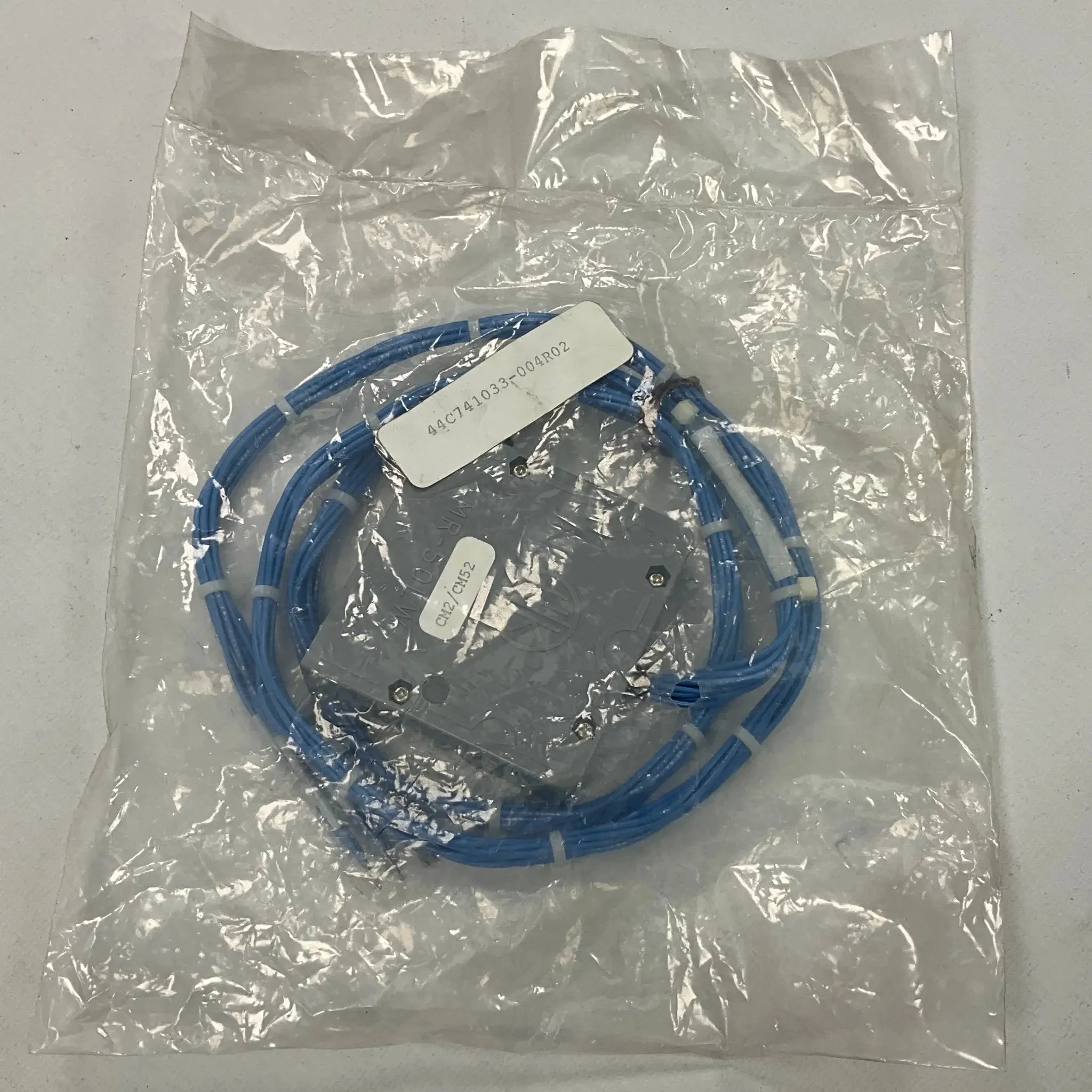

GE Fanuc Cable Assembly 44C741033‑004R02 – 10‑Wire with MR‑50LW Connector

Brand: GE Fanuc

Part Number: 44C741033‑004R02

Type: Cable Assembly

Wire Count: 10 individually insulated conductors

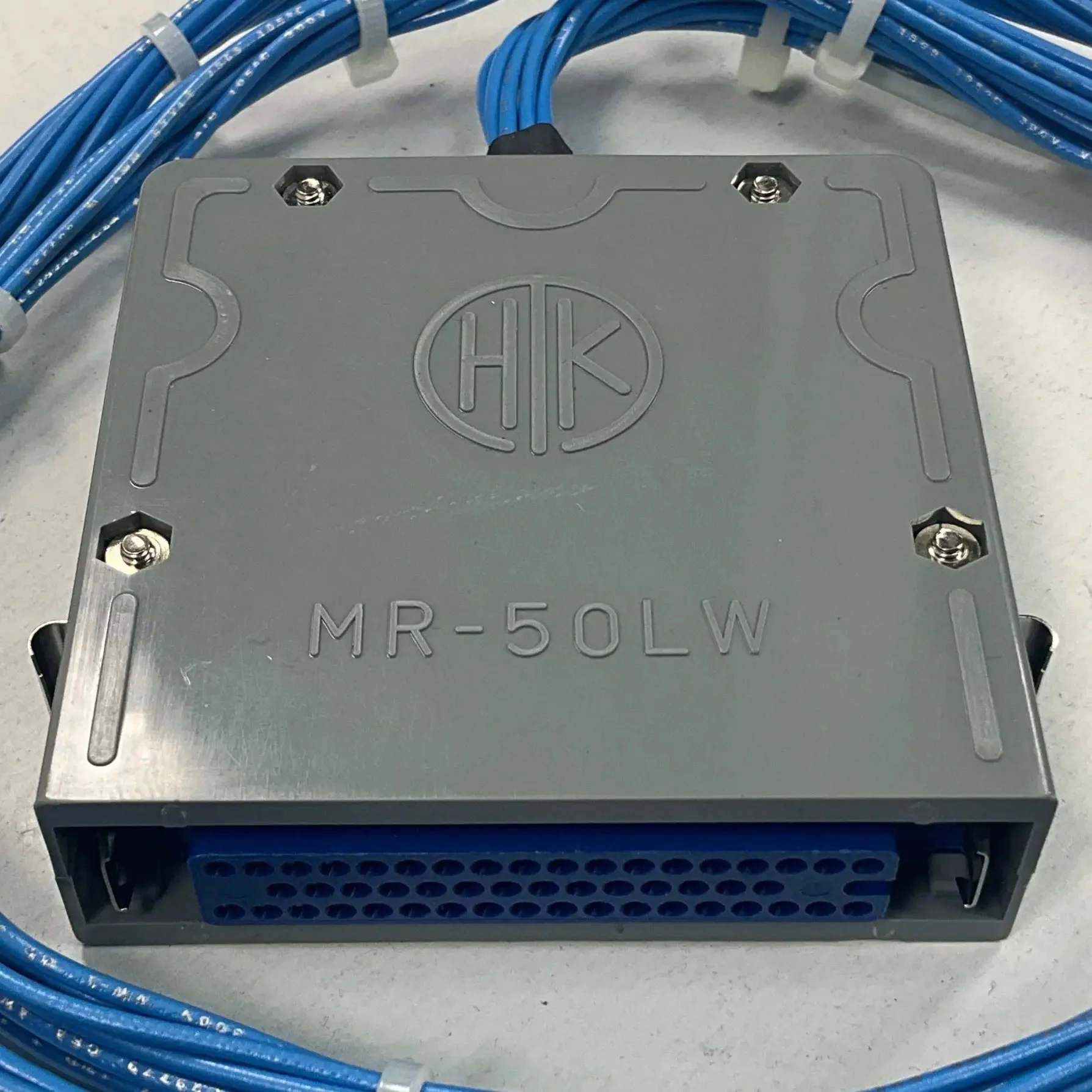

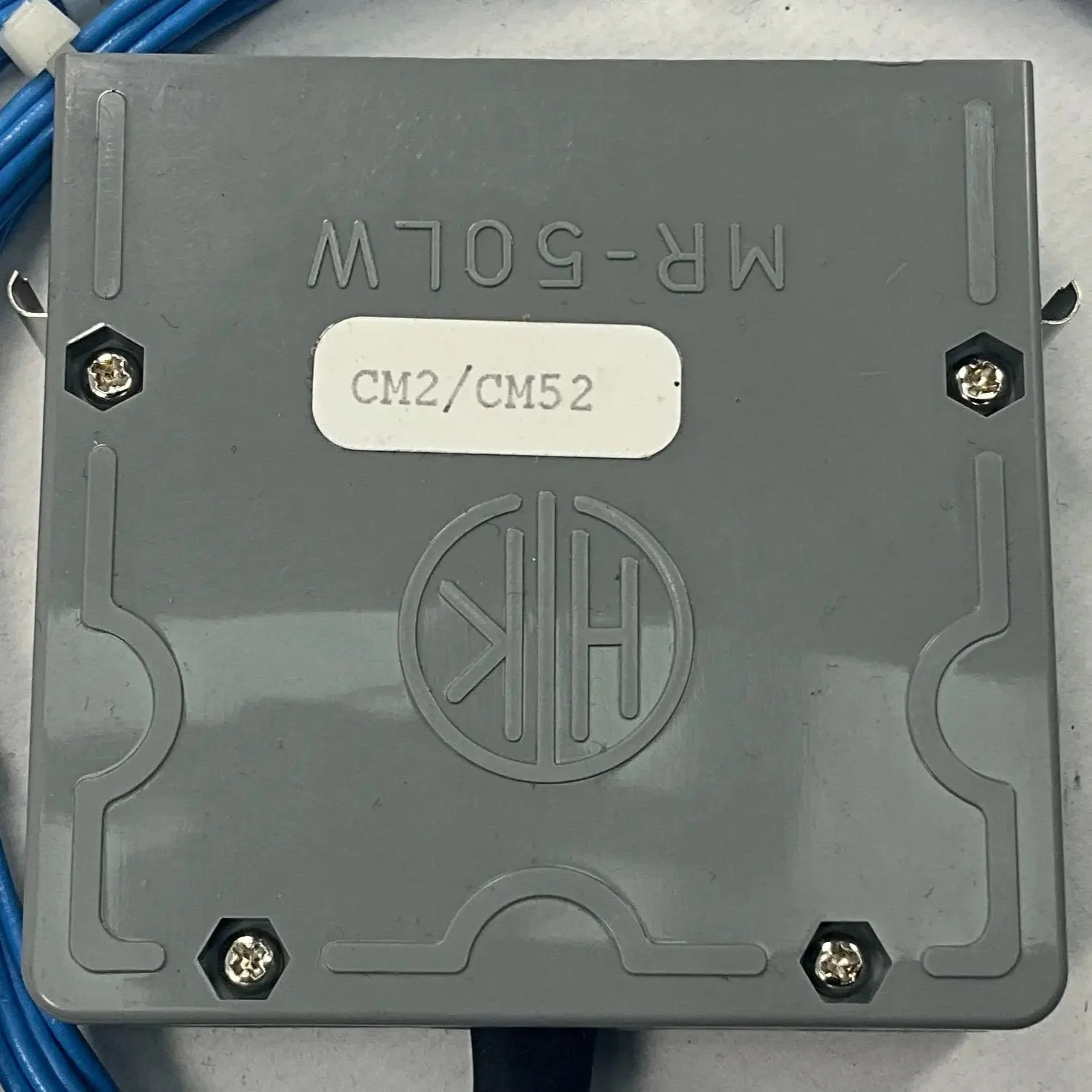

Connector Housing: MR‑50LW dual-orientation (vertical/horizontal) 50-pin housing

Application: Ideal for Fanuc systems, custom cable harnesses, or partial-signal assemblies

Fanuc Compatibility: Designed to mate with MR‑50RMA male connectors on Fanuc modules

Rated Current: Up to 3 A per contact

Rated Voltage: Up to 300 VAC

Contact Resistance: ≤ 5 mΩ

Insulation Resistance: ≥ 1,000 MΩ

Dielectric Withstand: 1,000 VAC for 1 min

Operating Temperature Range: –55 °C to +85 °C (industrial‑grade range)
