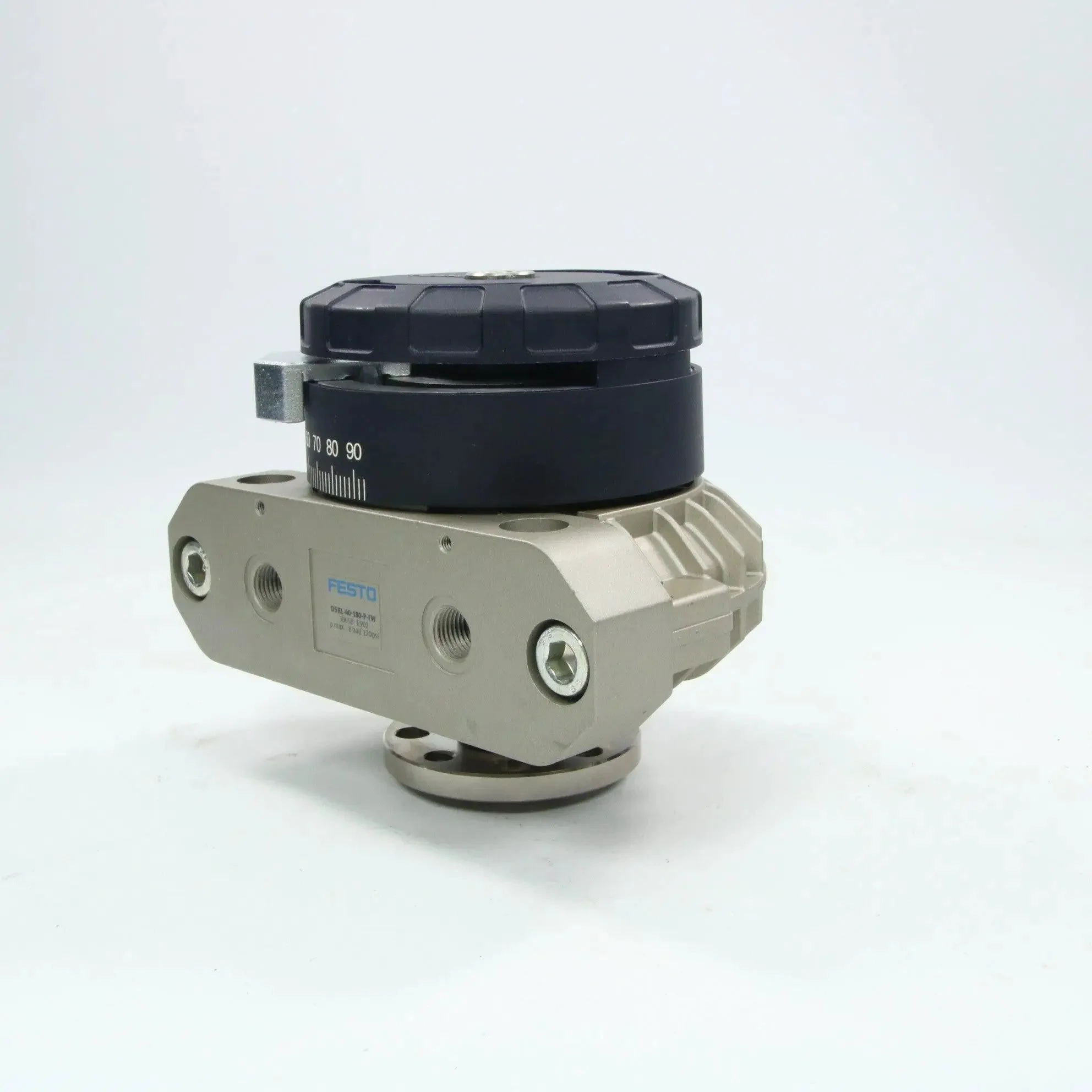

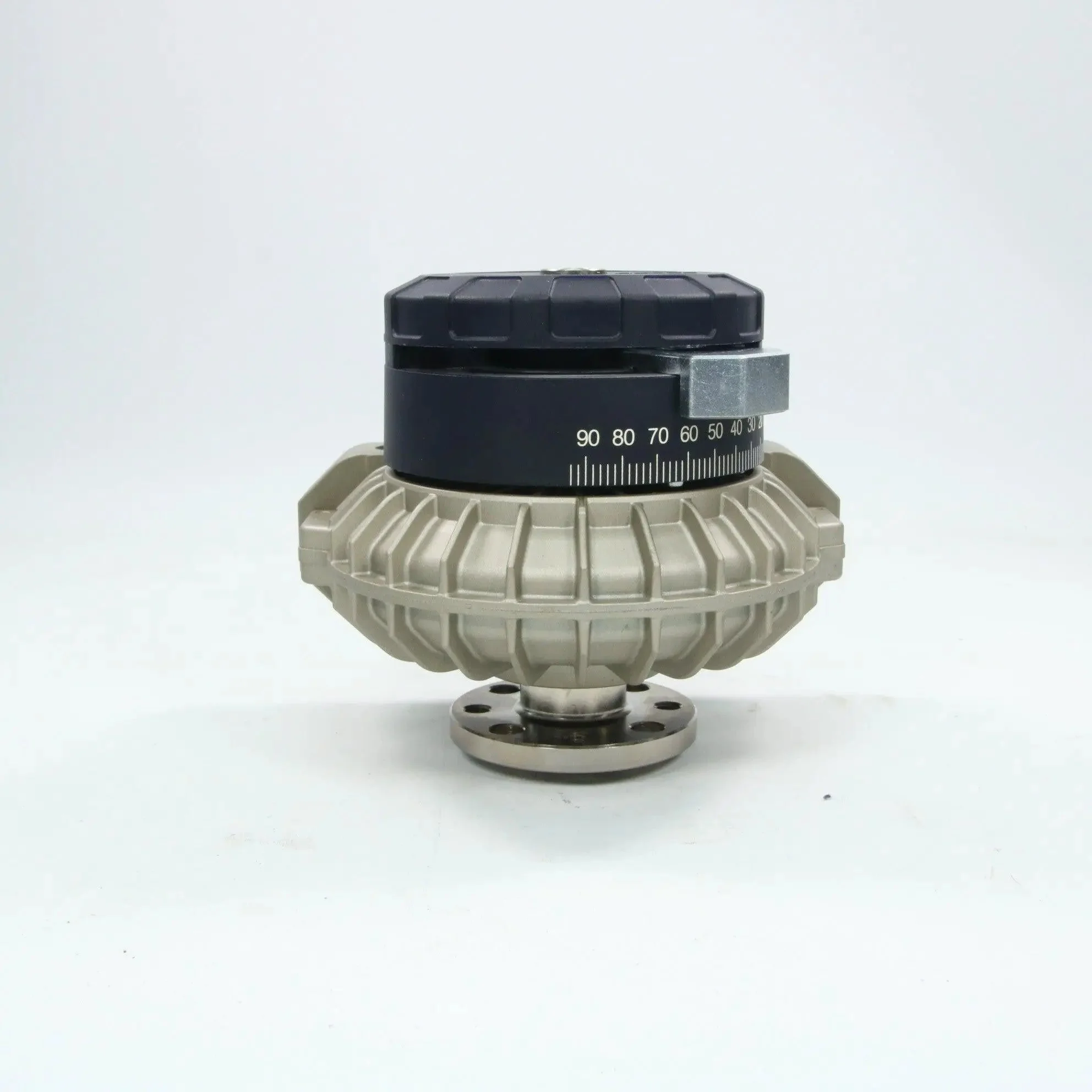

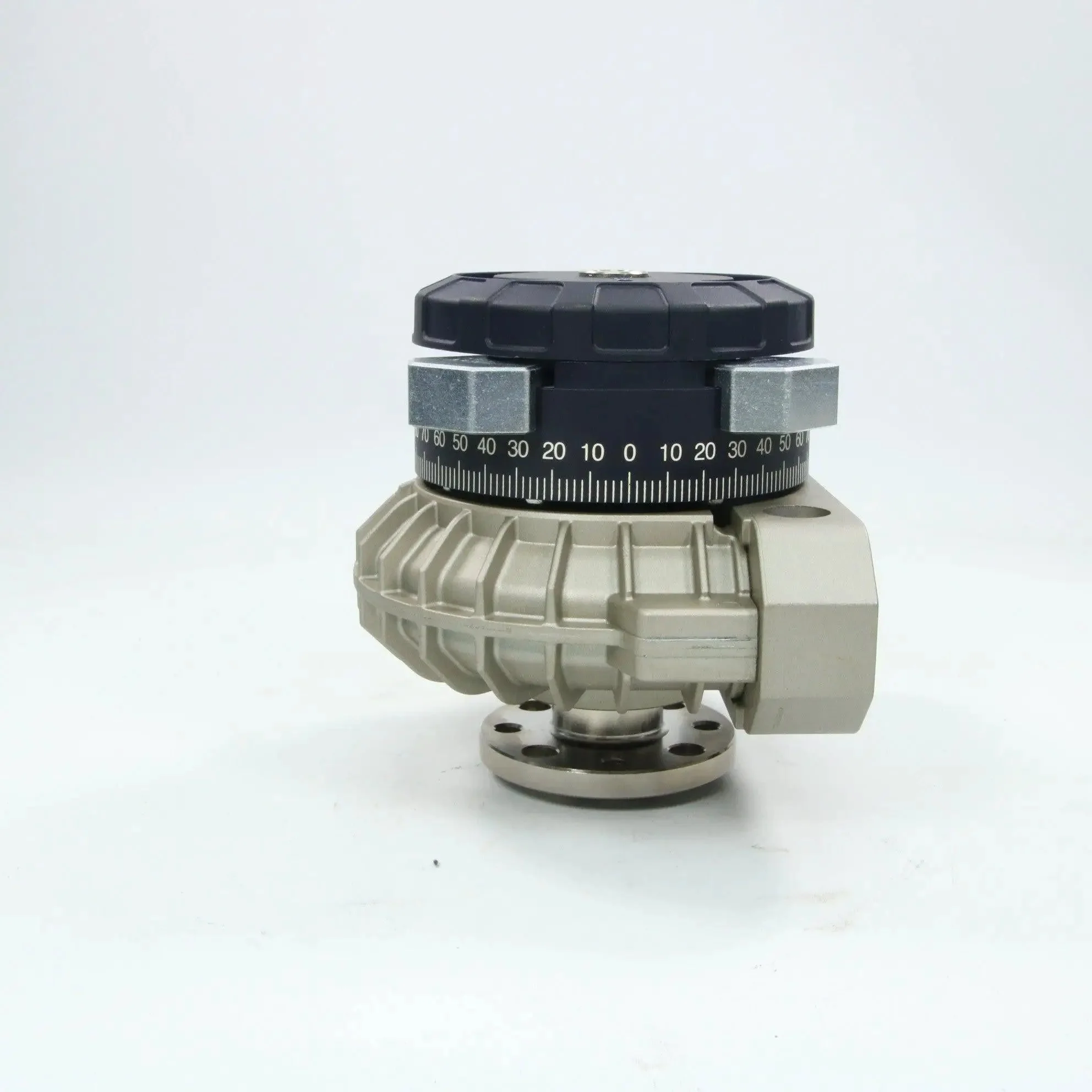

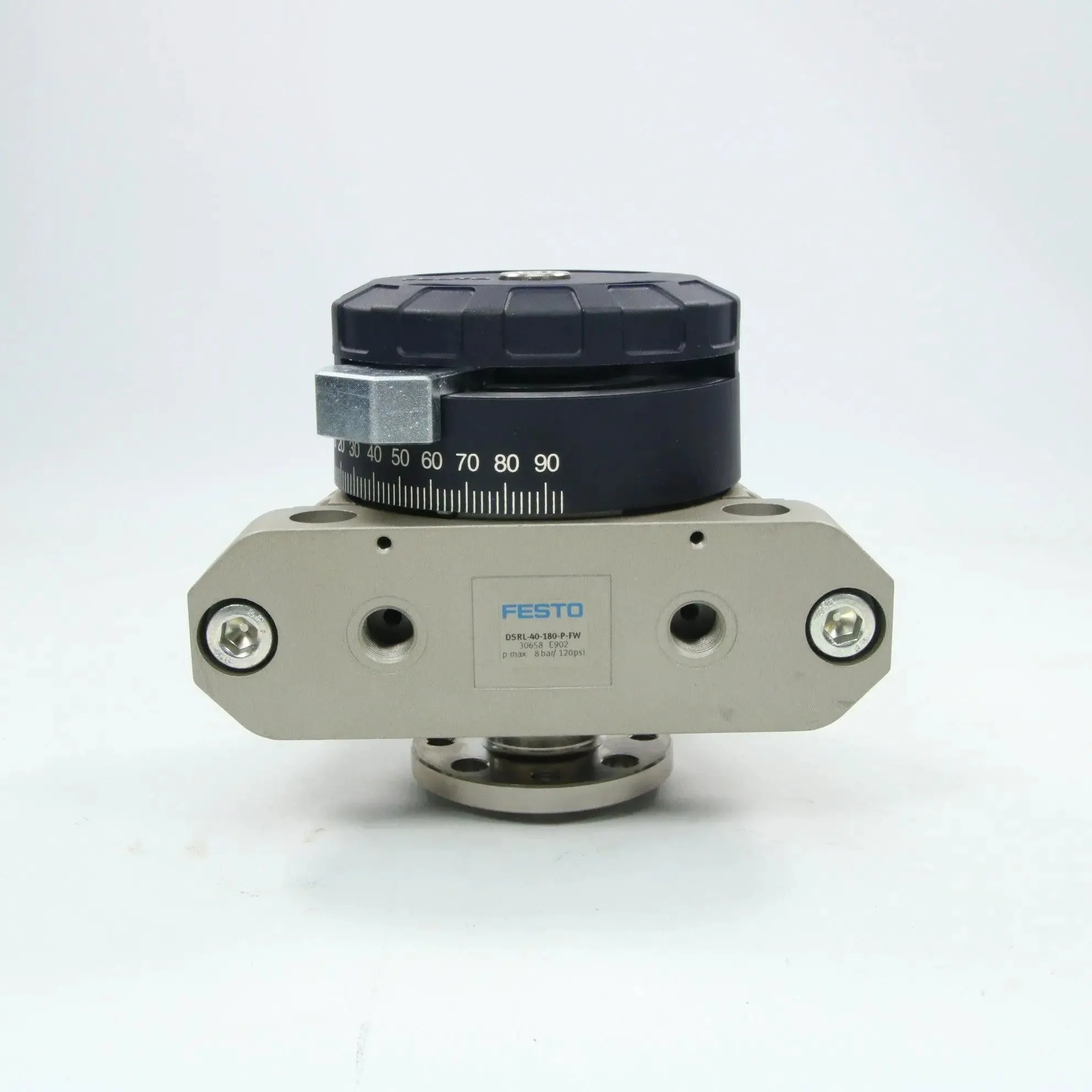

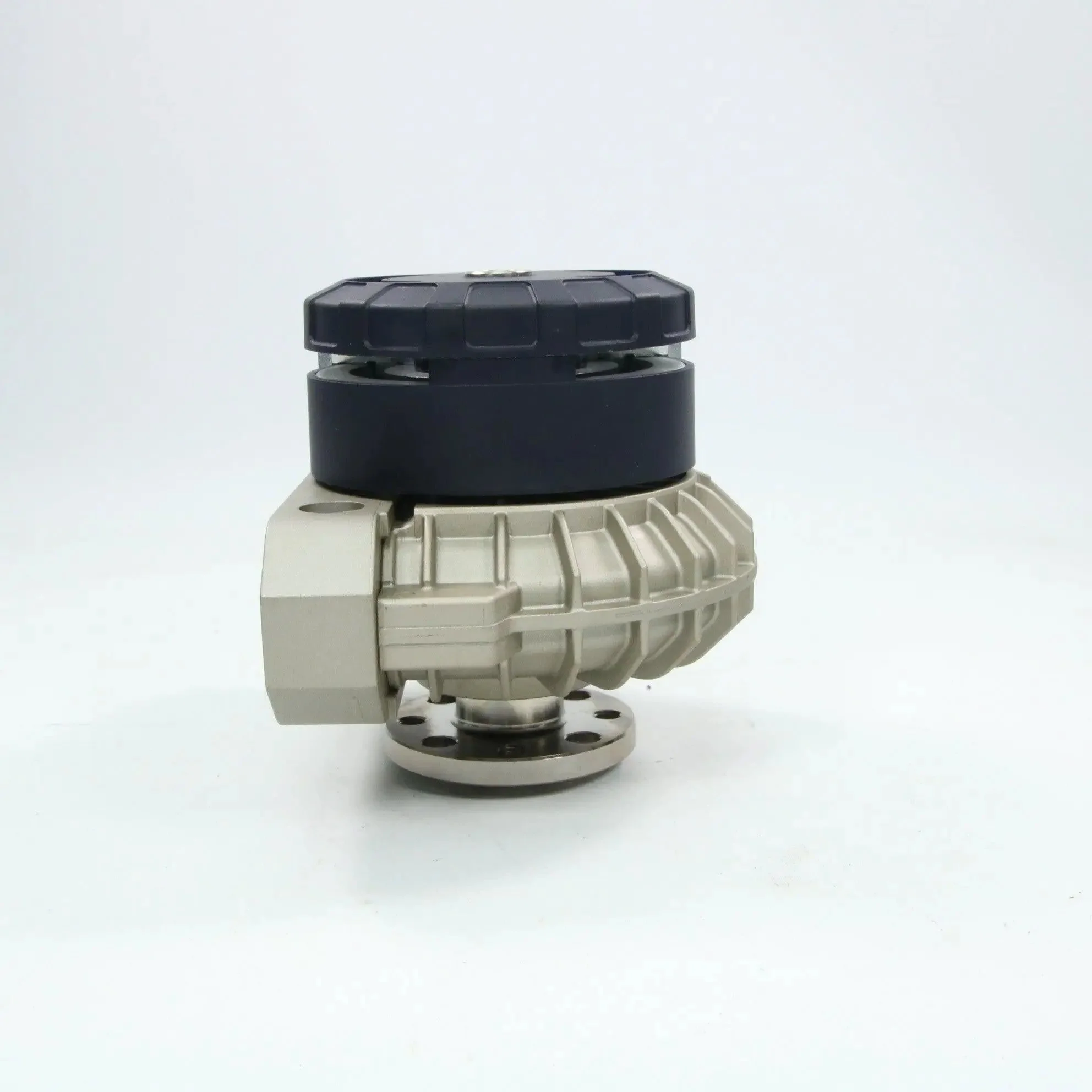

Festo Semi-Rotary Drive DSRL-40-180-P-FW

Festo Semi-Rotary Drive DSRL-40-180-P-FW

• Size: 40
• Cushioning angle: 0.9 deg
• Rotation angle adjustment range: 0 deg ... 180 deg
• Swivel angle: 0 deg ... 180 deg
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting position: optional
• Mode of operation: Double-acting
• Design: Vane
• Position detection: Without
• Symbol 00991265 Operating pressure: 1.5 bar ... 8 bar
• Max. swivel frequency at 0.6 MPa (6 bar, 87 psi): 3 Hz
• Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
• Ambient temperature: -10 °C ... 60 °C
• Theoretical torque at 0.6 MPa (6 bar, 87 psi): 20 Nm
• Product weight: 2400 g
• Type of mounting: With through-hole Pneumatic connection G1/4
• Material drive shaft: Steel, Nickel-plated
• Material seals: NBR
